Hpe D6020 12Gb/S Dual I/O Module Disk Enclosure | K2Q28A

Name: Hpe D6020 12Gb/S Dual I/O Module Disk Enclosure | K2Q28A
Brand: HPE
SKU: K2Q28A
Availability: InStock

HPE

| Disk Shelves |

K2Q28A

.price-ui--loading { display: block !important; opacity: 1 !important; }

Configure for Pricing

Multi-Quantity Discounts Available for ALL Line Items

** LARGE DISCOUNTS available for complete systems. Pricing displayed is for single item purchases **

Use the configuration tool to create your solution and submit it us for a quote OR send us a message with your complete build requirements to receive best pricing

READ ME

Some options may not be displayed until the compatible parent option is chosen ie. Chassis – Drives, Processor – RAM etc.
“Quote” items can be added to your cart and sent to us via the cart page
Click the blue bar to close/open a section from view after choosing your options

HPE D6000 Disk Shelf Chassis

Hpe D6000 Disk Enclosure Chassis | 654218-001 Quote

Blanks (Optional)

HPE recommends filling in all the empty slots. The drive slots, as well as the I/O modules slots in the rear of the chassis.

HPE Large Form Factor (LFF) HDD Blank Kit | 389015-001 Quote HPE D6000 I/O module blank | 463756-001 Quote

Cable Kit (Optional)

Cables to be used for connecting D6020 with the HPE Smart Array P441, P841, P741m and H241 HBA (HD connector)

HPE 4x miniSAS-HD to 4x miniSAS-HD External 4.0M (13Ft) Cable | 716199-B21 Quote HPE External 2.0M (6Ft) miniSAS-HD 4X to miniSAS-HD 4XCable (691970-003) | 716197-B21 Quote HPE External 1.0M (3Ft) miniSAS-HD 4X to miniSAS-HD 4XCable (717432-001) | 716195-B21 Quote

Module Kits (Optional)

This Base system comes with 2 I/O Modules.
Add K2Q23A option kit to K2Q28A when using dual-ported SAS drives to create a dual domain environment.

HPE D6020 Disk Enclosure Dual I/O Module Kit | K2Q23A Quote HPE D6000 I/O module blank | 463756-001 Quote

HPE LFF Drives SAS (3.5in)

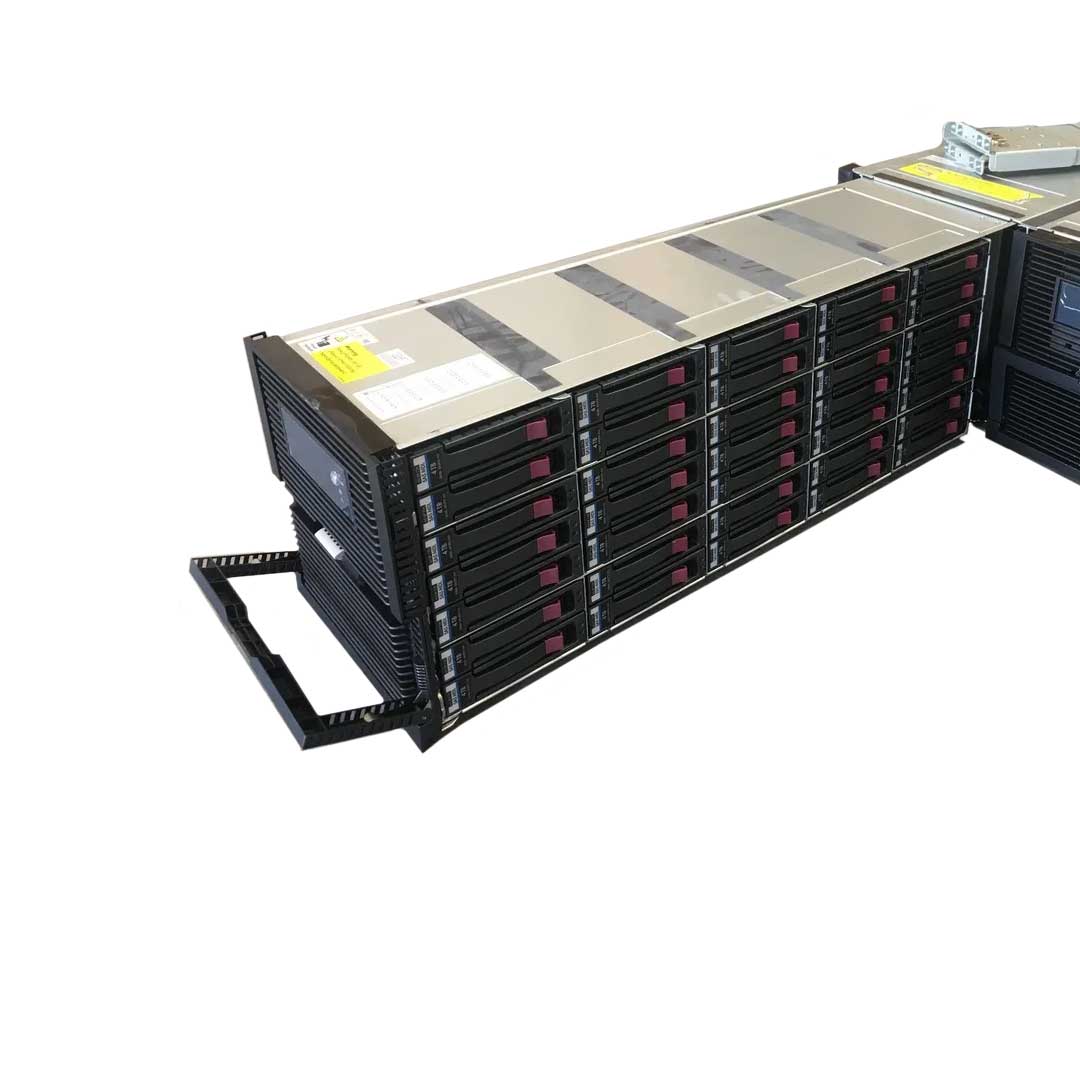

Supports up to 70 SAS Drives.

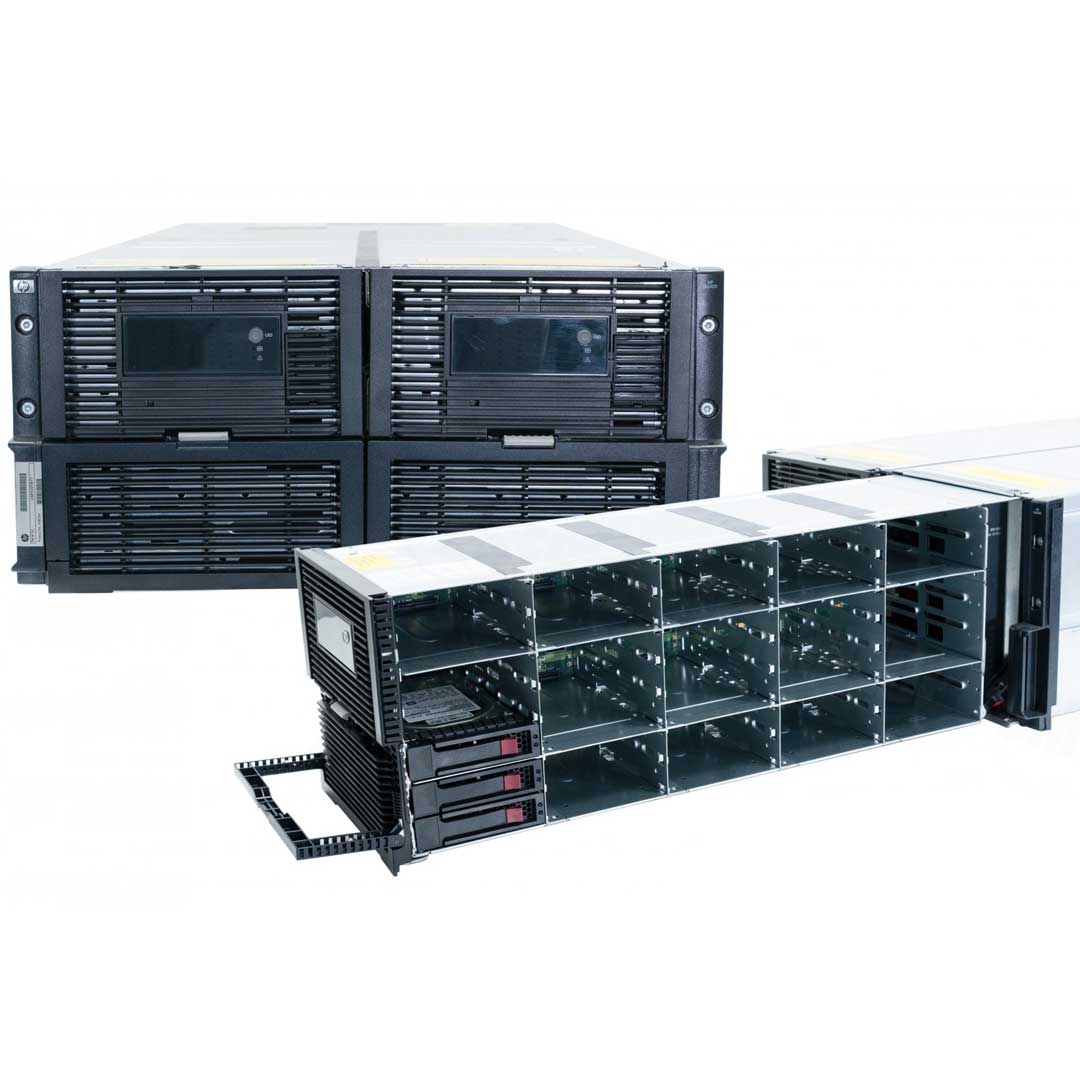

35 SAS HDD or SSD Drive Per Drawer.

HPE 2.5" 1.6TB SAS 12Gbps MU SSD w/ 3.5" Hyb Car Quote HPE 2.5" 800GB SAS 12Gbps MU SSD w/ 3.5" Hyb Car Quote HPE 3.5" 400GB SAS 12Gbps MU Converter Carrier SSD | P8Y58A Quote HPE 3.5" 4TB 7.2K SAS 6Gbps St 512e Spl HDD | 864919-001 Quote HPE 3.5" 4TB 7.2K SAS 6Gbps ST 512e Spl HDD Quote HPE 3.5" 8TB 7.2K SAS 12Gbps Midline 512e (DS) HDD | 858384-B21 Quote HPE 3.5" 10TB 7.2K SAS 12Gbps Midline Helium 512e (DS) HDD | P09151-B21 Quote HPE 3.5" 12TB 7.2K SAS 12Gbps Midline Helium 512e (DS) HDD | 881783-B21 Quote

Select Warranty

ECS-1-Year - ECS 1-Year NBD Parts Replacement Warranty *Included as Standard for USA Customers* $1.00 ECS-2-Year - ECS 2-Year NBD Parts Replacement Warranty (Ask for Quote) Quote ECS-3-Year - ECS 3-Year NBD Parts Replacement Warranty (Ask for Quote) Quote ECS-4-Year - ECS 4-Year NBD Parts Replacement Warranty (Ask for Quote) Quote ECS-5-Year - ECS 5-Year NBD Parts Replacement Warranty (Ask for Quote) Quote

Helpful Tip: Once desired configuration is selected click "Add to Cart".
From the cart page you can submit a submit a quote request for best pricing

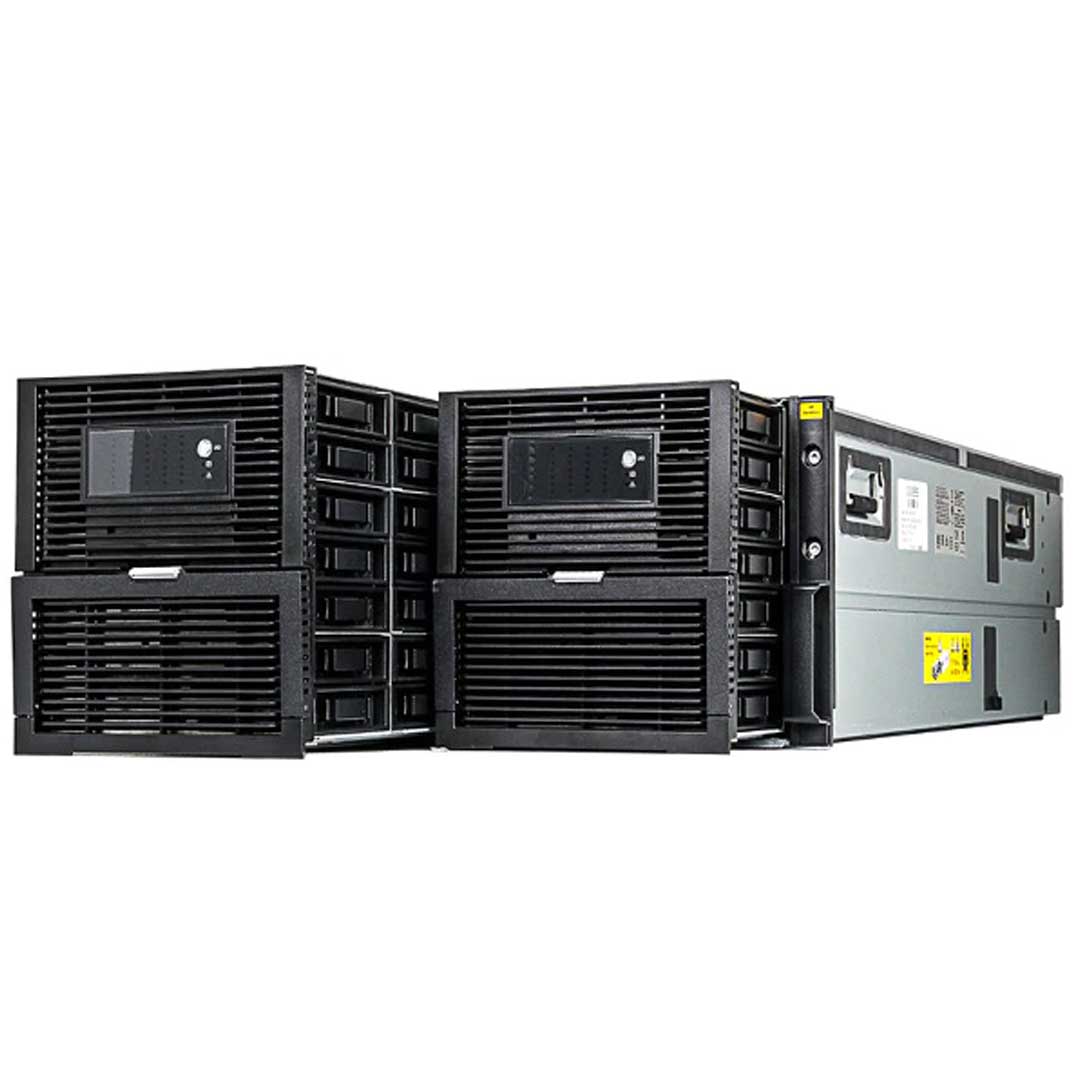

HPE D6020 Gen9 Base Knowledge
The HPE D6020 is a 12Gb/s SAS Disk Shelf that works with many Blades Sever and Switches. When referring to the Apollo 4500 Line. Only the HPE Apollo 4520 Rack Server can support the D6020 Disk Shelf. Up to 70 SAS, SAS MDL, or Solid State 3.5" hot-plug hard drives can be supported per D6020, or up to 210 drives when three D6020s are daisy-chained together. This D6020 Includes four redundant hot-plug fans and 4 hot-plug PSUs.

A single BladeSystem enclosure supports up to six D6020s externally.

Know your Server - CTO Configuration Support

Need help with the configuration? Contact us today!

Maximum Internal Storage
70 LFF Universal SAS, SAS MDL, and SSD drives in 5U

HPE Smart Storage Controllers
The D6020 supports Gen9 and Gen10 controllers. Please carefully read the quick specs PDF for each server to make sure it's compatible with this HPE D6020 DAS Disk Shelf

A dual-domain environment typically refers to a computing or IT infrastructure that is divided into two distinct domains or areas. Each domain operates independently with its own set of rules, security policies, user access rights, and administrative controls. The primary reasons for implementing a dual-domain environment are to enhance security and isolation between different types of data, applications, or user groups.

When you install the HPE D6020 Dual I/O Module Option Kit (K2Q23A) when using dual-ported SAS drives will be able to create a dual domain environment.

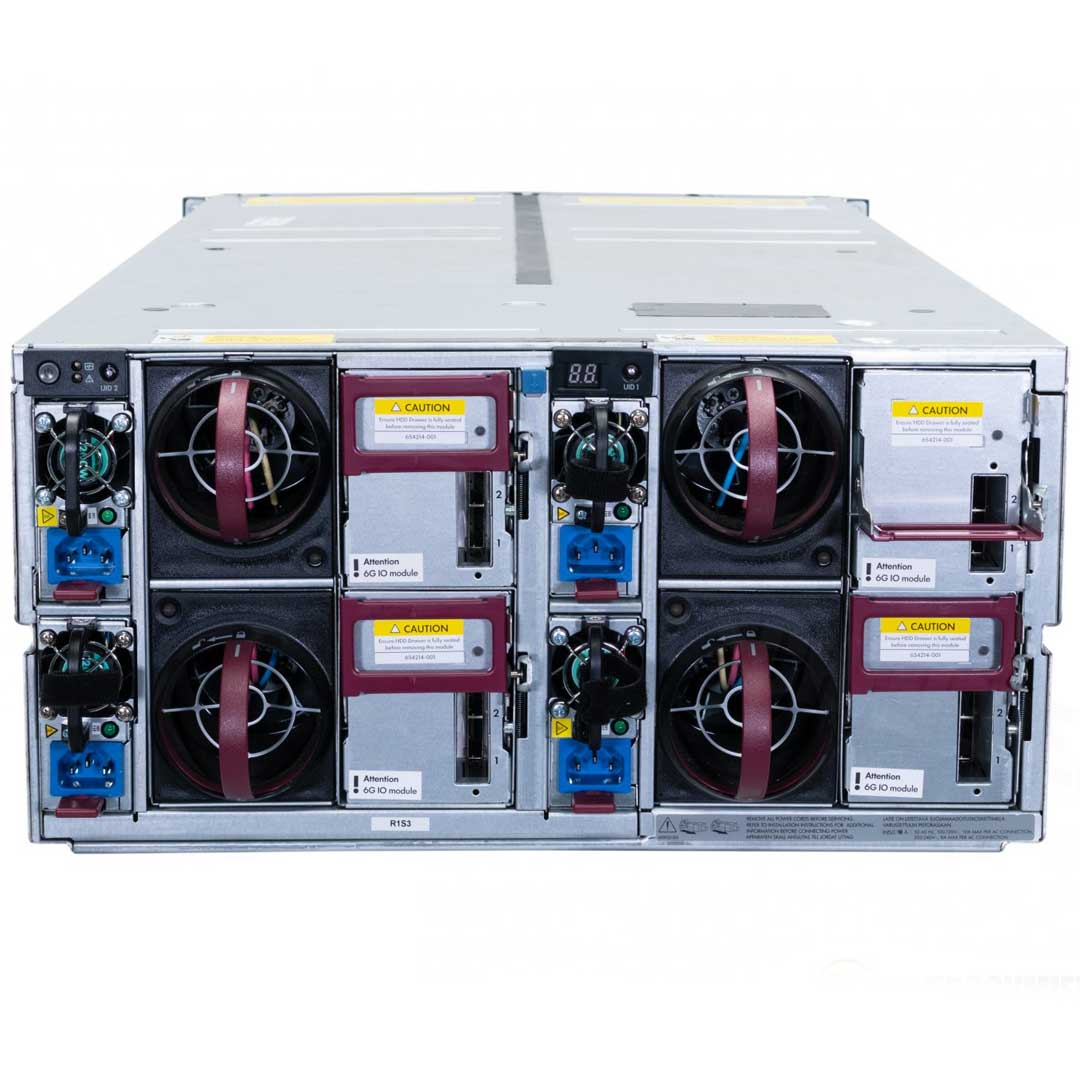

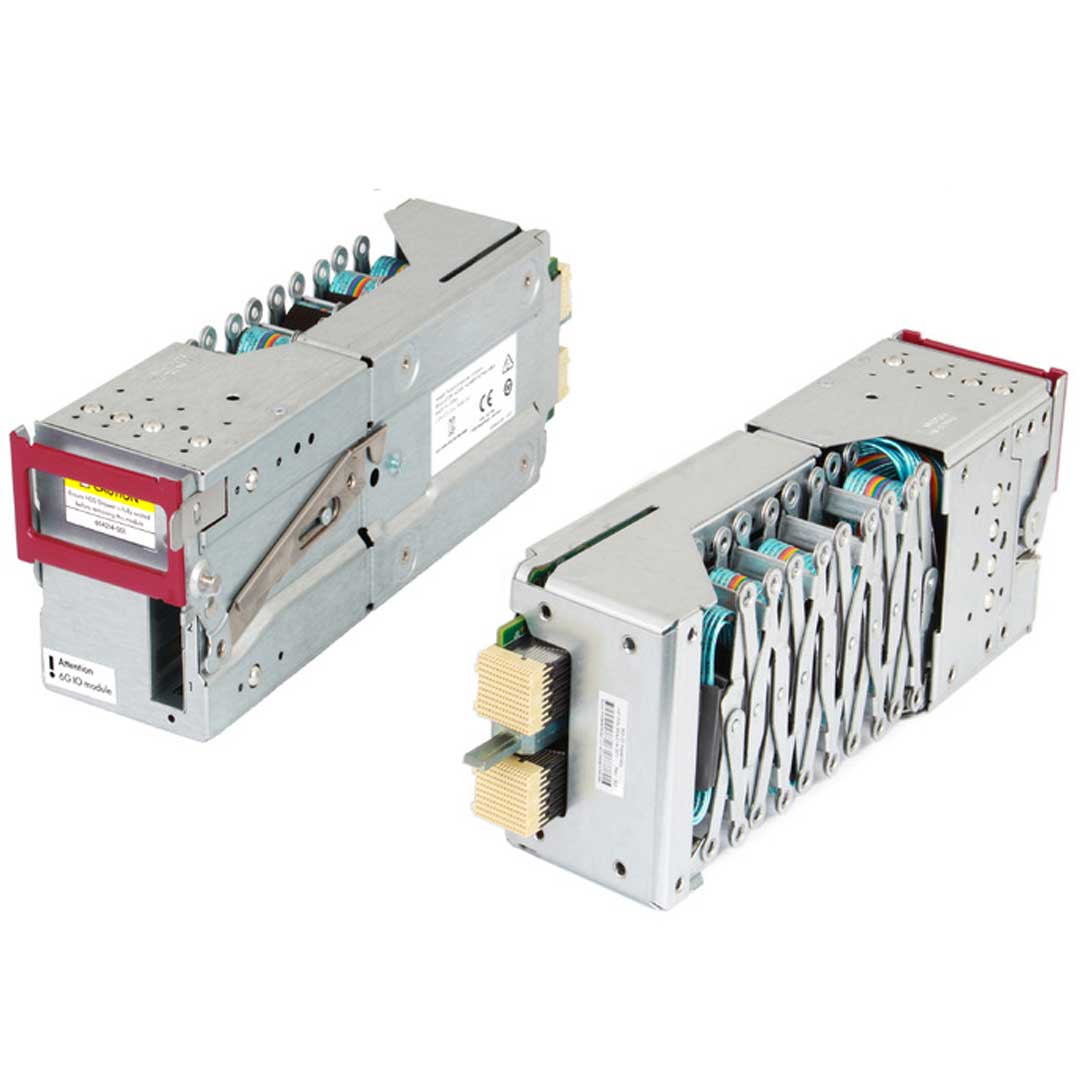

HPE D6020 Gen9 I/0 Ports
Each D6020 comes with 2 I/O Modules, add HPE D6020 Dual I/O Module Option Kit (K2Q23A) option kit to the K2Q28A when using dual-ported SAS drives to create a dual-domain environment.

HPE D6020 Gen9 Power and Cooling
The HPE D6020 Enclosure includes four hot-plug 1200W Common Slot power supplies for n+2 redundancy and four hot-plug fans for n+1 redundancy. The increasing power of new high-performance processor technology requires increased cooling efficiency for rack-mounted servers. The 10000 Series Racks provide enhanced airflow for maximum cooling, allowing these racks to be fully loaded with servers using the latest processors. A D6020 fully loaded with drives weighs 320 lbs. So, it is very important to get the correct rack to host the server.
