HPE DL360 Gen9 2SFF SAS/SATA Universal Media Bay Kit | 764630-B21

Name: HPE DL360 Gen9 2SFF SAS/SATA Universal Media Bay Kit | 764630-B21
Brand: HPE
SKU: 764630-B21
Availability: InStock

HPE

| Backplane Kit

.price-ui--loading { display: block !important; opacity: 1 !important; }

Contact For Pricing

Thanks for the request. We'll get back to you with in 24 hours.

-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.

-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

Accessories Specs

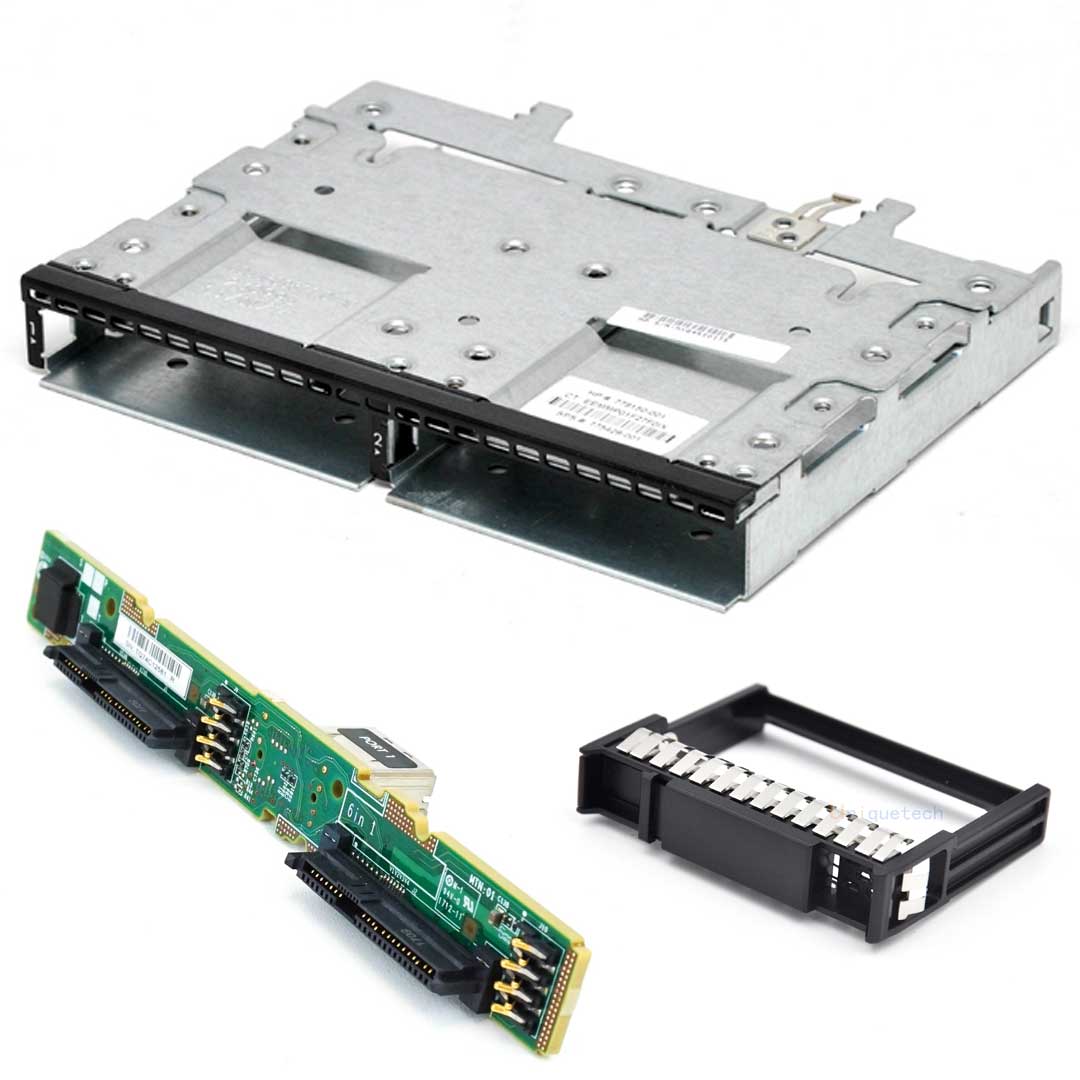

775428-001:
Flex-bay enclosure kit for two hard drives - Includes the two small form factor (SFF) hard drive cage (side by side), SATA hard drive backplane board, power cable 275mm (10.8 inches) long, and SATA HDD cable 430mm (16.9 inches) long

775401-001:
SAS/SATA backplane board - For the front 2-bay small form factor (SFF) hard drive cage - Up to 12Gbs transfer speed - Optional board for configurations requiring more than eight hard drives and no optical drive - Mounts on the rear of the drive cage

NOTE::
Required when upgrading from an 8SFF config to a 10SFF config.
This option kit is not supported on the 4LFF Chassis.
This option kit cannot be used with the DVD-ROM or DVD-RW Universal Media Bay option kits. They take up the same slot.
This kit contains a cable to attach the 2 drives to the internal B140i SATA controller.
For SAS, an alternate storage controller and its associated cable kit is required.

Compatible With:

HPE DL360

(Click to View)
