SKU: P15735-B21

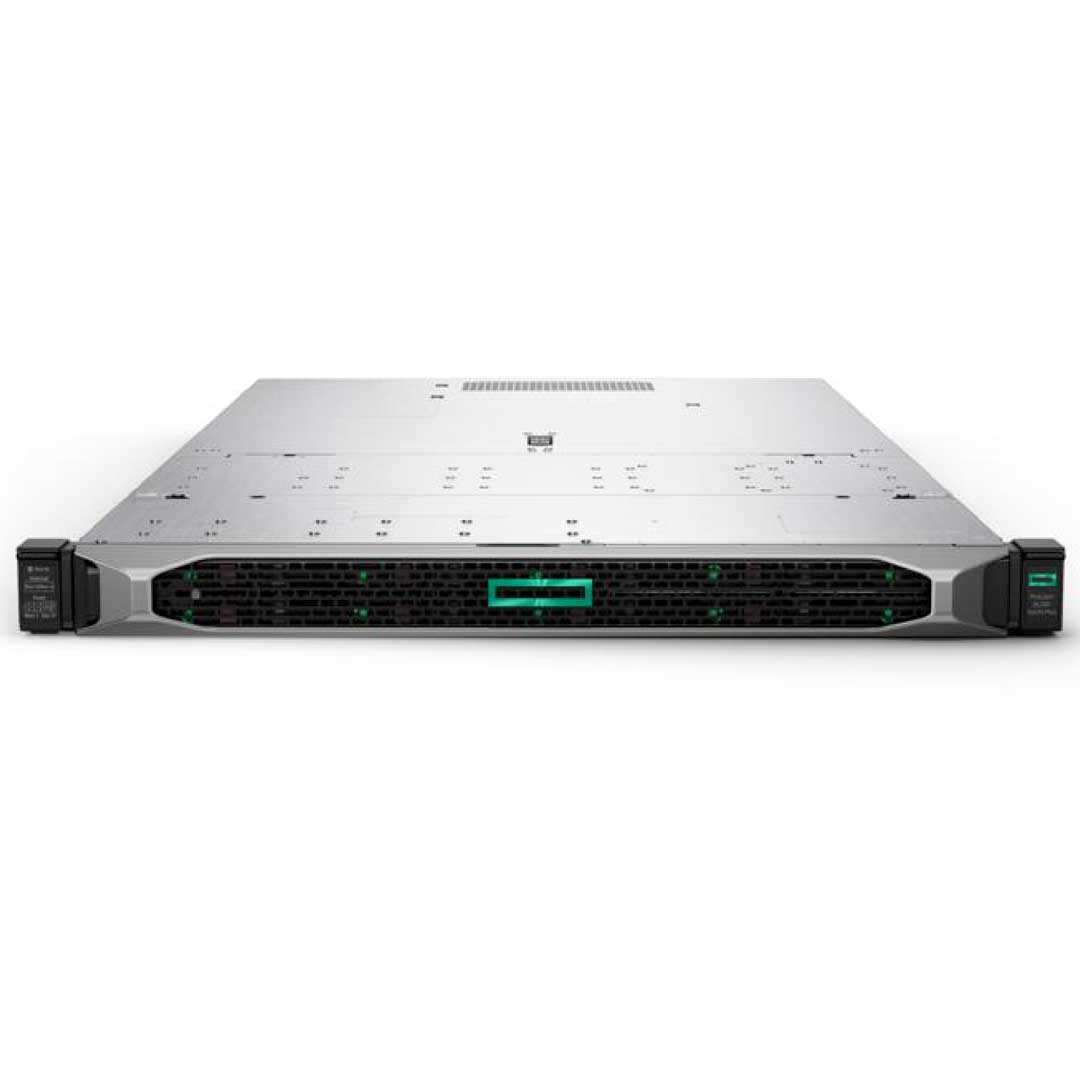

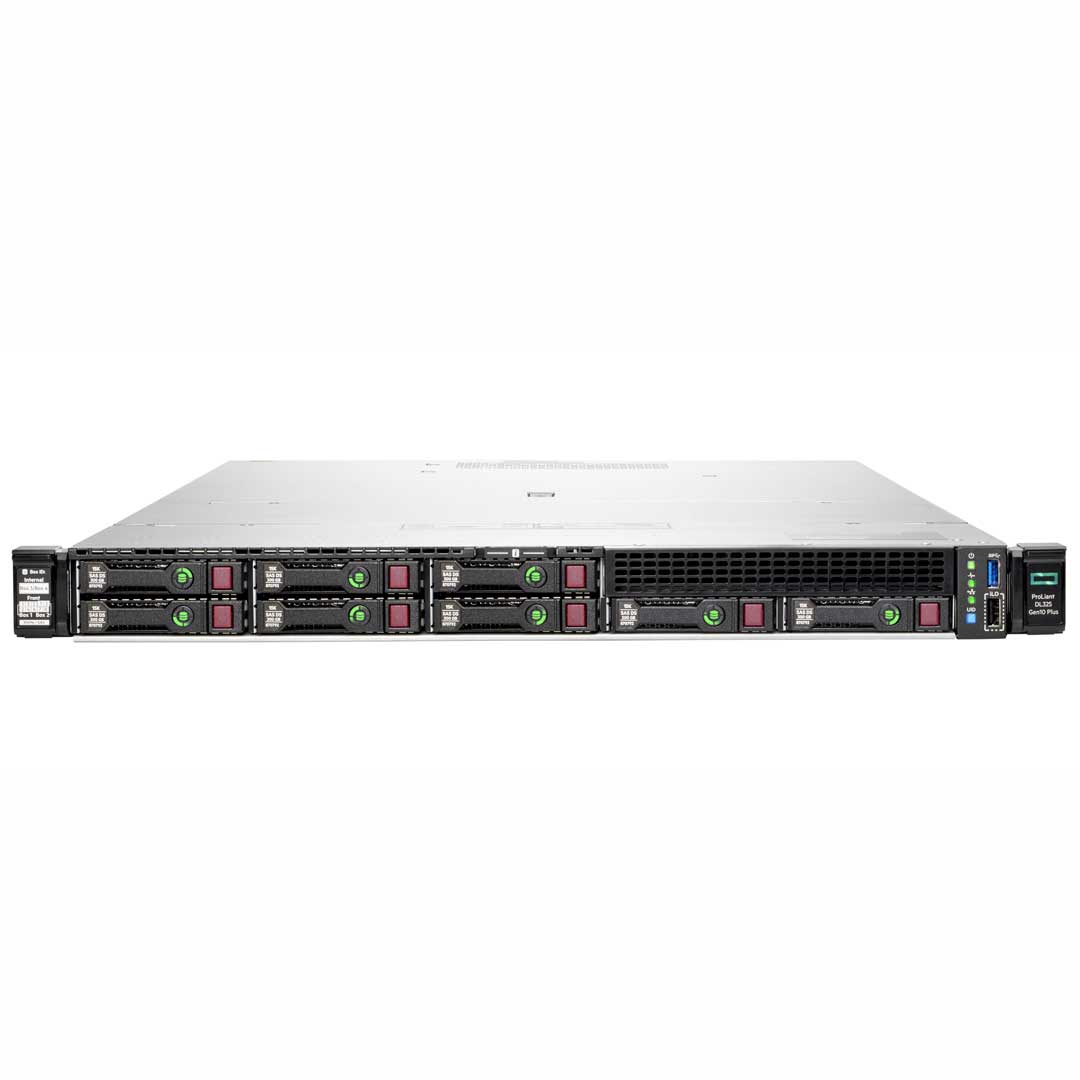

Hpe Proliant Dl325 Gen10 Plus 24Sff Nvme U.3 Server Chassis | P15735-B21

Thanks for the request. We'll get back to you with in 24 hours.

-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.

-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

Building on HPE ProLiant as the intelligent foundation for hybrid cloud, the refurbished HPE ProLiant DL325 Gen10 Plus server offers the 2nd generation AMD EPYC 7000 Series processor delivering up to 2X [1] the performance of the prior generation. The HPE ProLiant DL325 delivers increased value to clients through intelligent automation, security, and optimization. With more cores, increased memory bandwidth, enhanced storage, and PCIe Gen4 capabilities, the HPE ProLiant DL325 offers two-socket performance in a one-socket 1U rack profile.

The HPE ProLiant DL325 Gen10 Plus, with the AMD EPYC single-socket architecture, enables businesses to acquire an enterprise-class processor, memory, I/O performance, and security without having to purchase a dual processor.

What’s New for DL325 Gen10 Plus

  • Powered by the 2nd generation AMD EPYC 7000 Series Processor Family with double [2] the core density compared to the previous generation.
  • Support for PCIe Gen4, resulting in faster networking speed and higher bandwidth for network intensive applications.
  • Faster application performance with increased memory speeds up to 3200 MT/s.
  • Improved modularity and storage capabilities with ability to upgrade to 24 SFF/12 LFF drives in a 1U box.

Delivering 2P Performance at 1P Economics

HPE ProLiant DL325 Gen10 Plus server supports industry standard technology utilizing the 2nd generation AMD EPYC 7000 series processor family with up to 64 cores, PCIe Gen4 capabilities, and HPE SmartMemory up to 3200 MT/s DDR4 memory.

HPE ProLiant DL325 Gen10 Plus server has a dense, modular chassis that can accommodate up to 24 SFF SAS/SATA, up to 12 LFF SAS/SATA, or up to 24 NVMe drive options as well as up to 3 PCIe 4.0 slots.

The redesigned HPE Smart Array Essentials and Performance Controllers allow you the flexibility to choose the 12 Gbps controller to optimize your environment.

Options for OCP or PCIe standup adapters offer a choice of networking bandwidth and fabric, enabling you to scale to the changing needs of your business.


Know your Server - CTO Configuration Support

Need help with the configuration? Contact us today!

Looking to Customize?

Need assistance with customization? Our sales experts are here to help you.

Start Customizing Today!

Spec Sheet 4

Technical specifications HPE ProLiant DL325 Gen10 Plus server
Processor name AMD® EPYC™ 7000 Series Processors
Processor family 2nd Generation AMD EPYC™ 7000 Series
Processor core available 64 or 48 or 32 or 24 or 16 or 8, depending on processor
Processor cache 64 MB L3 or 128 MB L3 or 192 MB or 256 MB, depending on processor model
Processor speed 3.4 GHz, maximum depending on processor
Expansion slots 3, for detail descriptions reference the QuickSpecs
Maximum memory 2 TB with 16 x 128 GB RDIMMs
Memory slots 16 DIMM slots
Memory type HPE DDR4 SmartMemory
Memory protection features ECC
System fan features Hot-plug redundant fans, standard
Network controller Optional OCP and/or optional PCIe Network adapters, depending on model
Storage controller HPE Smart Array P408i-a and/or HPE Smart Array P816i-a and/or HPE Smart Array E208i-a, and more, refer QuickSpecs for more details
Product Dimensions (imperial) 4.28 X 43.46 X 82.62 cm (short chassis - 2 drive cages)
Weight 17 kg minimum
Infrastructure management HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download) HPE iLO Advanced (require license)
Drive supported
  • 12 LFF SAS/SATA/SSD
  • 24 SFF SAS/SATA/NVMe/SSD
  • 16SFF with Optional 2x 2 SFF SAS/SATA/SSD or 2x 2 SFF NVMe or 2x 2uFF
  • 16SFF with Optional 2x 2 SFF SAS/SATA/SSD or 2x 2 SFF NVMe or 2x 2uFF
