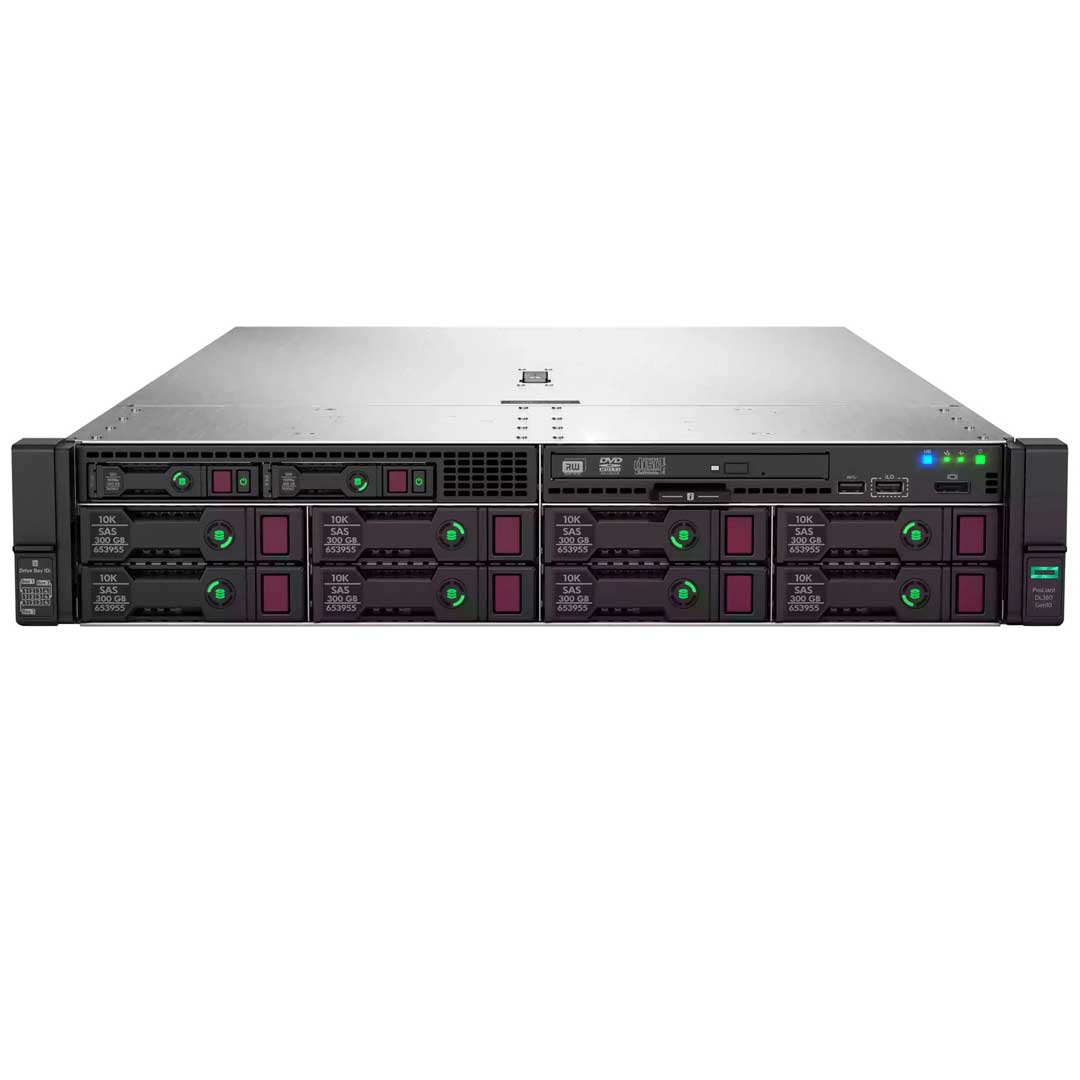

Hpe Proliant Dl380 Gen10 Plus 8Lff Nc Rack Server Chassis | P05175-B21

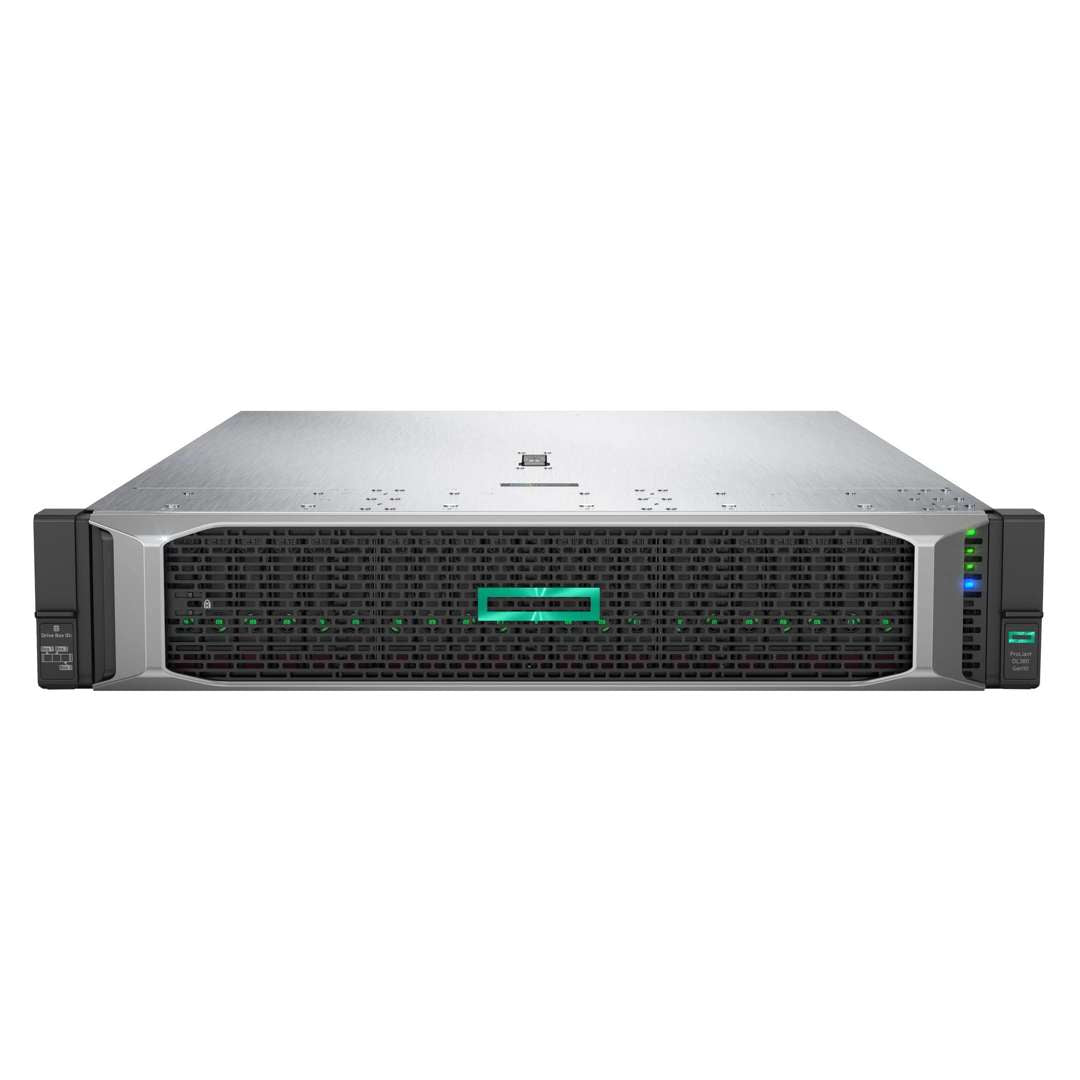

Refurbished HPE ProLiant DL380 Gen10 Configure to Order Rack Server

SKU: P05175-B21

Hpe Proliant Dl380 Gen10 Plus 8Lff Nc Rack Server Chassis | P05175-B21

Name: Hpe Proliant Dl380 Gen10 Plus 8Lff Nc Rack Server Chassis | P05175-B21
Brand: HPE
SKU: P05175-B21
Availability: InStock

HPE

| Chassis

.price-ui--loading { display: block !important; opacity: 1 !important; }

Contact For Pricing

Thanks for the request. We'll get back to you with in 24 hours.

-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.

-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

Quick Specs

What's New for DL380 Gen10

Supports 3rd Generation Intel® Xeon® Scalable Processors.
Support for PCIe Gen4, resulting in improved bandwidth and throughput.
Support for industry-standard OCP 3.0 Network Adapters.
Support for Trimodal (NVMe/SAS/SATA) HPE Smart Array controllers.

The HPE ProLiant DL380 Gen10 Plus server is adaptable for diverse workloads and environments, providing you with the right balance of expandability and scalability. Designed for supreme versatility and resiliency, this 2U/2P platform is capable for deployment in multiple environments, built on 3rd Generation Intel® Xeon® Scalable Processors, and backed by a comprehensive warranty. Equipped with PCIe Gen4 capabilities, the HPE ProLiant DL380 Gen10 Plus server offers improved data transfer rates and higher networking speeds.

Other Versions:

Ideal for:

Cloud Servers
Corporate IT
Database
Data Analytics
Point-of-Sale (POS)
Retail Servers
Virtualization

Differences between the Gen10 and the Gen10 Plus

Let’s start by explaining some differences between the DL380 Gen10 and the DL380 Gen10 Plus. The Plus server has upgraded CPUs with 3^rd Gen Intel Xeon Scalable Processors and has 8 more DIMMS for a total of 32 DIMMs. The Plus server has 2 extra Mid-Tray upgrade storage options. 8SFF U.3 x1 Mid Tray (P27193-B21) and the 8SFF U.3 x4 Mid Tray (P39769-B21) along with the 4LFF Mid Tray Kit (P26919-B21) internal drive options. Only one Mid-Tray can be installed at a time and a Drive Mid Tray cannot be selected with Processors above 165W. One major note is the High-Performance Heat Sink Kit (P27095-B21) and any FL PCIe Cards cannot be installed along with any Mid Tray. The Mid Tray sits on top of the DIMMS and the CPUs.

Key Differences

3^rd Gen Intel Xeon Scalable Processors
8 more DIMMS for a total of 32 DIMMs
2 extra Mid-Tray upgrade storage options
Mid Tray not supported with Processors above 165W
High-Performance Heat Sink Kit (P27095-B21) Not supported with Mid-Tray

Chassis Configurations - Click to Open

Networking Choice CTO Server Models	HPE ProLiant DL380 Gen10 Plus 8LFF NC CTO Server	HPE ProLiant DL380 Gen10 Plus 12LFF NC CTO Server	HPE ProLiant DL380 Gen10 Plus 8SFF NC CTO Server	HPE ProLiant DL380 Gen10 Plus 24SFF NC CTO Server
SKU Number	P05175-B21	P05174-B21	P05172-B21	P05173-B21
TAA SKU*	P05175-B21#GTA	P05174-B21#GTA	P05172-B21#GTA	P05173-B21#GTA
HPE Trusted Supply Chain	P36394-B21 – Optional	Not included as standard
Processor	Not included as standard
DIMM Slots	32-DIMM slots	32-DIMM slots	32-DIMM slots	32-DIMM slots
Storage Controller	Embedded SW RAID with 14 SATA ports (12-ports accessible), choice of HPE modular Smart Array and PCIe plug-in controller
PCIe	Three standard in primary riser
Drive Cage - included	8 LFF	12 LFF	8 SFF	24 SFF
Network Controller	Choice of either OCP 3.0 or select stand-up network adapters for primary networking selection plus additional/optional stand-up network adapters Notes: No embedded networking
Fans	6-Standard	6-Performance	4-Standard	6-Performance
Management	HPE iLO with Intelligent Provisioning (standard), iLO Advanced and OneView (optional)
USB	1x 3.0 standard plus iLO front service port	None as standard	1x 3.0 standard plus iLO front service port	1x 3.0 standard plus iLO front service port

Chassis Upgrades - Click to Open

CTO Server	8 SFF CTO Chassis	24 SFF CTO Chassis	8 LFF CTO Chassis	12 LFF CTO Chassis
Included Drive Cage	8 SFF SAS/SATA	3x 8 SFF SAS/SATA	8 LFF + UMB	12 LFF Chassis
Universal Media Bay	1 Optional	Not available	1 Included	Not available
ODD	1 Optional with UMB	Not available	1 Optional	Not available
8 SFF Drive Cage	Up to 2 Optional	Not available	Not available	Not available
8 NVME/SAS Bay	Up to 3 Optional	Not available	Not available	Not available
8 NVME Cage	Up to 3 Optional	Not available	Not available	Not available
2 SFF SAS/SATA (Front)	1 Optional with UMB	Not available	Not available	Not available
2 SFF SAS/SATA (Rear)	1 Optional	1 Optional	1 Optional	1 Optional
2 NVMe (Front)	1 Optional with UMB	Not available	1 Optional	Not available
4 LFF Mid-plane	Not available	Not available	1 Optional	1 Optional

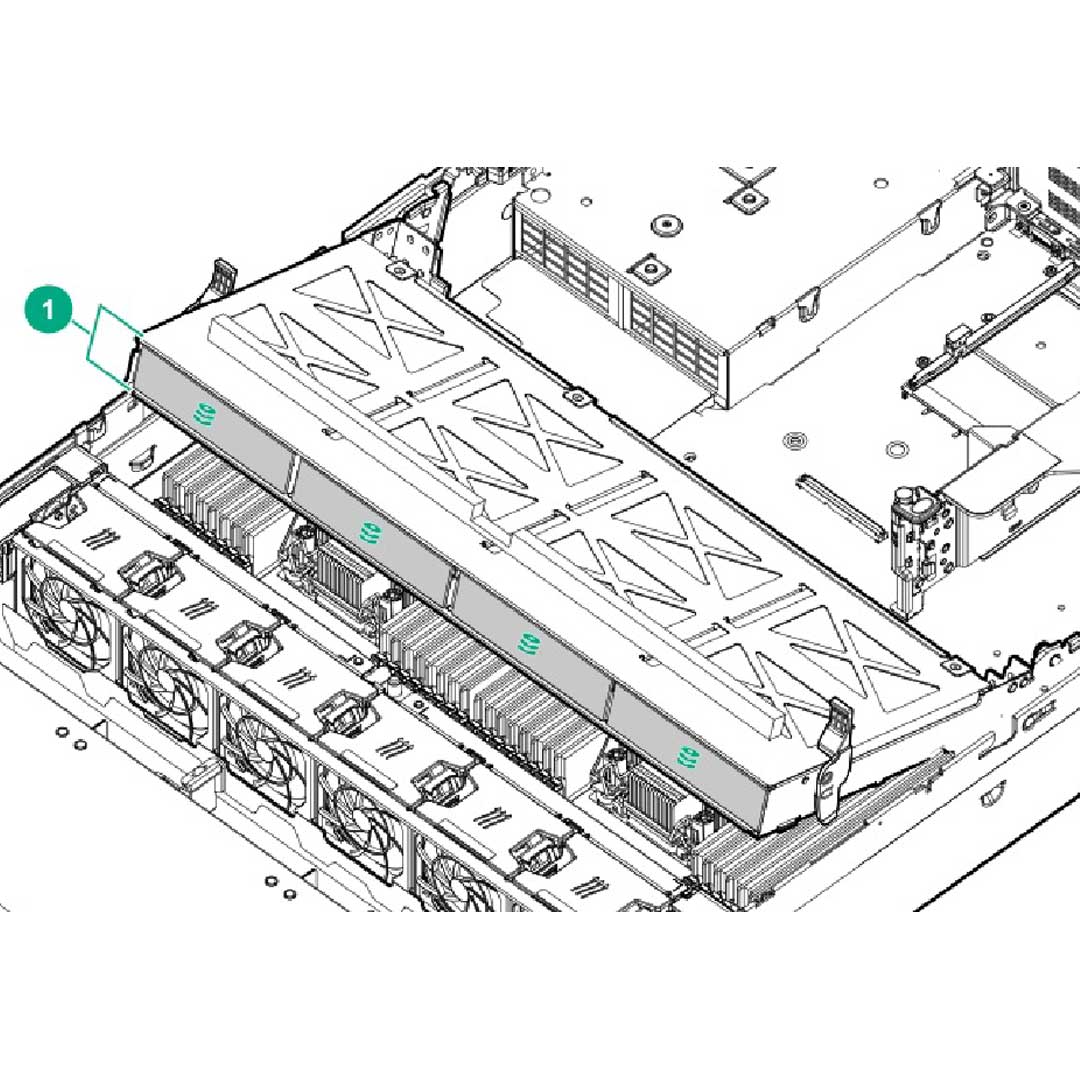

Mid-Plane Options

4LFF SAS/SATA
(P55700-B21)

4LFF SAS/SATA 12Gb
(P26919-B21)

8SFF x1 Tri-Mode 24G U.3 BC
(P27193-B21)

8SFF x4 Tri-Mode 24G U.3 BC
(P39769-B21)

Looking to Customize?

Need assistance with customization? Our sales experts are here to help you.

Start Customizing Today!

Base Standard Capabilities

Technical specifications	HPE ProLiant DL380 Gen10 Plus server
Processor name	3rd Generation Intel® Xeon® Scalable Processors
Processor family	3rd Generation Intel® Xeon® Scalable Processors
Processor core available	16 to 40 core, depending on processor
Processor speed	3.1 GHz maximum, depending on processor
Power supply type	Dual hot-plug redundant 1+1 HPE Flexible Slot Power Supplies (2.6”)
Expansion slots	8, for detailed descriptions refer to the QuickSpecs
Maximum memory	8.1 TB - RDIMM (4 TB per processor), 11.2 TB - LRDIMM and Intel® Optane™ (5.6 TB per processor with 8x LRDIMM and 8x 512 GB Intel Optane)
Memory, standard	16 GB (1 x 16 GB) RDIMM
Memory slots	32 DIMM slots
Memory type	HPE DDR4 SmartMemory
Persistent memory type	Intel® Optane™ Persistent Memory for HPE
Persistent memory media capacity	128 GB - 512 GB
Memory protection features	RAS – Advanced ECC, online spare, mirroring, combined channel (lockstep) functionality, and HPE Fast Fault Tolerant Memory (ADDDC) Intel Optane Persistent Memory
Included hard drives	None ship standard, SFF and LFF drives supported
Optical drive type	Optional DVD-ROM Optional via Universal Media Bay External support only
System fan features	Hot-plug redundant fans, standard
Network controller	Intel I350 1GbE 4 port Base-T OCP3 adapter or Broadcom 57416 10GbE 2 port Base-T adapter and/or optional network adapters depending on model
Storage controller	HPE SR932i-p and/or HPE SR416i-a and/or HPE MR216i-a and/or HPE MR416i-a and/or HPE MR216i-p and/or HPE MR416i-p and/or HPE Smart Array P816i-a SR and/or HPE Smart Array E208i-a SR and/or HPE Smart Array P408i-a SR and/or HPE Smart Array E208i-p SR and/or HPE Smart Array E208e-p SR and/or HPE Smart Array P408e-p SR and/or HPE Smart Array P408i-p SR
Infrastructure management	HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download) (standard) HPE iLO Advanced, and HPE OneView Advanced (optional requires licenses)
Drive supported	8 or 12 LFF SAS/SATA/SSD 8, 10, 16, 18 or 24 SFF SAS/SATA/SSD, 2 M.2 SATA SSD standard on primary riser, depending on configuration, 8 SFF mid-tray optional, 6 SFF rear drive optional or 4 LFF mid tray optional, 3 LFF rear-drive optional and 2 SFF or 2 Dual UFF rear-drive optional, 20 SFF NVMe optional, NVMe support via Express Bay will limit maximum drive capacity, depending on model
