Specs
Adapter Specs
- Models: PCIe Host Bus Adapter
- Drive Types: 12 Gb/s SAS, 6 Gb/s SAS/SATA, 3Gb/s SAS/SATA
- PCI Support: PCI-e 4.0
- SAS Connectors: 2x8 Internal
- Cache Memory: N/A
- Write Back Cache: N/A
- RAID Levels: N/A
- Max Drive Support: 16/controller, 50 with SAS Expander (Platform limit)
- RAID Support: N/A
Part Number:
- FH: NFYVN

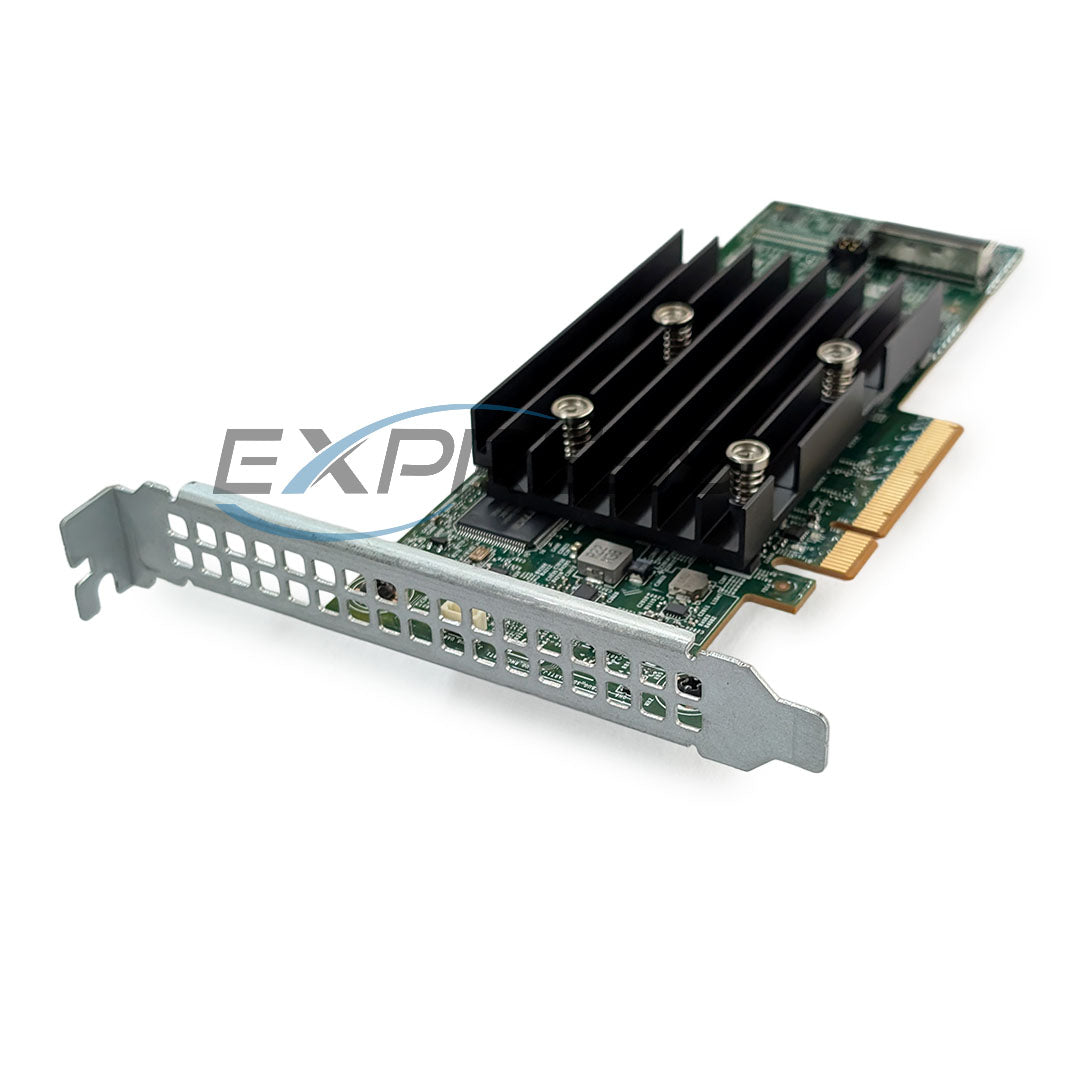

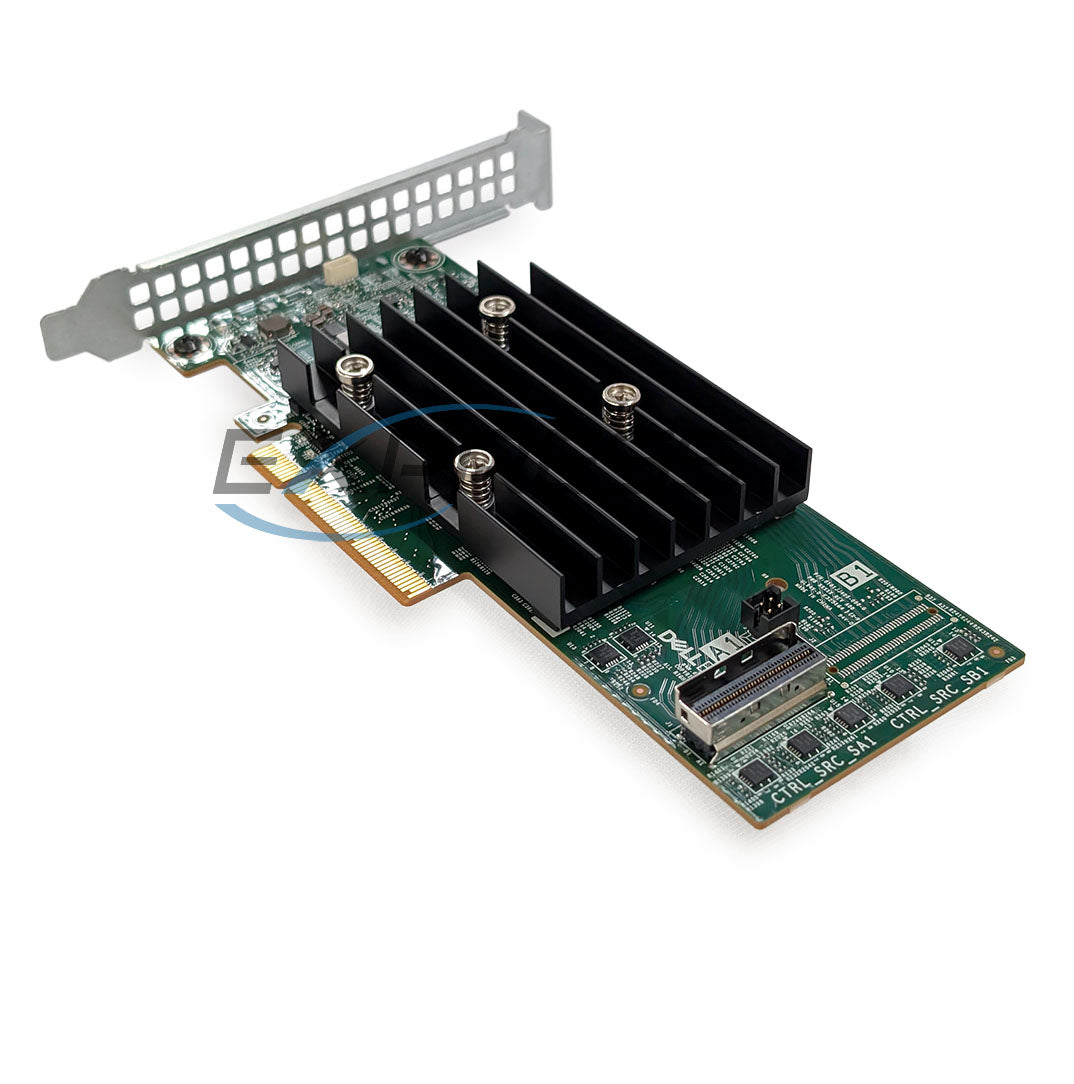

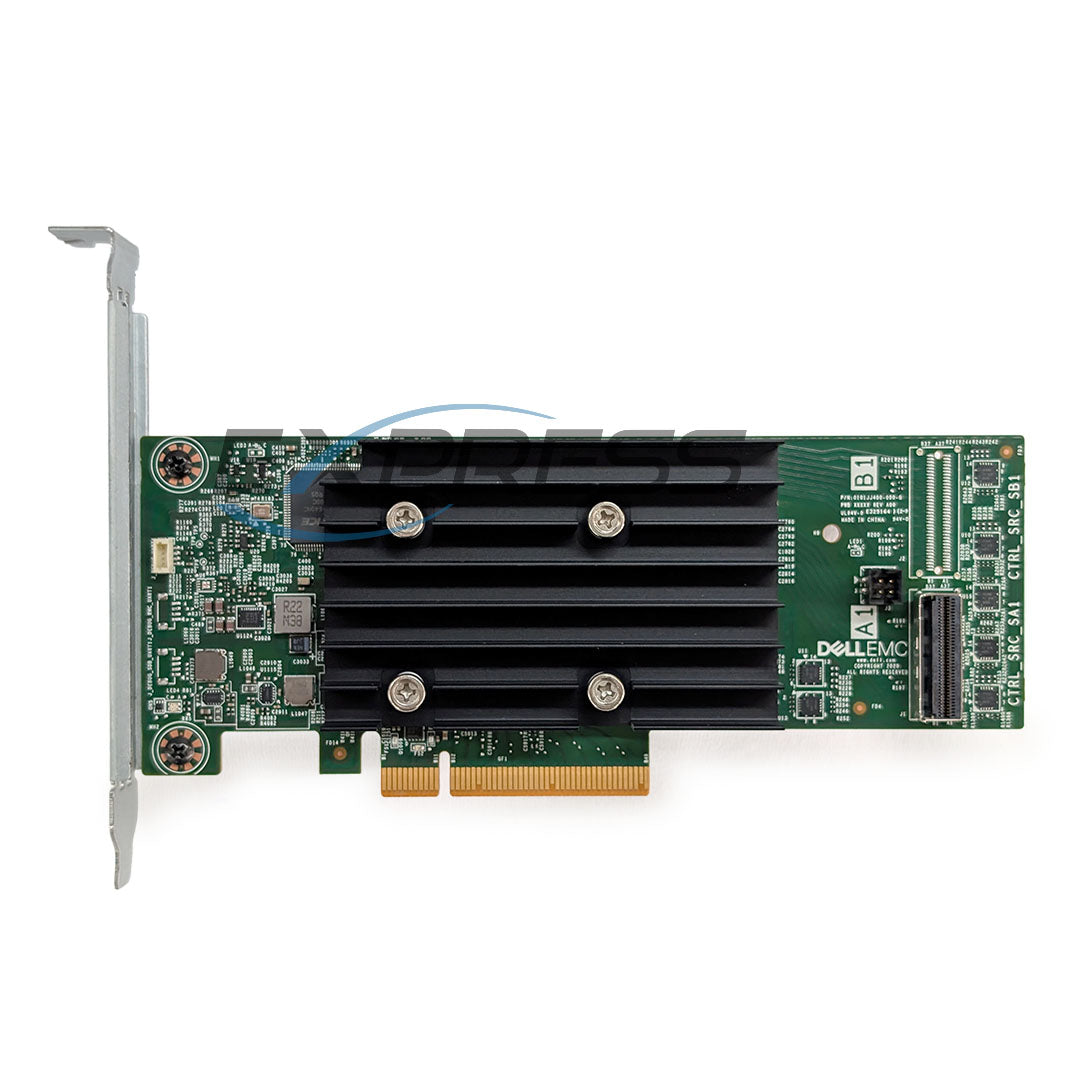

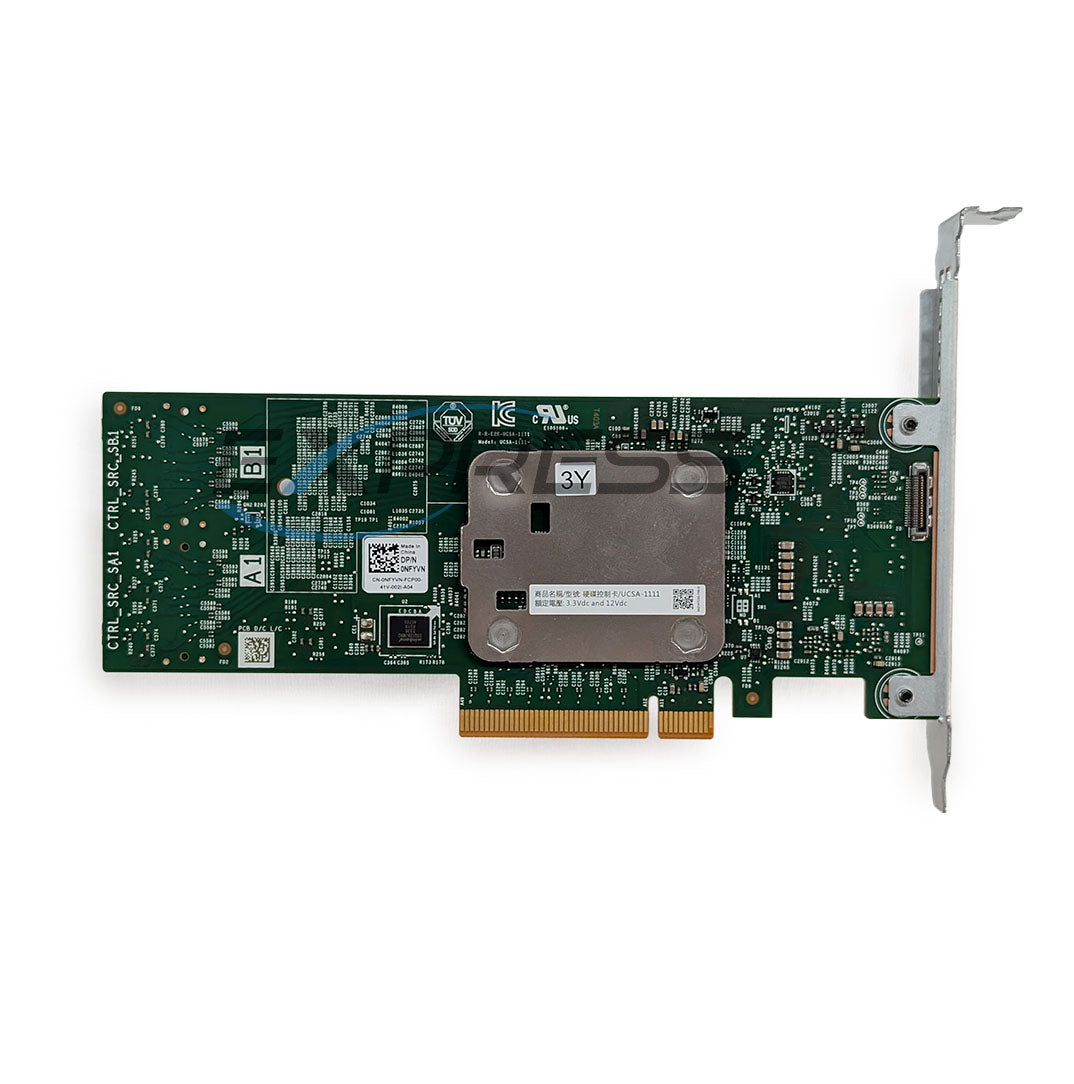

The Dell HBA350i SAS 12Gb Adapter FH is a high-speed internal host bus adapter designed for enterprise environments requiring reliable SAS/SATA connectivity without RAID overhead. With support for PCI-e 4.0 and dual 2x8 internal connectors, it ensures fast and efficient data transfer.
Capable of managing up to 16 drives directly or up to 50 with a SAS expander, the HBA350i provides flexible, non-RAID storage scalability. It’s ideal for businesses seeking high-performance internal storage infrastructure with maximum throughput and simplified architecture.
Summary of RAID levels
Summary of RAID levels Following is a list of the RAID levels supported by the PERC 12 series of cards:
- RAID 0 : Uses disk striping to provide high data throughput, especially for large files in an environment that requires no data redundancy.
- RAID 1 : Uses disk mirroring so that data written to one physical disk is simultaneously written to another physical disk. RAID 1 is good for small databases or other applications that require small capacity and complete data redundancy.
- RAID 5 : Uses disk striping and parity data across all physical disks (distributed parity) to provide high data throughput and data redundancy, especially for small random access.
- RAID 6 : Is an extension of RAID 5 and uses an additional parity block. RAID 6 uses block-level striping with two parity blocks distributed across all member disks. RAID 6 provides protection against double disk failures, and failures while a single disk is rebuilding. If you are using only one array, deploying RAID 6 is more effective than deploying a hot spare disk.
- RAID 10 : Is a combination of RAID 0 and RAID 1, uses disk striping across mirrored disks. It provides high data throughput and complete data redundancy.
- RAID 50 : Is a combination of RAID 0 and RAID 5 where a RAID 0 array is striped across RAID 5 elements. RAID 50 requires at least six disks.
- RAID 60 : Is a combination of RAID 0 and RAID 6 where a RAID 0 array is striped across RAID 6 elements. RAID 60 requires at least eight disks.
Compatible With:
- Dell R740xd
(Click to View)
Spec Sheet 4
| Model & Form Factors | Interface Support | PCI Support | SAS Connectors | Cache Memory | Write Back Cache | RAID Levels | Max Drive Support | RAID Support |
|---|---|---|---|---|---|---|---|---|
| H755N Front (NVMe Only) | Gen3 (8 GT/s) NVMe Gen4 (16 GT/s) NVMe |
PCIe Gen 4 | 2x8 Internal | 8GB NV | Flash Backed Cache | 0,1,5,6,10,50,60 | 8/per controller | Hardware |
| H755 Adapter FH | 3 Gbps SATA 6 Gbps SATA/SAS 12 Gbps SATA/SAS Gen3 (8 GT/s) NVMe Gen4 (16 GT/s) NVMe |
PCIe Gen 4 | 2x8 Internal | 8GB NV | Flash Backed Cache | 0, 1, 5, 6, 10, 50,60 | 16/controller 50 with SAS Expander *Platform limit |
Hardware RAID |
| H755 Adapter LP | ||||||||
| H755 Front (SAS/SATA Only) | 12Gb/s SAS 6Gb/s SAS/SATA 3Gb/s SAS/SATA |
PCIe Gen 4 | 2x8 Internal | 8GB NV | Flash Backed Cache | 0,1,5,6,10,50,60 | 16/controller 50 with SAS Expander *Platform limit |
Hardware RAID |
| H755 MX | 3 Gbps SATA 6 Gbps SATA/SAS 12 Gbps SATA/SAS Gen3 (8 GT/s) NVMe Gen4 (16 GT/s) NVMe |
PCIe Gen 4 | 1x8 Internal | 8GB NV DDR4 2666MT/s | Flash Backed Cache | 0, 1, 5, 6, 10, 50,60 | 8, Limited by platform | N/A |
| H750 Adapter FH | 12Gb/s SAS 6Gb/s SAS/SATA 3Gb/s SAS/SATA *SAS/SATA ONLY |
PCIe Gen 4 | 1x8 Internal | 8GB NV | Flash Backed Cache | 0,1,5,6,10,50,60 | 8/controller 50 with SAS Expander *Platform limit |
Hardware RAID |
| H750 Adapter LP | ||||||||
| H355i Adapter FH | 12Gb/s SAS 6Gb/s SATA |
PCIe Gen 4 | 2x8 Internal | No Cache | No Cache | 0,1,10 | Up To 32 RAID or 32 Non-RAID |
Hardware |
| H355i Adapter LP | ||||||||
| H355 Front | 12Gb/s SAS 6Gb/s SATA |
PCIe Gen 4 | 2x8 Internal | No Cache | No Cache | 0,1,10 | Up To 32 RAID >or 32 Non-RAID |
Hardware |
| HBA355 Front (internal) | 12Gb/s SAS 6Gb/s SAS/SATA 3Gb/s SAS/SATA |
PCIe Gen 4 | 2x8 Internal | N/A | N/A | N/A | 16/controller 50 with SAS Expander *Platform limit |
N/A |
| HBA355i Adapter FH | 12Gb/s SAS 6Gb/s SAS/SATA 3Gb/s SAS/SATA |
PCIe Gen 4 | 2x8 Internal | N/A | N/A | N/A | 16/controller 50 with SAS Expander *Platform limit |
N/A |
| HBA355i Adapter LP | ||||||||
| HBA355e Adapter FH | 12Gb/s SAS 6Gb/s SAS/SATA 3Gb/s SAS/SATA |
PCIe Gen 4 | 4x4 External | N/A | N/A | N/A | 240 | N/A |
| HBA355e Adapter LP | ||||||||
| H350 Adapter FH | 12Gb/s SAS 6Gb/s SATA |
PCIe Gen 4 | 1x8 Internal | No Cache | No Cache | 0,1,10 | Up To 32 RAID or 32 Non-RAID |
Hardware |
| H350 Adapter LP | ||||||||
| H350 Mini Mono | 12Gb/s SAS 6Gb/s SATA |
PCIe Gen 4 | 2x4 Internal | N/A | N/A | 0, 1, 10 | Without SAS Expander: 8 drives per controller With SAS Expander: Limited by platform offering |
N/A |
| HBA350i Adapter (internal) | 12Gb/s SAS 6Gb/s SAS/SATA 3Gb/s SAS/SATA |
PCIe Gen 4 | 2x8 Internal | N/A | N/A | N/A | 16/controller 50 with SAS Expander *Platform limit |
N/A |
| HBA350 MX (internal) | 12Gb/s SAS 6Gb/s SAS/SATA 3Gb/s SAS/SATA |
PCIe Gen 4 | 1x8 Internal | N/A | N/A | N/A | 8 *Platform limit |
N/A |
