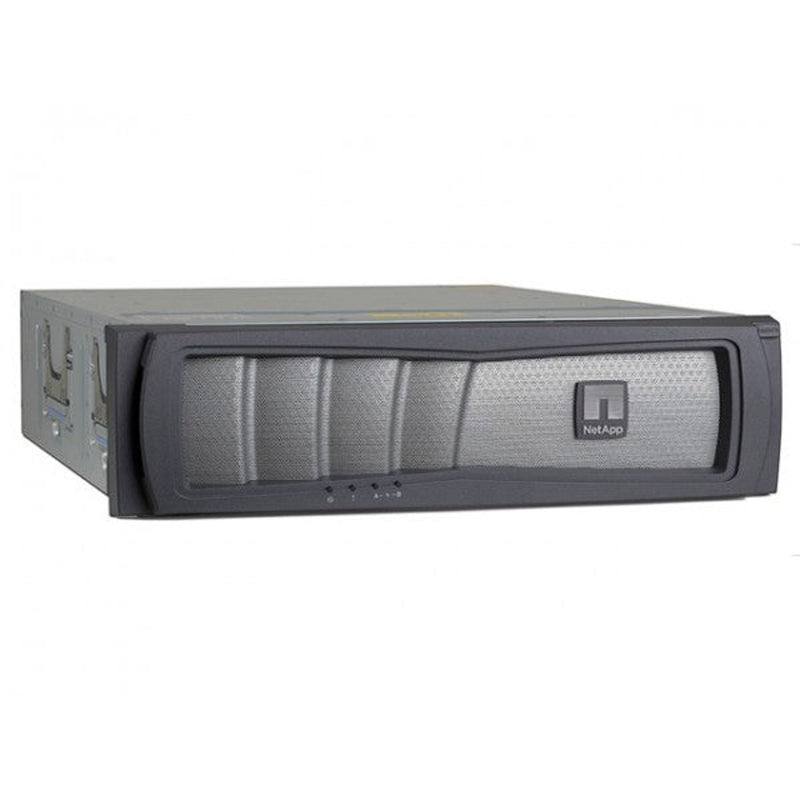

NetApp FAS3240 Single Controller + IOMX Filer Head (Stand Alone)

Quick Specs

The NetApp FAS3240 is a versatile 3U storage platform that supports both standalone and high-availability (HA) configurations. With single or dual controllers, it offers up to 16GB of total memory and safeguards data through RAID 4 and RAID-DP. An expansion IOMX (IOXM) chassis allows the system to scale seamlessly and accommodate changing workload requirements.

Each controller features a 64-bit, 2.33GHz quad-core processor, along with 1GbE, 4Gb FC, and 6Gb SAS connectivity. Six PCIe slots (when combined with the IOXM) enable further expansion for network or storage interface cards. Remote management capabilities also simplify administration, ensuring that critical business operations remain continuous.

The FAS3240 supports up to 600 drives for a maximum capacity of 3.6PB and works with a range of NetApp disk shelves, including DS14, DS2246, DS424x, and DS4486 models. It accommodates various drive types—FC, MSATA, NL-SAS, SAS, SATA, or SSD—offering flexible performance and capacity options for mid-sized enterprise environments seeking scalable, reliable storage.

System Config

• Model: NetApp FAS3240
• Chassis: Single Chassis
• Total Rack Height: 3U
• Controllers: Single Cntr (Stand Alone) + Expansion Cntr (IOMX)
• Memory (HA): 8GB
• Ethernet Ports: 2 x RJ45 (1Gb)
• Fibre Channel Ports: 2 x SFP (4Gb)
• SAS Ports: 2 x QSFP (6Gb)
• PCIe Expansion Slots: 6 x PCIe (with IOXM)
• Max Drives (total): 600
• Max Capacity: 3,600TB (3.6PB)
• Disk Shelves: DS14-Mk2-AT, DS14-Mk4-FC, DS2246, DS4243, DS4246, DS4486
• Filer Heads: N/A

Dimensions & Weight

• Chassis Rack Height: 3U
• Chassis Heights: 5.12" (13 cm)
• Chassis Width w/o Mounting Flanges: 17.6" (44.7 cm)
• Chassis Depth w/ Cable Mgmt: 23.9" (60.7 cm)
• Chassis Weight: up to 79.4 lb (36.0 kg)

---

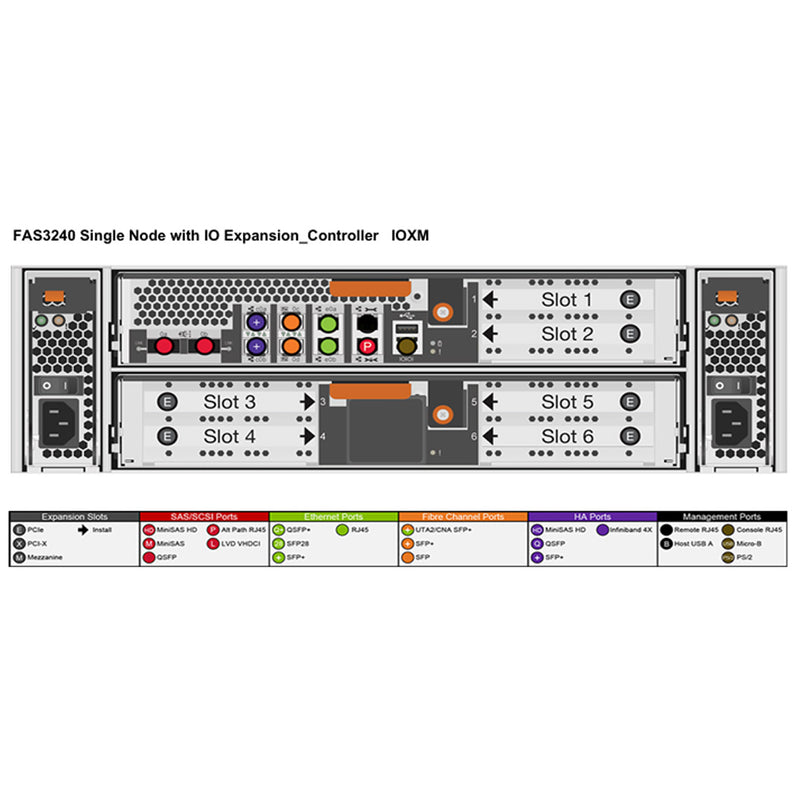

Expansion IOMX Controller Specs

• PCI Slot (per): 4 x PCIe

Controller Specs

• Max Controllers: 2 (Per Chassis)
• PCI Slot (per): 2 x PCIe
• Ethernet Ports (per): 2 x RJ45 (1Gb)
• Fibre Channel Ports (per): 2 x SFP (4Gb)
• UTA2 Ports (per): N/A
• SAS Ports (per): 2 x QSFP (6Gb)
• Remote Management: Yes
• Processor Model (per):1x 64-bit 4-core 2.33 Ghz
• Memory (Single/HA): 8GB/16GB
• NVRAM (Single/HA): 1GB/2GB

Storage

• Max Number of Internal Drives: 0
• Max Number Drives (total): 600
• Max Capacity: 3,600TB (3.6PB)
• Max Number of FC Drives: 600
• Max Number of MSATA Drives: 600
• Max Number of NL-SAS Drives: 600
• Max Number of SAS Drives: 600
• Max Number of SATA Drives: 600
• Max Number of SSD Drives: 240
• Drive Interface: FC, MSATA, NL-SAS, SAS, SATA, SSD
• RAID: RAID 4, RAID 6 (RAID-DP)
• Max # of DS14-Mk2-AT Shelves: 43 external
• Max # of DS14-Mk4-FC Shelves: 43 external
• Max # of DS2246 Shelves: 25 external
• Max # of DS4243 Shelves: 25 external
• Max # of DS4246 Shelves: 25 external
• Max # of DS4486 Shelves: 13 external

---
