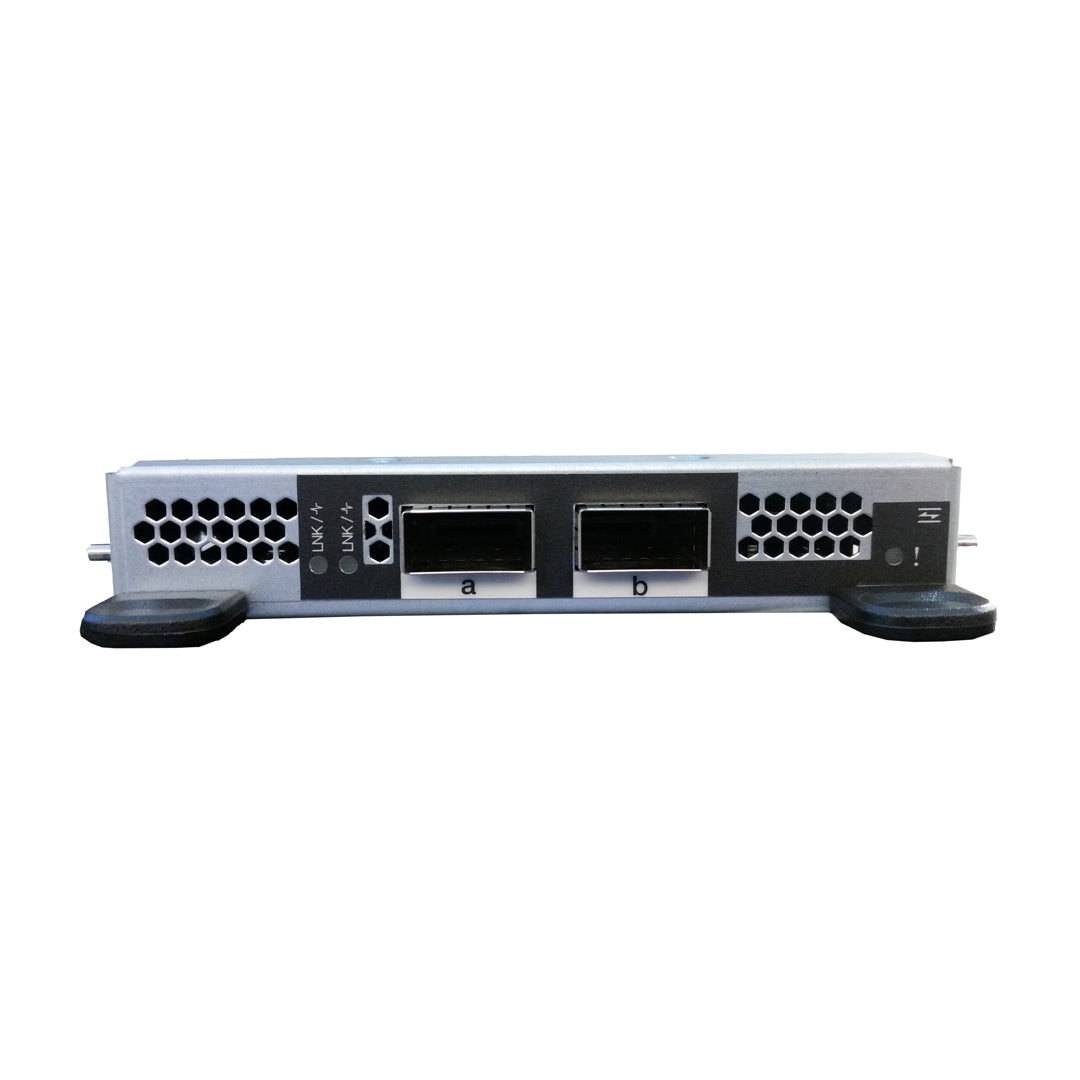

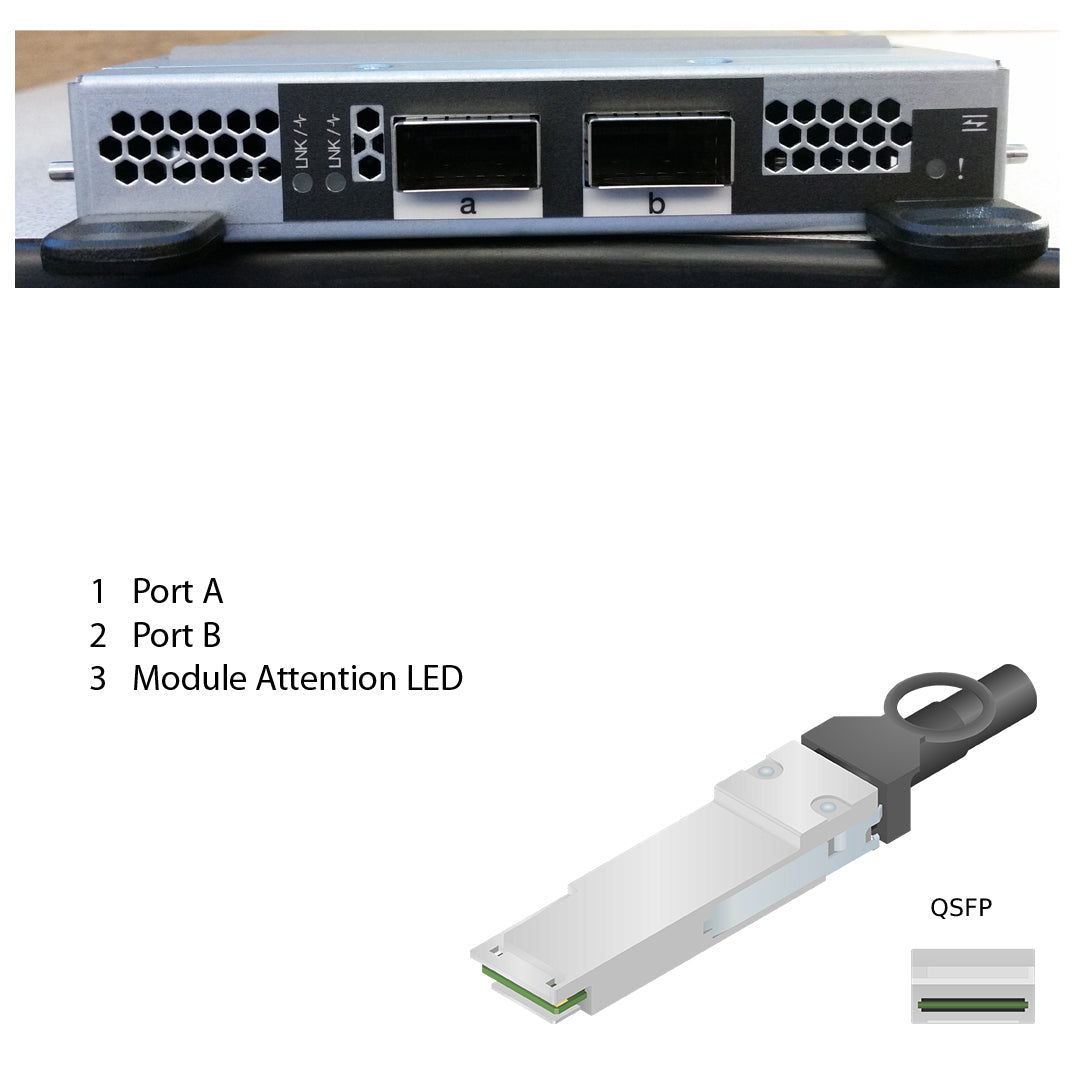

NetApp Adapter X91146A (ONTAP) IO Module bus with plug QSFP28 (IO Module,2p MC IP,40GbE QSFP+,100GbE QSFP28)

SKU: X91146A

NetApp Dual Port QSFP28 100GbE Ethernet Adapter (111-03818) | X91146A

Name: NetApp Dual Port QSFP28 100GbE Ethernet Adapter (111-03818) | X91146A
Brand: NetApp
SKU: X91146A
Availability: OutOfStock

NetApp

| Module

.price-ui--loading { display: block !important; opacity: 1 !important; }

Contact For Pricing

Thanks for the request. We'll get back to you with in 24 hours.

-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.

-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

Module Specs

Part Number: X91146A
Mfg Number: 111-03818
Spare Part Number: SP-91146A
Bus Type: IO Module
Ports: Dual Port
Plug Type: QSFP28
Cable Type: N/A
Speed: 100GbE
Supported Protocol(s): Ethernet 100Gb,Ethernet 40Gb
Optical Module Included?: No
Min ONTAP: 9.16.1RC1, 9.15.1RC1, 9.14.1RC1, 9.13.1RC1, 9.12.1RC1, 9.11.1RC1, 9.10.1RC1, 9.9.1RC1, 9.8RC1, 9.7RC1, 9.6RC1, 9.5RC1, 9.4RC1, 9.3RC1

Platform Models

FAS9500, AFF-A900, AFF--A900

Cables

Ethernet 40Gbps (Cu) Copper Cables

Description	Mktg / Mfg Part No	Length	End 1 / End 2
NetApp 3m	X66100-3 / 112-00543	3m	QSFP+ / QSFP+
NetApp 3m	X-QSFP-H40G-CU3M-R6 / 112-00604	3m	QSFP+ / QSFP+
NetApp 5m	X66100-5 / 112-00544	5m	QSFP+ / QSFP+
NetApp 5m	X-QSFP-H40G-CU5M-R6 / 112-00605	5m	QSFP+ / QSFP+

Ethernet 100Gbps (Cu) Copper CablesNetApp 0.5m {}X66211A-05 / 112-00595{}0.5m{}QSFP28 / QSFP28;NetApp 1m {}X66211A-1 / 112-00573{}1m{}QSFP28 / QSFP28;NetApp 1m {}X66211B-1-C / 112-00573{}1m{}QSFP28 / QSFP28;NetApp 2m {}X66211A-2 / 112-00574{}2m{}QSFP28 / QSFP28;NetApp 2m {}X66211B-2-C / 112-00574{}2m{}QSFP28 / QSFP28;NetApp 5m {}X66211A-5 / 112-00576{}5m{}QSFP28 / QSFP28;NetApp 5m {}X66211B-5-C / 112-00576{}5m{}QSFP28 / QSFP28;

Description	Mktg / Mfg Part No	Length	End 1 / End 2

Ethernet 40Gbps (Op) Optical Transceiver X65402 with Supported Cables
The base AFF A800 configuration includes a X1146A in slot 1.

Description	Mktg / Mfg Part No	Length	End 1 / End 2
NetApp XCVR Optical Fibre / Fiber Data Cable	X65402 / 332-00389,AFBR-79EEPZ-NA1,AFBR-79EEPZ-NA2,FTL410QD2C-N1,FTL410QD2C-NQ,FTL410QD4C-N1,FTL410QD4C-NQ	XCVR	QSFP+ / MPO
NetApp 2m Optical Fibre / Fiber Data Cable	X66200-2 / 112-00326	2m	MPO / MPO
NetApp 5m Optical Fibre / Fiber Data Cable	X66200-5 / 112-00328	5m	MPO / MPO
NetApp 5m Optical Fibre / Fiber Data Cable	X66205-5 / 112-00260	5m	MPO / 4xLC
NetApp 15m Optical Fibre / Fiber Data Cable	X66200-15 / 112-00330	15m	MPO / MPO
NetApp 30m Optical Fibre / Fiber Data Cable	X66200-30 / 112-00331	30m	MPO / MPO
NetApp 30m Optical Fibre / Fiber Data Cable	X66205-30 / 112-00261	30m	MPO / 4xLC

Ethernet 100Gbps (Op) Optical Transceiver X65405 with Supported Cables
The base AFF A800 configuration includes a X1146A in slot 1.

Description	Mktg / Mfg Part No	Length	End 1 / End 2
NetApp XCVR Optical Fibre / Fiber Data Cable	X65405 / 332-00440,AFBR-89CDDZ-NA1,AFBR-89CDDZ-NA2,AFBR-89CDHZ-NA1,AFBR-89CDHZ-NA2,FTLC9551REPM,FTLC9558REPM,FTLC9558REPM-N1,FTLC9558REPM-NQ	XCVR	QSFP28 / MPO
NetApp 2m Optical Fibre / Fiber Data Cable	X66200-2 / 112-00326	2m	MPO / MPO
NetApp 5m Optical Fibre / Fiber Data Cable	X66200-5 / 112-00328	5m	MPO / MPO
NetApp 15m Optical Fibre / Fiber Data Cable	X66200-15 / 112-00330	15m	MPO / MPO
NetApp 30m Optical Fibre / Fiber Data Cable	X66200-30 / 112-00331	30m	MPO / MPO

Min OS

NetApp Min OS:

OS	Platforms
ONTAP 9.9.1P8	AFF A700, ASA AFF A700, FAS9000,
ONTAP 9.9.1P7	AFF A700, ASA AFF A700, FAS9000,
ONTAP 9.9.1P4	AFF A700, ASA AFF A700, FAS9000,
ONTAP 9.9.1P3	AFF A700, ASA AFF A700, FAS9000,
ONTAP 9.9.1P2	AFF A700, ASA AFF A700, FAS9000,
ONTAP 9.9.1P10	AFF A700, ASA AFF A700, FAS9000,
ONTAP 9.9.1P1	AFF A700, ASA AFF A700, FAS9000,
ONTAP 9.9.1	AFF A700, ASA AFF A700, FAS9000,
ONTAP 9.9.1RC1	AFF A700, ASA AFF A700, FAS9000,
ONTAP 9.8P9	AFF A700, ASA AFF A700, FAS9000,
ONTAP 9.8P8	AFF A700, ASA AFF A700, FAS9000,
ONTAP 9.8P7	AFF A700, ASA AFF A700, FAS9000,
ONTAP 9.8P6	AFF A700, ASA AFF A700, FAS9000,
ONTAP 9.8P5	AFF A700, ASA AFF A700, FAS9000,
ONTAP 9.8P4	AFF A700, ASA AFF A700, FAS9000,
ONTAP 9.8P3	AFF A700, ASA AFF A700, FAS9000,
ONTAP 9.8P2	AFF A700, ASA AFF A700, FAS9000,
ONTAP 9.8P11	AFF A700, ASA AFF A700, FAS9000,
ONTAP 9.8P10	AFF A700, ASA AFF A700, FAS9000,
ONTAP 9.8P1	AFF A700, ASA AFF A700, FAS9000,
ONTAP 9.8	AFF A700, ASA AFF A700, FAS9000,
ONTAP 9.8RC1	AFF A700, ASA AFF A700, FAS9000,
ONTAP 9.7P9	AFF A700, FAS9000,
ONTAP 9.7P8	AFF A700, FAS9000,
ONTAP 9.7P7	AFF A700, FAS9000,
ONTAP 9.7P6	AFF A700, FAS9000,
ONTAP 9.7P5	AFF A700, FAS9000,
ONTAP 9.7P4	AFF A700, FAS9000,
ONTAP 9.7P3	AFF A700, FAS9000,
ONTAP 9.7P2	AFF A700, FAS9000,
ONTAP 9.7P19	AFF A700, FAS9000,
ONTAP 9.7P17	AFF A700, FAS9000,
ONTAP 9.7P16	AFF A700, FAS9000,
ONTAP 9.7P15	AFF A700, FAS9000,
ONTAP 9.7P14	AFF A700, FAS9000,
ONTAP 9.7P13	AFF A700, FAS9000,
ONTAP 9.7P12	AFF A700, FAS9000,
ONTAP 9.7P11	AFF A700, FAS9000,
ONTAP 9.7P10	AFF A700, FAS9000,
ONTAP 9.7P1	AFF A700, FAS9000,
ONTAP 9.7	AFF A700, FAS9000,
ONTAP 9.7RC1	AFF A700, FAS9000,
ONTAP 9.6P9	AFF A700, FAS9000,
ONTAP 9.6P7	AFF A700, FAS9000,
ONTAP 9.6P5	AFF A700, FAS9000,
ONTAP 9.6P4	AFF A700, FAS9000,
ONTAP 9.6P3	AFF A700, FAS9000,
ONTAP 9.6P2	AFF A700, FAS9000,
ONTAP 9.6P18	AFF A700, FAS9000,
ONTAP 9.6P17	AFF A700, FAS9000,
ONTAP 9.6P16	AFF A700, FAS9000,
ONTAP 9.6P15	AFF A700, FAS9000,
ONTAP 9.6P13	AFF A700, FAS9000,
ONTAP 9.6P12	AFF A700, FAS9000,
ONTAP 9.6P10	AFF A700, FAS9000,
ONTAP 9.6RC2	AFF A700, FAS9000,
ONTAP 9.6	AFF A700, FAS9000,
ONTAP 9.6RC1	AFF A700, FAS9000,
ONTAP 9.5P9	AFF A700, FAS9000,
ONTAP 9.5P8	AFF A700, FAS9000,
ONTAP 9.5P7	AFF A700, FAS9000,
ONTAP 9.5P6	AFF A700, FAS9000,
ONTAP 9.5P5	AFF A700, FAS9000,
ONTAP 9.5P4	AFF A700, FAS9000,
ONTAP 9.5P2	AFF A700, FAS9000,
ONTAP 9.5P19	AFF A700, FAS9000,
ONTAP 9.5P18	AFF A700, FAS9000,
ONTAP 9.5P17	AFF A700, FAS9000,
ONTAP 9.5P16	AFF A700, FAS9000,
ONTAP 9.5P15	AFF A700, FAS9000,
ONTAP 9.5P14	AFF A700, FAS9000,
ONTAP 9.5P13	AFF A700, FAS9000,
ONTAP 9.5P12	AFF A700, FAS9000,
ONTAP 9.5P10	AFF A700, FAS9000,
ONTAP 9.5P1	AFF A700, FAS9000,
ONTAP 9.5	AFF A700, FAS9000,
ONTAP 9.5RC1	AFF A700, FAS9000,
ONTAP 9.4P8	AFF A700, FAS9000,
ONTAP 9.4P7	AFF A700, FAS9000,
ONTAP 9.4P6	AFF A700, FAS9000,
ONTAP 9.4P5	AFF A700, FAS9000,
ONTAP 9.4P4	AFF A700, FAS9000,
ONTAP 9.4P3	AFF A700, FAS9000,
ONTAP 9.4P2	AFF A700, FAS9000,
ONTAP 9.4P1	AFF A700, FAS9000,
ONTAP 9.4	AFF A700, FAS9000,
ONTAP 9.4RC1	AFF A700, FAS9000,
ONTAP 9.3P7	AFF A700, FAS9000,
ONTAP 9.3P21	AFF A700, FAS9000,
ONTAP 9.3P20	AFF A700, FAS9000,
ONTAP 9.3P18	AFF A700, FAS9000,
ONTAP 9.3P16	AFF A700, FAS9000,
ONTAP 9.3P15	AFF A700, FAS9000,
ONTAP 9.3P11	AFF A700, FAS9000,
ONTAP 9.3P10	AFF A700, FAS9000,
ONTAP 9.3	AFF A700, FAS9000,
ONTAP 9.3RC1	AFF A700, FAS9000,
ONTAP 9.11.1RC1	AFF A700, AFF A900, ASA AFF A700, FAS9000, FAS9500,
ONTAP 9.10.1P5	AFF A700, AFF A900, ASA AFF A700, FAS9000, FAS9500,
ONTAP 9.10.1P3	AFF A700, AFF A900, ASA AFF A700, FAS9000, FAS9500,
ONTAP 9.10.1P2	AFF A700, AFF A900, ASA AFF A700, FAS9000,
ONTAP 9.10.1P1	AFF A700, AFF A900, ASA AFF A700, FAS9000,
ONTAP 9.10.1	AFF A700, AFF A900, ASA AFF A700, FAS9000,
ONTAP 9.10.1RC2	AFF A700, AFF A900,
ONTAP 9.10.1RC1	AFF A700, ASA AFF A700, FAS9000,
