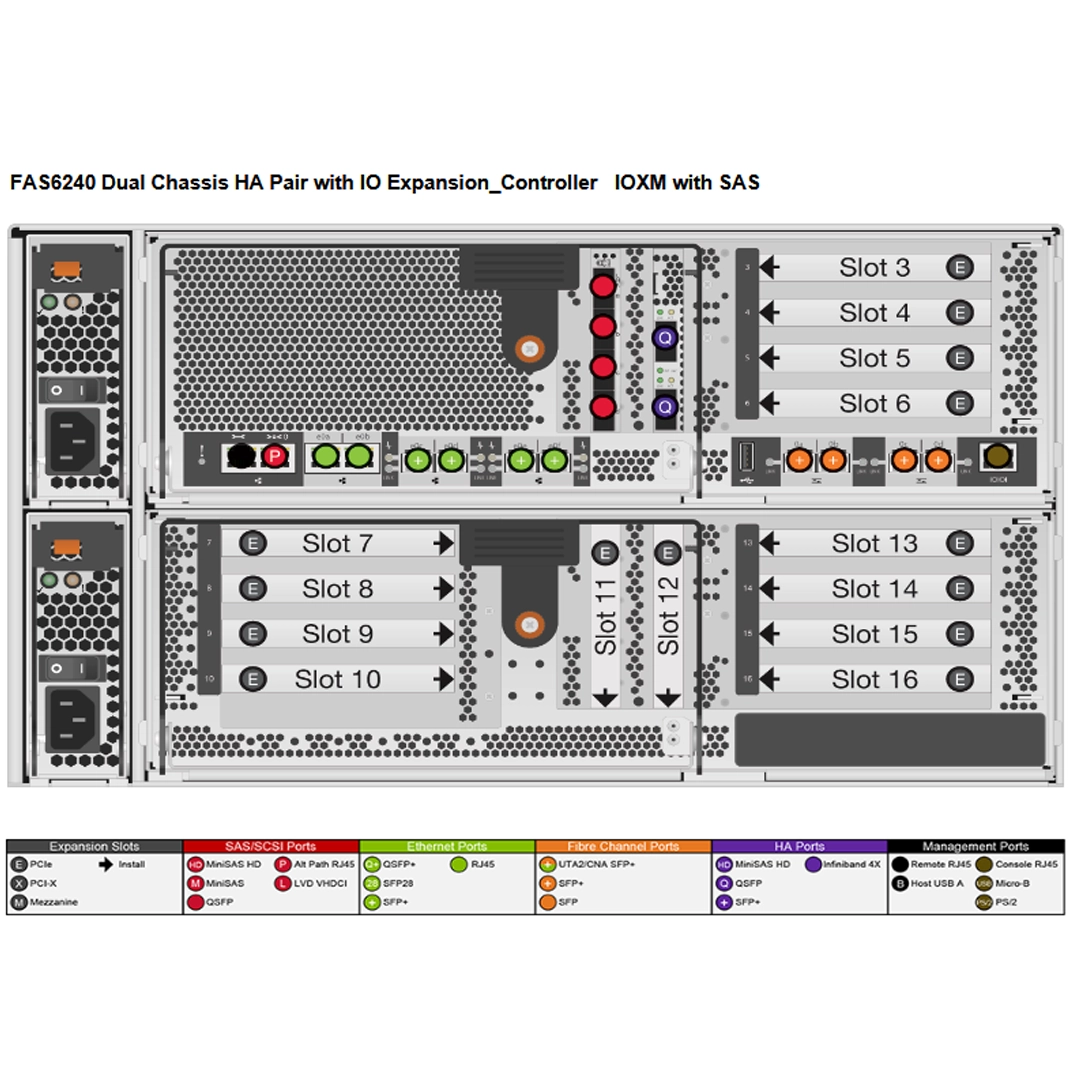

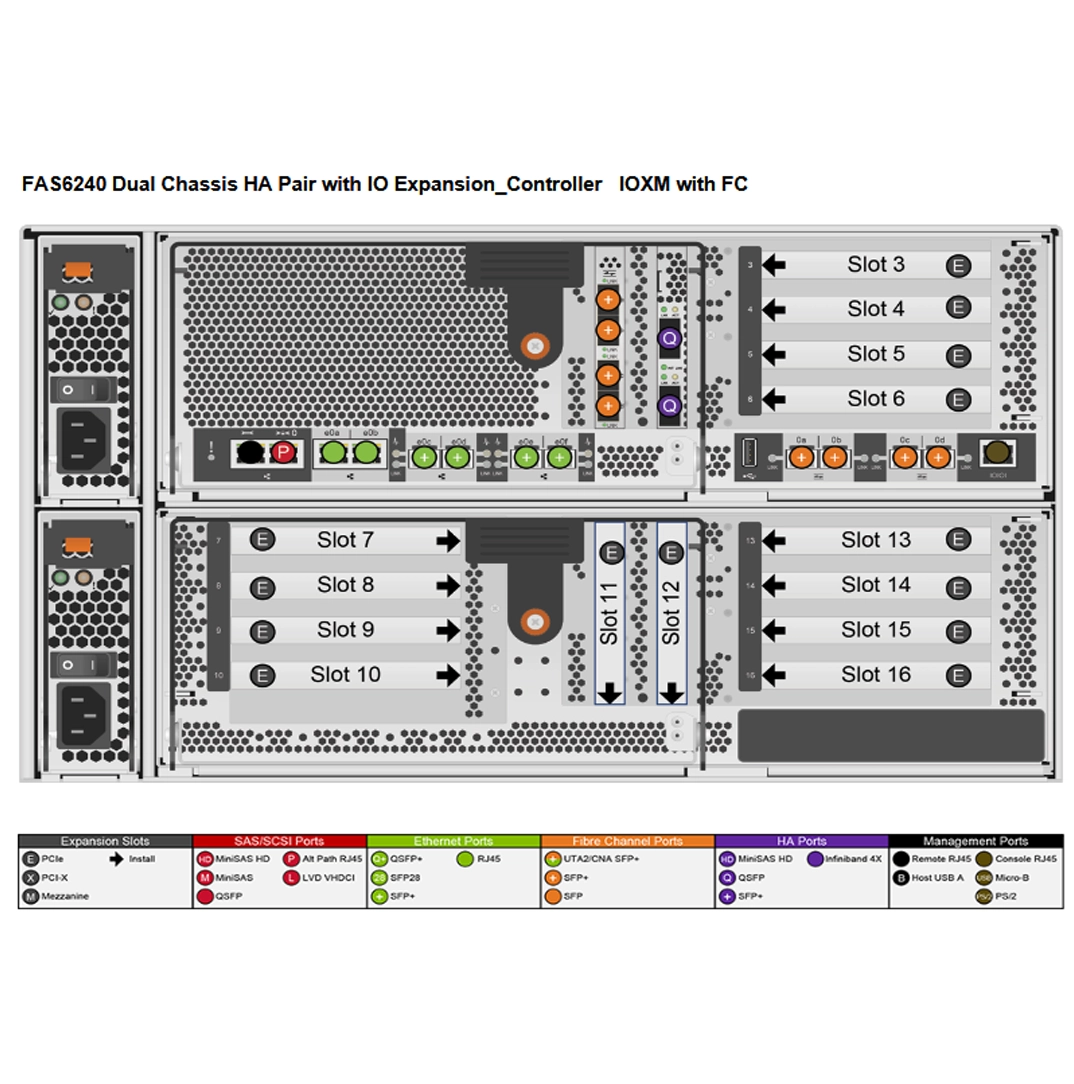

NetApp FAS6240 Dual Controller Filer Head w/IOXM (HA)

Quick Specs

The NetApp FAS6240 is a high-capacity enterprise storage system designed for scalability and performance. It features a dual-chassis configuration with a total rack height of 12U, supporting a dual-controller (HA) setup with IOXM for enhanced reliability. Powered by four 64-bit 4-core 2.56 GHz processors and 96GB of HA memory, the system delivers strong performance for data-intensive workloads. Connectivity options include 4x 1Gb RJ45 and 8x 10Gb SFP Ethernet ports, along with 8x 8Gb Fibre Channel ports, ensuring high-speed data access and networking flexibility.

With support for up to 1440 drives and a maximum storage capacity of 14.99PB, the FAS6240 is built to handle extensive data storage needs. It accommodates MSATA, SATA, NL-SAS, SAS, and SSD drive types, providing flexibility for various storage environments. The system supports RAID 4 and RAID 6 (RAID-DP), ensuring robust data protection. Its 30 PCIe expansion slots allow for seamless upgrades and additional connectivity, making it a versatile choice for enterprise deployments.

The chassis is engineered for efficient rack deployment, measuring 10.18 inches in height, 17.59 inches in width, and 29 inches in depth with cable management. Weighing up to 125.4 lbs, it supports multiple disk shelf models, including DS212C, DS2246, DS224C, DS4243, DS4246, DS4486, and DS460C. With remote management capabilities and high scalability, the NetApp FAS6240 is a powerful storage solution for businesses requiring performance, reliability, and expansion flexibility.

System Config

• Model: NetApp FAS6240
• Chassis: Dual Chassis
• Total Rack Height: 12U
• Controllers: Dual Controller (HA) w/ IOXM
• Memory (HA): 96GB
• Processor Model: 4x 64-bit 4-core 2.56 Ghz
• Ethernet Ports: 4 x RJ45 (1Gb) + 8 x SFP (10Gb)
• Fibre Channel Ports: 8 x SFP (8Gb)
• PCIe Expansion Slots: 30 x PCIe
• Max Drives (total): 1440
• Max Capacity: 14,992TB (14.99PB)
• Disk Shelves: DS212C, DS2246, DS224C, DS4243, DS4246, DS4486, DS460C
• Filer Heads: N/A

Dimensions & Weight

• Chassis Rack Height: 6U
• Chassis Heights: 10.18" (25.86 cm)
• Chassis Width w/o Mounting Flanges: 17.59" (44.68 cm)
• Chassis Depth w/ Cable Mgmt: 29" (73.66 cm)
• Chassis Weight: up to 125.4 lb (56.9 kg)

---

Controller Specs

• Max Controllers: 1 (Per Chassis)
• PCI Slot (per): 15 x PCIe
• Ethernet Ports (per): 2 x RJ45 (1Gb) + 4 x SFP (10Gb)
• Fibre Channel Ports (per): 4 x SFP (4Gb)
• UTA2 Ports (per): N/A
• SAS Ports (per): N/A
• Remote Management: Yes
• Processor Model (per): 2x 64-bit 4-core 2.56 Ghz
• Memory (Single/HA): 48GB/96GB
• NVRAM (Single/HA): 4GB/8GB

Storage

• Max Number of Internal Drives: 0
• Max Number Drives (total): 1440
• Max Capacity: 14,992TB (14.99PB)
• Max # of MSATA Drives: 1440
• Max # of SATA Drives: 1440
• Max # of NL-SAS Drives: 1440
• Max # of SAS Drives: 1440
• Max # of SSD Drives: 240
• Drive Interface: MSATA, SATA, NL-SAS, SAS, SSD
• RAID: RAID 4, RAID 6 (RAID-DP), RAID-TEC
• Max # of DS212C Shelves: 60 external
• Max # of DS2246 Shelves: 60 external
• Max # of DS224C Shelves: 60 external
• Max # of DS4243 Shelves: 60 external
• Max # of DS4246 Shelves: 60 external
• Max # of DS4448 Shelves: 30 external
• Max # of DS460C Shelves: 24 external

---
