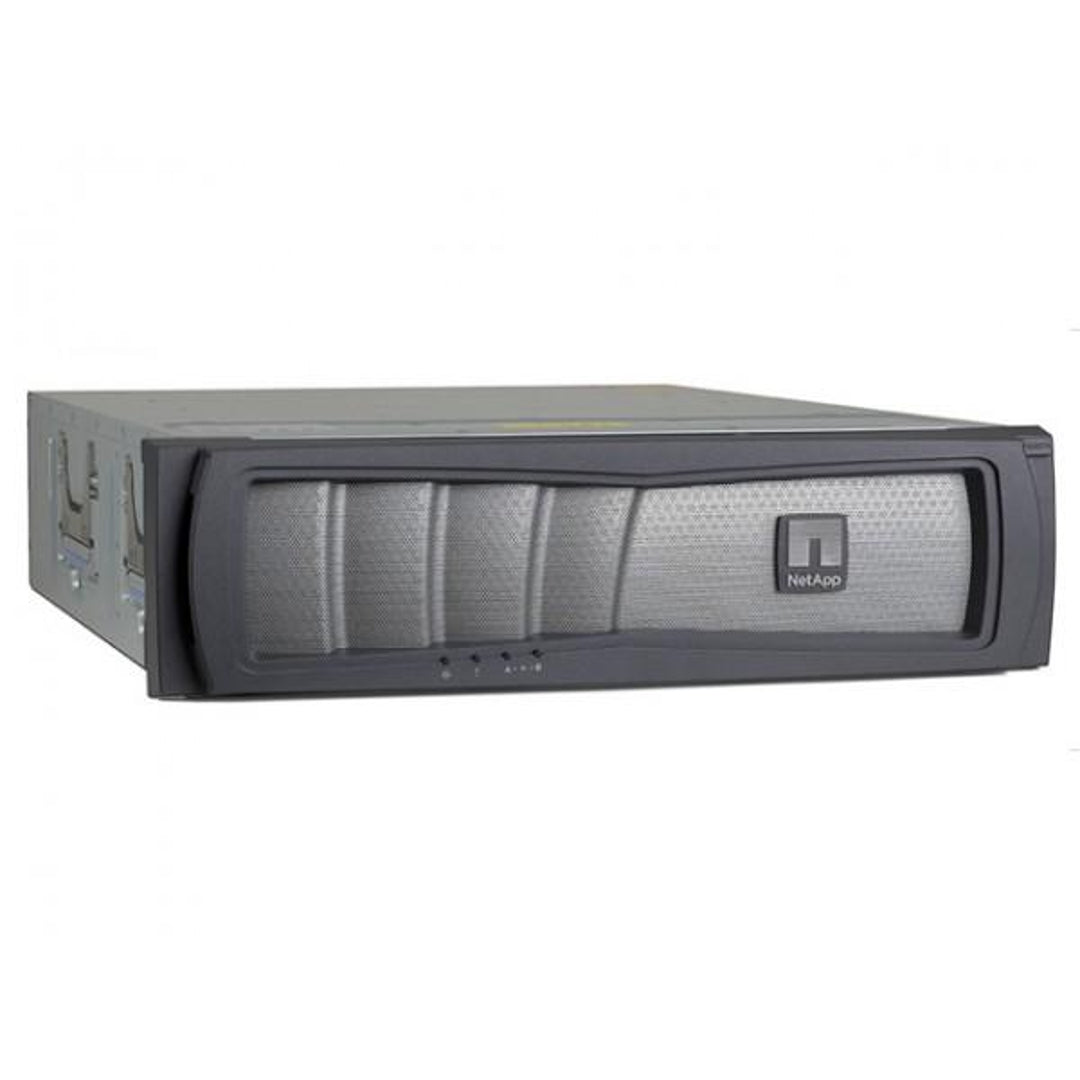

NetApp FAS3220 Dual Controller Filer Head (HA)

Name: NetApp FAS3220 Dual Controller Filer Head (HA)
Brand: NetApp
SKU: FAS3220A
Availability: OutOfStock

NetApp

| Filer Head

.price-ui--loading { display: block !important; opacity: 1 !important; }

Contact For Pricing

Thanks for the request. We'll get back to you with in 24 hours.

-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.

-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

Quick Specs

The NetApp FAS3220 is a robust 3U storage system designed for mid-sized enterprises seeking high availability and scalability. Its dual-controller configuration provides up to 24GB of shared memory, delivering dependable performance for diverse workloads while ensuring continuous data access.

Each controller houses a 64-bit 2.33GHz quad-core processor and supports an array of connectivity options, including 1GbE, 4Gb FC, and 6Gb SAS ports. With RAID 4, RAID-DP, and RAID-TEC protection schemes, the FAS3220 safeguards critical data and allows for future growth through four PCIe expansion slots.

The system scales to accommodate up to 672 drives, reaching capacities of 7.68PB. Compatible with multiple NetApp disk shelves (DS212C, DS224x, DS424x, DS4486, DS460C), it can flexibly mix drive types—MSATA, NL-SAS, SAS, SATA, and SSD—offering a versatile solution for evolving performance and capacity needs.

System Config

Model: NetApp FAS3220
Chassis: Single Chassis
Total Rack Height: 3U
Controllers: Dual Controller (HA)
Memory (HA): 24GB
Ethernet Ports: 4 x RJ45 (1Gb)
Fibre Channel Ports: 4 x SFP (4Gb)
SAS Ports: 4 x QSFP (6Gb)
PCIe Expansion Slots: 4 x PCIe
Max Drives (total): 480
Max Capacity: 7,680TB (7.68PB)
Disk Shelves: DS212C, DS2246, DS224C, DS4243, DS4246, DS4486, DS460C
Filer Heads: N/A

Dimensions & Weight

Chassis Rack Height: 3U
Chassis Heights: 5.12" (13 cm)
Chassis Width w/o Mounting Flanges: 17.6" (44.7 cm)
Chassis Depth w/ Cable Mgmt: 23.9" (60.7 cm)
Chassis Weight: up to 79.4 lb (36.0 kg)

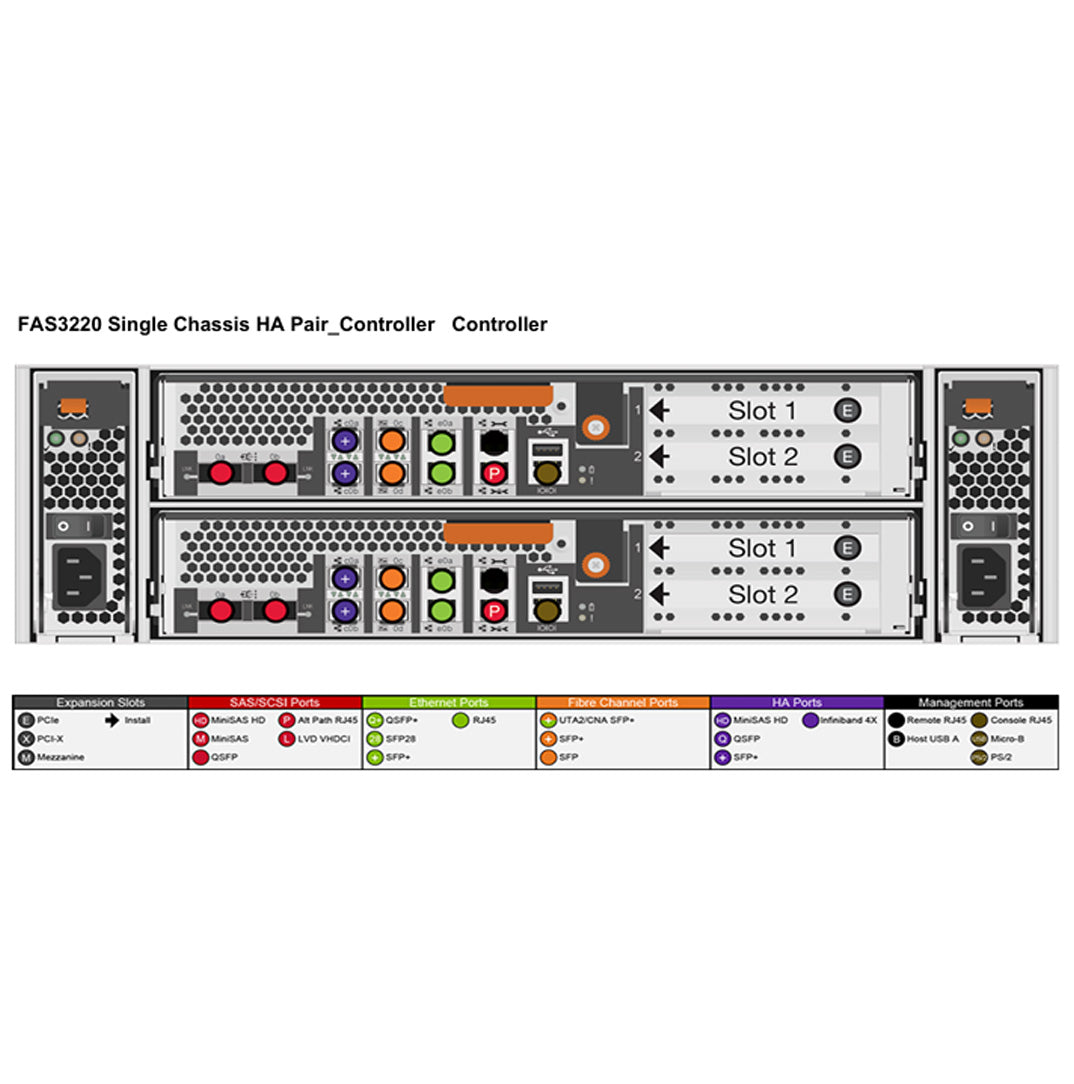

Controller Specs

Max Controllers: 2 (Per Chassis)
PCI Slot (per): 2 x PCIe
Ethernet Ports (per): 2 x RJ45 (1Gb)
Fibre Channel Ports (per): 2 x SFP (4Gb)
UTA2 Ports (per): N/A
SAS Ports (per): 2 x QSFP (6Gb)
Remote Management: Yes
Processor Model (per):1x 64-bit 4-core 2.33 Ghz
Memory (Single/HA): 12GB/24GB
NVRAM (Single/HA): 1GB/3GB

Storage

Max Number of Internal Drives: 0
Max Number Drives (total): 480
Max Capacity: 2,016TB (2PB)
Max Number of MSATA Drives: 480
Max Number of NL-SAS Drives: 480
Max Number of SAS Drives: 480
Max Number of SATA Drives: 480
Max Number of SSD Drives: 240
Drive Interface: MSATA, NL-SAS, SAS, SATA, SSD
RAID: RAID 4, RAID 6 (RAID-DP), RAID-TEC
Max # of DS212C Shelves: 20 external
Max # of DS2246 Shelves: 20 external
Max # of DS224C Shelves: 20 external
Max # of DS4243 Shelves: 20 external
Max # of DS4246 Shelves: 20 external
Max # of DS4486 Shelves: 10 external
Max # of DS460C Shelves: 8 external
