Specs
Bezel Specs
- Gen: N/A
- Unit Height: 4U
- Bays: N/A
- ALT PN: N/A
- Compatibility: PS6210E
Part Number:
- W366D

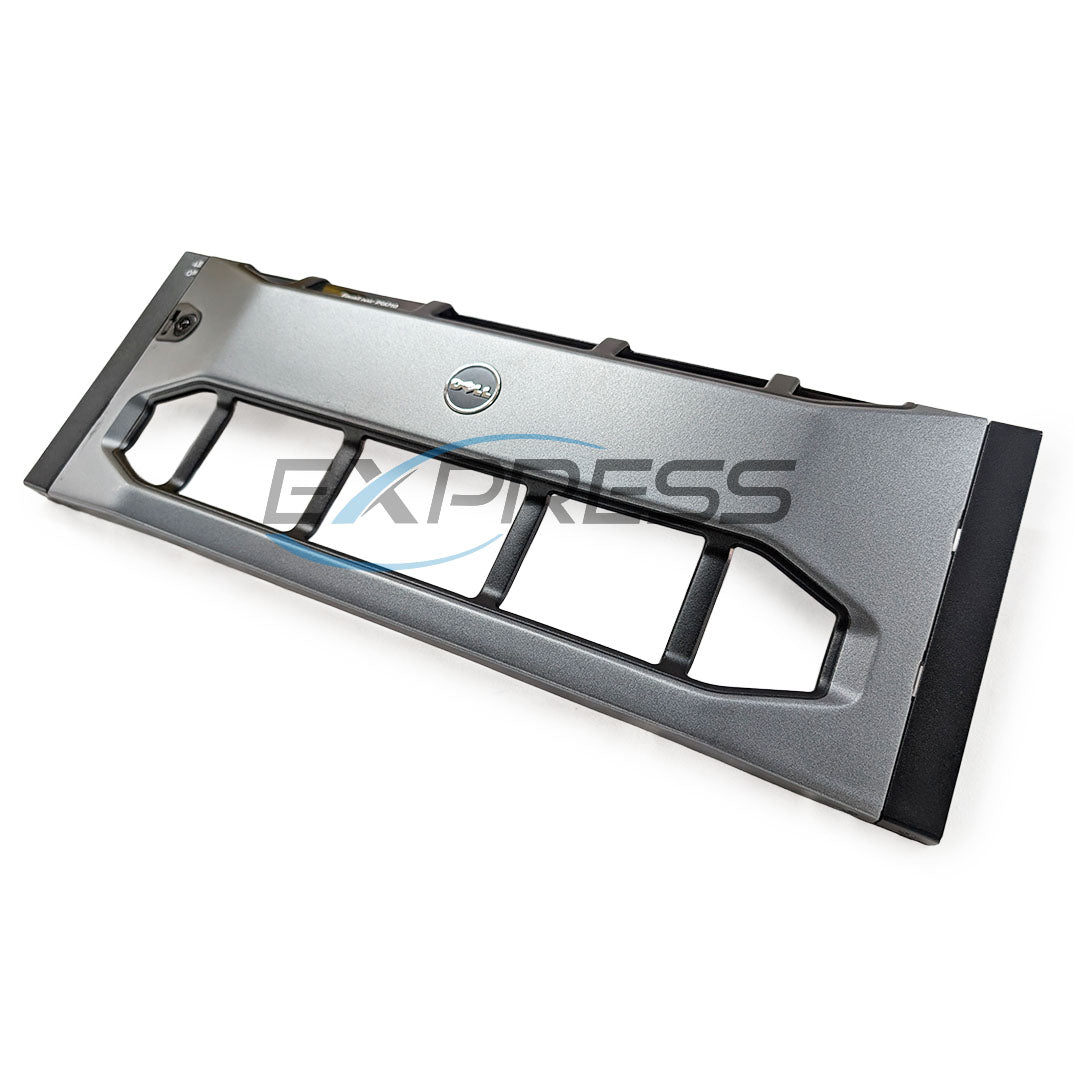

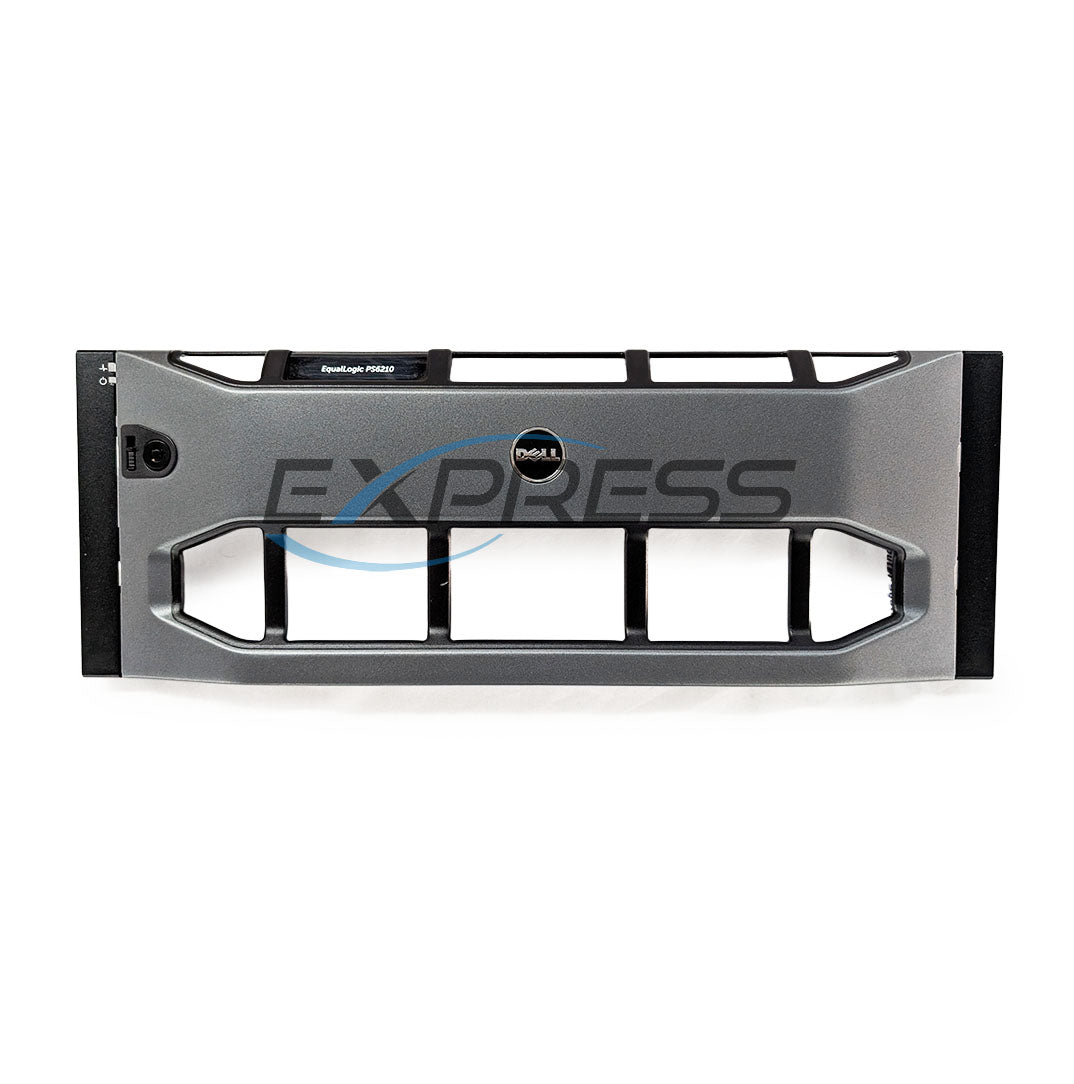

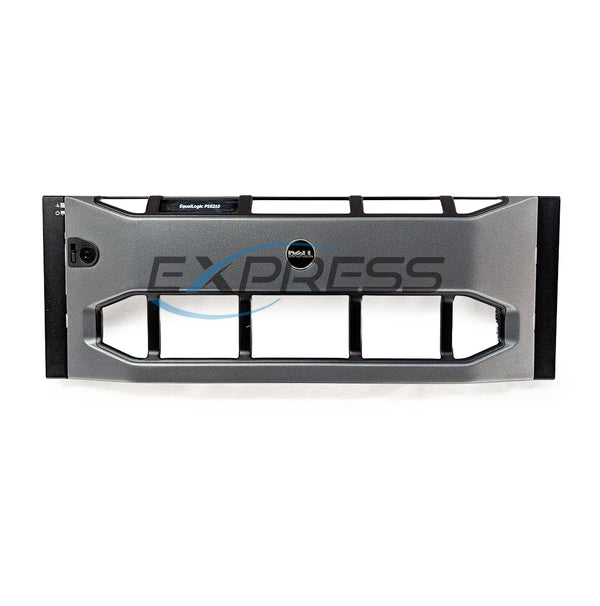

The Dell EqualLogic PS6210E 4U Security Bezel (W366D) is designed to provide physical security for the PS6210E storage array. It attaches to the front of the array, helping to prevent unauthorized access to the drives and enhancing the overall security of the system.
Constructed to match the 4U form factor of the PS6210E, this bezel includes a lock and key mechanism, ensuring that only authorized personnel can access the drives. Its design seamlessly integrates with the array, maintaining a professional appearance while adding an extra layer of protection.
Compatible With:
- Dell ps6210e
- Dell R910
(Click to View)
Spec Sheet 4
| PowerVault ME4 Series Specifications | |
|---|---|
| Chassis Overview | |
| Chassis format | All-in-one (single/dual controllers, internal drive bays, networking) with expansion options |
| Rack size | 2U or 5U |
| Controllers | 2 hot-swappable per chassis (dual active) Single/dual controller support for 2U Dual controller only support for 5U |
| Processor | Intel® 2-core, 2.2GHz |
| Internal storage |
|
| System memory | 8GB per controller |
| Expansion Capacity | |
| Expansion enclosures |
|
| Min/Max drive count |
|
| Max raw capacity |
|
| NAS Support | Supported with NX Series Windows NAS appliance |
| Storage media | SAS and NL-SAS drives; different drive types, transfer rates, rotational speeds can be mixed in the same system:
|
| Network and Expansion I/O | |
| Host interface | FC, iSCSI, SAS (supports simultaneous multiprotocol FC/iSCSI) |
| Max 16Gb FC ports | 8 per array (support auto-negotiate to 8Gb) |
| Max 10Gb iSCSI ports | 8 SFP+ or BaseT ports per array (BaseT only support auto negotiate to 1Gb) |
| Max 12Gb SAS ports | 8 12Gb SAS ports |
| Max multi-protocol ports |
4 ports 16Gb FC SFP+ 4 ports 10Gb iSCSI SFP+ |
| Max management ports | 2 per array (1Gb BASE-T) |
| Disk expansion protocol | 12Gb SAS |
| Disk interface expansion ports |
2 12Gb SAS (wide-Port) per array (1 port per controller) Up to 9 2U expansion enclosures per 2U base array Up to 3 5U expansion enclosures per 2U base array Up to 3 5U expansion enclosures per 5U base array |
| Data Optimization | |
| Auto-tiering | Up to 3 primary (media-based) tiers (2 level tiering supported) |
| RAID support | RAID 0, 1, 5, 6, 10, 50 or Adapt; any combination of RAID levels can exist in single array |
| Adapt | Distributed erasure coding that reduces rebuild times when drive failures occur |
| Thin provisioning | Active by default on all volumes, operates at full performance across all features |
| Snapshots | 1024 maximum snapshots per array |
| Physical Base System | |
| Rack size |
|
| Base system height |
|
| Base system width |
|
| Base system depth |
|
| Weight (max configuration) |
|
| Weight (empty) |
|
| Physical Expansion Enclosure | |
| Rack size |
|
| Base system height |
|
| Base system width |
|
| Base system depth |
|
| Weight (max configuration) |
|
| Weight (empty) |
|
| Base System Power | |
| Power/wattage |
|
| Heat dissipation |
|
| Voltage |
|
| Expansion System Power | |
| Power/wattage |
|
| Heat dissipation |
|
| Voltage |
|
