SKU: PS6610E-5U-48-BAY-NL-SAS

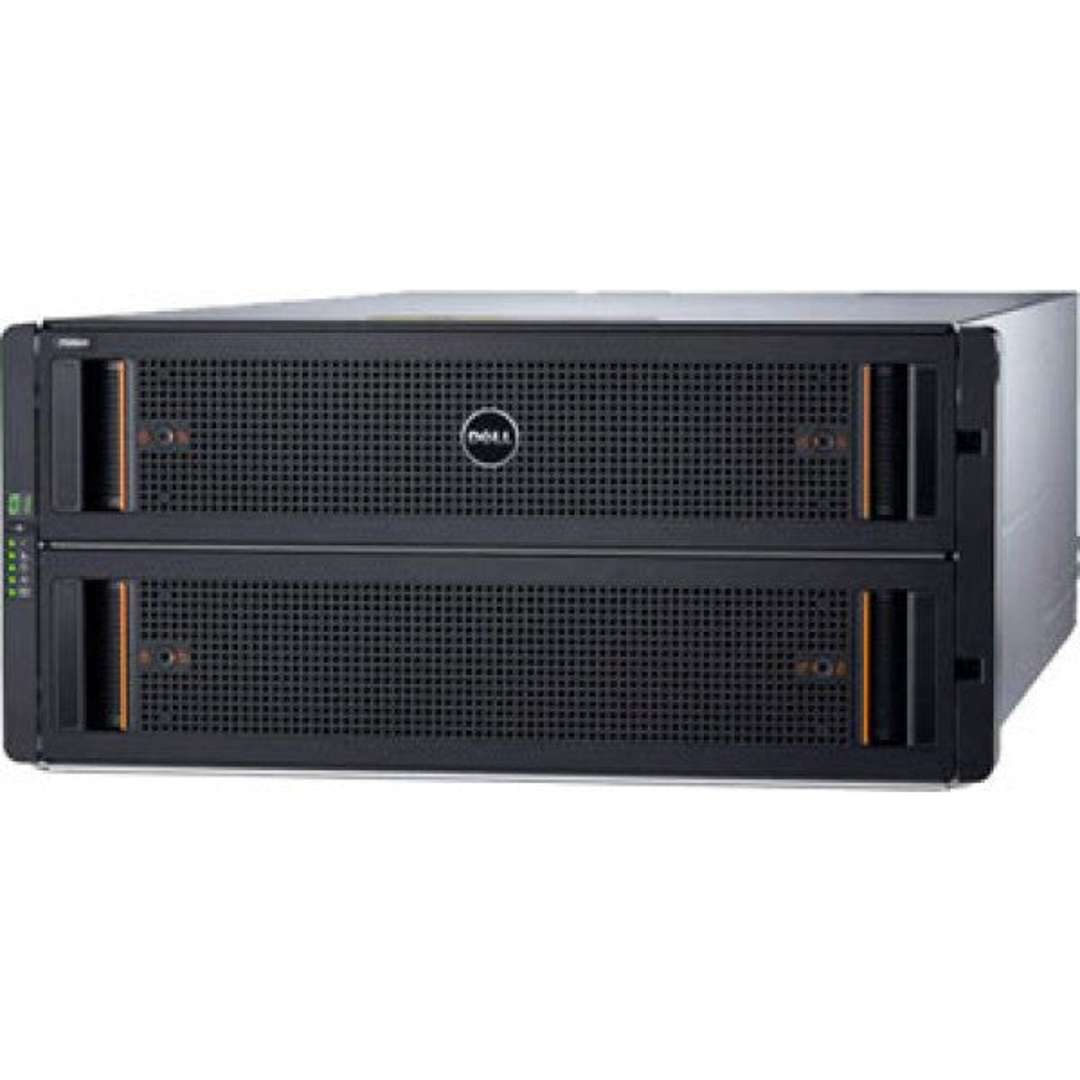

EqualLogic PS6610E 5U Storage Array (48 X 3.5" 7.2K NL-SAS)
$24,995.00
Quick Specs
The Dell PS6610 Series Storage Array provides superior density and improved performance by combining the power of 10GbE and up to 7 times increased performance compared to the previous generation. Offering over a half a Petabyte of storage capacity.
The latest PS Series firmware release 8.0 offers new features such as advanced vSphere Virtual Volumes integration and improved storage management with Smart Tags. The PS6610 can fit in almost any Data Center. Great for archival or secondary storage as well as mixed workload and video surveillance solutions.
With the addition of EqualLogic FS Series appliances, you can effectively store both block and file data in a unified storage solution. Plus, the Dell EqualLogic PS Series storage solution has the lowest total cost of ownership over a five-year period compared to two comparable SAN arrays in the market.
Designed to meet growing capacity requirements without the administrative overhead, the PS6610 array includes features and capabilities that sense network connections, automatically build RAID sets, and conduct system health checks to help ensure that all components are fully functional. Based on a virtualized modular storage architecture, you purchase only the storage you need, when you need it. The PS6610 can help prevent underuse and over-provisioning in the data center. All PS Series arrays in a SAN work together to automatically manage data, load balance across all resources, and expand to meet your growing storage needs.
PS6610E ISCSI SAN TECHNICAL FEATURES
PS6610 SERIES FEATURES
PS6610E ISCSI SAN TECHNICAL FEATURES
Product Configurations
Provides affordable, high-capacity storage for data-intensive workloads such as archival/secondary storage
Storage Controllers
Dual Controllers with 32GB Non-Volatile memory per controller
Network Interfaces
10GbE Connectivity; management network: 1x 100BASE-TX pre controller; interface ports: 2x 10GBASE-T with RJ45 or 2x 10GbE SFP+ for fibre or twin-ax copper cabling
Hard Disk Drives
42 x 2TB, 4TB or 6TB, or 84 x 4TB or 6TB Hot-Pluggable 3.5" 7.2K RPM NL-SAS Drives
Drive Capacities
3.5" 7,200 RPM NL-SAS drives available in 2TB, 4TB or 6TB
System Capacities
Up to 504TB (up to 8.06PB with 16 arrays)
Self-Encrypting Drives (SED)
4TB NL-SAS SED in the 84 drive configuration
Host Protocol
Any standards-compliant iSCSI initiator
OS and Hypervisors Supported
Microsoft Windows Server including Hyper-V, VMware ESX Server, Red Hat Enterprise Linux (RHEL), SUSE Enterprise Linux (SLES), Oracle Linux, Citrix XenServer
RAID Supported
RAID 6, RAID 10
TCP Network Support
IPv4 SAN and management traffic supported, and IPv6 SAN and in-band management supported
Expansion Option
Can be combined with other EqualLogic PS Series arrays in the same SAN group, online with up to 16 total members per group
Reliability
Redundant hot-swappable controllers; hot-swappable disks and power supplies
Enclosure Monitoring System
Automatic spare configuration and utilization; SMART; Automatic bad block replacement; Auto-Stat Disk Monitoring System (ADMS) to monitor health of data on disk drives
Management Interfaces
SAN Headquarters multi-group performance and event monitoring tool; Serial console; Ability to configure a separate management network; SNMP, telnet, SSH, HTTP, Web (SSL), host scripting, Multi-administrator support
Security
CHAP Authentication; Access control for iSCSI; Access control for management interfaces including Active Directory, LDAP, RADIUS support
Notification Methods
SAN Headquarters alerting including Dell SupportAssist, SNMP traps, e-mail, syslog
Physical
Height: 5/U (8.8") - Width: 19" - Depth: 36" - Max Weight: 287.5lbs
Power
Dual 2800W, 220-240VAC, 50/60Hz (high AC line power source only)
| PS6610 SERIES FEATURES | PS6610E ISCSI SAN TECHNICAL FEATURES |
|---|---|
| Product Configurations | Provides affordable, high-capacity storage for data-intensive workloads such as archival/secondary storage |
| Storage Controllers | Dual Controllers with 32GB Non-Volatile memory per controller |
| Network Interfaces | 10GbE Connectivity; management network: 1x 100BASE-TX pre controller; interface ports: 2x 10GBASE-T with RJ45 or 2x 10GbE SFP+ for fibre or twin-ax copper cabling |
| Hard Disk Drives | 42 x 2TB, 4TB or 6TB, or 84 x 4TB or 6TB Hot-Pluggable 3.5" 7.2K RPM NL-SAS Drives |
| Drive Capacities | 3.5" 7,200 RPM NL-SAS drives available in 2TB, 4TB or 6TB |
| System Capacities | Up to 504TB (up to 8.06PB with 16 arrays) |
| Self-Encrypting Drives (SED) | 4TB NL-SAS SED in the 84 drive configuration |
| Host Protocol | Any standards-compliant iSCSI initiator |
| OS and Hypervisors Supported | Microsoft Windows Server including Hyper-V, VMware ESX Server, Red Hat Enterprise Linux (RHEL), SUSE Enterprise Linux (SLES), Oracle Linux, Citrix XenServer |
| RAID Supported | RAID 6, RAID 10 |
| TCP Network Support | IPv4 SAN and management traffic supported, and IPv6 SAN and in-band management supported |
| Expansion Option | Can be combined with other EqualLogic PS Series arrays in the same SAN group, online with up to 16 total members per group |
| Reliability | Redundant hot-swappable controllers; hot-swappable disks and power supplies |
| Enclosure Monitoring System | Automatic spare configuration and utilization; SMART; Automatic bad block replacement; Auto-Stat Disk Monitoring System (ADMS) to monitor health of data on disk drives |
| Management Interfaces | SAN Headquarters multi-group performance and event monitoring tool; Serial console; Ability to configure a separate management network; SNMP, telnet, SSH, HTTP, Web (SSL), host scripting, Multi-administrator support |
| Security | CHAP Authentication; Access control for iSCSI; Access control for management interfaces including Active Directory, LDAP, RADIUS support |
| Notification Methods | SAN Headquarters alerting including Dell SupportAssist, SNMP traps, e-mail, syslog |
| Physical | Height: 5/U (8.8") - Width: 19" - Depth: 36" - Max Weight: 287.5lbs |
| Power | Dual 2800W, 220-240VAC, 50/60Hz (high AC line power source only) |
