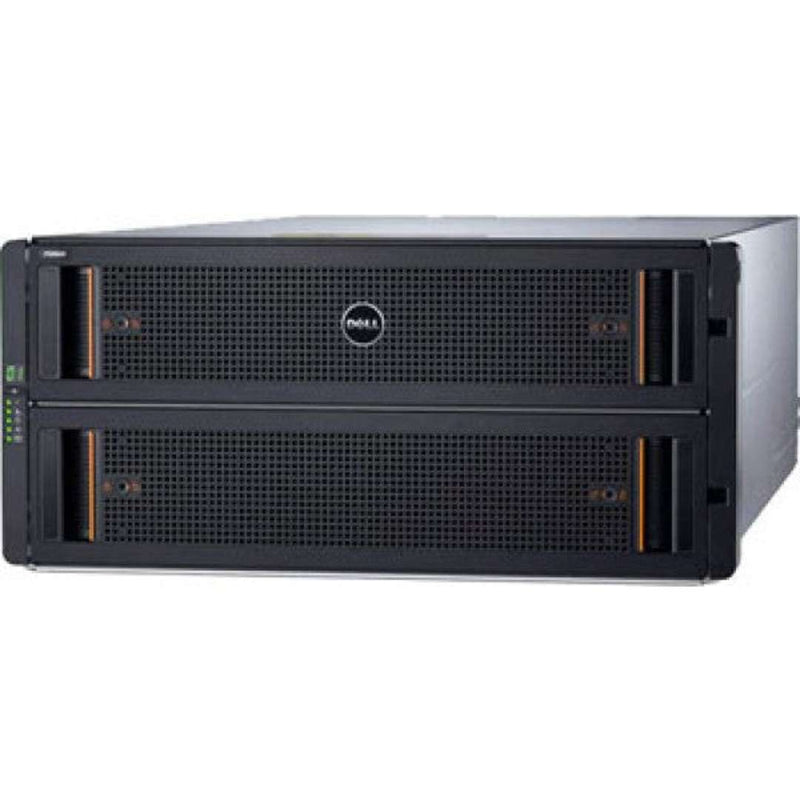

    EqualLogic PS6610X 5U Storage Array (84 x 2.5" 10K sas)


    Price: Request a Quote

    Brand:
    MPN:
    PS6610X-5U-84-BAY-SAS
    Type:
    Storage Array
    Condition:
    ECS Refurbished & Tested

    Request Quote

    Note: Please include as much details and relevant options about the item to help us match your request with an accurate price.


    -PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.
    -SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

    EqualLogic PS6610X 5U Storage Array (84 x 2.5" 10K sas)

    The Dell PS6610 Series Storage Array provides superior density and improved performance by combining the power of 10GbE and up to 7 times increased performance compared to the previous generation. Offering over a half a Petabyte of storage capacity the PS6610 can fit in almost any Data Center. Great for archival or secondary storage as well as mixed workload and video surveillance solutions.

    The latest PS Series firmware release 8.0 offeres new features such as advanced vSphere Virtual Volumes integration and improved storage management with Smart Tags.

    Designed to meet growing capacity requirements without the administrative overhead, the PS6610 array includes features and capabilities that sense network connections, automatically build RAID sets, and conduct system health checks to help ensure that all components are fully functional. Based on a virtualized modular storage architecture, you purchase only the storage you need, when you need it. The PS6610 can help prevent underuse and over-provisioning in the data center. All PS Series arrays in a SAN work together to automatically manage data, load balance across all resources, and expand to meet you growing storage needs.

    With the addition of EqualLogic FS Series appliances, you can effectively store both block and file data in a unified storage solution. Plus, the Dell EqualLogic PS Series storage solution has the lowest total cost of ownership over a five-year period compared to two comparable SAN arrays in the market.

    PS6610X ISCSI SAN TECHNICAL FEATURES

    PS6610 SERIES FEATURES PS6610X ISCSI SAN TECHNICAL FEATURES
    Product Configurations Balances cost, performance and capacity for consolidating mixed workloads such as Microsoft Exchange and SharePoint
    Storage Controllers Dual Controllers with 32GB Non-Volatile memory per controller
    Network Interfaces 10GbE Connectivity; management network: 1x 100BASE-TX pre controller; interface ports: 2x 10GBASE-T with RJ45 or 2x 10GbE SFP+ for fibre or twin-ax copper cabling
    Hard Disk Drives 84 x 600GB, or 42 or 84 x 900GB or 1.2TB hot-pluggable 2.5" 10K RPM SAS Drives
    Drive Capacities 2.5" 10,000 RPM SAS drives available in 600GB, 900GB or 1.2TB
    System Capacities Up to 100.8TB (up to 1.6PB with 16 arrays)
    Self-Encrypting Drives (SED) 1.2TB SAS SED in the 84 drive configuration
    Host Protocol Any standards-compliant iSCSI initiator
    OS and Hypervisors Supported Microsoft Windows Server including Hyper-V, VMware ESX Server, Red Hat Enterprise Linux (RHEL), SUSE Enterprise Linux (SLES), Oracle Linux, Citrix XenServer
    RAID Supported RAID 6, RAID 10
    TCP Network Support IPv4 SAN and management traffic supported, and IPv6 SAN and in-band management supported
    Expansion Option Can be combined with other EqualLogic PS Series arrays in the same SAN group, online with up to 16 total members per group
    Reliability Redundant hot-swappable controllers; hot-swappable disks and power supplies
    Enclosure Monitoring System Automatic spare configuration and utilization; SMART; Automatic bad block replacement; Auto-Stat Disk Monitoring System (ADMS) to monitor health of data on disk drives
    Management Interfaces SAN Headquarters multi-group performance and event monitoring tool; Serial console; Ability to configure a separate management network; SNMP, telnet, SSH, HTTP, Web (SSL), host scripting, Multi-administrator support
    Security CHAP Authentication; Access control for iSCSI; Access control for management interfaces including Active Directory, LDAP, RADIUS support
    Notification Methods SAN Headquarters alerting including Dell SupportAssist, SNMP traps, e-mail, syslog
    Physical Height: 5/U (8.8") - Width: 19" - Depth: 36" - Max Weight: 287.5lbs
    Power Dual 2800W, 220-240VAC, 50/60Hz (high AC line power source only)
