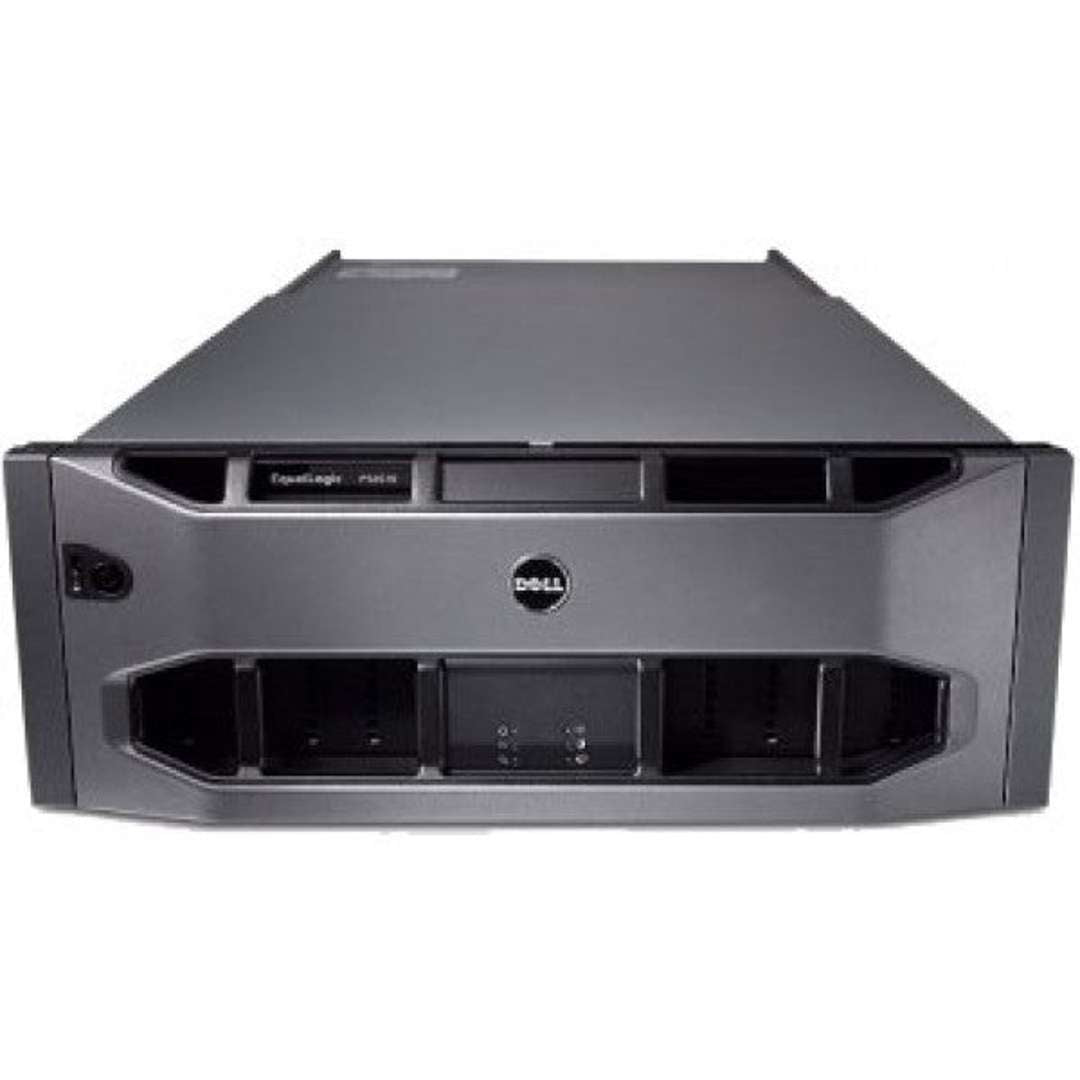

EqualLogic PS6500ES 4U Storage Array (48 X 2.5" 7.2K NL-SAS + SSD)
Contact For Pricing
Thanks for the request. We'll get back to you with in 24 hours.
Quick Specs
The Dell EqualLogic PS6500 Series virtualized iSCSI SAN’s maximize enterprise performance, reliability and capacity while delivering the lowest five-year total cost of ownership compared to other SAN array’s on the market. The PS6500 series arrays provide cost-effective capacity and performance designed to scale up to 2.3PB without downtime. Featuring auto-tiering hybrid configuration (SSD + NL-SAS).
The EqualLogic PS6500 Series array is designed to optimize capacity utilization and performance dynamically through auto-tiering and load balancing. Easily integrates with virtualized applications and toolsets already in place. Furnished with 10GbE controller, the PS6500 Series arrays adjust to changing data demands by reducing latency and balancing performance and capacity across all EqualLogic SAN resources.
The PS6500ES Hybrid offers a configuration to auto-tier data and store frequently accessed data on SSD’s for rapid response and store cold data on HDD’s within the same array. This minimizes the number of SSD’s required, reducing overall cost. When combined with EqualLogic FS Series NAS appliances, the PS6500 Series arrays offer a unified block and file storage solution, minimizing both resource management and storage costs. PS6510 Series array’s come with 2GB non-volatile memory per controller.
PS6500ES ISCSI SAN TECHNICAL FEATURES
| PS6500 SERIES FEATURES | PS6500ES ISCSI SAN TECHNICAL FEATURES |
|---|---|
| Product Configurations | SSD speed with HDD capacity in a single array |
| Storage Controllers | Dual controllers with 2GB non-volatile memory per controller |
| Network Interfaces | Interfaces Ports: 4x 1000BASE-T ports per controller, one may be used for management purposes |
| Hard Disk Drives | 41x Hot-Pluggable 2.5" 7.2K NL-SAS HDDs + 7x Hot-Pluggable 2.5" SSDs |
| Drive Capacities | 2TB NL-SAS + 400GB SSDs |
| System Capacities | Up to 84.8TB |
| Host Protocol | Any standards-compliant iSCSI initiator |
| Volumes | Up to 1,024 / 4,096 per group |
| Snapshots | 512 per volume/up to 10,000 total |
| OS and Hypervisors Supported | Microsoft Windows Server including Hyper-V, VMware ESX Server, Red Hat Enterprise Linux (RHEL), SUSE Enterprise Linux (SLES), Oracle Linux, Citrix XenServer, Oracle Solaris, IBM AIX, HP-UX, MAC OS X, Novell NetWare |
| RAID Supported | RAID 6 Accelerated |
| TCP Network Support | IPv4, IPv6 Core Support |
| Expansion Option | Can be combined with other EqualLogic PS Series arrays in the same SAN group, online. Up to 16 total members per group |
| Unified Storage Options | Adding an EqualLogic FS7600 or FS7610 NAS appliance to an EqualLogic group enables both block and file storage from a single storage solution |
| Management Interfaces | SAN Headquarters multi-group performance and event monitoring tool; Serial console; Ability to configure a separate management network; SNMP, telnet, SSH, HTTP, Web (SSL), host scripting, Multi-administrator support |
| Security | CHAP Authentication; Access control for iSCSI; Access control for management interfaces including Active Directory, LDAP, or RADIUS support |
| Notification Methods | SNMP traps, e-mail, syslog |
| Physical | Height: 4/U (6.89") - Width: 19.01" - Depth: 37.8" - Max Weight: 165 lbs |
| Power | Three 440W DC Power Supplies; Frequency: 47/63 Hz; AC voltage: 100-240 VAC |
