SKU: PS6110X-2U-24-BAY-SAS

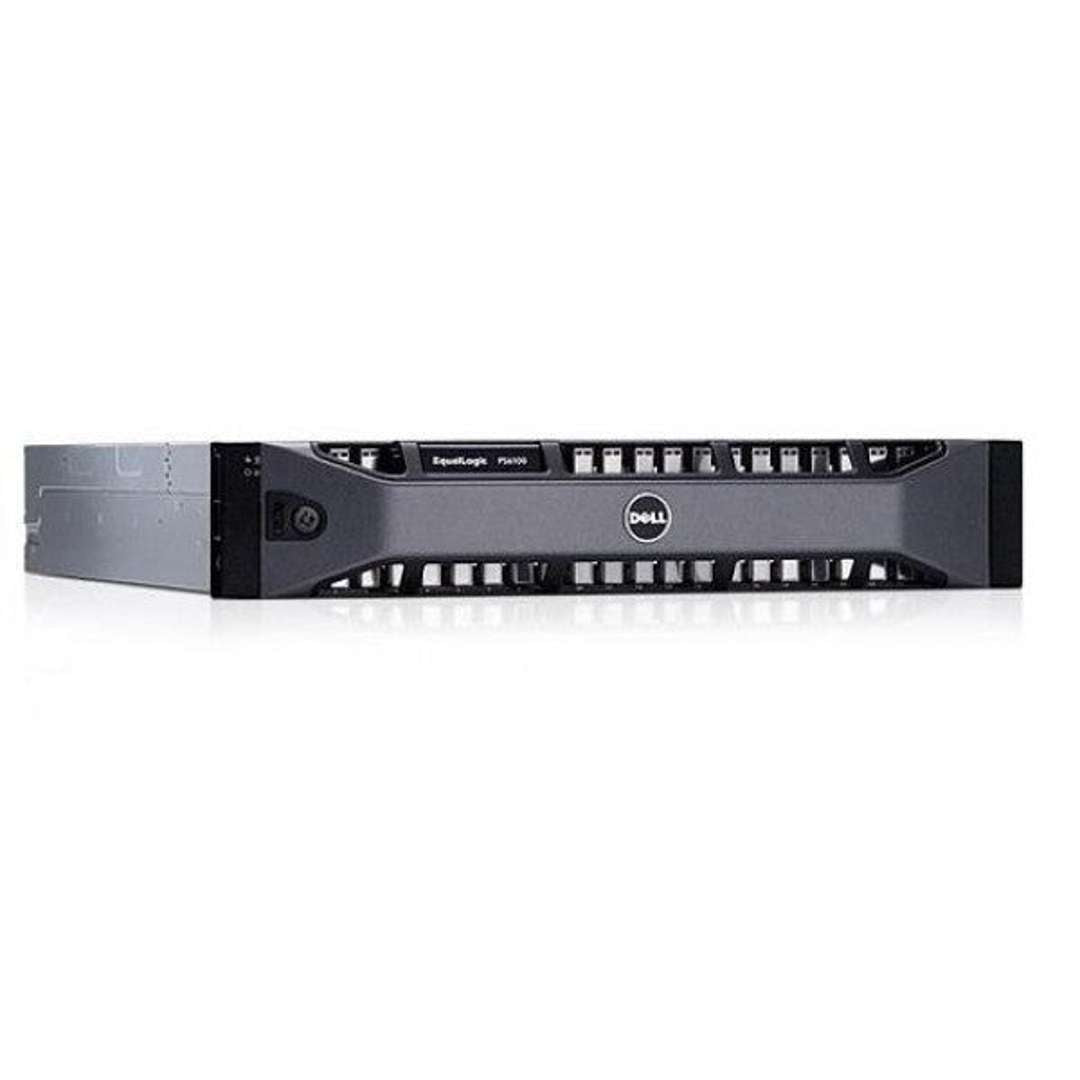

EqualLogic PS6110X 2U Storage Array (24 x 2.5" 10K SAS)
Contact For Pricing
Thanks for the request. We'll get back to you with in 24 hours.
Quick Specs
The Dell EqualLogic PS6110 Series storage arrays offer enterprise power with everyday simplicity. The PS6610 Series offer exception performance and increased throughput with 10GbE and the flexibility of use SFP+ or 10GBASE-T (Copper) so you can leverage your existing infrastructure or build out lower-cost 10GBASE-T.
The EqualLogic PS61110 Series arrays make it possible to purchase only the storage you need when you need it. Easy to use management features speed SAN configuration while built-in intelligence senses network connections, automatically builds RAID sets and conducts system health checks.
The PS6110 Series arrays reduce single points of failure with fully redundant and hot-swappable controllers, fan trays, power supplies, disk drives with hot spares and vertical port sharing. EqualLogic PS6110 Series arrays include innovative firmware and host software with no additional cost or software licensing fees.
PS6110X ISCSI SAN TECHNICAL FEATURES
| PS6110 SERIES FEATURES | PS6110X ISCSI SAN TECHNICAL FEATURES |
|---|---|
| Product Configurations | Capacity for you data-hungry applications |
| Storage Controllers | Dual controllers with a total of 8GB backup cache data to flash memory for data protection |
| Network Interfaces | 10GbE Connectivity with 1x 10GBASE-T with RJ45, 1x 10GbE SFP+ for fibre or twin-ax copper cabling, and 1x 100BASE-TX dedicated management port per controller |
| Hard Disk Drives | 24x hot-pluggable 2.5" SAS |
| Drive Capacities | 600GB, 900GB and 1.2TB 2.5" 10K SAS and 900GB SAS SED (Self Encrypting Drive) |
| System Capacities | Up to 28.8TB |
| Host Protocol | Any standards-compliant iSCSI initiator |
| OS and Hypervisors Supported | Microsoft Windows Server including Hyper-V, VMware ESX Server, Red Hat Enterprise Linux (RHEL), SUSE Enterprise Linux (SLES), Oracle Linux, Citrix XenServer, Oracle Solaris, IBM AIX, HP-UX, MAC OS X, Novell NetWare |
| RAID Supported | RAID 5, RAID 6, RAID 10, RAID 50 |
| TCP Network Support | IPv4, IPv6 Core Support |
| Expansion Option | Can be combined with other EqualLogic PS Series arrays in the same SAN group, online. A maximum of 16 total members per group |
| Reliability | Redundant hot-swappable controllers with vertical port sharing; hot-swappable disks and power supplies |
| Enclosure Monitoring System | Automatic spare configuration and utilization; SMART; Automatic bad block replacement; Auto-Stat Disk Monitoring System (ADMS) to monitor health of data on disk drives |
| Management Interfaces | SAN Headquarters multi-group performance and event monitoring tool; Serial console; Ability to configure a separate management network; SNMP, telnet, SSH, HTTP, Web (SSL), host scripting, Multi-administrator support |
| Security | CHAP Authentication; Access control for iSCSI; Access control for management interfaces including Active Directory, LDAP, RADIUS support |
| Notification Methods | SNMP traps, e-mail, syslog |
| Physical | Height: 2/U (3.41") - Width: 17.57" - Depth: 21.3" - Max Weight: 53.1lbs |
| Power | Dual 700W |
| Rack Support | ReadyRails II static rails for tool-less mounting in 4-post racks with square or un-threaded round holes or tooled mounting in 4-post threaded-hole racks |
