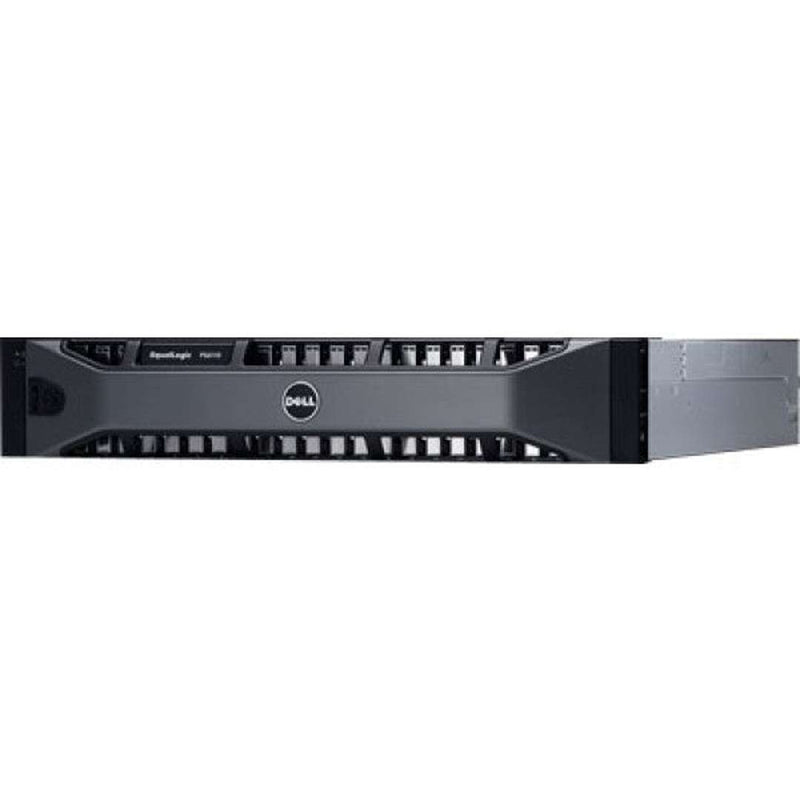

The Dell EqualLogic PS6100XS provides Solid State Drive (SSD) speed with Hard Disk Drive (HDD) capacity in a 26TB 2U/2.5 drive solution. The PS6100XS provides up to 67% IOPS improvements on typical workloads over previous-generation EqualLogic arrays.
The Dell EqualLogic PS6100 Series storage arrays offer enterprise power with everyday simplicity. The PS6100 Series offers exceptional performance with 1GbE networking to leverage existing infrastructure. The PS6100 Series doesn’t force you to make a choice between scaling storage performance or expanding capacity. PS Series arrays make it possible to purchase only the storage you need when you need it.
Easy to use management features speed SAN configuration while built-in intelligence senses network connections, automatically builds RAID sets and conducts system health checks. Works well with older generation PS series storage arrays to automatically manage data, load balance across all resources or seamlessly expand the storage pool when you add a new array. PS6100 Series arrays also reduce single points of failure with fully redundant and hot-swappable controllers, fan trays, power supplies, disk drives with hot spares and vertical port sharing.
| PS6100 SERIES FEATURES | PS6100XS ISCSI SAN TECHNICAL FEATURES |
|---|---|
| Product Configurations | High performance for your demanding enterprise applications |
| Storage Controllers | Dual controllers with 4GB non-volatile memory per controller |
| Network Interfaces | 4x 1000BASE-T ports per controller. Management Network: 1x 100BASE-TX dedicated management port per controller |
| Hard Disk Drives | 17x Hot-Pluggable 2.5" 10K SAS + 7x Hot-Pluggable 2.5" SSDs |
| Drive Capacities | 600GB, 1.2TB 10K SAS + 400GB, 800GB 2.5" SSDs |
| System Capacities | Up to 26TB |
| Host Protocol | Any standards-compliant iSCSI initiator |
| OS and Hypervisors Supported | Microsoft Windows Server including Hyper-V, VMware ESX Server, Red Hat Enterprise Linux (RHEL), SUSE Enterprise Linux (SLES), Oracle Linux, Citrix XenServer, Oracle Solaris, IBM AIX, HP-UX, MAC OS X, Novell NetWare |
| RAID Supported | RAID 6 Accelerated |
| TCP Network Support | IPv4 SAN and management traffic supported, and IPv6 SAN and in-band management supported |
| Expansion Option | Can be combined with other EqualLogic PS Series arrays in the same SAN group, online. A maximum of 16 total members per group |
| Reliability | Redundant hot-swappable controllers with vertical port sharing; hot-swappable disks and power supplies |
| Enclosure Monitoring System | Automatic spare configuration and utilization; SMART; Automatic bad block replacement; Auto-Stat Disk Monitoring System (ADMS) to monitor health of data on disk drives |
| Management Interfaces | SAN Headquarters multi-group performance and event monitoring tool; Serial console; Ability to configure a separate management network; SNMP, telnet, SSH, HTTP, Web (SSL), host scripting, Multi-administrator support |
| Security | CHAP Authentication; Access control for iSCSI; Access control for management interfaces including Active Directory, LDAP, RADIUS support |
| Notification Methods | SNMP traps, e-mail, syslog |
| Physical | Height: 2/U (3.41") - Width: 17.57" - Depth: 21.3" - Max Weight: 53.1lbs |
| Power | Dual 700W |
| Rack Support | ReadyRails II static rails for tool-less mounting in 4-post racks with square or un-threaded round holes or tooled mounting in 4-post threaded-hole racks |
