SKU: 867249-B21
HPE ProLiant DL360 (G9) 2P Full Height Pcie Slot 2 GPU Enablement Kit | 867249-B21
Contact For Pricing
Thanks for the request. We'll get back to you with in 24 hours.
-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.
-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.
Quick Specs

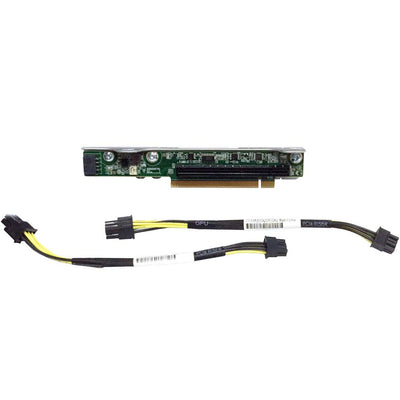

If you want to install 2 GPUs into the Dl360 Gen9 server you will need to install this PCIe riser as the Secondary Riser for slot 3. This Kit also contains the cables need for both GPUs in slot 1 and 3.
775429-001 - PCI card support bracket - Plastic bracket that slide-locks on to two standoffs on the right side of the chassis frame
780426-001 - GPU power cable - 85mm long (3.3 inches) long - Interconnects the graphics accelerator board to the additional power connector on the secondary riser board
780427-001 - GPU power cable - 140mm long (5.5 inches) long - Interconnects the graphics accelerator board to the additional power connector on the primary riser board
775419-001 - Secondary PCIe3 riser board ONLY - Provides a full-height x16 PCIe3 in slot 3 of the server - Plugs in the secondary riser slot on the system I/O board - This optional board requires that a second processor be installed
Compatible With:
- HPE DL360
(Click to View)
