-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.
-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.
Quick Specs

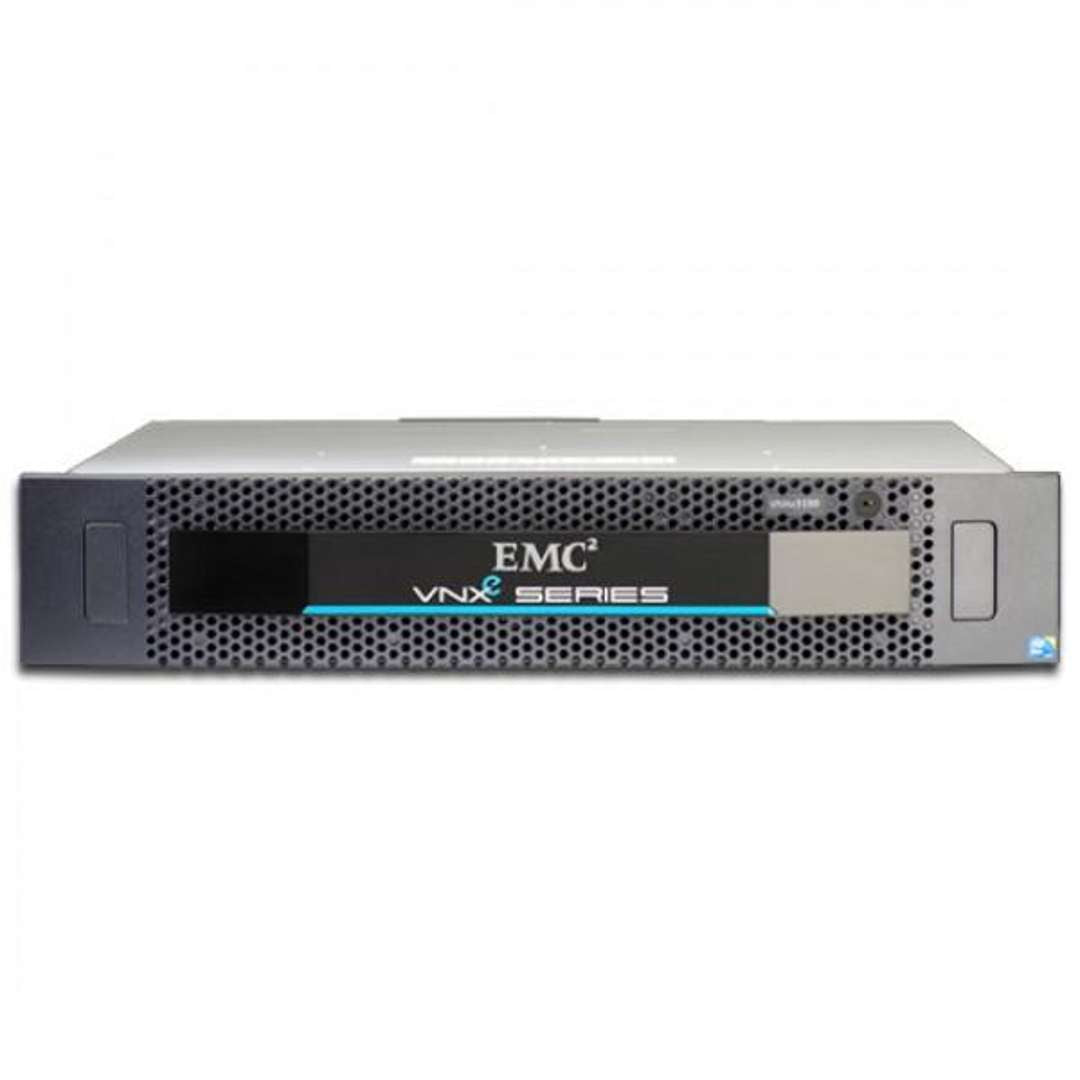

- Product Name: EMC VNXe3100 Disk Processor Enclosure (DPE)
- Form Factor: 2U

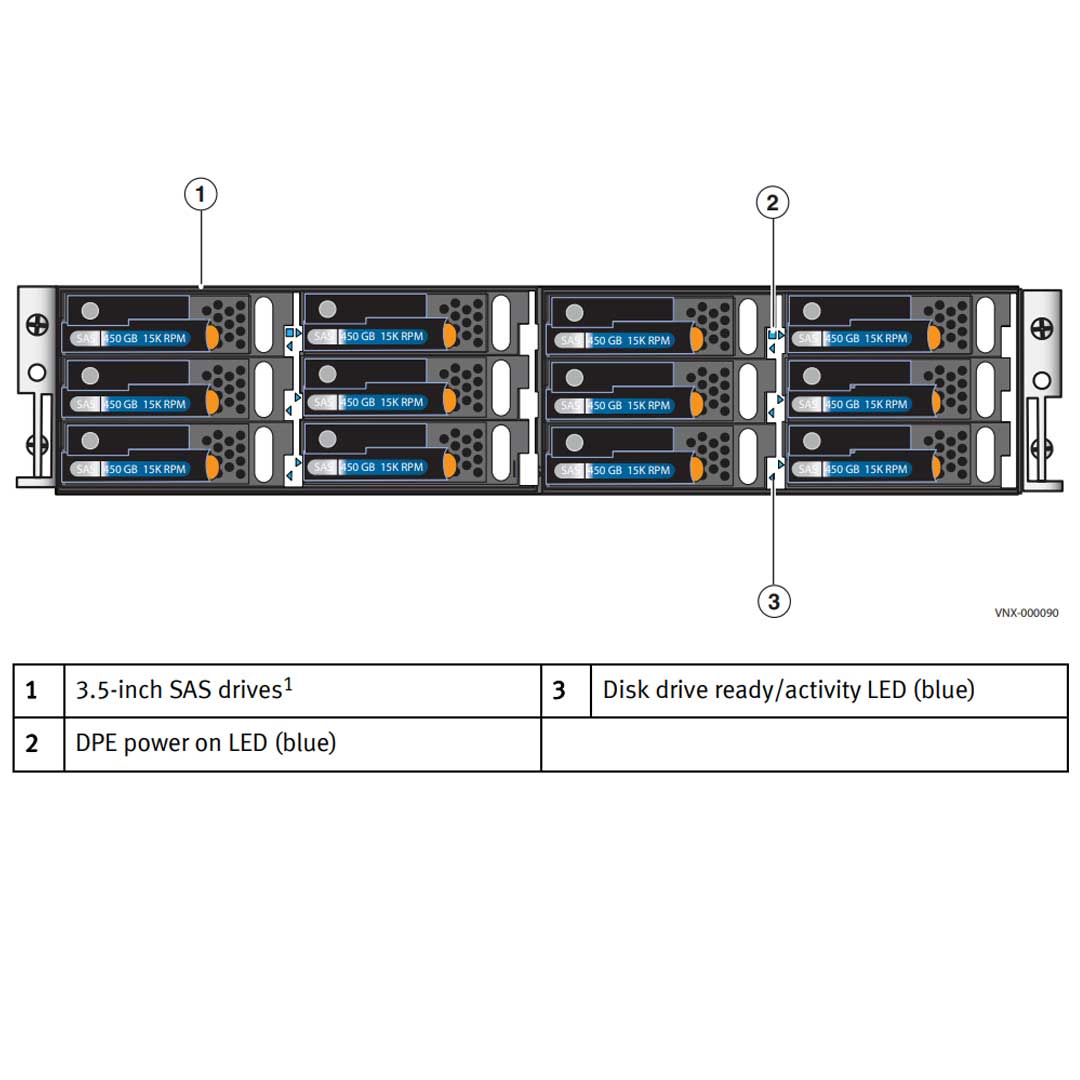

- Chassis: 12 LFF (3.5") Drives
- Max Drives: Up to 96 (dual SP configuration)
- Drive Types: SAS, NL-SAS
- Storage Processor: Intel Xeon Dual Core 1.73GHz, 4–8GB RAM per SP

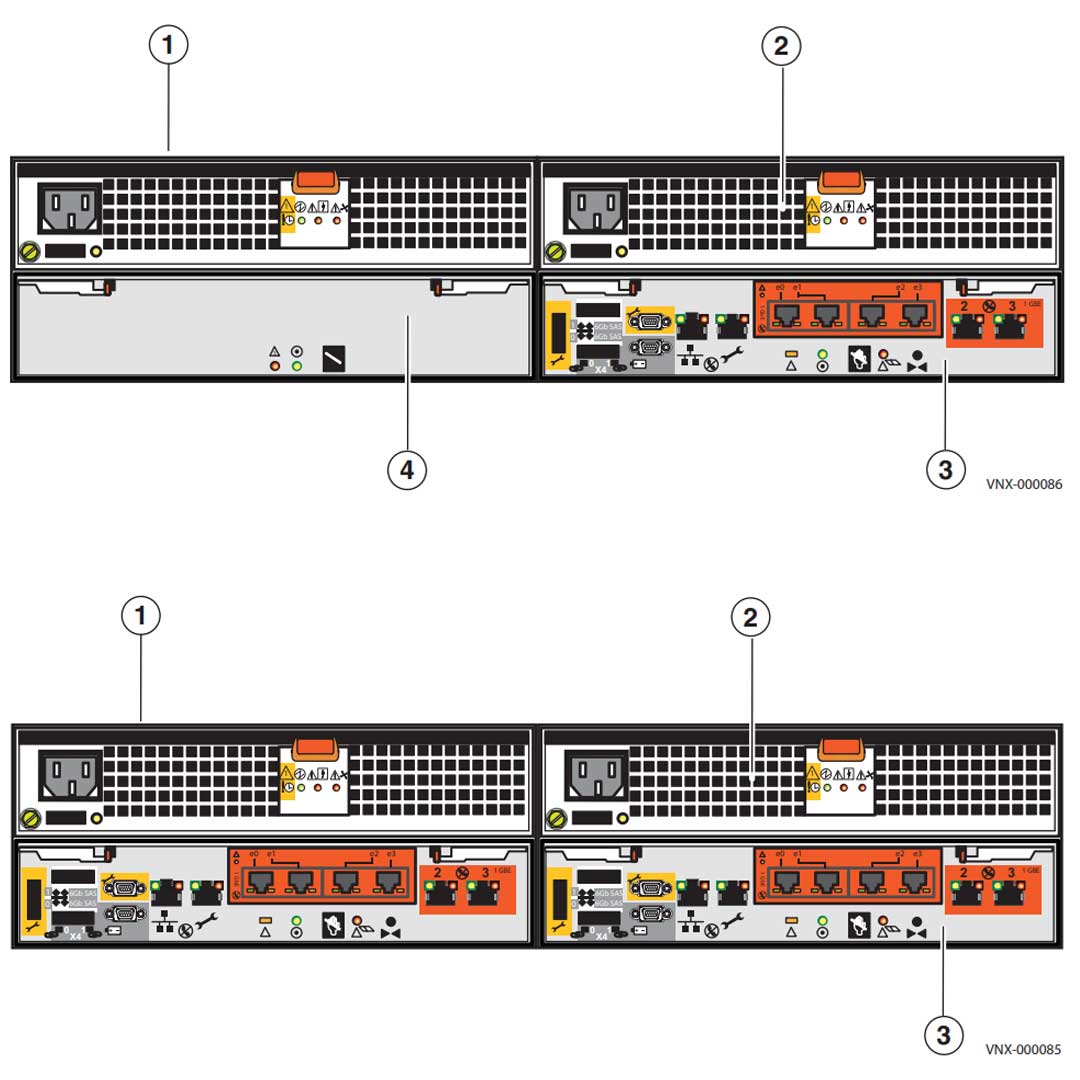

- SP Configurations: Single or Dual SP
- SP Module Options: 4-Port 1GbE (Single/Dual SP), 2-Port 10GbE (Dual SP only)
- Unified Protocols: iSCSI SAN, NAS (CIFS/NFS)
- Supported DAEs: V2-DAE-12 (12x 3.5"), V2-DAE-25 (25x 2.5")
Model Identifier:
- VNXe3100
The EMC VNXe3100 Disk Processor Enclosure (DPE) is a compact 2U storage platform designed for small to medium-sized businesses. Supporting up to 12 large form factor drives, it offers unified storage access via iSCSI SAN and NAS protocols, ideal for file sharing, virtualization, and remote office consolidation.
With single or dual storage processor configurations, the VNXe3100 provides flexible network connectivity through 1GbE or 10GbE ports. It scales via Gen 1 DAEs, allowing up to 96 total drives in a dual SP setup. Featuring Intel Xeon processors and mirrored cache protection, it delivers enterprise-class storage with simplified management.
Spec Sheet 4
EMC VNXe3100 Technical Specifications
| EMC VNXE3100 TECHNICAL SPECIFICATIONS | |
|---|---|
| Form Factor | 2U Rack |
| Storage Type | Unified |
| Maximum Raw Capacity | 192TB |
| Dual Controllers (SPs) | Optional |
| Number of Drives | Single Controller: 50 (max) Dual Controller: 100 (max) |
| Min/Max Number of Drives (Single SP | Dual SP) | 6/48 | 6/96 |

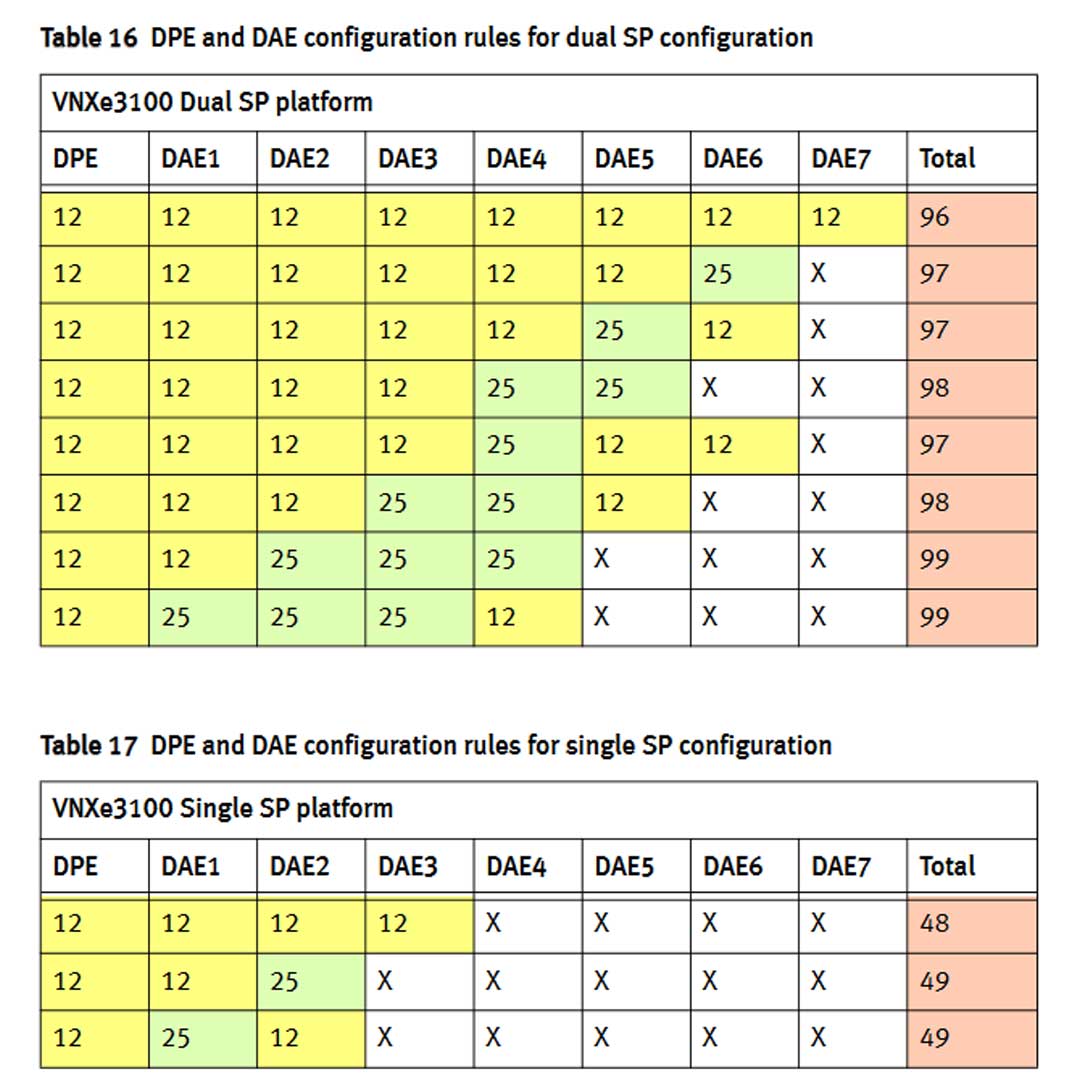

| Max Number of DAEs (Single SP | Dual SP) | 3 | 7 |
| Drive Options | 3.5" Drive Enclosure (12 x 3.5") 300GB 15K SAS (V2-PS 15-300) 300GB 10K SAS (V2-PS 10-300) 600GB 15K SAS (V2-PS 15-600) 600GB 10K SAS (V2-PS 10-600) 900GB 15K SAS (V2-PS 15-900) 900GB 10K SAS (V2-PS 10-900) 1TB 7.2K NL-SAS (V2-PS07-010) 2TB 7.2K NL-SAS (V2-PS07-020) 3TB 7.2K NL-SAS (V2-PS07-030) 2.5" Drive Enclosure (25 x 2.5") 300GB 10K SAS 600GB 10K SAS 900GB 10K SAS |
| Drive Enclosure Options | 12 x 3.5" SAS / NL-SAS Drives |
| CPU (Single SP | Dual SP) | 1x Intel Xeon Dual Core | 2x Intel Xeon Dual Core |
| Memory per System (Single SP | Dual SP) | 4GB | 8GB or 16GB (16GB requires the VNXe system to be running code version 2.1.0.xxxx or later) |
| Back-end Connection / Number of Back-end Ports | 6Gb SAS / 1 |

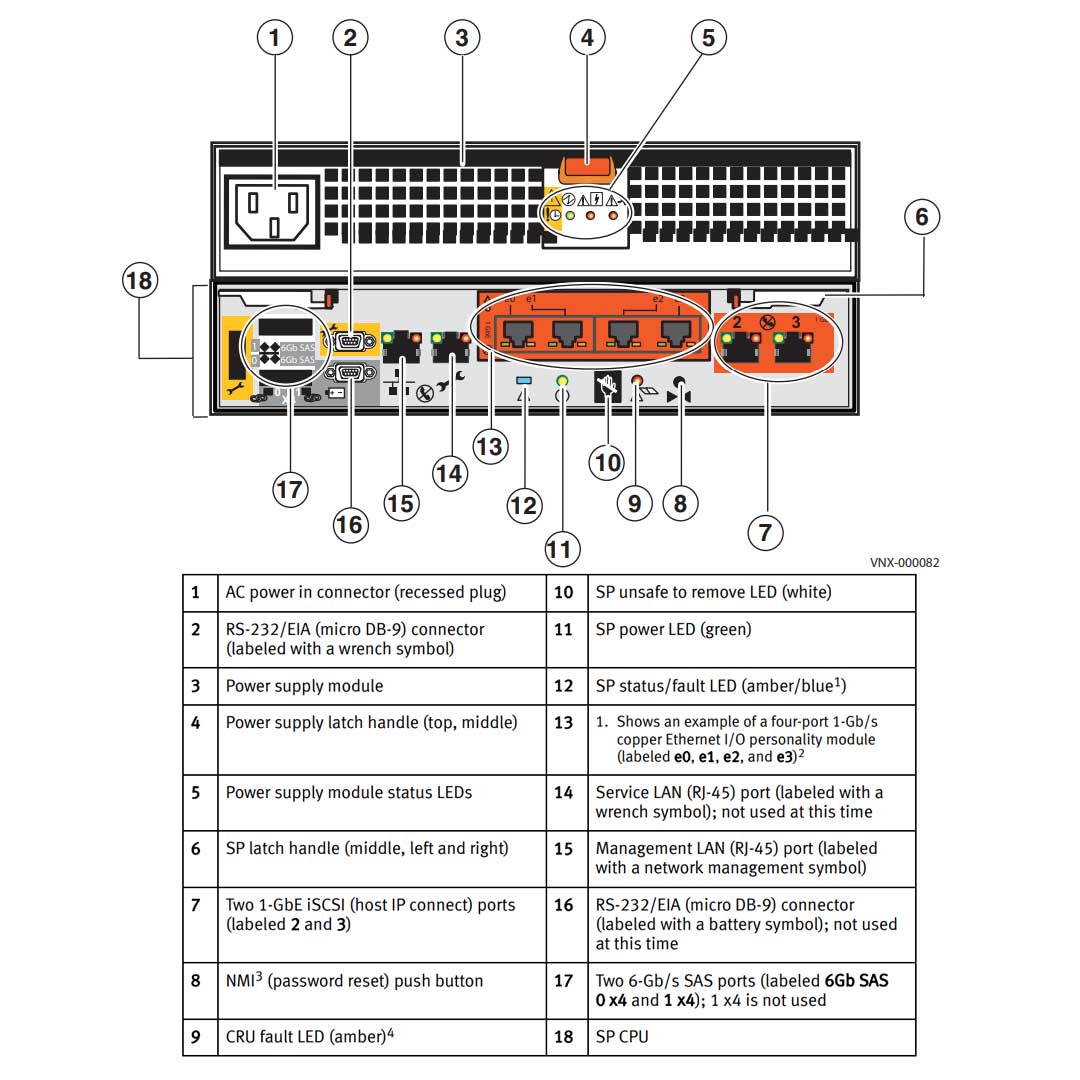

| Embedded I/O Ports per SP | 2x 1GbE |
| Configurable I/O Slots per SP | 1 |
| Port Options per Flex I/O Modules | 4x 1GbE |
| RAID Options | 1/0, 5, 6 |
| Management | LAN 2x 10/100/1000 Copper GbE |
| Limits and Support | |
| Maximum Number of Supported LUNs (Single SP | Dual SP) | 128 | 256 |
| Maximum LUN Size | 2TB |
| Maximum File System Size | 16TB |
| Max Raw Capacity | 192TB |
| Maximum Initiators | 256 |
| Host Connections | 1Gbps iSCSI 1GbE |
| Compatible Disk Arrays | V2-DAE-12 V31-DAE-N-15 V31-DAE-R-15 |
| Chassis Part Number | 100-542-036 DPE ASSY CHASSIS 2U - NEO B JR 2U DPE-DAE |
| Storage Processor | 303-123-000D VNXe 3100 Storage Processor without DIMMs NEO B JR 2U DPE SP ASSEMBLY |
| ECS Warranty | 1-Year Parts Replacement Warranty |
