SKU: DS4486-48X-8TB-MSATA

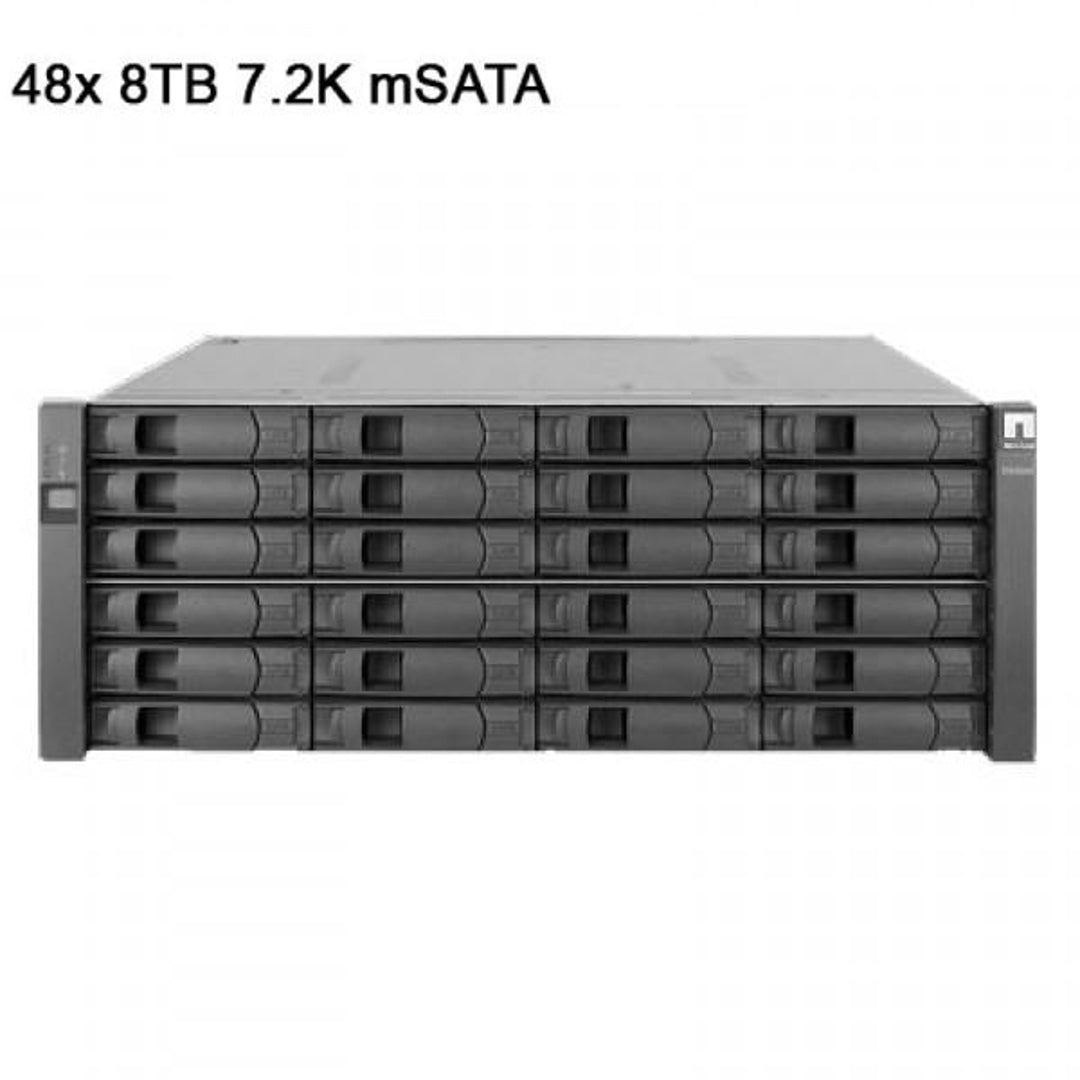

Netapp Ds4486 Disk Shelf With 48X 8Tb 7.2K Msata 6Gbps (X483A-R6) | DS4486-48X-8TB-MSATA
Contact For Pricing
Thanks for the request. We'll get back to you with in 24 hours.
-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.
-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.
Parts Included:
- 1x DS4486 Disk Shelf
- 48x 8TB 7.2K mSATA Drives (X483A-R6)
- 2x IOM6 Controller (X5713A-R5)
- 4x Power Supplies with Fans - AC
- 2x .5 QSFP to QSFP SAS Cables (X6557A-R6)
- 1x Rail Kit II, Cab, R6 (X877B-R6)
- 2x Power Cable (NA), -C, R6 (X800E-R6-C)
NetApp DS4486 with 48x 8TB mSATA 7.2K (X483A-R6) Disk Shelf achieves both large capacity storage and performance in a 4U form factor. The DS4486 utilizes mSATA Drives up to 8TB in size to offer a large capacity storage appliance for Enterprise businesses. This DS4486 is populated with forty-eight 8TB 7.2K mSATA Drives (X483A-R6).
NetApp DS4486 Disk Shelf Specifications
| NETAPP DS4486 DISK SHELF SPECIFICATIONS | |
|---|---|
| Form Factor | 4U |
| Drives per Enclosure | 48 |
| Drives per Rack Unit | 12 |
| Supported Drive Types | 3.5" 3TB 7.2K SATA 3.5" 4TB 7.2K SATA 3.5" 6TB 7.2K SATA 3.5" 8TB 7.2K SATA |
| Drive Carrier Type | Dual/Tandem Drives in one Tray |
| Supported Controllers | FAS8000 Series FAS/V3200 Series FAS/V6200 Series |
| Data ONTAP Version Required | 8.1.4 |
| Shelf I/O modules | Dual IOM6 modules |
| Optical SAS Support | Yes |
| Power Supplies and Cooling | Redundant, Hot-pluggable, integrated power supplies and fan assemblies. Quadruple supplies required. |
| AC input Power Voltage | 50 - 60 Hz |
| Weight (Fully Loaded) | 150 lbs |
| Dimensions | Height: 7.00" Width: 19.00" Depth: 28.00" |
| Temperature | Operating Temp: 50ºF to 104ºF Non-Operating Temp: -40ºF to 158ºF |
| Operating Acoustic Noise | 7.0 bels LwAd (4 PCMs) |
| Relative Humidity |
Operating:20% to 80% noncondensing Non-operating:10% to 95% noncondensing |
| Altitude |
Operating:0 to 10,000ft (0 to 3,045m) Non-operating:-1000ft to 40,000ft (-305m to 12,192m) |
| Compatible Filers | FAS8080EX, FAS8060, FAS8040, FAS8020, FAS3250, FAS3220, FAS3270, FAS3240, FAS3210, V6220, V6250, V6290, V6210, V6240, V6280 |
| Alternate NetApp Part Number(s) | DS4486-07-8-48A-0P-C DSK SHLF,48x8TB,7.2K,0P,-C DS4486-07-8-48A-QS DSK SHLF,48x8TB,7.2K,-QS |
NetApp DS4486 Configurations
| Size, Weight, Acoustic, Power - DS4486 | ||||||||||||
| Associated Part No. | Configuration | Rack Units | Weight | Sound Power | Sound Pressure | Line Voltage Actual (Min to Max) | Amps Typical | Amps Worst | Watts Typical | Watts Worst | BTU/Hr Typical | BTU/Hr Worst |
| Quickship Fully Populated | ||||||||||||
| DS4486-07-10-48A-QS | 48x10TB,MSATA | 4 | 151.2 lb (68.6 kg) | 6.2 Bels | 49 dBA | 100 (100 to 120) | 6.93 | 9.95 | 679 | 975 | 2318 | 3328 |
| DS4486-07-10-48A-QS | 48x10TB,MSATA | 4 | 151.2 lb (68.6 kg) | 6.2 Bels | 49 dBA | 200 (200 to 240) | 3.40 | 4.88 | 666 | 956 | 2273 | 3263 |
| DS4486-07-8-48A-QS | 48x8TB,7.2K,MSATA | 4 | 163.8 lb (74.3 kg) | 6.2 Bels | 49 dBA | 100 (100 to 120) | 7.64 | 10.66 | 748 | 1044 | 2553 | 3564 |
| DS4486-07-8-48A-QS | 48x8TB,7.2K,MSATA | 4 | 163.8 lb (74.3 kg) | 6.2 Bels | 49 dBA | 200 (200 to 240) | 3.75 | 5.23 | 734 | 1024 | 2506 | 3495 |
| DS4486-144TB-QS-R5 | 48x3TB 7.2K SATA | 4 | 148.4 lb (67.3 kg) | 6.2 Bels | 49 dBA | 100 (100 to 120) | 6.57 | 8.71 | 657 | 870 | 2243 | 2970 |
| DS4486-144TB-QS-R5 | 48x3TB 7.2K SATA | 4 | 148.4 lb (67.3 kg) | 6.2 Bels | 49 dBA | 200 (200 to 240) | 3.46 | 4.59 | 692 | 919 | 2362 | 3137 |
| DS4486-192TB-QS-R6 | 48x4TB 7.2K SATA | 4 | 147.9 lb (67.1 kg) | 6.2 Bels | 49 dBA | 100 (100 to 120) | 6.79 | 8.54 | 677 | 853 | 2311 | 2912 |
| DS4486-192TB-QS-R6 | 48x4TB 7.2K SATA | 4 | 147.9 lb (67.1 kg) | 6.2 Bels | 49 dBA | 200 (200 to 240) | 3.38 | 4.25 | 657 | 837 | 2243 | 2857 |
| DS4486-288TB-QS-R6 | 48x6TB 7.2K SATA | 4 | 147.9 lb (67.1 kg) | 100 (100 to 120) | 6.80 | 9.08 | 672 | 901 | 2292 | 3072 | ||
| DS4486-288TB-QS-R6 | 48x6TB 7.2K SATA | 4 | 147.9 lb (67.1 kg) | 200 (200 to 240) | 3.40 | 4.45 | 655 | 871 | 2234 | 2970 | ||
