SKU: DPE-T610-8x3.5-Chassis

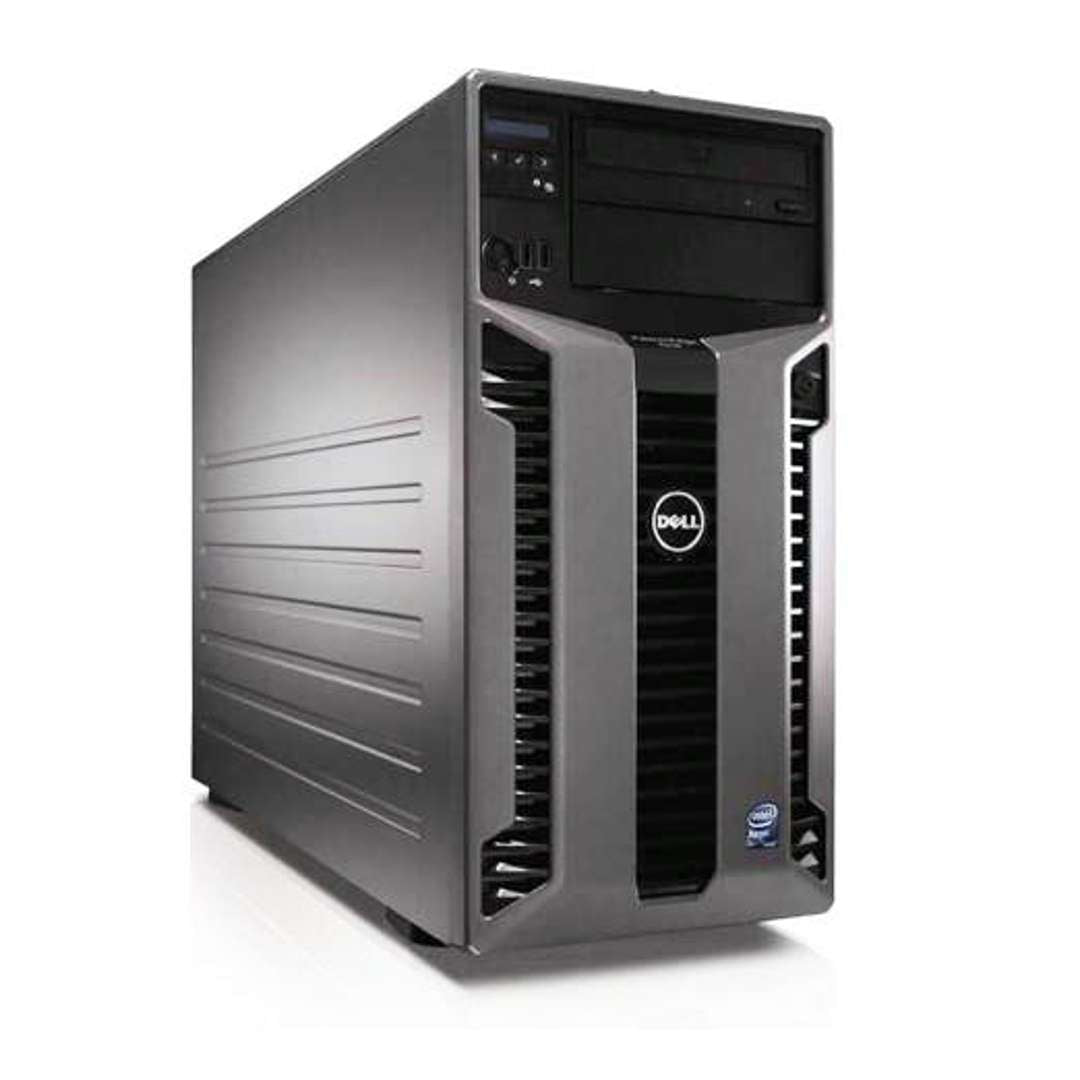

Dell PowerEdge T610 Tower Server Chassis (8x3.5")

Thanks for the request. We'll get back to you with in 24 hours.

Quick Specs

Form Factor:

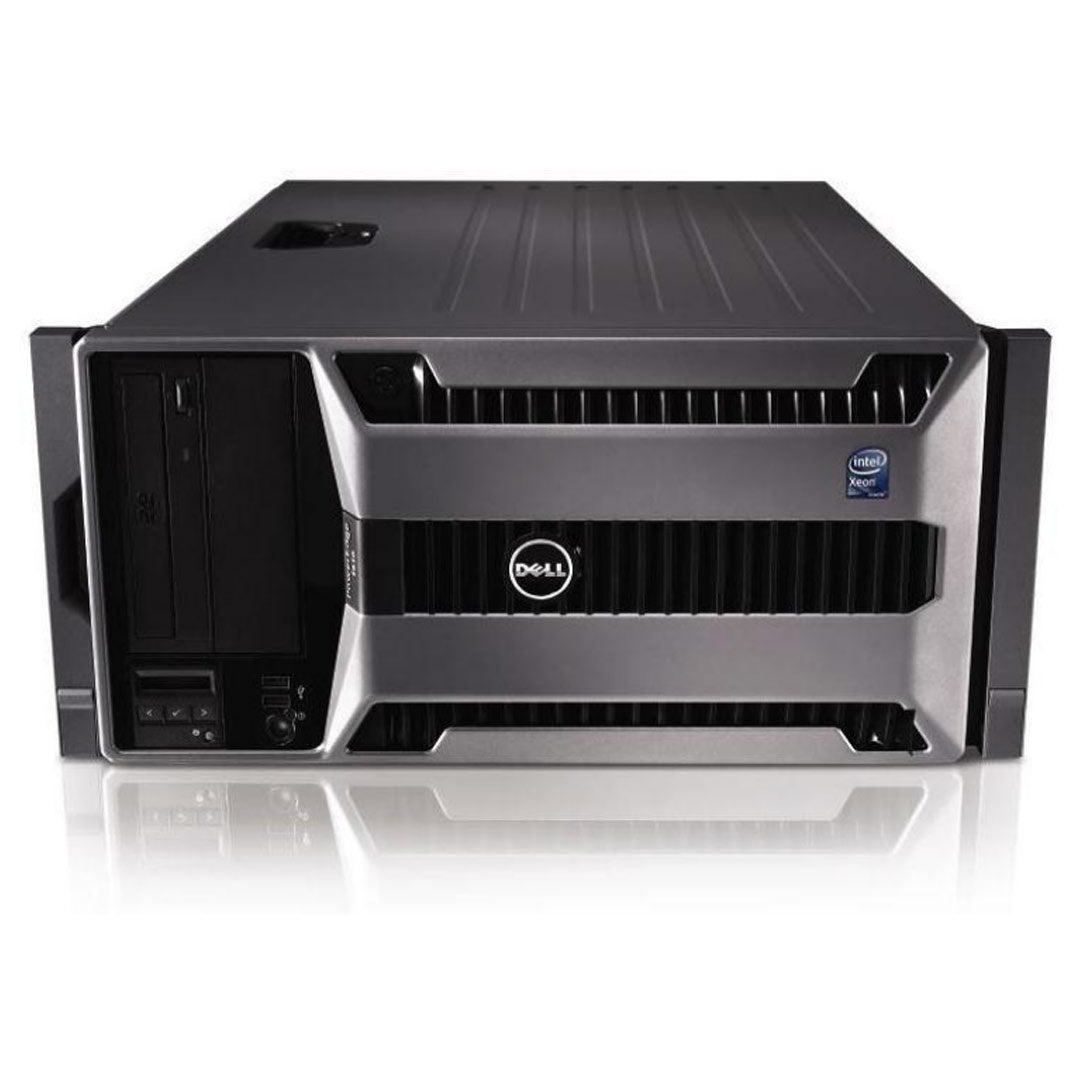

Tower server | 5U (Rack conversion kit)

Processor | Max: 6 Cores (PP)

2x Intel Xeon 5500 or 5600 Processors

Memory | Max: 192GB

12 DDR3 RDIMM 1333Mhz

Storage | Max: 24TB

8x 3.5” or 2.5" SAS/NL-SAS/SATA (HDD/SSD)

Boot Options

IDSDM
Internal USB

RAID Controller:

S100 & S300 (SW RAID)
H200, H700, PERC6/i
External H800, PERC 6/E
External (non-RAID) 6Gbps SAS HBA, SAS 5/E HBA, LSI2032 PCIe SCSI HBA

NIC/LOM

2 x 1GbE LOM

Remote Management:

iDRAC6

PCIe Slots:

5 PCIe G2 slots + 1 storage slot
Two x8 slots
Three x4 slots
One x4 storage slot

GPU:

Not Supported


The Dell PowerEdge T610 server is a key data center building block for IT professionals seeking the highest level of performance, availability, and expandability in a 2-socket server.

Ideally suited for small and medium businesses and remote office customers, the T610 delivers enhanced virtualization, improved design, and energy efficiency in a server engineered to address both your current and future business needs.


Strong IT Foundation

A solid IT foundation is critical for business success. The Dell PowerEdge T610 contributes to your IT foundation by offering many of the virtualization, system management, and usability capabilities you need while providing impressive power and thermals for overall energy efficiency. This mainstream two socket Intel™ based tower server includes a rack-mount option and supports mission critical applications and data processing.


Purposeful Design

The T610 takes advantage of Dell’s system commonality. Once your IT managers learn one system, they understand how to manage next-generation Dell servers. Logical component layout and power supply placement also provide a straightforward installation and redeployment experience. Inspired by IT professionals, the T610 is built to simplify daily operations and maximize uptime.

In addition, Dell PowerEdge servers provide a graphical and interactive LCD for system health monitoring, alerting, and control of basic management configuration right in the front of the server. Customers have an AC power meter and ambient temperature thermometer built into the server that they can monitor on this display without any software tools.


Energy-Optimized Technology

Using the latest Energy Smart technologies, the T610 helps reduce power consumption while increasing performance capacity over previous generations of Dell towers. Enhancements include efficient power supply units right-sized for system requirements, effective system-level design efficiency, policy-driven power and thermal management, and highly efficient standards-based Energy Smart components. These features are designed to maximize energy usage across our latest core data center servers without compromising performance.


Advanced Virtualization

Featuring Intel Xeon processor 5500 and 5600 series, embedded hypervisors, 100% integrated I/O, and up to 100% more memory capacity than the previous server generations, the Dell PowerEdge T610 delivers better overall system performance and greater virtual machine-per-server capacity than ever before.

With optional factory-integrated virtualization capabilities, you get tailored solutions—built with the latest industry-standard technologies from Dell and our trusted partners—which allow you to streamline deployment and simplify virtual infrastructures. Choose your hypervisor from market leaders such as VMware, Citrix, and Microsoft, and enable virtualization with a few mouse clicks.

Looking to Customize?

Need assistance with customization? Our sales experts are here to help you.

Start Customizing Today!

Base Standard Capabilities

FeaturePowerEdge T610 Technical specification
Form FactorTower or 5U rack
ProcessorsQuad-core or six-core Intel® Xeon® processors 5500 and 5600 series
Processor Sockets2
Front Side Bus or HyperTransportIntel® QuickPath Interconnect (QPI)
CacheUp to 12MB
ChipsetIntel® 5520
MemoryUp to 192GB (12 DIMM slots): 1GB/2GB/4GB/8GB/16GB DDR3 up to 1333Mhz
I/O Slots5 PCIe G2 slots + 1 storage slot:
Two x8 slots
Three x4 slots
One x4 storage slot
RAID ControllerInternal:
PERC H200 (6Gb/s)
PERC H700 (6Gb/s) with 512MB battery-backed cache;
512MB, 1GB Non-Volatile battery-backed cache
SAS 6/iR
PERC 6/i with 256MB battery-backed cache
PERC S100 (software based)
PERC S300 (software based)
External:
PERC H800 (6Gb/s) with 512MB of battery-backed cache;
512MB, 1GB Non-Volatile battery-backed cache
PERC 6/E with 256MB or 512MB of battery-backed cache
External HBAs (non-RAID):
6Gbps SAS HBA
SAS 5/E HBA
LSI2032 PCIe SCSI HBA
Drive Bays8 x 2.5” Hard Drive Option or 8 x 3.5” Hard Drive Option;
Optional support half-height TBU
Maximum Internal StorageUp to 16TB
Hard DrivesHot-plug Hard Drive Options:
2.5” SAS SSD, SATA SSD, SAS (15K, 10K), nearline SAS (7.2K), SATA (7.2K)
3.5” SAS (15K, 10K), nearline SAS (7.2K), SATA (7.2K)
CommunicationsOne dual-port embedded Broadcom® NetXtreme® II 5709c Gigabit
Ethernet NIC with failover and load balancing.
Optional 1GBe and 10GBe Add-In NICs:
Broadcom® NetXtreme® II 57711 Dual Port Direct Attach 10Gb Ethernet PCI-Express Network Interface Card with TOE and
iSCSI Offload
Intel® Gigabit ET Dual Port Server Adapter and Intel® Gigabit ET quad port server adapter
Dual Port 10GB Enhanced Intel® Ethernet Server Adapter X520-DA2 (FcoE ready for future enablement)
Brocade® CNA dual-port adapter
Emulex® CNA iSCSI HBA stand up adapter OCE10102-IX-D
Brocade® FC4 and 8 GB HBAs
Power SupplyTwo Hot plug redundant PSUs - Energy Smart PSU (570W) or two hotplug 870W PSUs
AvailabilityDDR3 memory; ECC; hot-plug hard drives; optional hot-plug redundant power supplies; dual embedded NICs with
failover and load balancing support; optional PERC6/i integrated daughtercard controller with battery-backed cache; hotplug
redundant cooling; tool-less chassis; fibre and SAS cluster support; validated for Dell/EMC SAN
VideoIntegrated Matrox G200 with 8MB shared video memory
Remote ManagementiDRAC6
Systems ManagementDell™ OpenManage™
Rack SupportReadyRails™ sliding rails with optional cable management arm for 4-post racks (optional adapter brackets required for
threaded hole racks)
Operating SystemsMicrosoft® Windows® Small Business Server 2011
Microsoft® Windows® Small Business Server 2008
Microsoft Windows Server® 2008 SP2, x86/x64 (x64 includes Hyper-V™)
Microsoft Windows Server® 2008 R2, x64 (includes Hyper-V™ v2)
Microsoft® Windows® HPC Server 2008
Novell® SUSE® Linux Enterprise Server
Red Hat® Enterprise Linux
Oracle® Solaris™
Virtualization Options:
Citrix® XenServer™
VMware® vSphere™ 4.1 (including VMware ESX® 4.1 or VMware ESXi™ 4.1)
For more information on the specific versions and additions, visit www.dell.com/OSsupport.
Featured Database ApplicationsMicrosoft® SQL Server® solutions (see Dell.com/SQL)
Oracle® database solutions (see Dell.com/Oracle)

Spec Sheet 4

Feature T410 T610 T710
Processor Intel Xeon processor 5500 and 5600 series Intel Xeon processor 5500 and 5600 series Intel Xeon processor 5500 and 5600 series
Front Side Bus 6.4 GT/s QuickPath Interconnect (QPI) links 6.4 GT/s QuickPath Interconnect (QPI) links 6.4 GT/s QuickPath Interconnect (QPI) links
Number of Sockets 2 2 2
Number of Cores 2, 4, or 6 2, 4, or 6 2, 4, or 6
L2/L3 Cache 4MB, 8MB, and 12MB 4MB, 8MB, and 12MB 4MB, 8MB, and 12MB
Chipset Intel 5500 Intel 5520 Intel 5520
DIMMs 8 x DDR3 12 x DDR3 18 x DDR3
Min/Max RAM 1GB/128GB 1GB/192GB 1GB/192GB
Drive Bays Optional hot-plug 6 x 2.5" or 6 x 3.5" Hot-plug 8 x 2.5" or 8 x 3.5" Hot-plug 16 x 2.5" or 8 x 3.5"
Hard Drive Types SATA SSD, SAS, nearline SAS, SATA SAS SSD, SATA SSD, SAS, nearline SAS, SATA SAS SSD, SATA SSD, SAS, nearline SAS, SATA
External Drive Bays 2 x 5.25" 2 x 5.25" 2 x 5.25"
Embedded Hard Drive Controller PERC H200, PERC H700, SAS 6/iR, PERC 6/i, PERC S100, PERC S300 PERC H200, PERC H700, SAS 6/iR, PERC 6/i, PERC S100, PERC S300 PERC H200, PERC H700, SAS 6/iR, PERC 6/i, PERC S100, PERC S300
Optional Storage Controller Non-RAID: SAS 5/E LSI 2032 (for tape backup unit only) 6Gbps SAS HBA RAID: SAS 6/iR PERC H200 PERC 6/i PERC H700 PERC 6/E PERC H800 Non-RAID: SAS 5/E LSI 2032 (for tape backup unit only) 6Gbps SAS HBA RAID: SAS 6/iR PERC H200 PERC 6/i PERC H700 PERC 6/E PERC H800 Non-RAID: SAS 5/E LSI 2032 (for tape backup unit only) 6Gbps SAS HBA RAID: SAS 6/iR PERC H200 PERC 6/i PERC H700 PERC 6/E PERC H800
Availability Optional hot-plug hard drives Optional hot-plug redundant power ECC memory Memory mirroring Quadpack LED or LCD diagnostic Hot-plug hard drives Optional hot-plug redundant power Optional redundant cooling ECC memory Memory mirroring LCD diagnostic One dual-port embedded NIC with TOE Hot-plug hard drives Optional hot-plug redundant power Hot-plug redundant cooling ECC memory Memory mirroring LCD diagnostic Two dual-port embedded NICs with TOE
Server Management Baseboard Management Controller (BMC), IPMI 2.0, Dell OpenManage™ Optional: iDRAC6 Express, iDRAC6 Enterprise, vFlash media Baseboard Management Controller (BMC), IPMI 2.0, Dell OpenManage™, iDRAC6 Express Optional: iDRAC6 Enterprise, vFlash media Baseboard Management Controller (BMC), IPMI 2.0, Dell OpenManage™, iDRAC6 Express Optional: iDRAC6 Enterprise, vFlash media
I/O Slots 4 PCIe x8 (x4 routing) 1 PCIe x16 (x8 routing) 2 PCIe x8 3 PCIe x4 Gen 2 1 PCIe x16 4 PCIe x8 1 PCIe x4
NIC/LOM Broadcom ® BCM5716 2 x GbE Optional: various NICs available Broadcom® BCM5709c 2 x GbE with TOE Optional: various NICs available Broadcom® BCM5709c 4 x GbE with TOE Optional: various NICs available
USB 2 front, 4 back, 1 internal 2 front, 6 back, 1 internal 2 front, 6 back, 1 internal
Power Supplies Non-redundant 525W or Optional hot-plug redundant 2 x 580W Hot-plug redundant 2 x 570W (Energy Smart) or 2 x 870W (High-output) Hot-plug redundant 2 x 1100W

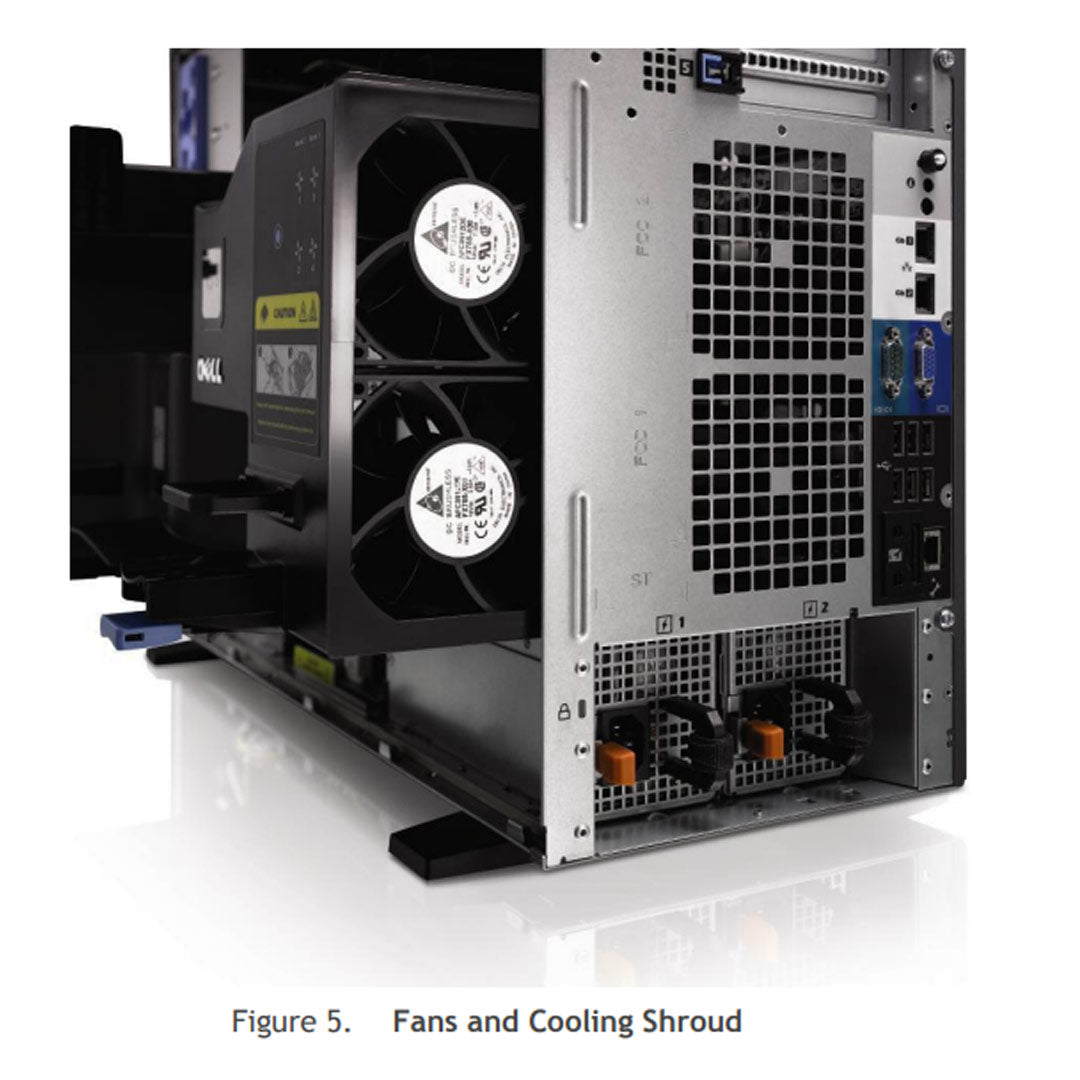

Fans Non hot-plug, nonredundant Non hot-plug, nonredundant Hot-plug redundant
