Dell PowerEdge T560 NVMe Tower Server Chassis (8x 3.5" + 8x NVMe)

SKU: DPE-T560-8LFF-8SFF-Chassis

Dell PowerEdge T560 NVMe Tower Server Chassis (8x 3.5" + 8x NVMe)

Name: Dell PowerEdge T560 NVMe Tower Server Chassis (8x 3.5" + 8x NVMe)
Brand: Dell
SKU: DPE-T560-8LFF-8SFF-Chassis
Availability: InStock

Dell

| Chassis

.price-ui--loading { display: block !important; opacity: 1 !important; }

Contact For Pricing

Thanks for the request. We'll get back to you with in 24 hours.

Quick Specs

Form Factor:

Tower server | 4U (Rack Conversion)

Processor | Max: 8 cores

1x Intel E-2300, or Pentium (2 cores)

Memory | Max: 1284GB

4 DDR4 UDIMM 3200Mhz

NOTE: For Pentium processor, maximum memory speed supported is 2666 MT/s

Storage | Max: 30.72TB

4 LFF SAS/SATA (HDD/SSD)

Boot Options

Boot Optimized Server Storage (BOSS-S1)

Internal USB

RAID Controller:

S150 (SW RAID SATA)
PERC 345, H355, H755, HBA355i, HBA355e, 12Gbps SAS HBA (non-RAID)

NIC/LOM

2 x 1GbE LOM

Remote Management:

iDRAC9

PCIe Slots: 4

1x16 Gen4 (x16 connector) full height, half length

1x4 Gen4 (x8 connector) full height, half length

1x4 Gen3 (x8 connector) full height, half length

1x1 Gen3 (x1 connector) full height, half length

GPU:

Not Supported

Other Versions

Ideal for:

Mail
Point-of-Sale (POS)
Retail Servers

Your Innovation Engine for businesses of all sizes

The Dell EMC PowerEdge T150, powered by Intel® Xeon® E-2300 processors, delivers powerful compute for common business applications and streamlines productivity. It supports 3200 MT/s DDR4 UDIMMs, up to 128 GB for memory-intensive workloads. In addition, to address substantial throughput improvements, the PowerEdge T150 supports PCIe Gen 4 and offers enhanced thermal efficiency to support increasing power and thermal requirements. With quiet, office-friendly acoustics, the PowerEdge T150 is an ideal tower server for business critical workloads and point of sale transactions for small to midsized businesses inside and outside of the data center.

Maximize performance and adapt to meet future growing demands.

The PowerEdge T150, powered by the Intel® Xeon® E-2300 processors, is an entry-level tower server with an ideal balance of adaptability and affordability designed to address your evolving compute demands.

Supports 3200 MT/s DDR4 UDIMMs, up to 128GB
Address substantial throughput improvements with PCIe Gen 4 support
Ideal for file/print, mail/messaging, point of sale, web hosting and collaboration
Offers enhanced thermal efficiency
Provides improved security and faster boot time with UEFI Secure Boot

Increase efficiency and accelerate operations with autonomous collaboration

The Dell EMC OpenManage systems management portfolio tames the complexity of managing and securing IT infrastructure. Using Dell Technologies’ intuitive end-to-end tools, IT can deliver a secure, integrated experience by reducing process and information silos to focus on growing the business. The Dell EMC OpenManage portfolio is the key to your innovation engine, unlocking the tools and automation that help you scale, manage, and protect your technology environment.

Built-in telemetry streaming, thermal management, and RESTful API with Redfish offer streamlined visibility and control for better server management
Intelligent automation lets you enable cooperation between human actions and system capabilities for added productivity
Integrated change management capabilities for update planning and seamless, zero-touch configuration and implementation
Full-stack management integration with Microsoft, VMware, ServiceNow, Ansible, and many other tools

Protect your data assets and infrastructure with proactive resilience

The Dell EMC PowerEdge T150 server is designed with a cyber-resilient architecture, integrating security deeply into every phase in the lifecycle, from design to retirement.

Operate your workloads on a secure platform anchored by cryptographically trusted booting and silicon root of trust
Maintain server firmware safety with digitally signed firmware packages
Prevent unauthorized configuration or firmware change with system lockdown
Securely and quickly wipe all data from storage media, including hard drives, SSDs, and system memory with System Erase
UEFI Secure Boot prevents systems from booting from unsigned or unauthorized pre-boot device firmware, applications, and OS boot loaders, protecting systems from malware corrupting the startup process.

Looking to Customize?

Need assistance with customization? Our sales experts are here to help you.

Start Customizing Today!

Base Standard Capabilities

Feature	Technical Specifications
Processor	Up to two 4th Generation Intel® Xeon Scalable processor, with up to 32 cores per processor and optional Intel® QuickAssist Technology
Memory	• 16 DDR5 DIMM slots, supports RDIMM 1 TB max, speeds up to 4800 MT/s • Supports registered ECC DDR5 DIMMs only
Storage controllers	• Internal PERC: fPERC H965i, fPERC H755N, fPERC H755, fPERC H355, fPERC HBA355i • Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 2 x M.2 NVMe SSD drives, or USB • External HBA (non-RAID): PERC HBA355e • Software RAID: S160 (for NVMe drives only)

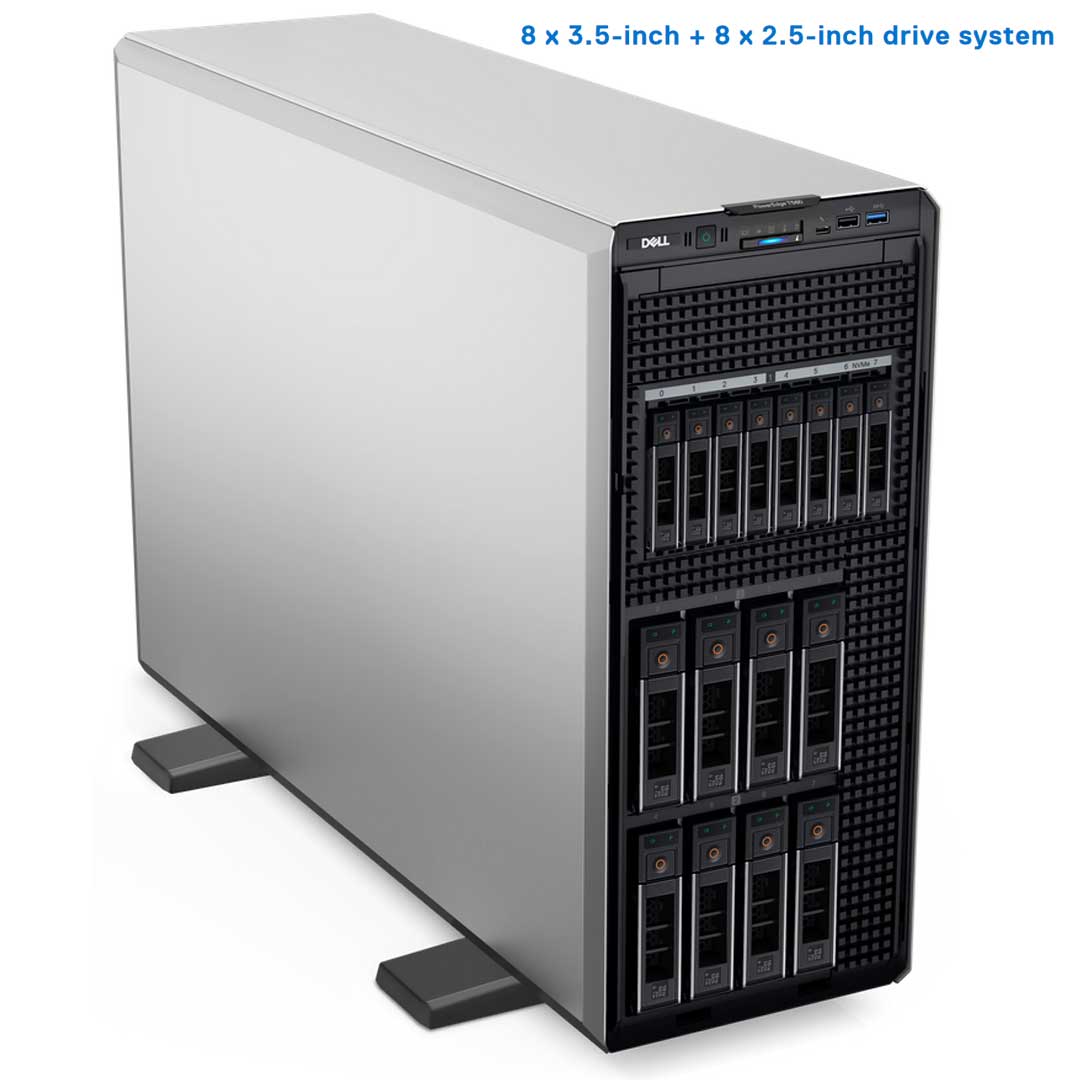

Drive Bays	Front bays: • Up to 12 x 3.5-inch SAS/SATA HDD drives, max 180 TB • Up to 8 x 3.5-inch SAS/SATA HDD drives, max 120 TB • Up to 8 x 3.5-inch SAS/ SATA HDD + 8 x 2.5-inch NVMe SSD drives, max 240 TB • Up to 8 x 2.5-inch SAS/SATA HDD drives, max 120 TB • Up to 16 x 2.5-inch SAS/SATA HDD drives, max 240 TB • Up to 24 x 2.5-inch SAS/SATA HDD drives, max 360 TB
Power Supplies	• 2400 W Platinum 100—240 VAC or 2400 W 240 VDC, hot swap redundant • 1800 W Titanium 200—240 VAC or 1800 W 240 VDC, hot swap redundant • 1400 W Platinum 100—240 VAC or 1400 W 240 VDC, hot swap redundant • 1100 W Titanium 100—240 VAC or 1100 W 240 VDC, hot swap redundant • 1100 LVDC -48 — (-60) VDC, hot swap redundant • 800 W Platinum 100—240 VAC or 800 W 240 VDC, hot swap redundant • 700 W Titanium 200—240 VAC or 700 W 240 VDC, hot swap redundant • 600 W Platinum 100—240 VAC or 600 W 240 VDC, hot swap redundant
Cooling Options	Air cooling
Fans	• Up to eight Standard (STD) fans or High performance (HPR) fans
Dimensions	• Height — 464.0 mm (18.26 inches) (with feet) 508.8 mm (20.03 inches) (with caster wheels) 446.0 mm (17.60 inches) (without feet) • Width — 200.0 mm (7.87 inches) • Depth — 678.2 mm (26.70 inches) (with bezel) 660.6 mm (26 inches) (without bezel)
Form Factor	4.5U tower server
Embedded Management	• iDRAC9 • iDRAC Direct • iDRAC RESTful API with Redfish • iDRAC Service Module • Quick Sync 2 wireless module
Bezel	Optional security bezel
OpenManage Software	• OpenManage Enterprise • OpenManage Power Manager plugin • OpenManage Service plugin • OpenManage Update Manager plugin • CloudIQ for PowerEdge plug in • OpenManage Enterprise Integration for VMware vCenter • OpenManage Integration for Microsoft System Center • OpenManage Integration with Windows Admin Center
Mobility	OpenManage Mobile
OpenManage Integrations	• BMC Truesight • Microsoft System Center • OpenManage Integration with ServiceNow • Red Hat Ansible Modules • Terraform Providers • VMware vCenter and vRealize Operations Manage
Security	• Cryptographically signed firmware • Data at Rest Encryption (SEDs with local or external key mgmt) • Secure Boot • Secure Erase • Secured Component Verification (Hardware integrity check) • Silicon Root of Trust • System Lockdown (requires iDRAC9 Enterprise or Datacenter) • TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ
Embedded NIC	2 x 1GbE LOM on Planar
Network Options	1 x OCP x8 card 3.0 Note: The system allows both LOM on planar and OCP card to be installed on the system.
GPU Options	Up to 2 x 300 W DW or 6 x 75 W SW

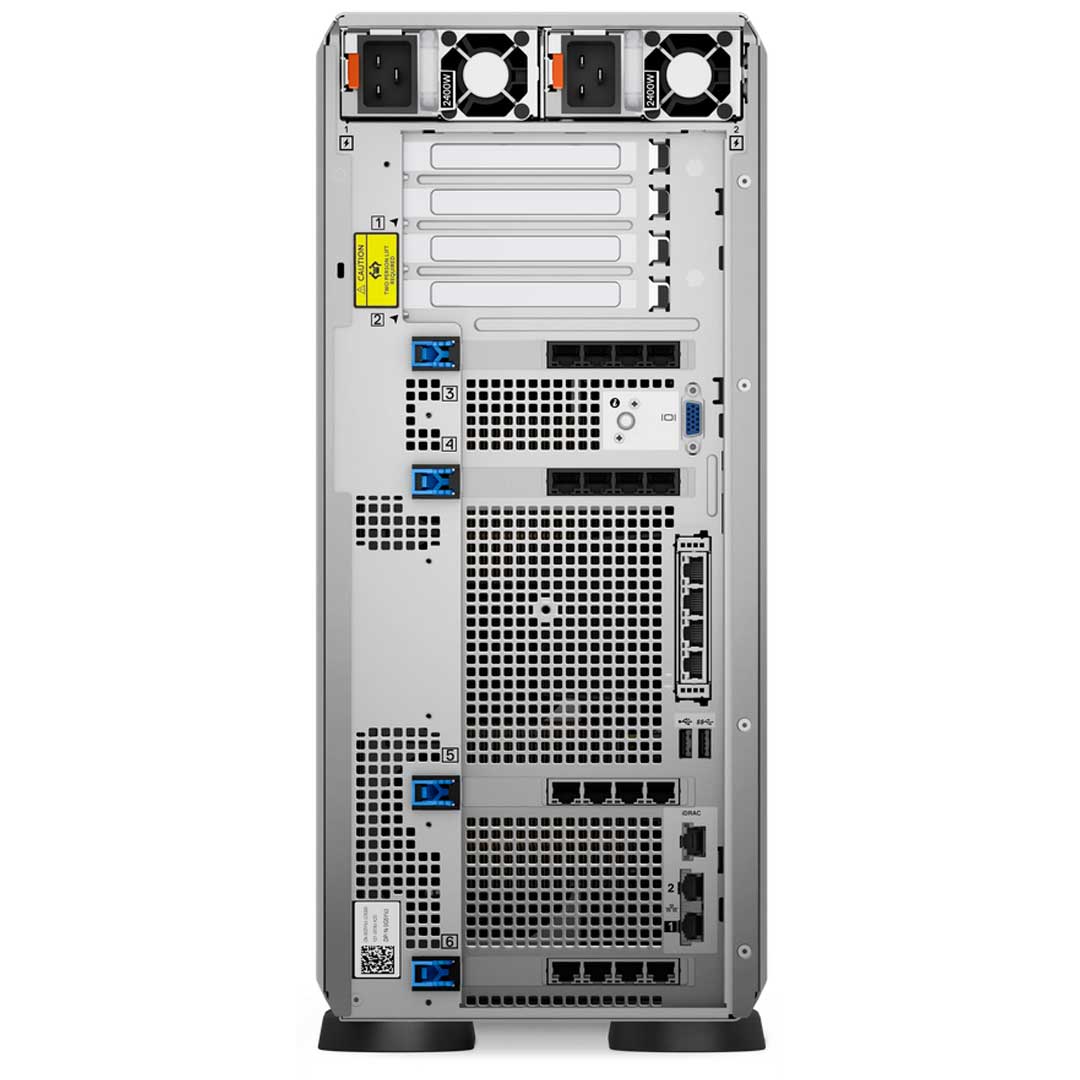

Ports	Front Ports • 1 x USB 2.0 • 1 x USB 3.0 • 1 x iDRAC Direct (Micro-AB USB) port	Rear Ports • 1 x USB 2.0 • 1 x USB 3.0 • 1 x Serial port (optional) • 1 x Dedicated iDRAC (RJ45) port • 1 x VGA port • 2 x Ethernet ports
Ports	Internal Ports • 1 x USB 3.0 (optional)
PCIe	Up to six PCIe slots: • Slot 1: x16 Gen5 Full height, Full length • Slot 2: x16 Gen5 Full height, Full length • Slot 3: x16 Gen4 Full height, Half length • Slot 4: x16 Gen4 Full height, Half length • Slot 5: x16 (x8 lanes) Gen4 Full height, Half length • Slot 6: x16 Gen4 Full height, Half length
Operating System and Hypervisors	• Canonical Ubuntu Server LTS • Microsoft Windows Server with Hyper-V • Red Hat Enterprise Linux • SUSE Linux Enterprise Server • VMware ESXi

Spec Sheet 4

Feature	PowerEdge T560		PowerEdge T550
Processors	Up to two 4th Generation Intel ® Xeon Scalable processors with up to 32 cores per processor		Up to two 3rd Generation Intel Xeon Scalable processors with up to 32 cores
Memory	DIMM Speed • Up to 4800 MT/s Memory Type • RDIMM Memory module slots • 16 DDR5 DIMM slots • Supports registered ECC DDR5 DIMM slots only Maximum RAM • RDIMM 1TB		DIMM Speed • Up to 3200 MT/s Memory Type • RDIMM Memory module slots • 16 DDR4 DIMM slots • Supports registered ECC DDR4 DIMM slots only Maximum RAM • RDIMM 1TB
Storage Controllers	• Internal PERC: fPERC HBA355i, fPERC H755, fPERC H755N, fPERC H355, fPERC H965i • Internal Boot: Boot Optimized Storage Subsystem (BOSS- N1): HWRAID 2 x M.2 NVMe SSDs drives, or USB • External HBA (non-RAID): PERC HBA355e • Software RAID: S160 (NVMe only)		• Internal controllers: PERC H345, PERC H755, H755N, HBA355i • Internal Boot: Internal Dual SD Module or Boot Optimized Storage Subsystem (BOSS-S2): HWRAID 2 x M.2 SSDs or USB • External Controller (RAID): PERC H840 • External HBAs (non-RAID): HBA355e • Software RAID: S150
Drive Bays	Front bays: • Up to 12 x 3.5-inch SAS/SATA HDD drives, max 180 TB • Up to 8 x 3.5-inch SAS/SATA HDD drives, max 120 TB • Up to 8 x 3.5-inch SAS/ SATA HDD + 8 x 2.5-inch NVMe SSD drives, max 240 TB • Up to 8 x 2.5-inch SAS/SATA HDD drives, max 120 TB • Up to 16 x 2.5-inch SAS/SATA HDD drives, max 240 TB • Up to 24 x 2.5-inch SAS/SATA HDD drives, max 360 TB		Front bays: • Up to 8 x 2.5-inch SAS/SATA (hard drive) max 120 TB • 16 x 2.5-inch SAS/SATA (HDD) max 240 TB • 24 x 2.5-inch SAS/SATA (HDD)max 360 TB • 8 x 3.5-inch SAS/SATA (HDD/SAS) max 120 TB • 8 x 3.5-inch SAS/SATA (HDD) + 8 x 2.5-inch NVMe (SSD) max 240 TB
Power Supplies	• 600 W Platinum 100-240 VAC or 600 W 240 HVDC, hot swap redundant • 800 W Platinum 100-240 VAC or 800 W 240 HVDC, hot swap redundant • 1100 LVDC -48 - (-60) VDC, hot swap redundant • 1400 W Platinum 100-240 VAC or 1400 W 240 HVDC, hot swap redundant • 2400 W Platinum 100-240 VAC or 2400 W 240 HVDC, hot swap redundant • 700 W Titanium 200-240 VAC or 700 W 240 HVDC, hot swap redundant • 1100 W Titanium 100-240 VAC or 1100 W 240 HVDC, hot swap redundant • 1800 W Titanium 200-240 VAC or 1800 W 240 HVDC, hot swap redundant		• 600 W Platinum AC/100 - 240 V • 600 W DC/240 V • 800 W Platinum AC/100 - 240 V • 800 W DC/240 V • 1100 W Titanium AC/100 - 240 V • 1100 W DC/240 V • 1100 W DC/-48 V • 1400 W Platinum AC/100 - 240 V • 1400 W DC/240 V • 2400 W Platinum AC/100 - 240 V • 2400 W DC/240 V
Cooling Options	Air cooling		Air cooling
Fans	Standard (STD) fans or High performance (HPR) fans		Standard (STD) fans /High performance (HPR) silver fans
Fans	Up to eight hot swap fans		Up to eight hot swap fans
Dimension	Height: 464.0 mm (18.26 inches) (with feet)		Height: 464.0 mm (18.26 inches) (with feet)
	446.0 mm (17.60 inches) (without feet)		446.0 mm (17.60 inches) (without feet)
	508.8 mm (20.03 inches) (with caster wheels)		508.8 mm (20.03 inches) (with caster wheels)
	Width — 200.0 mm (7.87 inches)		Width — 200.0 mm (7.87 inches)
	Depth — 678.2 mm (26.70 inches) (with bezel)		Depth — 678.2 mm (26.70 inches) (with bezel)
	660.6 mm (26 inches) (without bezel)		660.6 mm (26 inches) (without bezel)
Form Factor	4.5U tower server		4.5U tower server
Embedded Management	• iDRAC9 • iDRAC Direct • iDRAC RESTful API with Redfish • iDRAC Service Module • Quick Sync 2 wireless module		• iDRAC9 • iDRAC Direct • iDRAC RESTful with Redfish • iDRAC Service Manual • Quick Sync 2 wireless module NOTE: iDRAC Direct and Quick Sync 2 are available only as an upsell on T550.
Bezel	Security bezel		Optional LCD bezel or security bezel
OpenManage Software	• OpenManage Enterprise • OpenManage Power Manager plugin • OpenManage Service plugin • OpenManage Update Manager plugin • CloudIQ for PowerEdge plug in • OpenManage Enterprise Integration for VMware vCenter • OpenManage Integration for Microsoft System Center • OpenManage Integration with Windows Admin Center		• OpenManage Enterprise • OpenManage Power Manager plug-in • OpenManage SupportAssist plug-in • OpenManage Update Manager plug-in
Mobility	OpenManage Mobile		OpenManage Mobile
Integrations and Connections	• BMC Truesight • Microsoft System Center • OpenManage Integration with ServiceNow • Red Hat Ansible Modules • Terraform Providers • VMware vCenter and vRealize Operations Manager		OpenManage Integrations • BMC TrueSight • Microsoft System Center • Red Hat Ansible Modules • VMware vCenter and vRealize Operations Manager	OpenManage Connections • IBM Tivoli Netcool/OMNIbus • IBM Tivoli Network Manager IP Edition • Micro Focus Operations Manager • Nagios Core • Nagios XI
Security	• Cryptographically signed firmware • Data at Rest Encryption (SEDs with local or external key mgmt) • Secure Boot • Secured Component Verification (Hardware integrity check) • Secure Erase • Silicon Root of Trust • System Lockdown (requires iDRAC9 Enterprise or Datacenter) • TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ		• Cryptographically signed firmware • Secure Boot • Secure Erase • Silicon Root of Trust • System Lockdown (requires iDRAC9 Enterprise or Datacenter) • TPM 1.2/2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ
Embedded NIC	2 x 1 GbE LOM		2 x 1 GbE LOM
Networking Options	OCP x8 3.0		OCP x16 Mezz 3.0
GPU Options	Up to 2 x double-width 300 W or 6 x single-width 75 W accelerators		Up to 2 x double-width 300 W, or 5 x single-width 70 W accelerators
Ports	Front Ports • 1 x USB 2.0 • 1 x USB 3.0 • 1 x iDRAC Direct (Micro-AB USB) port	Rear Ports • 1 x USB 2.0 • 1 x USB 3.0 • 1 x Serial port (optional) • 1 x Dedicated iDRAC management (RJ45) port • 2 x Ethernet ports • 1 x VGA port	Front Ports There are 2 SKUs: • Base: Status LED only ○ 1 x USB 2.0 ○ 1 x USB 3.0 • Upsell: Status LED only and Quick Sync 2 ○ 1 x USB 2.0 ○ 1 x USB 3.0 ○ 1 x iDRAC Direct (Micro-AB USB) port	Rear Ports • 1 x USB 2.0 • 1 x iDRAC Direct ethernet port • 1 x USB 3.0 • 1 x Serial port (optioanl) • 1 x VGA
Ports	Internal Port : 1 x USB 3.0 (optional)		Internal Port: 1 x USB 3.0
PCIe	Up to six PCIe slots: 4 x PCIe Gen4 slots and 2 x PCIe Gen5 slots • Slot 1: x16 Gen5 Full height, full length • Slot 2: x16 Gen5 Full height, full length • Slot 3: x16 Gen4 Full height, half length • Slot 4: x16 Gen4 Full height, half length • Slot 5: x16 (with x8 lanes) Gen4 Full height, half length • Slot 6: x16 Gen4 Full height, half length		3x PCIe Gen4 slots (all x16) + 1x PCIe Gen3 slot (x8) + Upsell: up to 2 PCIe x16 DW for GPU
Operating System and Hypervisors	• Canonical Ubuntu Server LTS • Microsoft Windows Server with Hyper-V • Red Hat Enterprise Linux • SUSE Linux Enterprise Server • VMware ESXi		• Canonical Ubuntu Server LTS • Citrix Hypervisor • Windows Server with Hyper-V • Red Hat Enterprise Linux • SUSE Linux Enterprise Server • VMware ESXi
