Dell PowerEdge R7515 Rack Server Chassis (12x3.5")

SKU: DPE-R7515-12x3.5-Chassis

Dell PowerEdge R7515 Rack Server Chassis (12x3.5")

Name: Dell PowerEdge R7515 Rack Server Chassis (12x3.5")
Brand: Dell CTO
SKU: DPE-R7515-12x3.5-Chassis
Availability: InStock

Dell CTO

| Chassis

.price-ui--loading { display: block !important; opacity: 1 !important; }

Contact For Pricing

Thanks for the request. We'll get back to you with in 24 hours.

CTO Item

This part is strictly for configuring Dell servers. If you have landed on this page and you're looking for a specific part number. Please send us a "Request a Quote" with the part number you need.

Base Standard Capabilities

Feature	Technical Specification
Processor	One 2nd or 3rd Generation AMD EPYCTM Processor with up to 64 cores
Memory	DDR4: Up to 16 x DDR4 RDIMM (1TB), LRDIMM (2TB), bandwidth up to 3200 MT/S
Storage controllers	HW RAID: PERC 9/10 - HBA330, H330, H730P, H740P, H840, 12G SAS HBA Chipset SATA/SW RAID(S150): Yes

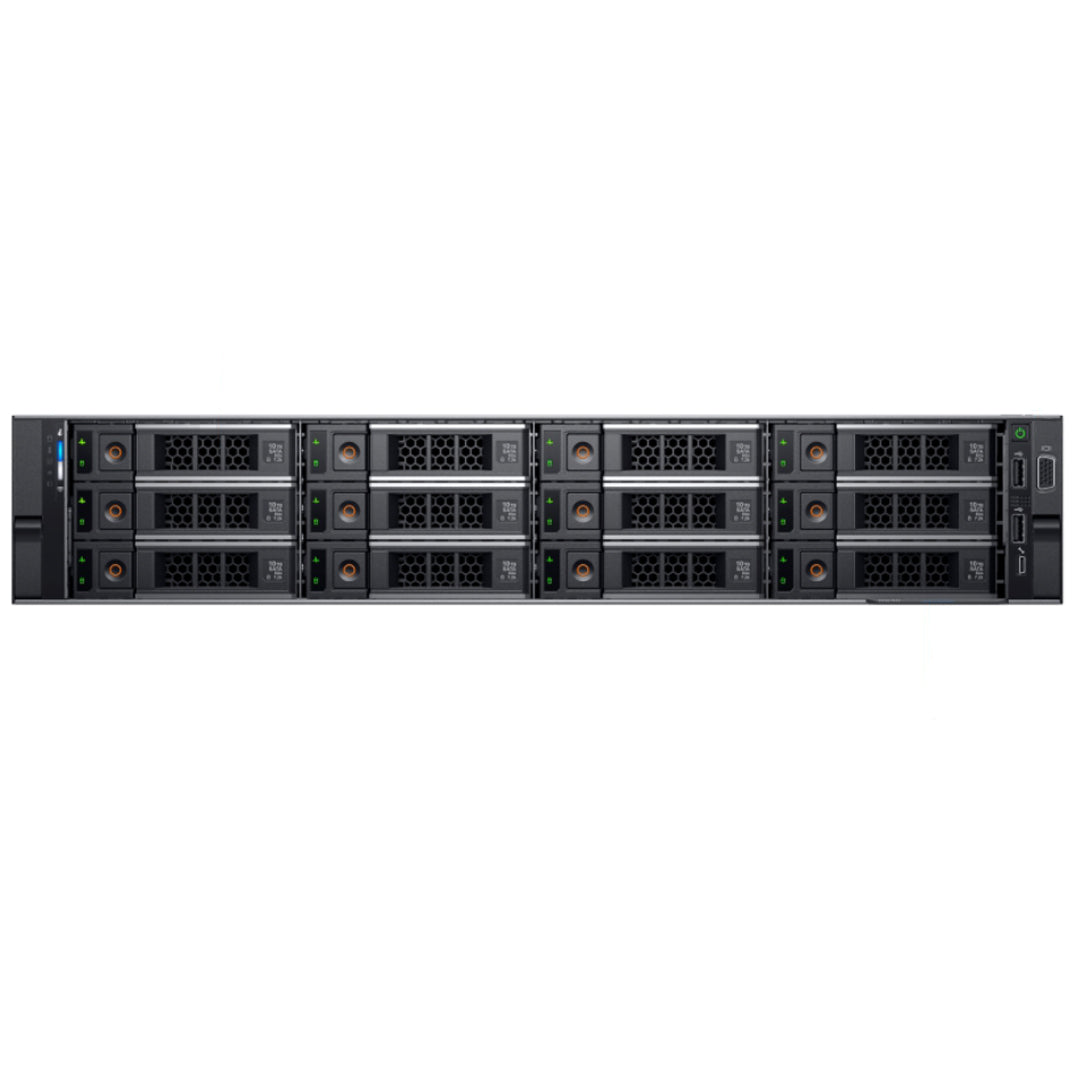

Drive bays	Front bays: Up to 8 x3.5” Hot Plug SATA/SAS HDDs Up to 12x 3.5” hot-plug SAS/SATA HDDs Up to 24x 2.5” Hot Plug SATA/SAS/NVMe Rear Bays: Up to 2x 3.5” hot-plug SAS/SATA HDDs Internal: 2 x M.2 (BOSS)
Power supplies	800W Platinum 750W Titanium 750W Platinum 1100W Platinum 1600W Platinum
Fans	Stanadard/High Peformance Fan N+1 Fan redunadancy
Dimensions	Height: 86.8mm (3.42”) Width: 434.0mm (17.09”) Depth: 647.1mm (25.48”) Weight: 27.3 kg (60.19 lb)
Form Factor	2U Rack Server
Embedded mgmt	iDRAC9 iDRAC RESTful API with Redfish iDRAC Direct Quick Sync 2 BLE/wireless module

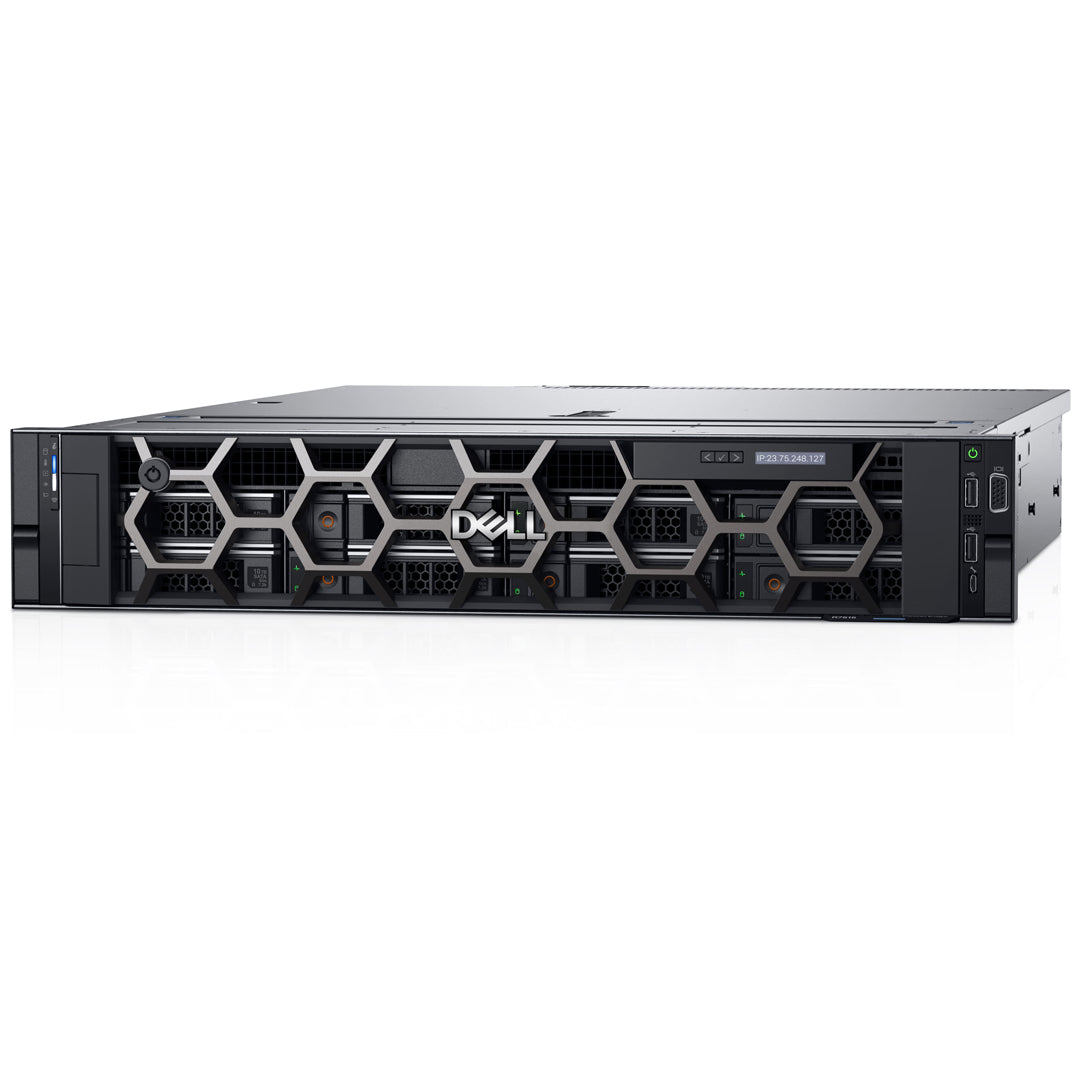

Bezel	Optional LCD bezel or security bezel
OpenManage™ Software	Consoles OpenManage Enterprise OpenManage Enterprise Power Manage OpenManage Mobile Mobility OpenManage Mobile Tools Dell EMC RACADM CLI Dell EMC Repository Manager
Integrations & Connections	OpenManage Integrations BMC Truesight Microsoft System Center Red Hat Ansible Modules VMware® vCenter™	OpenManage Connections IBM Tivoli Netcool/OMNIbus IBM Tivoli Network Manager IP Edition Micro Focus Operations Manager Nagios Core Nagios XI
Security	Cryptographically signed firmware Secure Boot Secure Erase Silicon Root of Trust System Lockdown TPM 1.2/2.0, TCM 2.0 optional
Embedded NIC
Networking Options (NDC)	2 x 1GbE 2 x 10GbE BT 2 x 10GbE SFP+ 2 x 25GbE SFP28
GPU Options	Up to 4 Single-Wide GPU(T4); Up to 1 Full-Height FPGA

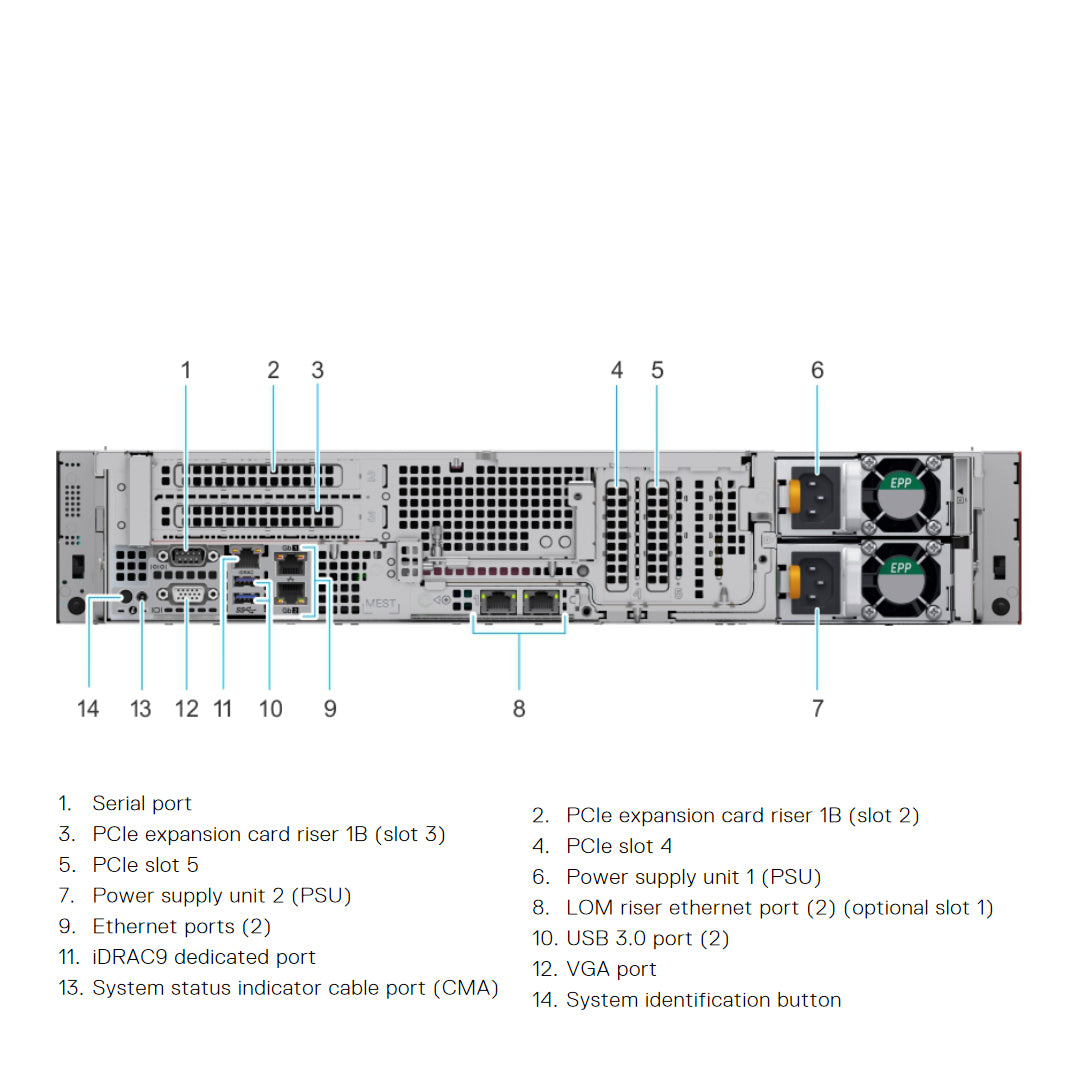

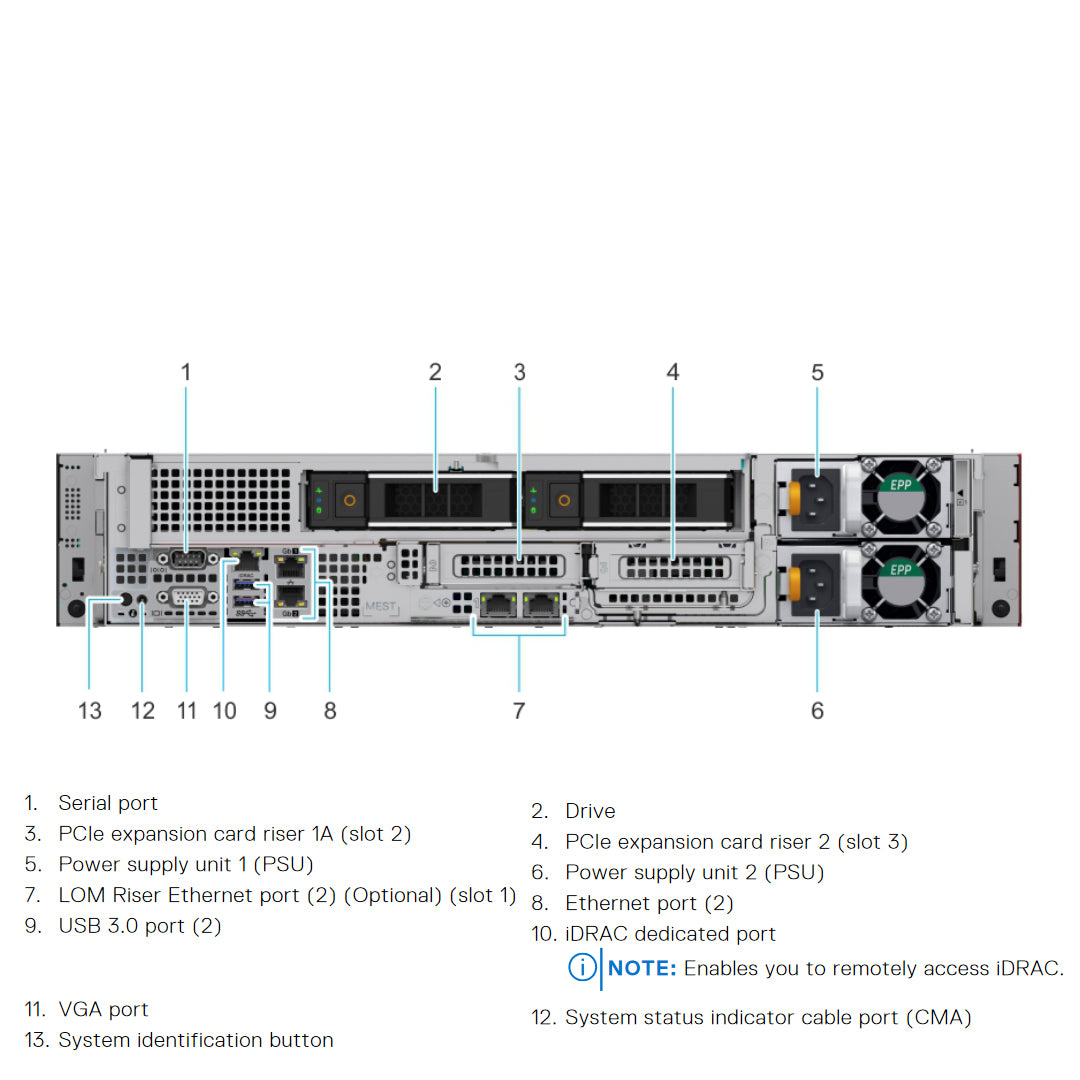

Ports	Front Ports: 1 x Dedicated iDRAC direct micro-USB 1 x USB 2.0 1 x Video	Rear Ports 2 x 1GbE 1 x Dedicated iDRAC network port 1 x Serial (optional) 2 x USB 3.0 1 x Video
PCIe	Up to 4: 2 x Gen3 slots 2 x16 2 x Gen4 slots 2 x16
Operating System and Hypervisors	Canonical Ubuntu Server LTS Citrix Hypervisor Microsoft Windows Server with Hyper-V SUSE Linux Enterprise Server Red Hat Enterprise Linux VMware ESXi

Spec Sheet 4

Feature	PowerEdge R7515	PowerEdge R7415
Processor	2 nd Generation AMD EPYC SP3 3 rd Generation AMD EPYC SP3	AMD Naples SP3
Memory	16x DDR4 RDIMM, LRDIMM, 3DS	16x DDR4 RDIMM, LRDIMM
Disk Drives	3.5-inch and 2.5-inch: ● 12 G SAS ● 6 G SATA HDD/SSD	3.5-inch and 2.5-inch: ● 12 G SAS ● 6 G SATA HDD/SSD
Storage Controllers	● Mini PERC: HBA330, H330, H730P, H740P, H840, HBA355e ● Host Bus Adapter: 12 Gbps SAS HBA ● SW RAID: S150	● Mini PERC: HBA330, H330, H730P, H740P, H840 ● Host Bus Adapter: 12 Gbps SAS HBA ● SW RAID: S140
PCIe SSD	Up to 24x PCIe SSD (Gen3)	Up to 24x PCIe SSD (Gen3)
PCIe Slots	Up to 4: ● 2 Gen3 slot (x16) ● 2 Gen4 slot (x16)-Slot 3/4	Up to 4: ● 3 Gen3 slot (x16) ● 1 Gen3 slot (x8)
OCP 2.0	OCP Type 1: (Connector A)	OCP Type 1: (Connector A)
USB Ports	● Front: 2 x USB 2.0, 1 x iDRAC USB(Micro USB) port ● Rear: 2 x USB 3.0_Gen1 port ● Internal: 1 x USB 3.0 port	● Front: 2x USB 2.0, 1x iDRAC USB(Micro USB) port ● Rear: 2x USB 3.0_Gen1 port ● Internal: 1 x USB 3.0 port
Rack Height	2U	2U
Power Supplies	● 495 W AC Platinum ● 1600 W AC Platinum ● 750 W Mix Mode Platinum ● 750 W AC Titanium ● 1100 W Mix Mode Platinum	● 495 W AC Platinum ● 1600 W AC Platinum ● 750 W AC Mix Mode Platinum ● 1100 W AC Mix Mode Platinum
System Management	● Lifecycle Controller 3.x ● OpenManage ● Quick Sync2.0 ● OMPC3 ● Digital License Key ● iDRAC Direct (dedicated micro-USB port) ● Easy Restore	● Lifecycle Controller 3.x ● OpenManage ● Quick Sync2.0 ● OMPC3 ● Digital License Key ● iDRAC Direct (dedicated micro-USB port) ● Easy Restore ● vFlash
Internal GPU	Up to 4x 75W or 1x 225W	None
Availability	● Hot-plug drives ● Hot-plug redundant power supplies ● BOSS ● IDSDM	● Hot-plug drives ● Hot-plug redundant power supplies ● BOSS ● IDSDM
