Dell PowerEdge R750xs Rack Server 8x 2.5" Chassis

SKU: DPE-R750xs-8x25-CHASSIS

Dell PowerEdge R750xs Rack Server 8x 2.5" Chassis

Name: Dell PowerEdge R750xs Rack Server 8x 2.5" Chassis
Brand: Dell
SKU: DPE-R750xs-8x25-CHASSIS
Availability: InStock

Dell

| Chassis

.price-ui--loading { display: block !important; opacity: 1 !important; }

Contact For Pricing

Thanks for the request. We'll get back to you with in 24 hours.

Quick Specs

Form Factor:

2U rack server

Processor Max: 32 Cores

2x Intel Gen 3 Xeon Scalable

Memory Max: 1TB

16 ECC DDR4 RDIMM 3200Mhz

Storage Max: 192TB

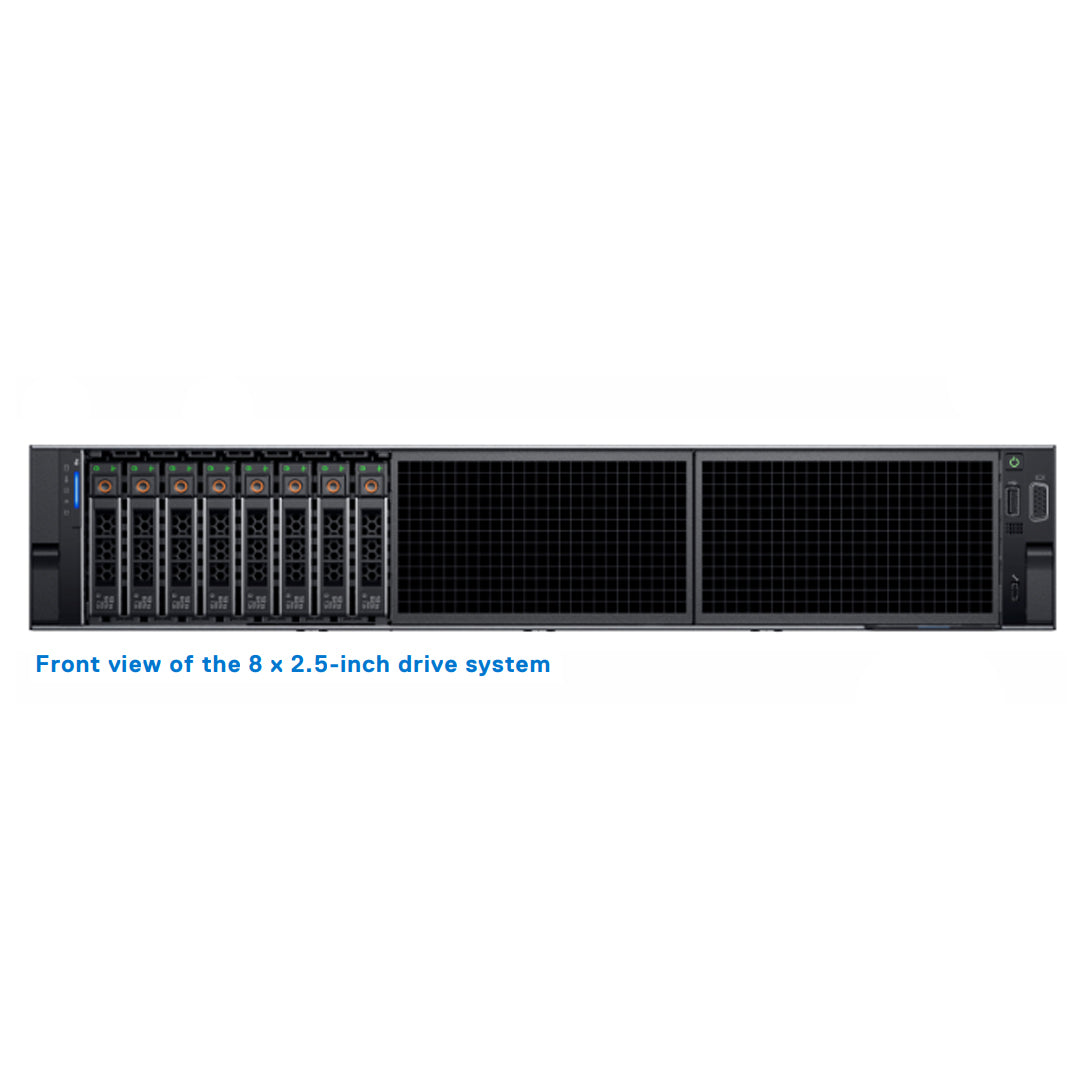

Front bays:
Up to 8x 2.5" SAS/SATA/NVMe (HDD/SSD) max 61.44 TB
Rear bays:
Only Supported in the 12 Bay Chassis

Boot Options

Boot Optimized Server Storage (BOSS-S2) Hot-Swap
Internal Dual SD Module
Internal USB

RAID Controller: (fPERC Support)

S150 (SW RAID SATA, NVMe)
H345, H745, H755, H755N, H840, HBA335i, HBA355e

NIC/LOM

2 x 1 GbE LOM

OCP 3.0

1 x OCP 3.0

Remote Management:

iDRAC9 Express (default) with Lifecycle Controller

PCIe Slots:

Up to 5 x PCIe Gen4 slots + 1 x PCIe Gen3 slots

GPU:

Not Supported

Ideal for:

Database
High-Performance Computing (HPC)
Retail Servers
Virtual Desktop Interface (VDI)
Virtualization

Looking to Customize?

Need assistance with customization? Our sales experts are here to help you.

Start Customizing Today!

Base Standard Capabilities

Feature	Technical Specification
Processor	Up to two 3rd Generation Intel Xeon Scalable processors with up to 32 cores
Memory	16 DDR4 DIMM slots, supports RDIMM 1 TB max, speeds up to 3200 MT/s Supports registered ECC DDR4 DIMMs only
Storage controllers	Internal controllers: PERC H345, PERC H355, PERC H745, PERC H755, PERC H755N, HBA355i, S150 Internal Boot: Internal Dual SD Module, Boot Optimized Storage Subsystem (BOSS-S2): HWRAID 2 x M.2 SSDs, USB External PERC (RAID): PERC H840, HBA355e
Drive bays	Front bays: 0 drive bay Up to 8 x 3.5-inch SAS/SATA (HDD/SSD) max 128 TB Up to 12 x 3.5-inch SAS/SATA (HDD/SSD) max 192 TB Up to 8 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 61.44 TB Up to 16 x 2.5-inch SAS/SATA (HDD/SSD) max 122.88 TB Up to 16 x 2.5-inch (SAS/SATA) + 8 x 2.5-inch (NVMe) (HDD/SSD) max 184.32 TB Rear bays: Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 15.36 TB
Power supplies	600W Platinum Mixed Mode (100-240Vac or 240Vdc) 600W DC/240 V 800W Platinum Mixed Mode (100-240Vac or 240Vdc) 800W DC/240 V 1100W Titanium Mixed Mode (100-240Vac or 240Vdc) 1100W DC/240 V 1100W -48Vdc (CAUTION: only works with -48Vdc to -60Vdc power input) 1400W Platinum Mixed Mode (100-240Vac or 240Vdc) 1400W DC/240 V
Cooling options	Air cooling
Fans	Standard fan/High performance SLVR fan/High performance GOLD fan Up to six hot plug fans
Dimensions	Height – 86.8 mm (3.41 inches) Width – 482 mm (18.97 inches) Depth – 707.78 mm (27.85 inches) – without bezel 721.62 mm (28.4 inches) – with bezel
Form Factor	2U rack server
Embedded mgmt	iDRAC9 iDRAC Service Module iDRAC Direct Quick Sync 2 wireless module
Bezel	Optional LCD bezel or security bezel
OpenManage™ Software	OpenManage Enterprise OpenManage Power Manager plugin OpenManage SupportAssist plugin OpenManage Update Manager plugin
Mobility	OpenManage Mobile
Integrations and Connections	OpenManage Integrations BMC Truesight Microsoft System Center Red Hat Ansible Modules VMware vCenter and vRealize Operations Manager	OpenManage Connections IBM Tivoli Netcool/OMNIbus IBM Tivoli Network Manager IP Edition Micro Focus Operations Manager Nagios Core Nagios XI
Security	Cryptographically signed firmware Secure Boot Secure Erase Silicon Root of Trust System Lockdown (requires iDRAC9 Enterprise or Datacenter) TPM 1.2/2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ
Embedded NIC	2 x 1 GbE LOM
Network Options	1 x OCP 3.0
GPU Options	Not Supported

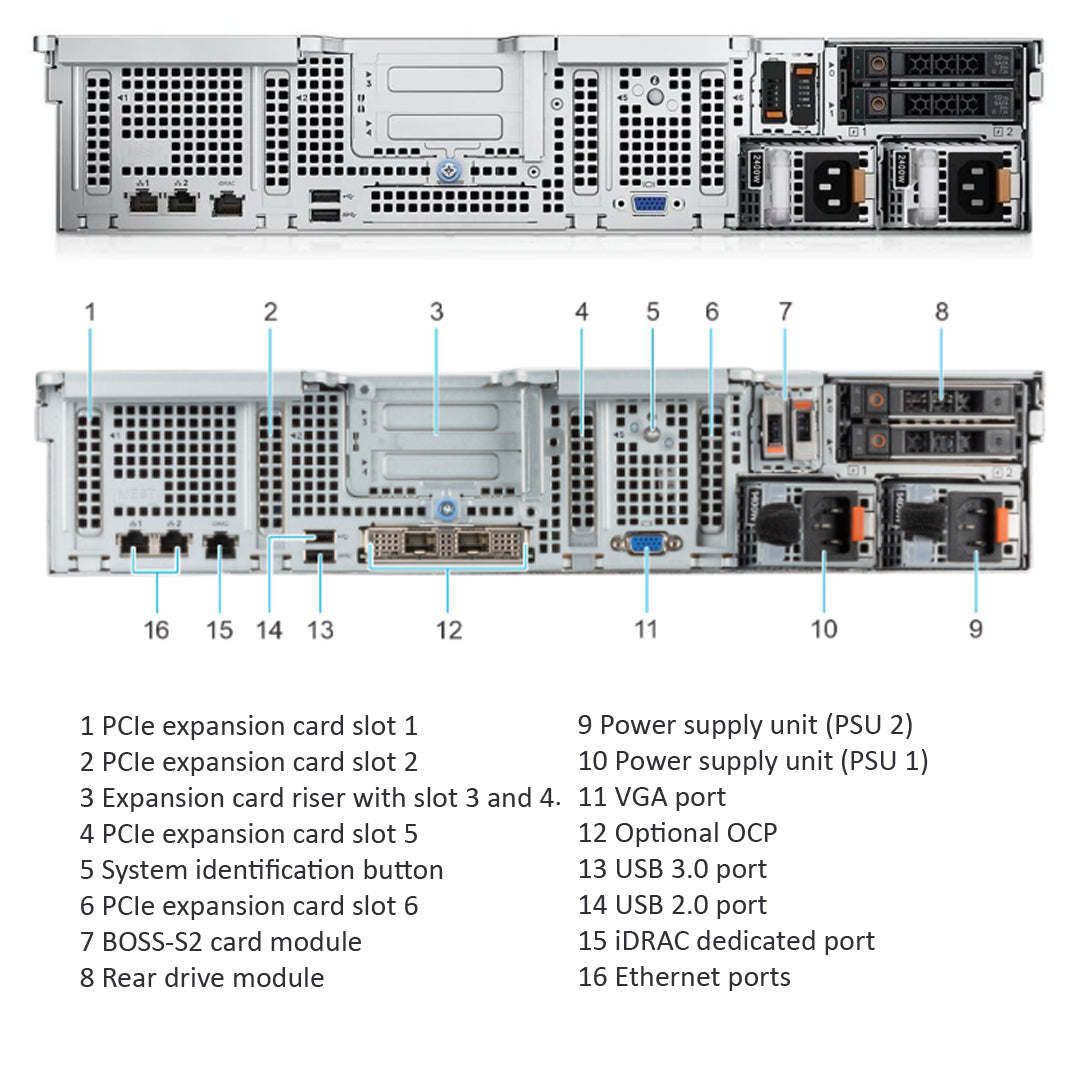

Ports	Front Ports: 1 x USB 2.0 1 x VGA 1 x iDRAC Direct (Micro-AB USB) port Internal Ports 1 x USB 3.0 (optional)	Rear Ports 1 x USB 2.0 1 x USB 3.0 1 x VGA 1 x Serial port (Optional) 2 x Ethernet
PCIe	Up to 5 x PCIe Gen4 slots + 1 x PCIe Gen3 slots
Operating System and Hypervisors	Canonical Ubuntu Server LTS Citrix Hypervisor Microsoft Windows Server with Hyper-V SUSE Linux Enterprise Server Red Hat Enterprise Linux VMware ESXi

Spec Sheet 4

Feature	PowerEdge R750xs	PowerEdge R740
Processor	Maximum two 3rd Generation Intel® Xeon® Scalable processors with maximum 32 cores per processor	Maximum two 2nd Generation Intel® Xeon® Scalable processors with maximum 28 cores per processor
Processor Interconnect	Intel Ultra Path Interconnect (UPI)	Intel Ultra Path Interconnect (UPI)
Memory	16 DDR4 DIMM slots Supports RDIMM 1 TB max Speed maximum 3200 MT/s Supports registered ECC DDR4 DIMMs only Apache Pass : No NVDIMM : No	24 DDR4 DIMM slots Supports RDIMM 1 TB maximum Speed maximum 2933 MT/s Apache Pass : 12x Intel Optane DC Persistent Memory NVDIMM : 12x NVDIMM
Storage Drives	Front bays: ● 0 drive bay ● Maximum 8x 3.5-inch SAS/SATA (HDD/ SSD) max 128 TB ● Maximum 12x 3.5-inch SAS/SATA (HDD/ SSD) maximum 192 TB ● Maximum 8x 2.5-inch SAS/SATA/NVMe (HDD/SSD) maximum 61.44 TB ● Maximum 16x 2.5-inch SAS/SATA (HDD/ SSD) maximum 122.88 TB ● Maximum 16x 2.5-inch (SAS/SATA) + 8x 2.5-inch (NVMe) (HDD/SSD) maximum 184.32 TB	Front bays: ● Maximum 16x 2.5-inch SAS/SATA/SSD, maximum 122.88 TB ● Maximum 8x 3.5-inch SAS/SATA, maximum 128 TB
Storage Drives	Rear bays: ● Maximum 2x 2.5-inch SAS/SATA/NVMe (HDD/SSD) maximum 15.36 TB
Storage Controllers	Internal controllers: PERC H345, PERC H745, PERC H755, PERC H755N, HBA355i	Internal Controllers: PERC H330, H730P, H740P, HBA330
	Internal Boot: Internal Dual SD Module or Boot Optimized Storage Subsystem (BOSS S2): HWRAID 2x M.2 SSDs or Internal USB	Internal Controllers: PERC H330, H730P, H740P, HBA330
	External PERC (RAID): PERC H840, HBA355e	External Controllers: H840, 12 Gbps SAS HBA
	Software RAID: S150	Software RAID: S140
PCIe SSD	Maximum 16x 2.5-inch (NVMe drives)	Maximum 12x PCIe SSD (NVMe drives) Maximum 24x PCIe SSD (NVMe drives)
PCIe Slots	Maximum 5x PCIe Gen4 slots Maximum 1x PCie Gen3 slots	Maximum 8 x Gen3 slots (4x 16)
Embedded NIC (LOM)	2x 1GbE LOM	Not supported
Networking Options (OCP 3.0)	Maximum 1 OCP 3.0	OCP riser options: ● 4x 1 GB ● 4x 10 GB ● 2x 10 GB + 2x 1 GB ● 2x 25 GB
USB Ports	Front ports ● 1x Dedicated iDRAC micro-USB ● 1x USB 2.0 ● 1x VGA	Front ports: ● 1x Dedicated iDRAC direct USB ● 2x USB 2.0 ● 1x USB 3.0 (optional) ● 1x VGA
	Rear ports: ● 1x USB 2.0 ● 1x Serial (optional) ● 1x USB 3.0 ● 2x Ethernet ● 1x VGA
	Internal port: ● 1x USB 3.0 (optional)	Rear ports: ● 1x Dedicated iDRAC network port ● 1x Serial ● 2x USB 3.0 ● 1x VGA
Rack Height	2U rack server	2U rack server
Power Supplies	● 1400 W Platinum AC/100 - 240 V ● 1400 W DC/240 V ● 1100 W Titanium AC/100 - 240 V ● 1100 W DC/240 V ● 1100 W DC/-48–(-60) V ● 800 W Platinum AC/100 - 240 V ● 800 W DC/240 V ● 600 W Platinum AC/100 - 240 V ● 600 W DC/240 V	● 495 W Platinum ● 750 W Platinum ● 750 W 240VDC Platinum ● 1100 W Platinum ● 1100 W -48 V DC Gold ● 1100 W 380 V DC Platinum ● 1600 W Platinum ● 2000 W Platinum ● 2400 W Platinum ● 750 W Titanium
System Management	● Lifecycle Controller 3.x ● OpenManage ● QuickSync 2.0 ● OpenManage Enterprise Power Manager ● Digital License Key ● iDRAC Direct (dedicated micro-USB port) ● Easy Restore	● Lifecycle Controller 3.x ● OpenManage ● QuickSync 2.0 ● OpenManage Enterprise Power Manager ● Digital License Key ● iDRAC Direct (dedicated micro-USB port) ● Easy Restore
Availability	Hot-plug drives Hot-plug redundant cooling Hot-plug redundant power supplies IDSDM BOSS S2	Hot-plug drives Hot-plug redundant cooling Hot-plug redundant power supplies IDSDM BOSS
