Dell PowerEdge R740 Rack Server Chassis (8x2.5")

SKU: DPE-R740-8X2.5

Dell PowerEdge R740 Rack Server Chassis (8x2.5")

Name: Dell PowerEdge R740 Rack Server Chassis (8x2.5")
Brand: Dell CTO
SKU: DPE-R740-8X2.5
Price: 1092.5 USD
Availability: InStock

Dell CTO

| Chassis

.price-ui--loading { display: block !important; opacity: 1 !important; }

$1,092.50

Thanks for the request. We'll get back to you with in 24 hours.

CTO Item

This part is strictly for configuring Dell servers. If you have landed on this page and you're looking for a specific part number. Please send us a "Request a Quote" with the part number you need.

Looking to Customize?

Need assistance with customization? Our sales experts are here to help you.

Start Customizing Today!

Base Standard Capabilities

Features	Technical specification
Processor	Up to two 2nd Generation Intel® Xeon® Scalable processors, up to 28 cores per processor
Memory	24 DDR4 DIMM slots, Supports RDIMM /LRDIMM, speeds up to 2933MT/s, 3TB max Up to 12 NVDIMM, 192 GB Max Up to 12 Intel® Optane™ DC persistent memory PMem, 6.14TB max (7.68TB max with PMem + LRDIMM) Supports registered ECC DDR4 DIMMs only
Storage controllers	Internal Controllers: PERC H330, H730P, H740P, HBA330 External Controllers: H840, 12 Gbps SAS HBA Software RAID:S140 Boot Optimized Storage Subsystem (BOSS):HWRAID 2 x M.2 SSDs 240GB, 480GB Internal Dual SD Module
Drive bays	Front drive bays: Up to 16 x 2.5” SAS/SATA (HDD/SSD) max 122.88TB or up to 8 x 3.5” SAS/SATA HDD max 128TB Optional DVD-ROM, DVD+RW
Power supplies	Titanium 750W, Platinum 495W, 750W, 750W 240VDC, 1100W, 1100W 380VDC 1600W, 2000W and 2400W, Gold 1100W -48VDC Hot plug power supplies with full redundancy Up to 6 hot plugs fans with full redundancy
Dimensions	Form factor: Rack (2U) Height: 86.8mm (3.4”) Width3: 434.0mm (17.08”) Depth3: 737.5mm (29.03”) Weight: 28.6kg (63lbs.)
Embedded management	iDRAC9 iDRAC Direct iDRAC RESTful API with Redfish Quick Sync 2 wireless module (optional)
Bezel	Optional LCD bezel or security bezel
OpenManage Software	OpenManage Enterprise OpenManage Mobile OpenManage Power Manager
Integrations and connections	Integrations: Microsoft System Center VMware vCenter BMC Software Red Hat Ansible Modules	Connections: IBM Tivoli® Netcool/OMNIbus Micro Focus Operations Manager I Nagios® Core Nagios® XI
Security	TPM 1.2/2.0 optional Cryptographically signed firmware Secure Boot Silicon Root of Trust Secure erase System Lockdown (requires iDRAC Enterprise or Datacenter)

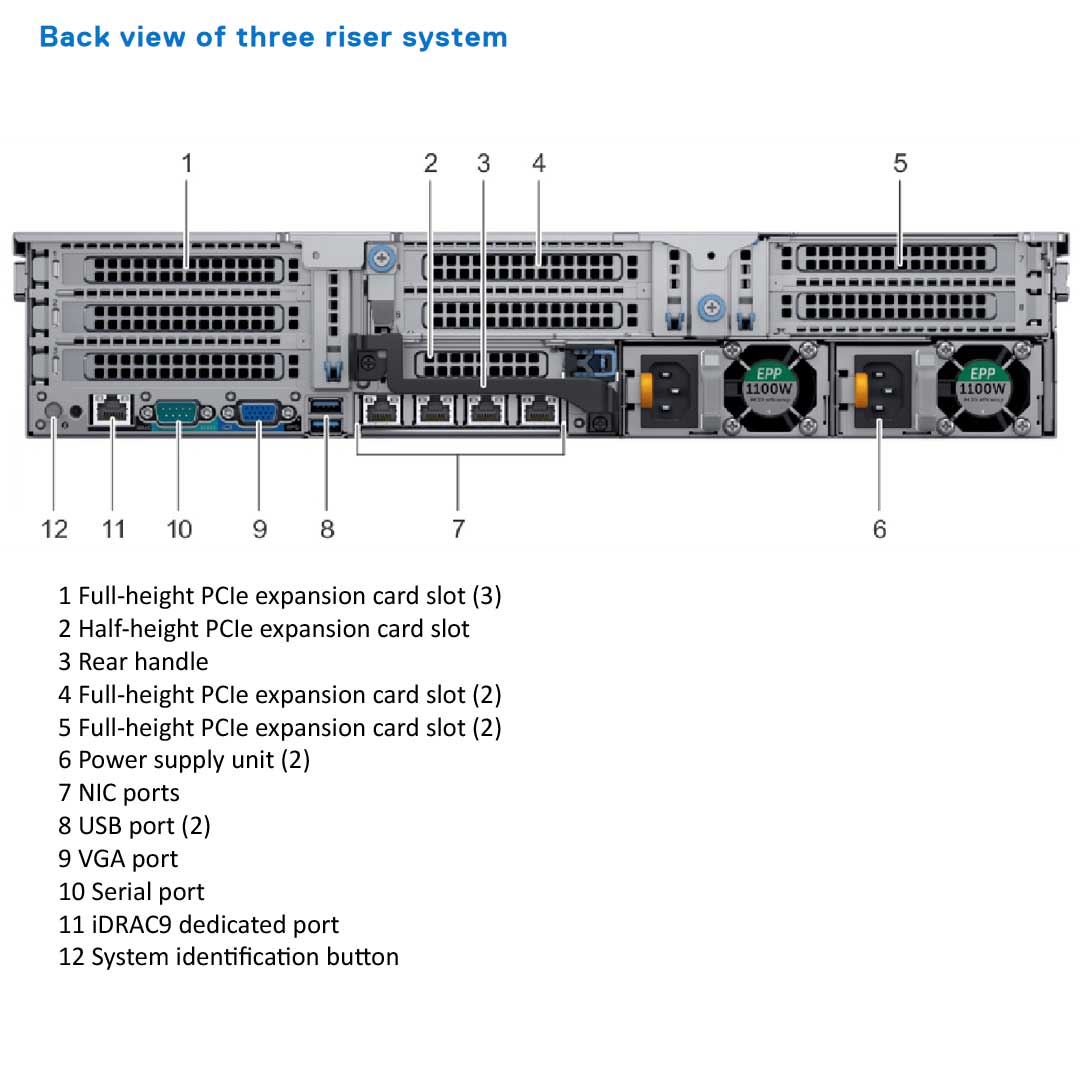

I/O & Ports	Network Options: 4 x 1GbE 2 x 10GbE + 2 x 1GbE 4 x 10GbE 2 x 25GbE Front Ports: 1 x Dedicated iDRAC direct USB 2 x USB 2.0 1 x USB 3.0 (optional) 1 x VGA	Rear Ports: 1 x Dedicated iDRAC network port 1 x Serial 2 x USB 3.0 1 x VGA Video card: 2 x VGA PCIe: up to 8 PCIe Gen 3 slots, maximum of 4 x 16 slots
Accelerator options	Up to (3) 300W GPUs Up to (6) 150W GPUs Up to (3) double-width FPGAs Up to (4) single-width FPGAs
Supported operating systems	Canonical® Ubuntu® LTS Citrix® XenServer Microsoft Windows Server® LTSC with Hyper-V Oracle® Linux Red Hat® Enterprise Linux SUSE® Linux Enterprise Server VMware® ESXi

Spec Sheet 4

Feature	PowerEdge R740/R740xd	PowerEdge R730/R730xd
Processor	2 x 2nd Generation Intel® Xeon® Scalable processor family	Intel® Xeon® processor E5-2600 product family
CPU interconnect	Intel Ultra Path Interconnect (UPI)	Intel QuickPath Interconnect (QPI)
Memory	● 24 x DDR4 RDIMM, LRDIMM ● 12 x NVDIMM ● 12 x DCPMM (Intel® Optane™ DC persistent memory)	24 x DDR4 RDIMM, LRDIMM
Disk Drives	● 3.5 -inch or 2.5 -inch 12Gb/s SAS, 6Gb/s SATA ● Up to 24 x NVMe	● 3.5 -inch, 2.5 -inch or 1.8 -inch 12Gb/s SAS, 6Gb/s SATA ● 4 x PCIe SSD with common slot
Storage Controllers	Adapters: HBA330, HBA350i, H330(R740 only), H350(R740 only), H730P, H740P, H840, 12G SAS HBA, HBA355e, H750 Mini Mono: HBA330, H330(R740 only), H730P, H740P, H350 (R740 only), HBA350i (R740xd only) SW RAID: S140	Adapters: HBA330, H330, H730, H730P, H830 (ext) Mini Mono: HBA330, H330, H730, H730P SW RAID: S130
PCIe Slots	Max 8 x PCIe 3.0	Max 7 x PCIe 3.0 or 6 x PCIe 3.0
rNDC	4x 1GbE, 4x 10GbE, 2x 10GbE + 2x 1GbE, or 2x 25GbE	4x 1GbE, 4x 10GbE, or 2x 10GbE + 2x 1GbE
USB Ports	Front: ● 1 x Dedicated iDRAC direct USB ● 2 x USB 2.0 ● 1 x USB 3.0 (optional only for R740) ● 1 x Video Rear: ● 1 x Dedicated iDRAC network port ● 1 x Serial ● 2 x USB 3.0 ● 1 x Video	Front: two ports (USB 2.0), one managed port Rear: two ports (USB 3.0) Internal: one port (USB 3.0)
Rack Height	2U	2U
Power Supplies	● AC (Platinum): 495W, 750W, 1100W, 1600W, 2000W, 2400W ● AC (Titanium): 750W, 1600W, 2600W ● DC: 1100W ● DC: 750 W Mixed Mode Platinum (for China only) ● AC: 750 W Mixed Mode Platinum ● Mixed mode/HVDC: 750W, 1100W	● AC: 495W, 750W, 1100W ● DC: 750W, 1100W
System Management	Lifecycle Controller 3.x, OpenManage, QuickSync2.0, OMPC3, Digital License Key, iDRAC Direct(dedicated micro-USB port), Easy Restore, vFlash	Lifecycle Controller 3.x, OpenManage, QuickSync1.0, PM3, Digital License Key, iDRAC8, iDRAC Direct( dedicated micro-USB port), Easy Restore, vFlash
Internal GPU	● 3 x 300W (double-width) or 6 x 150W (single-width) NOTE: Only supports up to 2 x NVIDIA M10 GPUs.	● 2 x 300W (double-wide) or 4 x 150W (single-wide) ● Not supported on R730xd ● FPGAs not supported on the R730/xd.
Availability	Hot-plug Redundant Cooling Hot-plug Drives Hot-plug Redundant Power Supplies Boot Optimized Storage Subsystem (BOSS) IDSDM	Hot-plug Drives Hot-plug Redundant Cooling Hot-plug Redundant Power Supplies IDSDM
