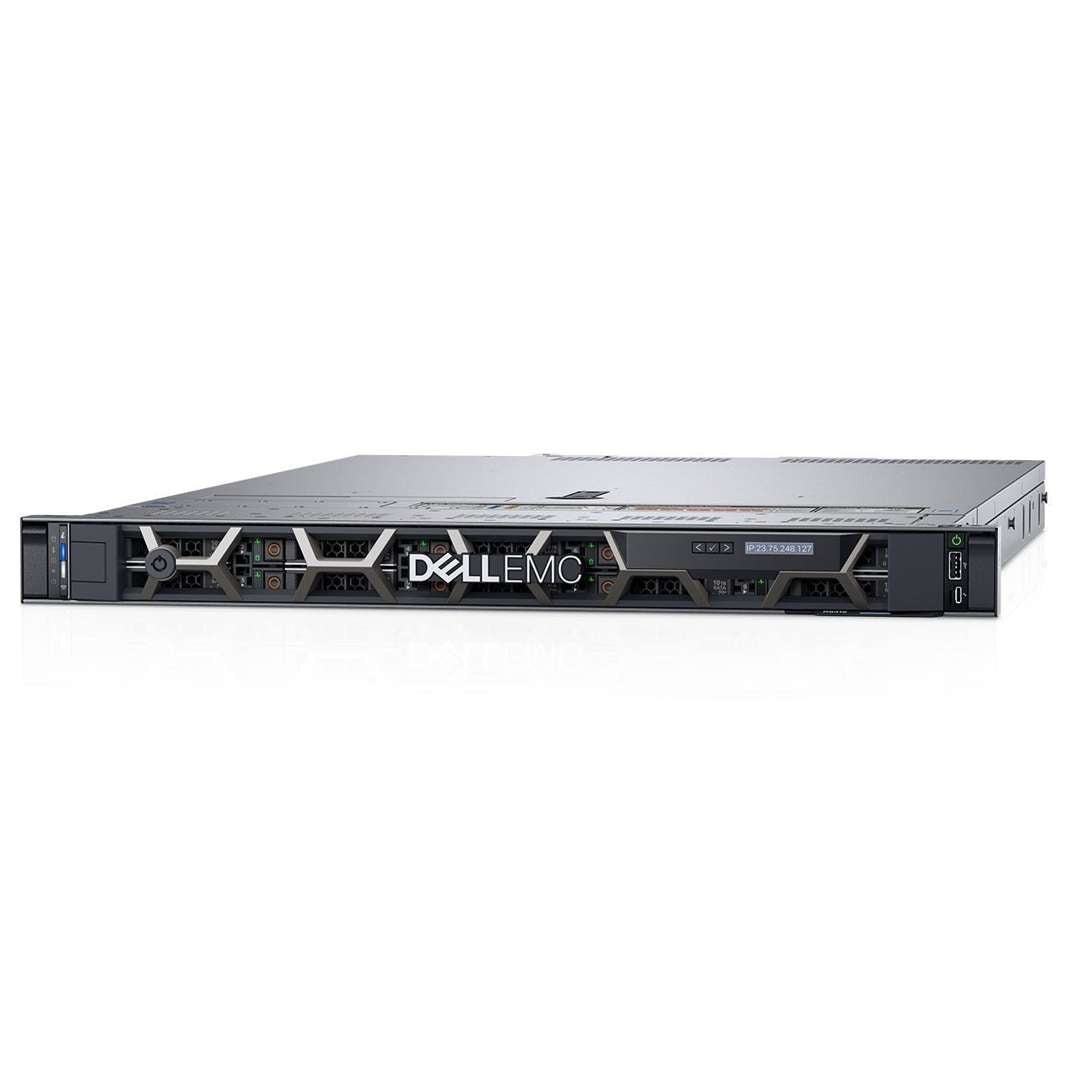

Dell PowerEdge R6415 Rack Server Chassis (10x2.5" NVMe)

SKU: DPE-R6415-10x2.5-Chassis

Dell PowerEdge R6415 Rack Server Chassis (10x2.5" SAS/NL-SAS/SATA/NVMe)

Name: Dell PowerEdge R6415 Rack Server Chassis (10x2.5" SAS/NL-SAS/SATA/NVMe)
Brand: Dell CTO
SKU: DPE-R6415-10x2.5-Chassis
Availability: InStock

Dell CTO

| Chassis

.price-ui--loading { display: block !important; opacity: 1 !important; }

Contact For Pricing

Thanks for the request. We'll get back to you with in 24 hours.

CTO Item

This part is strictly for configuring Dell servers. If you have landed on this page and you're looking for a specific part number. Please send us a "Request a Quote" with the part number you need.

Looking to Customize?

Need assistance with customization? Our sales experts are here to help you.

Start Customizing Today!

Base Standard Capabilities

Features	Technical specification
Processor	1x AMD EPYC™ processor, up to 32 cores
Memory	16 DDR4 DIMM slots, Supports RDIMM, LRDIMM
Storage controllers	Internal Controllers: PERC H330 Mini Mono, H730p Mini Mono, H740p Mini Mono, HBA330 External PERC (RAID): H840 12Gbps PERC9. or 10 series, mini PERC x8 slot Boot Optimized Storage System: HW RAID 2 x M.2 + Internal USB + Internal Dual SD Module

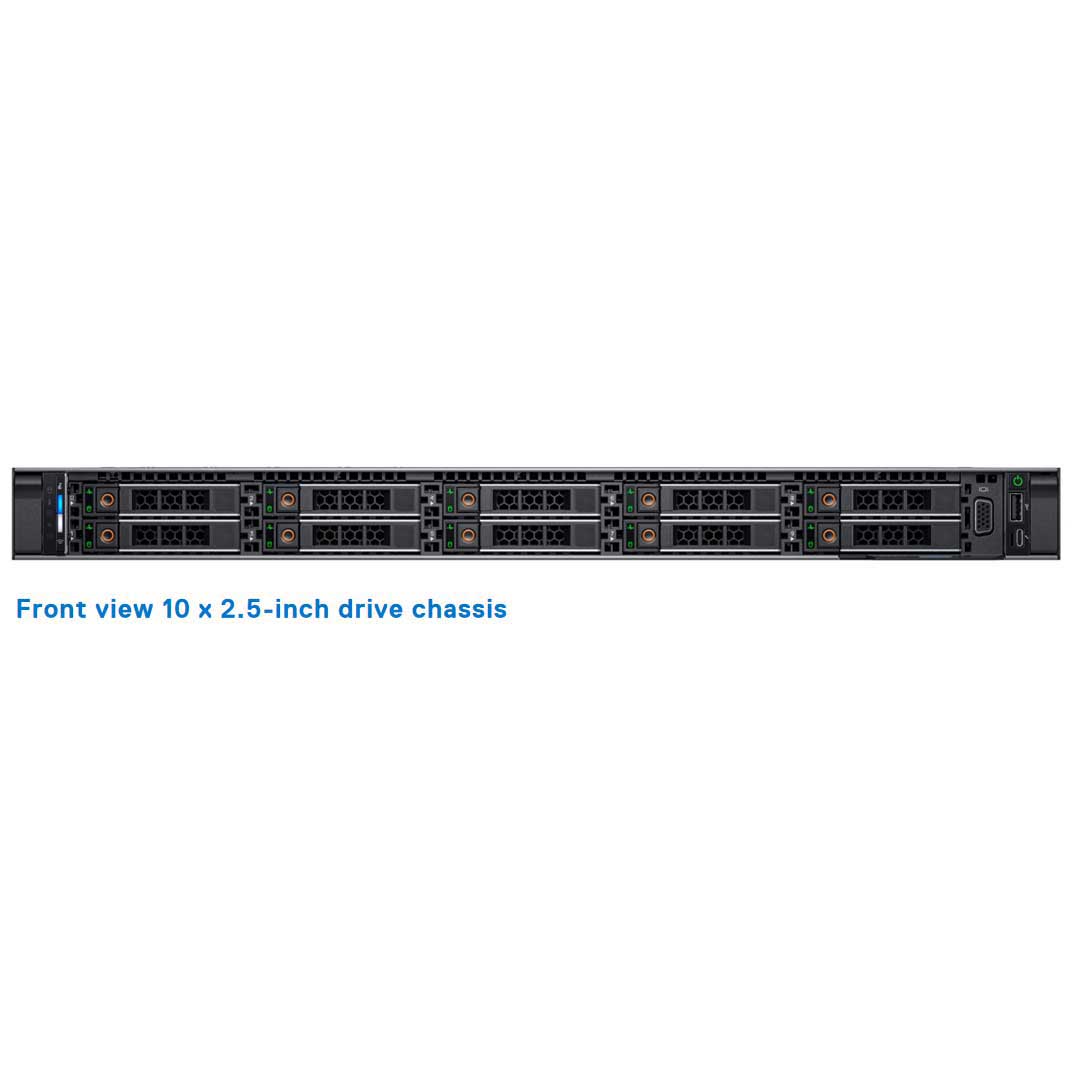

Drive bays	Front bays: Up to 8 x 2.5” SAS/SATA/NVMe + 2 x 2.5 NVMe or up to 4 x 3.5” SAS/SATA HDD
Power supplies	Platinum 550W Bronze 450W (Cabled) Hot plug power supplies with full redundancy
Dimensions	Form factor: Rack (1U) Chassis: 728.23 mm Front Bezel to Rear PSU Handle 714.58 mm Front plate (no bezel) to Rear PSU Handle
Embedded / At-Server	iDRAC9 with Lifecycle Controller (no power capping) iDRAC Direct iDRAC REST API with Redfish Quick Sync 2 BLE/wireless module
Bezel	Optional LCD bezel or security bezel
OpenManage Software	OpenManage Enterprise OpenManage Mobile OpenManage Essentials
Integrations and connections	Integrations: Microsoft System Center VMware vCenter BMC Software (available from BMC)	Connections: HPE Operations Manager i (OMi) Nagios® Core Nagios® XI
Tools	Dell EMC Repository Manager Dell EMC Update Package Dell EMC System Update Dell EMC Server Update Utility	iDRAC Service Module OpenManage Server Administrator OpenManage Storage Services
Security	TPM 1.2/2.0 optional Cryptographically signed firmware Secure Root of Trust Secure Boot Secure Erase System Lockdown

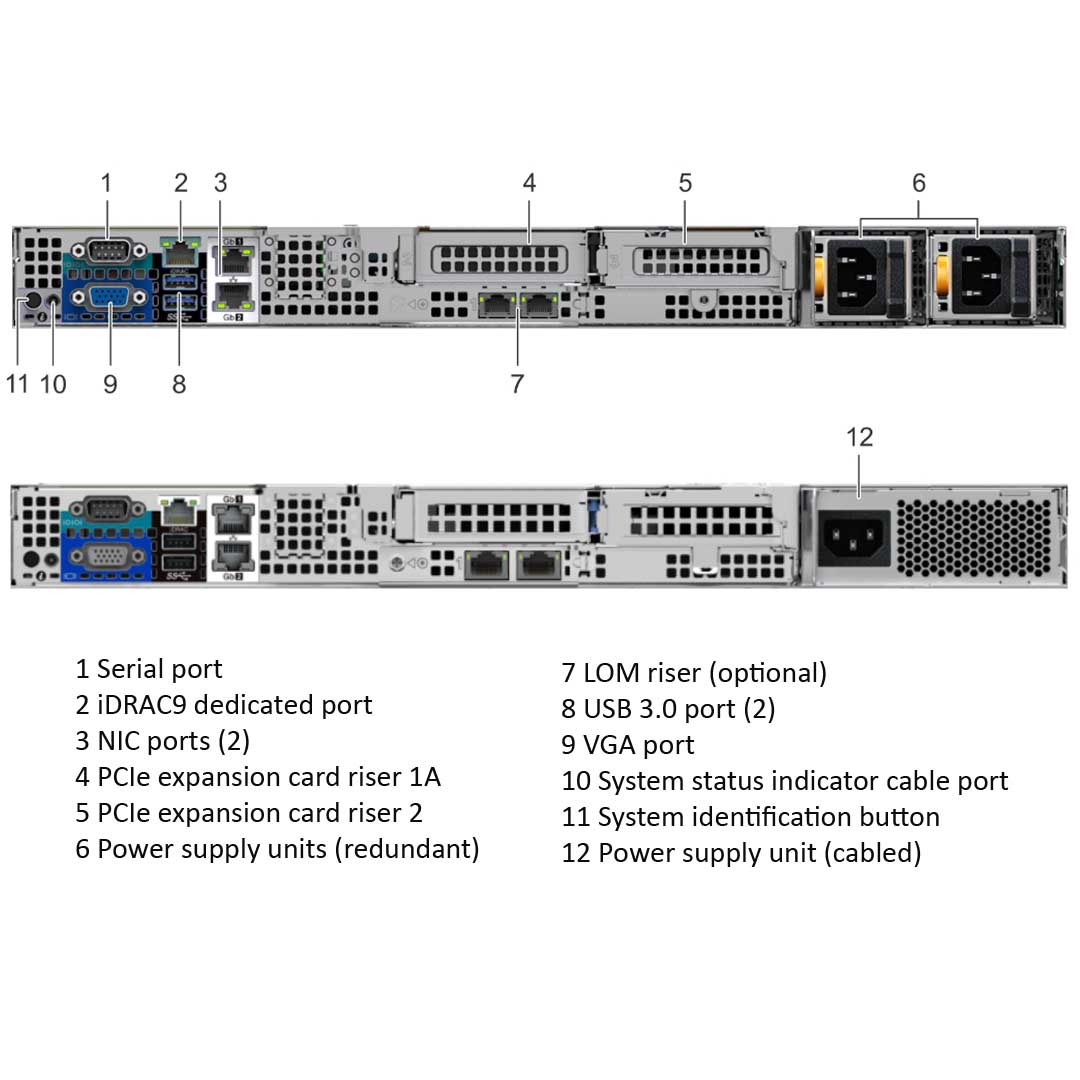

I/O & Ports	Network daughter card options: 2 x 1GbE 2 x 10GbE 2 x 10GbE SFP+ 2 x 25Gb SPF+ Front Ports: 1 x USB 2.0 1 x 1 x Dedicated iDRAC Direct Micro-USB	Rear Ports: 1 x Dedicated iDRAC port 1 x Serial 2 x USB 3.0 1 x VGA Video card: 2 x VGA PCIe: Up to 2 x Gen3 slots; 2 x 16 lanes
Supported operating systems	Microsoft Windows Server® 2016 Red Hat® Enterprise Linux 7.4 VMware® vSphere 2016 U1 (ESXi 6.5 U1) Microsoft Windows Server® 2012 R2
