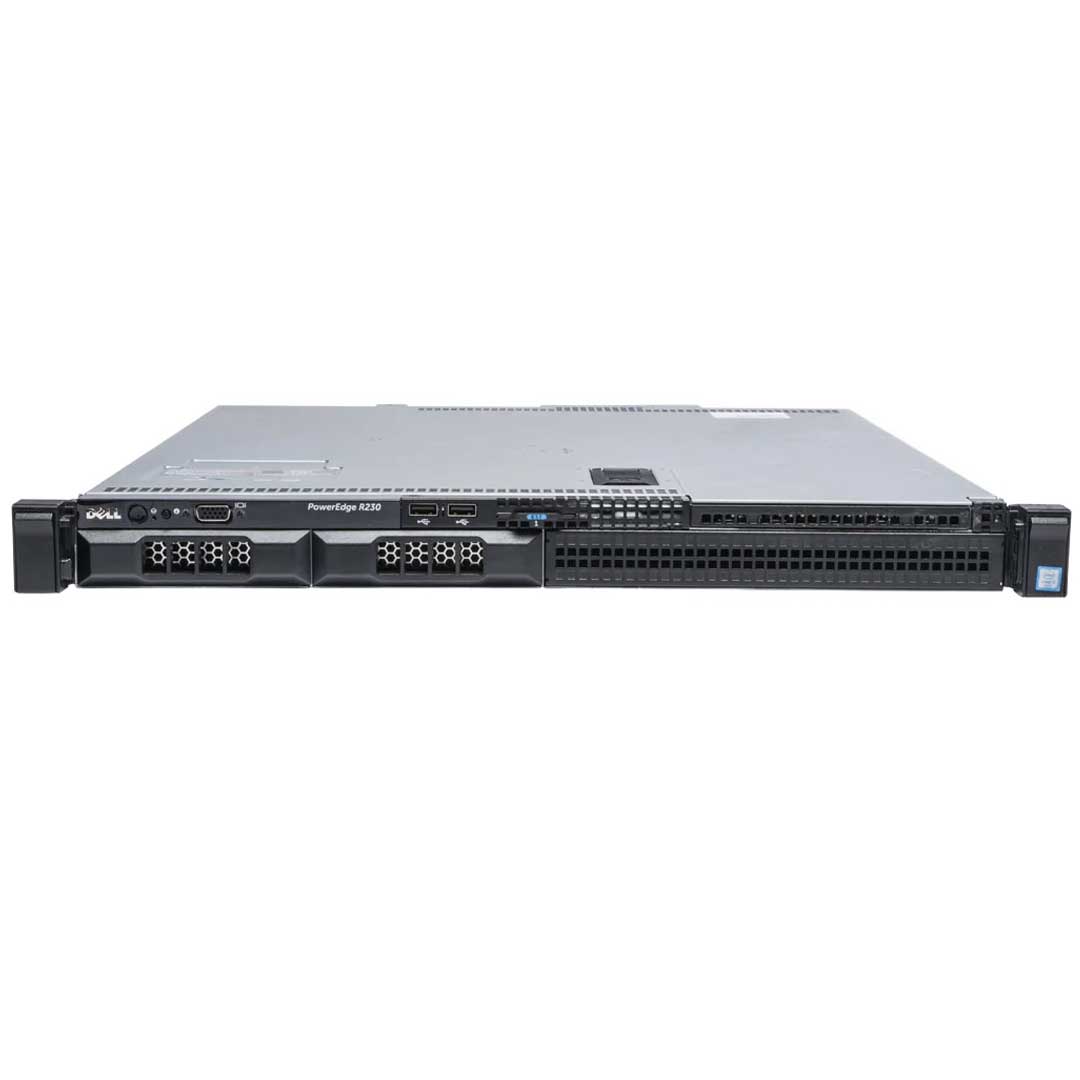

Dell PowerEdge R230 Rack Server Chassis (2x3.5" Cabled) R230-2-cabled

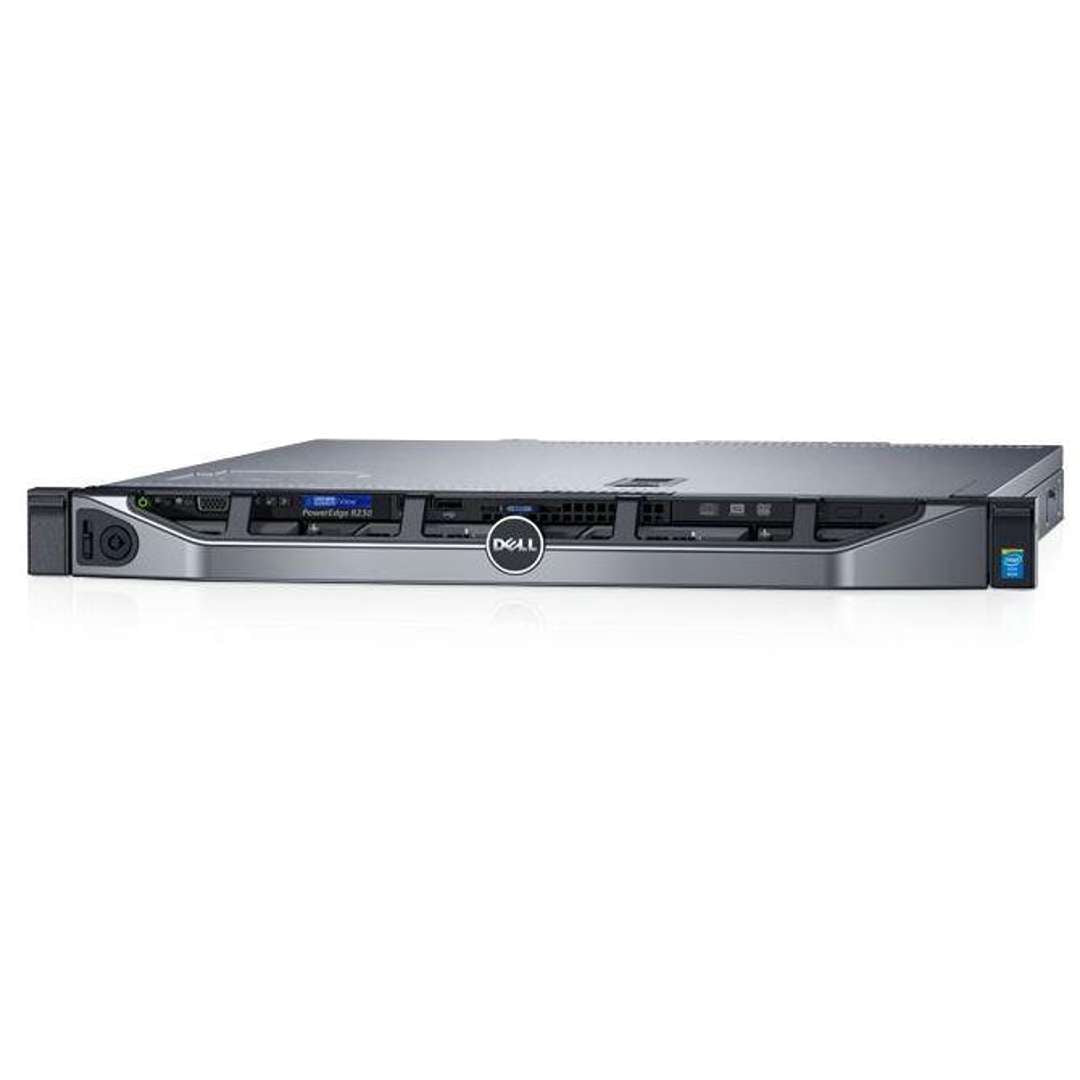

PER230-2x3.5 | Refurbished Dell PowerEdge R230 Rack Server Chassis (2x3.5")

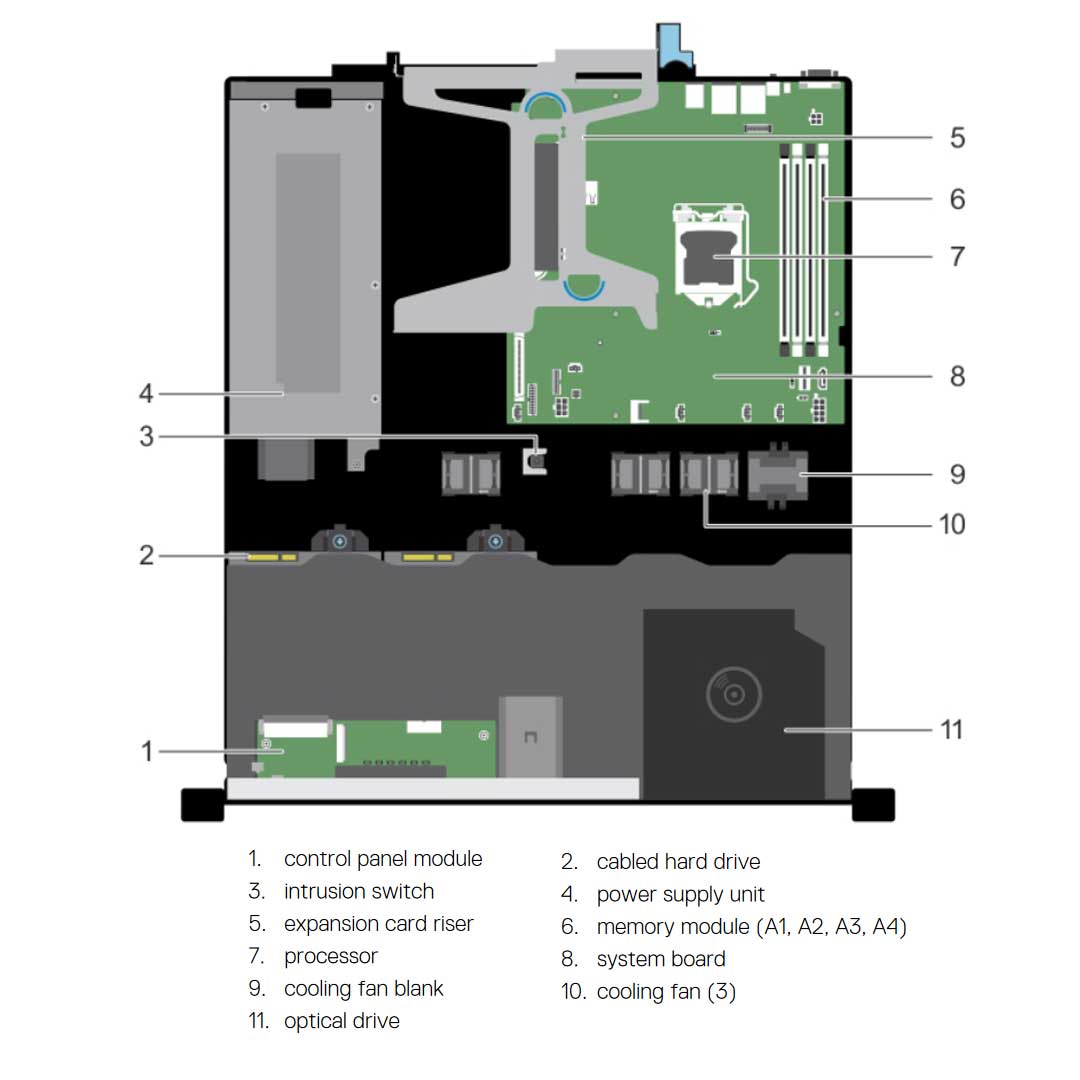

Dell PowerEdge R230 Rack Server Chassis (2x3.5" Cabled) R230-2-cabled-internal-diagram

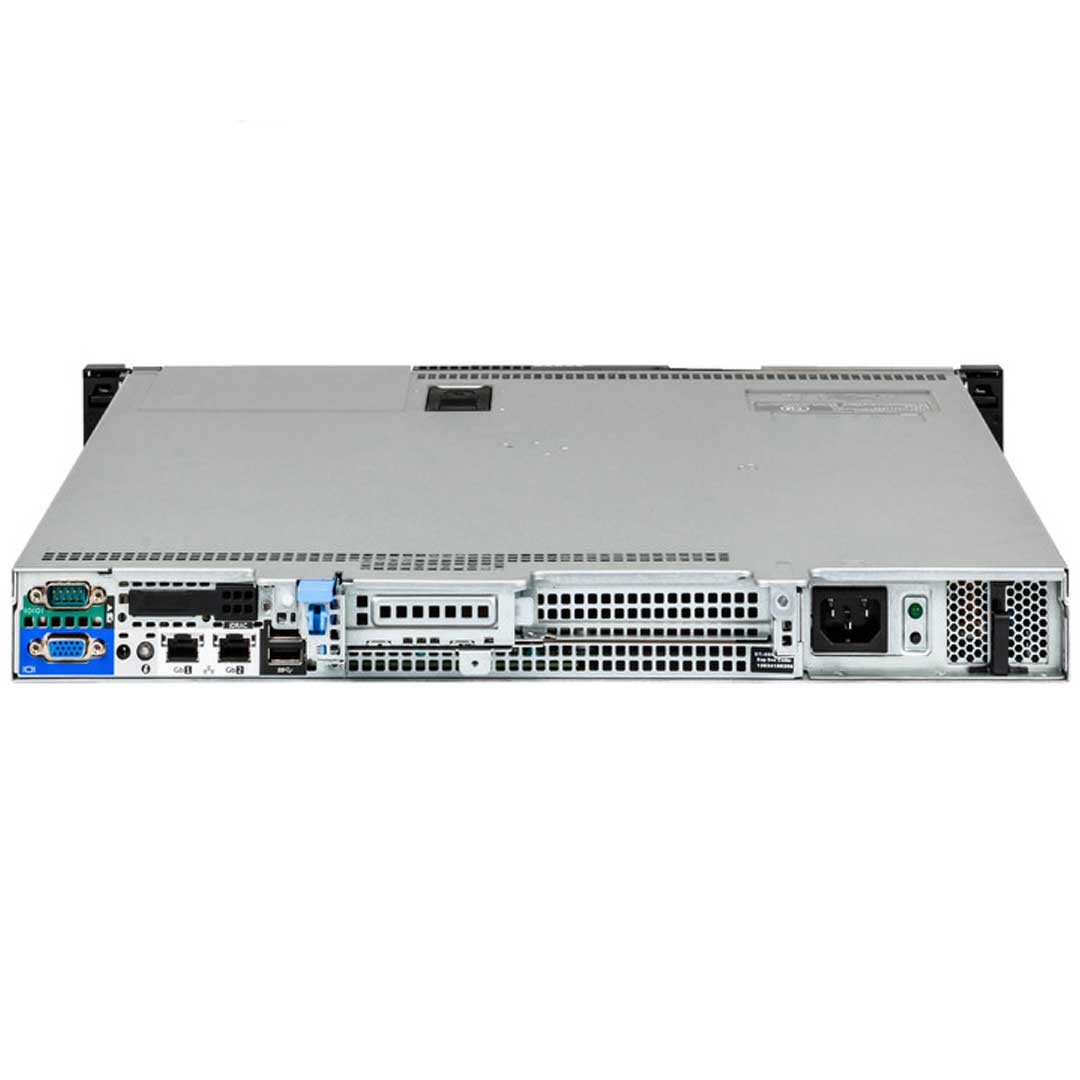

Dell PowerEdge R230 Rack Server Chassis (2x3.5" Cabled) R230-rear

SKU: DPE-R230-2X3.5

Dell PowerEdge R230 Rack Server Chassis (2x3.5" Cabled)

Name: Dell PowerEdge R230 Rack Server Chassis (2x3.5" Cabled)
Brand: Dell CTO
SKU: DPE-R230-2X3.5
Price: 210.0 USD
Availability: InStock

Dell CTO

| Chassis

.price-ui--loading { display: block !important; opacity: 1 !important; }

$210.00

Thanks for the request. We'll get back to you with in 24 hours.

CTO Item

This part is strictly for configuring Dell servers. If you have landed on this page and you're looking for a specific part number. Please send us a "Request a Quote" with the part number you need.

Base Standard Capabilities

Feature	PowerEdge R230 Technical specification
Form factor	1U rack server
Dimensions and weight	H: 42.8 mm (1.67 in), W: 434.0 mm (17.09 in), D: 495 mm (19.5 in) w/o ear, w/o bezel Max weight: 10.6 kg (20.96 lb)
Processor	1 processor from the following product families: • Intel® Xeon® processor E3-1200 v6 product family • Intel Pentium® • Intel CoreTM i3 • Intel Celeron®
Chipset	Intel C236
Operating system	Microsoft® Windows Server® 2016, Microsoft® Windows Server® 2012 Microsoft Windows Server 2012 R2, x64 Red Hat® Enterprise Linux® VMware® Vsphere® ESXi® SUSE® Linux Enterprise Server®
Memory	Architecture: Up to 2400MT/s DDR4 DIMMs Memory type: UDIMMs Memory module sockets: 4 Maximum RAM: Up to 64GB
Hypervisor support	Microsoft Windows Server with Hyper-V® VMware® vSphere® ESXi®
Storage	• 2.5" SATA 7.2k • 2.5" nearline SAS 7.2k • 2.5" 10k SAS HDDs • 2.5" 15K SAS HDDs	• 2.5" SATA SSDs • 3.5" Enterprise SATA 7.2k HDDs • 3.5" nearline SAS 7.2k HDDs • 3.5" 7.2k SATA entry drives
Drive bays	2 x 3.5" cabled HDD 4 x 3.5" cabled HDD 4 x 3.5" hot-swap or 2.5" hot-swap in hybrid drive carrier
Slots	2 x PCIe 3.0 slots: x16 slot, full-height (1x8 3.0)+ x8 slot, low-profile (1x4 3.0)
RAID controllers	PERC S130, PERC H330, PERC H730, PERC H830
Network controller	Broadcom® 5720
Communications	2 x 1GbE LOM
Power	250W cabled PSU
Chassis	• 2 x 3.5" cabled HDD 19.5" 1U chassis • 4 x 3.5" cabled HDD 19.5" 1U chassis • 4 x 3.5" hot-swap or 2.5" hot-swap in hybrid drive carrier
Management	Systems management IPMI 2.0 compliant Dell OpenManage Essentials Dell OpenManage Mobile Dell OpenManage Power Center Remote management iDRAC8 with Lifecycle Controller, iDRAC8 Express (default), iDRAC8 Enterprise (upgrade), 8GB vFlash media (upgrade), 16GB vFlash media (upgrade)	Dell OpenManage Connections: HP Operations Manager, IBM Tivoli® Netcool® and CA Network and Systems Management, Dell OpenManage Plug-in for Oracle® Enterprise Manager Dell OpenManage Integrations: Dell OpenManage Integration Suite for Microsoft System Center, Dell OpenManage Integration for VMware vCenter®
Device access	5 total USB: Rear: 2 x USB 3.0 ports Front: 2 x USB 2.0 ports Internal: 1 x USB 3.0 port
Rack support	ReadyRails™ static rails for tool-less mounting in 4-post racks with square or unthreaded round holes or tooled mounting in 4-post threaded and 2-post racks.
