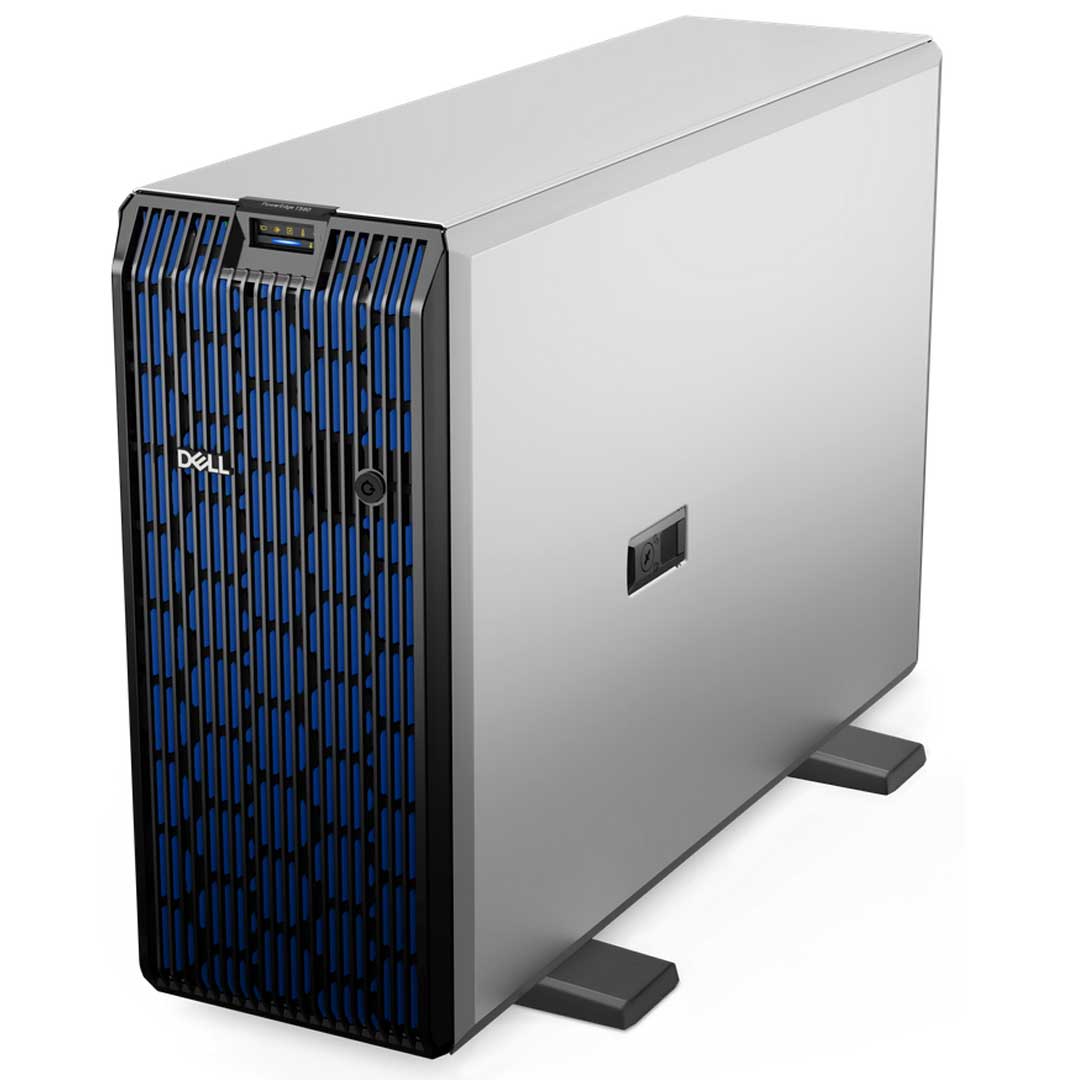

Dell PowerEdge T560 Tower Server Chassis (8x 2.5")

SKU: DPE-T560-8SFF-Chassis

Dell PowerEdge T560 Tower Server Chassis (8x 2.5")

Name: Dell PowerEdge T560 Tower Server Chassis (8x 2.5")
Brand: Dell
SKU: DPE-T560-8SFF-Chassis
Availability: InStock

Dell

| Chassis

.price-ui--loading { display: block !important; opacity: 1 !important; }

Contact For Pricing

Thanks for the request. We'll get back to you with in 24 hours.

Quick Specs

Form Factor:

Tower server 4.5U (Rackable)

Processor Max: 32 Cores

2x Gen 4 Intel Xeon Scalable Processors

Memory Max: 1TB

16 DDR5 RDIMM 4800Mhz

Storage Max: 360TB

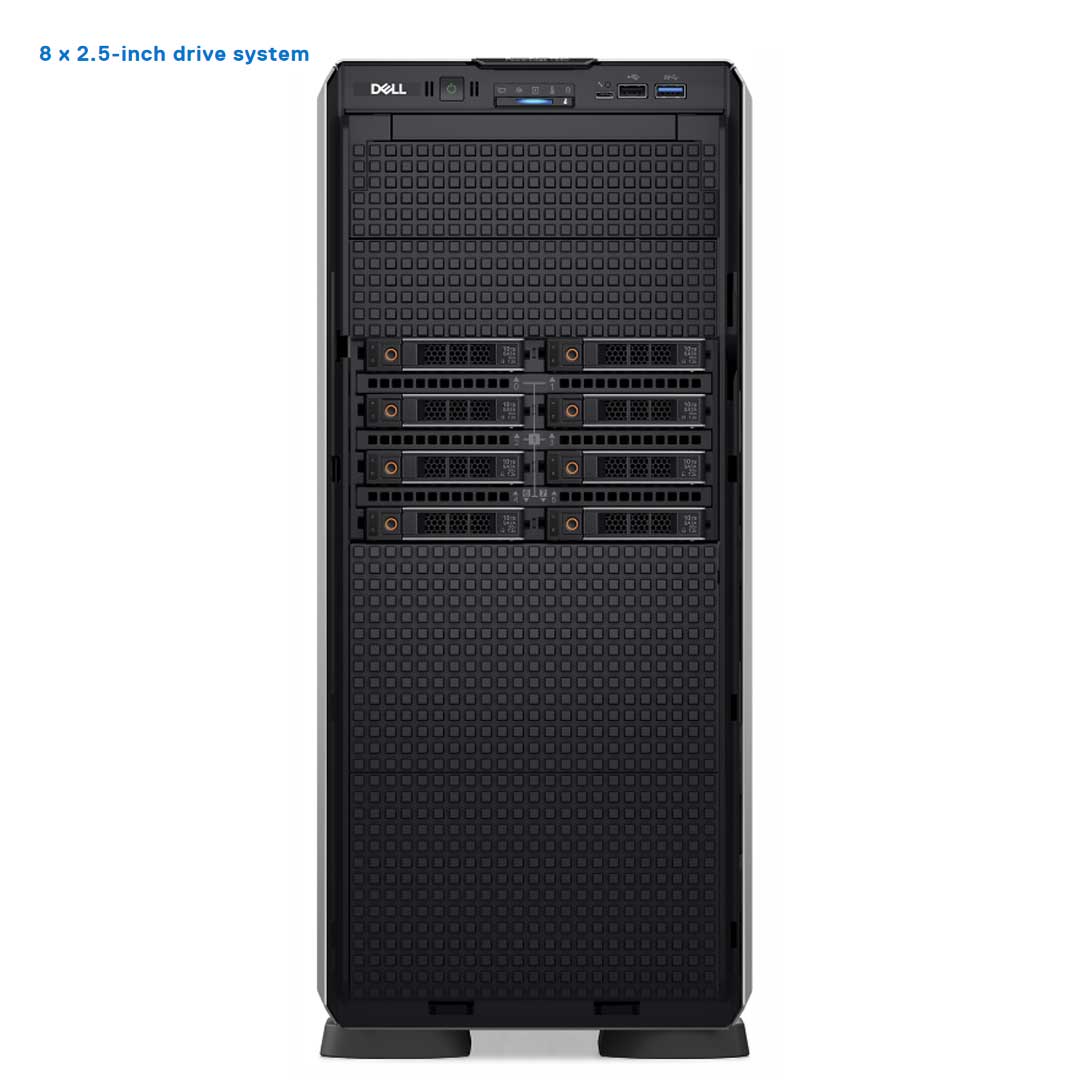

8x 2.5" SAS/SATA (HDD/SSD) Max: 120 TB

Boot Options

Boot Optimized Server Storage (BOSS-N1)
IDSDM
Internal USB

RAID Controller:

S160 (for NVMe drives only)
fPERC H965i, H755N, H755, H355, HBA355i, HBA355e (non-RAID), H840

OCP/LOM

1 x OCP 3.0
2 x 1GbE LOM on Planar
Note: The system allows both LOM on planar and OCP card to be installed on the system.

Remote Management:

iDRAC9 with Lifecycle Controller

PCIe Slots:

Up to six PCIe slots:
• Slot 1: x16 Gen5 FH, FL
• Slot 2: x16 Gen5 FH, FL
• Slot 3: x16 Gen4 FH, HL
• Slot 4: x16 Gen4 FH, HL
• Slot 5: x16 (x8 lanes) Gen4 FH, HL
• Slot 6: x16 Gen4 FH, HL

GPU:

2x 300 W DW or 6x 75 W SW

Other Versions

Ideal for:

Big Data Analytics
Cloud Servers
Edge Servers
Virtualization

Looking to Customize?

Need assistance with customization? Our sales experts are here to help you.

Start Customizing Today!

Base Standard Capabilities

Feature	Technical Specifications
Processor	Up to two 4th Generation Intel® Xeon Scalable processor, with up to 32 cores per processor and optional Intel® QuickAssist Technology
Memory	• 16 DDR5 DIMM slots, supports RDIMM 1 TB max, speeds up to 4800 MT/s • Supports registered ECC DDR5 DIMMs only
Storage controllers	• Internal PERC: fPERC H965i, fPERC H755N, fPERC H755, fPERC H355, fPERC HBA355i • Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 2 x M.2 NVMe SSD drives, or USB • External HBA (non-RAID): PERC HBA355e • Software RAID: S160 (for NVMe drives only)
Drive Bays	Front bays: • Up to 12 x 3.5-inch SAS/SATA HDD drives, max 180 TB • Up to 8 x 3.5-inch SAS/SATA HDD drives, max 120 TB • Up to 8 x 3.5-inch SAS/ SATA HDD + 8 x 2.5-inch NVMe SSD drives, max 240 TB • Up to 8 x 2.5-inch SAS/SATA HDD drives, max 120 TB • Up to 16 x 2.5-inch SAS/SATA HDD drives, max 240 TB • Up to 24 x 2.5-inch SAS/SATA HDD drives, max 360 TB
Power Supplies	• 2400 W Platinum 100—240 VAC or 2400 W 240 VDC, hot swap redundant • 1800 W Titanium 200—240 VAC or 1800 W 240 VDC, hot swap redundant • 1400 W Platinum 100—240 VAC or 1400 W 240 VDC, hot swap redundant • 1100 W Titanium 100—240 VAC or 1100 W 240 VDC, hot swap redundant • 1100 LVDC -48 — (-60) VDC, hot swap redundant • 800 W Platinum 100—240 VAC or 800 W 240 VDC, hot swap redundant • 700 W Titanium 200—240 VAC or 700 W 240 VDC, hot swap redundant • 600 W Platinum 100—240 VAC or 600 W 240 VDC, hot swap redundant
Cooling Options	Air cooling
Fans	• Up to eight Standard (STD) fans or High performance (HPR) fans
Dimensions	• Height — 464.0 mm (18.26 inches) (with feet) 508.8 mm (20.03 inches) (with caster wheels) 446.0 mm (17.60 inches) (without feet) • Width — 200.0 mm (7.87 inches) • Depth — 678.2 mm (26.70 inches) (with bezel) 660.6 mm (26 inches) (without bezel)
Form Factor	4.5U tower server
Embedded Management	• iDRAC9 • iDRAC Direct • iDRAC RESTful API with Redfish • iDRAC Service Module • Quick Sync 2 wireless module

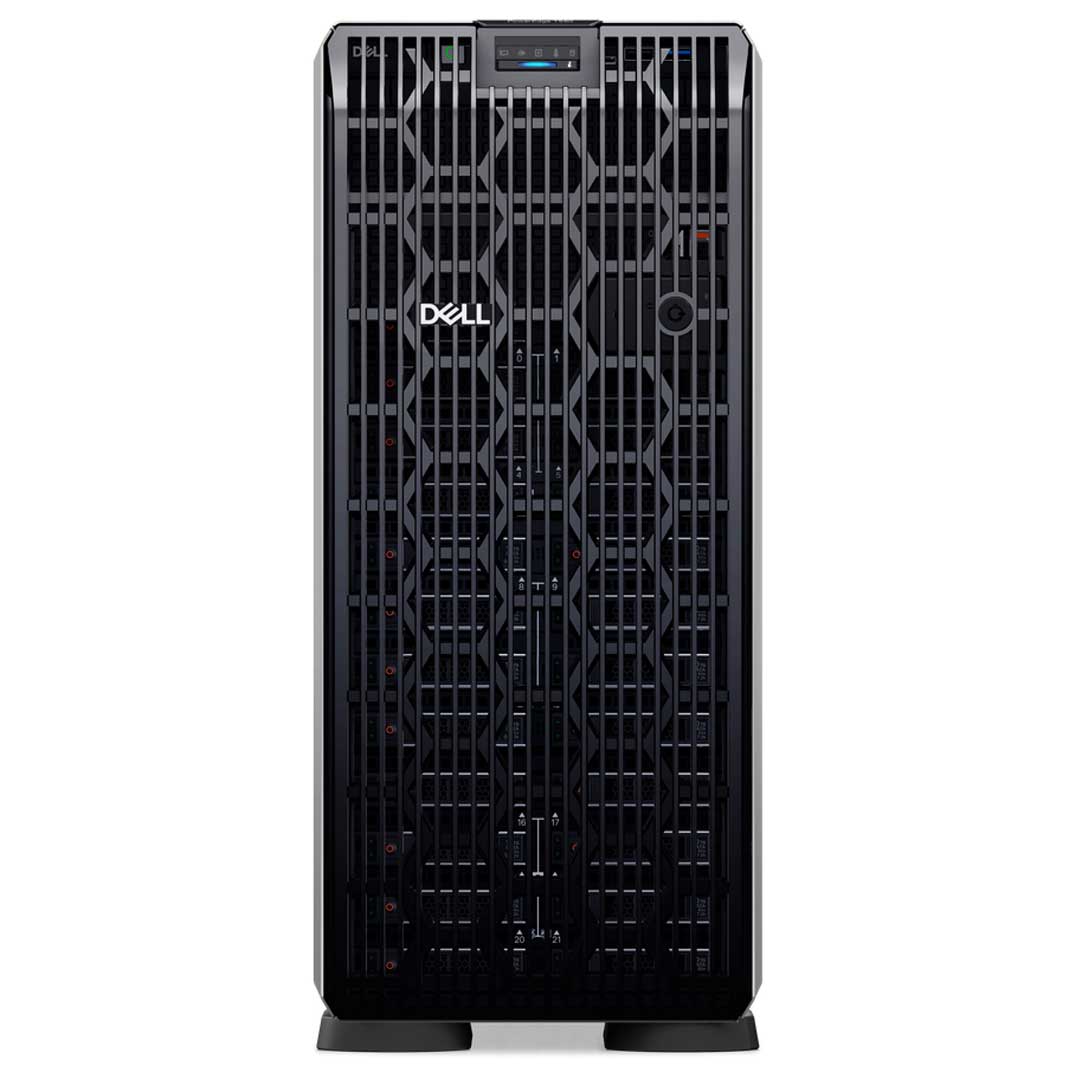

Bezel	Optional security bezel
OpenManage Software	• OpenManage Enterprise • OpenManage Power Manager plugin • OpenManage Service plugin • OpenManage Update Manager plugin • CloudIQ for PowerEdge plug in • OpenManage Enterprise Integration for VMware vCenter • OpenManage Integration for Microsoft System Center • OpenManage Integration with Windows Admin Center
Mobility	OpenManage Mobile
OpenManage Integrations	• BMC Truesight • Microsoft System Center • OpenManage Integration with ServiceNow • Red Hat Ansible Modules • Terraform Providers • VMware vCenter and vRealize Operations Manage
Security	• Cryptographically signed firmware • Data at Rest Encryption (SEDs with local or external key mgmt) • Secure Boot • Secure Erase • Secured Component Verification (Hardware integrity check) • Silicon Root of Trust • System Lockdown (requires iDRAC9 Enterprise or Datacenter) • TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ
Embedded NIC	2 x 1GbE LOM on Planar
Network Options	1 x OCP x8 card 3.0 Note: The system allows both LOM on planar and OCP card to be installed on the system.
GPU Options	Up to 2 x 300 W DW or 6 x 75 W SW

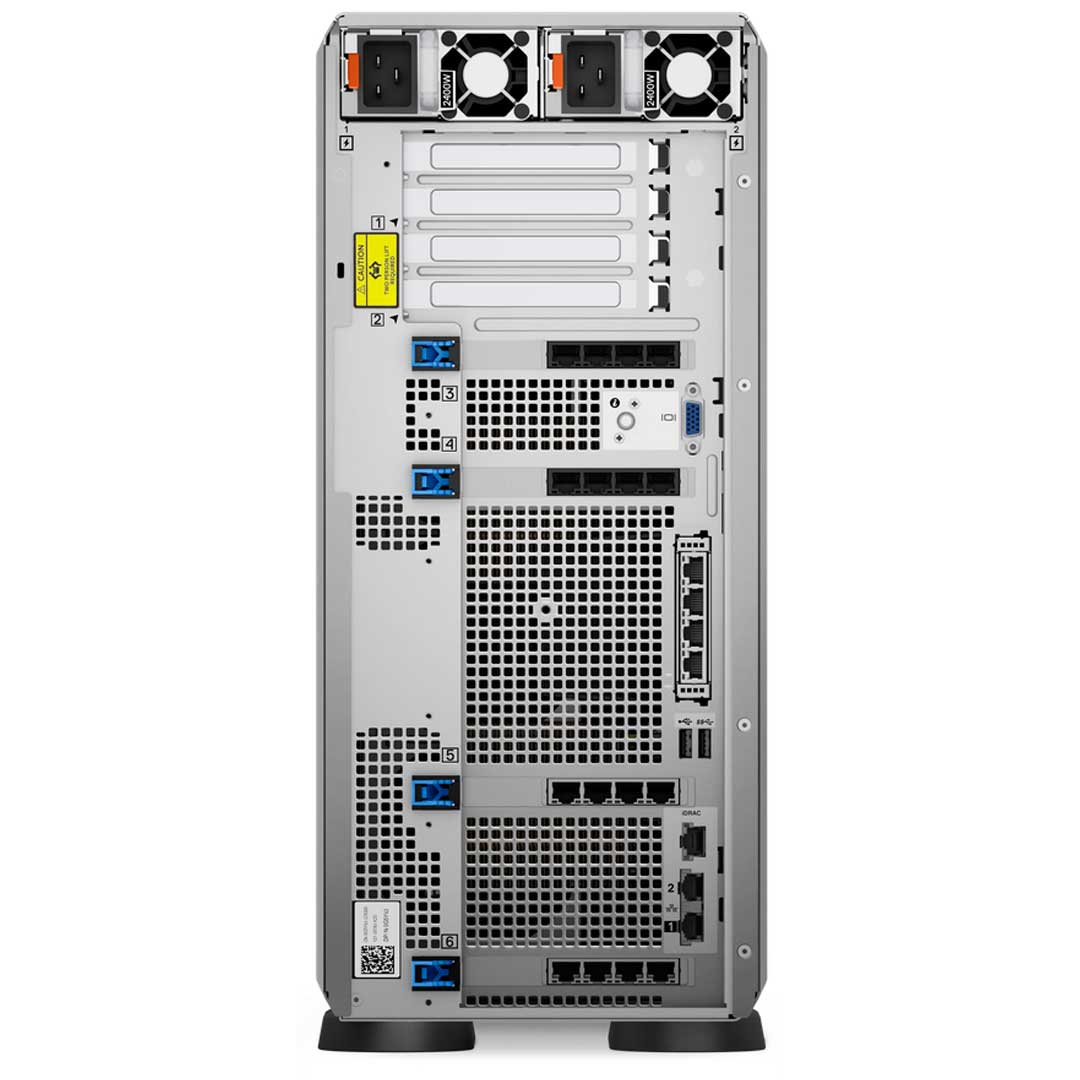

Ports	Front Ports • 1 x USB 2.0 • 1 x USB 3.0 • 1 x iDRAC Direct (Micro-AB USB) port	Rear Ports • 1 x USB 2.0 • 1 x USB 3.0 • 1 x Serial port (optional) • 1 x Dedicated iDRAC (RJ45) port • 1 x VGA port • 2 x Ethernet ports
Ports	Internal Ports • 1 x USB 3.0 (optional)
PCIe	Up to six PCIe slots: • Slot 1: x16 Gen5 Full height, Full length • Slot 2: x16 Gen5 Full height, Full length • Slot 3: x16 Gen4 Full height, Half length • Slot 4: x16 Gen4 Full height, Half length • Slot 5: x16 (x8 lanes) Gen4 Full height, Half length • Slot 6: x16 Gen4 Full height, Half length
Operating System and Hypervisors	• Canonical Ubuntu Server LTS • Microsoft Windows Server with Hyper-V • Red Hat Enterprise Linux • SUSE Linux Enterprise Server • VMware ESXi

Spec Sheet 4

Feature	PowerEdge T560		PowerEdge T550
Processors	Up to two 4th Generation Intel ® Xeon Scalable processors with up to 32 cores per processor		Up to two 3rd Generation Intel Xeon Scalable processors with up to 32 cores
Memory	DIMM Speed • Up to 4800 MT/s Memory Type • RDIMM Memory module slots • 16 DDR5 DIMM slots • Supports registered ECC DDR5 DIMM slots only Maximum RAM • RDIMM 1TB		DIMM Speed • Up to 3200 MT/s Memory Type • RDIMM Memory module slots • 16 DDR4 DIMM slots • Supports registered ECC DDR4 DIMM slots only Maximum RAM • RDIMM 1TB
Storage Controllers	• Internal PERC: fPERC HBA355i, fPERC H755, fPERC H755N, fPERC H355, fPERC H965i • Internal Boot: Boot Optimized Storage Subsystem (BOSS- N1): HWRAID 2 x M.2 NVMe SSDs drives, or USB • External HBA (non-RAID): PERC HBA355e • Software RAID: S160 (NVMe only)		• Internal controllers: PERC H345, PERC H755, H755N, HBA355i • Internal Boot: Internal Dual SD Module or Boot Optimized Storage Subsystem (BOSS-S2): HWRAID 2 x M.2 SSDs or USB • External Controller (RAID): PERC H840 • External HBAs (non-RAID): HBA355e • Software RAID: S150
Drive Bays	Front bays: • Up to 12 x 3.5-inch SAS/SATA HDD drives, max 180 TB • Up to 8 x 3.5-inch SAS/SATA HDD drives, max 120 TB • Up to 8 x 3.5-inch SAS/ SATA HDD + 8 x 2.5-inch NVMe SSD drives, max 240 TB • Up to 8 x 2.5-inch SAS/SATA HDD drives, max 120 TB • Up to 16 x 2.5-inch SAS/SATA HDD drives, max 240 TB • Up to 24 x 2.5-inch SAS/SATA HDD drives, max 360 TB		Front bays: • Up to 8 x 2.5-inch SAS/SATA (hard drive) max 120 TB • 16 x 2.5-inch SAS/SATA (HDD) max 240 TB • 24 x 2.5-inch SAS/SATA (HDD)max 360 TB • 8 x 3.5-inch SAS/SATA (HDD/SAS) max 120 TB • 8 x 3.5-inch SAS/SATA (HDD) + 8 x 2.5-inch NVMe (SSD) max 240 TB
Power Supplies	• 600 W Platinum 100-240 VAC or 600 W 240 HVDC, hot swap redundant • 800 W Platinum 100-240 VAC or 800 W 240 HVDC, hot swap redundant • 1100 LVDC -48 - (-60) VDC, hot swap redundant • 1400 W Platinum 100-240 VAC or 1400 W 240 HVDC, hot swap redundant • 2400 W Platinum 100-240 VAC or 2400 W 240 HVDC, hot swap redundant • 700 W Titanium 200-240 VAC or 700 W 240 HVDC, hot swap redundant • 1100 W Titanium 100-240 VAC or 1100 W 240 HVDC, hot swap redundant • 1800 W Titanium 200-240 VAC or 1800 W 240 HVDC, hot swap redundant		• 600 W Platinum AC/100 - 240 V • 600 W DC/240 V • 800 W Platinum AC/100 - 240 V • 800 W DC/240 V • 1100 W Titanium AC/100 - 240 V • 1100 W DC/240 V • 1100 W DC/-48 V • 1400 W Platinum AC/100 - 240 V • 1400 W DC/240 V • 2400 W Platinum AC/100 - 240 V • 2400 W DC/240 V
Cooling Options	Air cooling		Air cooling
Fans	Standard (STD) fans or High performance (HPR) fans		Standard (STD) fans /High performance (HPR) silver fans
Fans	Up to eight hot swap fans		Up to eight hot swap fans
Dimension	Height: 464.0 mm (18.26 inches) (with feet)		Height: 464.0 mm (18.26 inches) (with feet)
	446.0 mm (17.60 inches) (without feet)		446.0 mm (17.60 inches) (without feet)
	508.8 mm (20.03 inches) (with caster wheels)		508.8 mm (20.03 inches) (with caster wheels)
	Width — 200.0 mm (7.87 inches)		Width — 200.0 mm (7.87 inches)
	Depth — 678.2 mm (26.70 inches) (with bezel)		Depth — 678.2 mm (26.70 inches) (with bezel)
	660.6 mm (26 inches) (without bezel)		660.6 mm (26 inches) (without bezel)
Form Factor	4.5U tower server		4.5U tower server
Embedded Management	• iDRAC9 • iDRAC Direct • iDRAC RESTful API with Redfish • iDRAC Service Module • Quick Sync 2 wireless module		• iDRAC9 • iDRAC Direct • iDRAC RESTful with Redfish • iDRAC Service Manual • Quick Sync 2 wireless module NOTE: iDRAC Direct and Quick Sync 2 are available only as an upsell on T550.
Bezel	Security bezel		Optional LCD bezel or security bezel
OpenManage Software	• OpenManage Enterprise • OpenManage Power Manager plugin • OpenManage Service plugin • OpenManage Update Manager plugin • CloudIQ for PowerEdge plug in • OpenManage Enterprise Integration for VMware vCenter • OpenManage Integration for Microsoft System Center • OpenManage Integration with Windows Admin Center		• OpenManage Enterprise • OpenManage Power Manager plug-in • OpenManage SupportAssist plug-in • OpenManage Update Manager plug-in
Mobility	OpenManage Mobile		OpenManage Mobile
Integrations and Connections	• BMC Truesight • Microsoft System Center • OpenManage Integration with ServiceNow • Red Hat Ansible Modules • Terraform Providers • VMware vCenter and vRealize Operations Manager		OpenManage Integrations • BMC TrueSight • Microsoft System Center • Red Hat Ansible Modules • VMware vCenter and vRealize Operations Manager	OpenManage Connections • IBM Tivoli Netcool/OMNIbus • IBM Tivoli Network Manager IP Edition • Micro Focus Operations Manager • Nagios Core • Nagios XI
Security	• Cryptographically signed firmware • Data at Rest Encryption (SEDs with local or external key mgmt) • Secure Boot • Secured Component Verification (Hardware integrity check) • Secure Erase • Silicon Root of Trust • System Lockdown (requires iDRAC9 Enterprise or Datacenter) • TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ		• Cryptographically signed firmware • Secure Boot • Secure Erase • Silicon Root of Trust • System Lockdown (requires iDRAC9 Enterprise or Datacenter) • TPM 1.2/2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ
Embedded NIC	2 x 1 GbE LOM		2 x 1 GbE LOM
Networking Options	OCP x8 3.0		OCP x16 Mezz 3.0
GPU Options	Up to 2 x double-width 300 W or 6 x single-width 75 W accelerators		Up to 2 x double-width 300 W, or 5 x single-width 70 W accelerators
Ports	Front Ports • 1 x USB 2.0 • 1 x USB 3.0 • 1 x iDRAC Direct (Micro-AB USB) port	Rear Ports • 1 x USB 2.0 • 1 x USB 3.0 • 1 x Serial port (optional) • 1 x Dedicated iDRAC management (RJ45) port • 2 x Ethernet ports • 1 x VGA port	Front Ports There are 2 SKUs: • Base: Status LED only ○ 1 x USB 2.0 ○ 1 x USB 3.0 • Upsell: Status LED only and Quick Sync 2 ○ 1 x USB 2.0 ○ 1 x USB 3.0 ○ 1 x iDRAC Direct (Micro-AB USB) port	Rear Ports • 1 x USB 2.0 • 1 x iDRAC Direct ethernet port • 1 x USB 3.0 • 1 x Serial port (optioanl) • 1 x VGA
Ports	Internal Port : 1 x USB 3.0 (optional)		Internal Port: 1 x USB 3.0
PCIe	Up to six PCIe slots: 4 x PCIe Gen4 slots and 2 x PCIe Gen5 slots • Slot 1: x16 Gen5 Full height, full length • Slot 2: x16 Gen5 Full height, full length • Slot 3: x16 Gen4 Full height, half length • Slot 4: x16 Gen4 Full height, half length • Slot 5: x16 (with x8 lanes) Gen4 Full height, half length • Slot 6: x16 Gen4 Full height, half length		3x PCIe Gen4 slots (all x16) + 1x PCIe Gen3 slot (x8) + Upsell: up to 2 PCIe x16 DW for GPU
Operating System and Hypervisors	• Canonical Ubuntu Server LTS • Microsoft Windows Server with Hyper-V • Red Hat Enterprise Linux • SUSE Linux Enterprise Server • VMware ESXi		• Canonical Ubuntu Server LTS • Citrix Hypervisor • Windows Server with Hyper-V • Red Hat Enterprise Linux • SUSE Linux Enterprise Server • VMware ESXi
