Tower server | 5U (Rack Conversion)
Processor | Max: N/A1x Intel E3-1200 v6, or Pentium, or i3 Core, or Celeron
Memory | Max: 64GB4 DDR4 UDIMM 2400Mhz
Storage | Max: N/A4x 3.5" hot-plug SAS/NL-SAS/SATA (HDD/SSD)
Supports 2.5" HDD in 3.5" hybrid drive carrier
Boot OptionsIDSDM
USB
RAID Controller:S130 (SW RAID SATA)
PERC H330, H730, H830, 12GB SAS HBA
Broadcom® 5720 Dual Port 1Gb LOM
Remote Management:iDRAC8 with Lifecycle Controller
PCIe Slots: 4Slot 1: x8 PCIe 3.0
Slot 2: x16 PCIe 3.0
Slot 3: x1 PCIe 3.0 connected to PCH
Slot 4: x8 PCIe 3.0 connected to PCH
Platform Controller Hub (PCH)
GPU:Not Supported
Powerful and expandable 1-socket rackable tower server for small and medium businesses (SMB) and remote office/branch office (ROBO).
The Dell PowerEdge T330 is an excellent first server or replacement server for driving collaboration and productivity applications in SMB. Compared to the PowerEdge T130, the T330 offers greater internal storage capacity (8 HDDs vs. 4 HDDs), hot-plug HDDs and redundant power supplies. In addition, compared to the previous-generation T320, the T330 supports the full-feature remote management of the Dell integrated Remote Access Controller (iDRAC8) with Lifecycle Controller, making the T330 highly attractive for ROBO of large institutions.

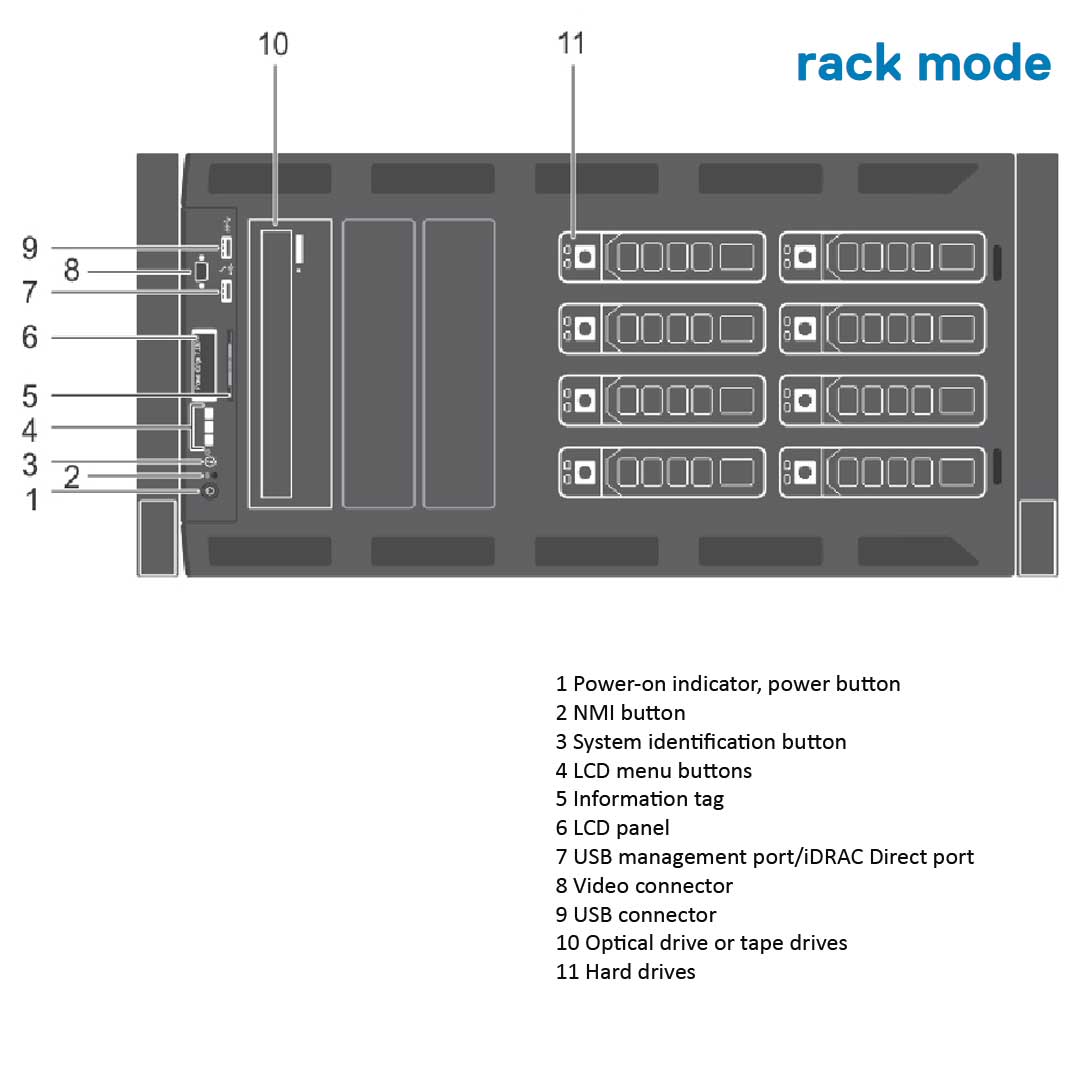

This server can be a Rack or Tower Server

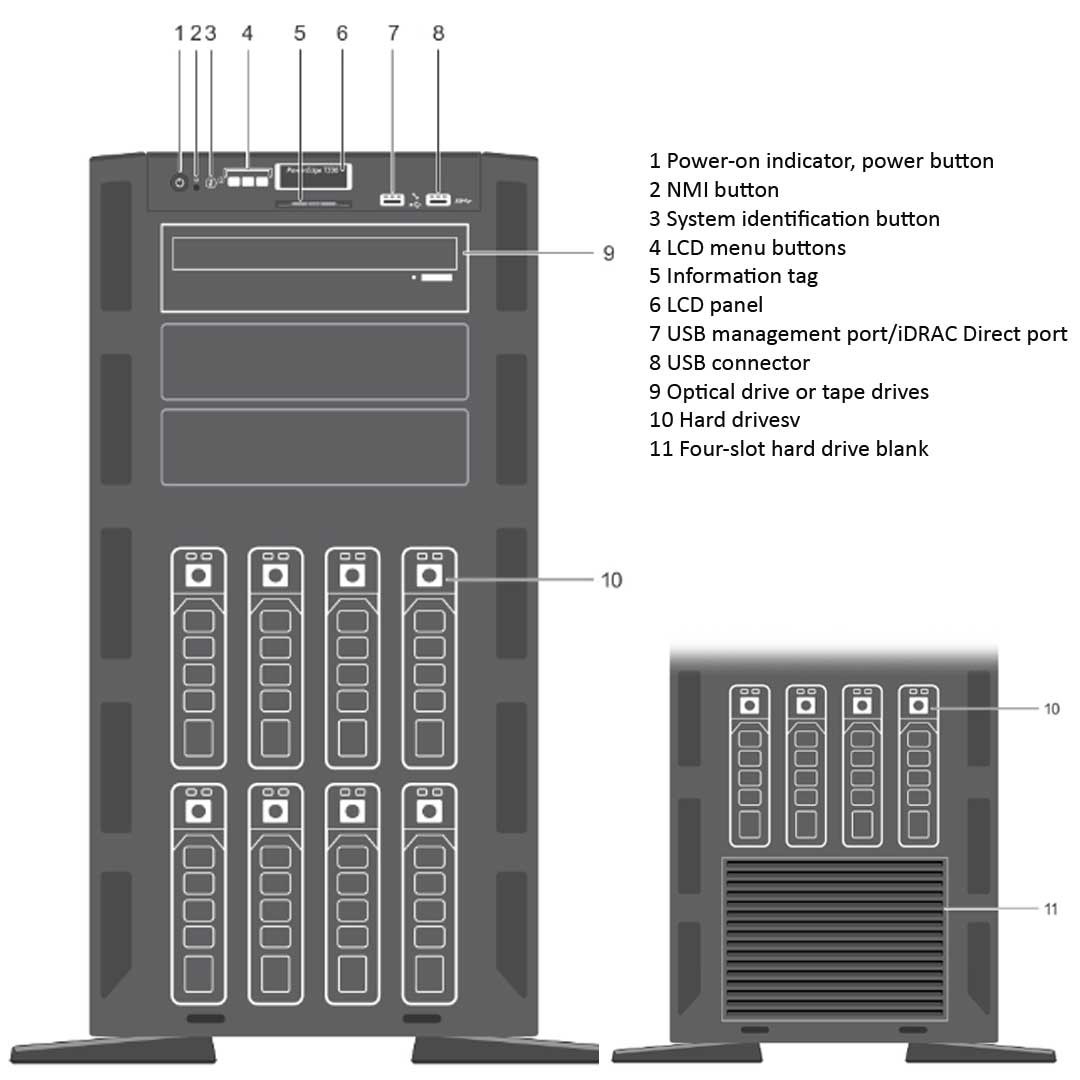

Supports 4x3.5" or 8x3.5" Drives.
All 2.5" Drives will be installed in a 3.5" HD Carrier.
Accelerate compute performance across a wide range of applications with a processor from the latest Intel Xeon processor E3-1200 v6 product family. Drive 50% faster clock speed with enhanced DDR4 memory compared to DDR3, which is 12.5% faster than the initial 2133 MT/s implementation of DDR4. Boost I/O data throughput with 4 x PCIe 3.0 slots driving 2x data throughput compared to PCIe 2.0. Deliver 2x IOPS performance with T330/PERC9 compared to the previous-generation T320/PERC8.
Accelerate application performance while providing room for future growth with the latest Intel processors, DDR4 memory and PCIe Gen3 I/O.
Need assistance with customization? Our sales experts are here to help you.
Start Customizing Today!
| Features | Technical specification | |
|---|---|---|
| Form factor | Rackable tower server (5U when racked) | |
| Dimensions | H: 430.3 mm (17.04 in); with foot 443.3 mm (17.45 in); with wheel 471.3 mm (18.55 in) W: 218 mm (8.58 in); with foot 304.5 mm (11.98 in) | D (without bezel): front to rear wall 542.2 mm (21.33 in); front to PSU handle 578.42 mm (22.77 in) D (with bezel): front to rear wall 558.6 mm (21.99 in); front to PSU handle 594.82 mm (23.41 in) |
| Processor | 1 processor from the following product families:
| |
| Chipset | Intel C236 | |
| Operating system | Microsoft® Windows Server® 2012 Microsoft Windows Server 2012 R2, x64 Microsoft Windows Server 2016 | Red Hat® Enterprise Linux® VMware® Vsphere® ESXi® SUSE Linux Enterprise Server |
| Memory | 4 2400MT/s DDR4 UDIMMs Maximum RAM: Up to 64GB | |
| Hypervisor support | Microsoft Windows Server (with Hyper-V® enabled) VMware® vSphere® ESXi® | |
| Storage |
|
|
| Drive bays | 4 x 3.5" bays (also supports 2.5" HDD in 3.5" hybrid drive carrier) 8 x 3.5" bays (also supports 2.5" HDD in 3.5" hybrid drive carrier) | |
| Slots | 1x8 PCIe 3.0 (x16 connector) 1x4 PCIe 3.0 (x8 connector) | 1x4 PCIe 3.0 (x8 connector) 1x1 PCIe 3.0 (x1 connector) |
| RAID controllers | PERC S130, PERC H330, PERC H730, PERC H830 | |
| Network controller | Broadcom® 5720 | |
| Communications | 2 X 1GbE LOM | |
| Power | 1 x 350W cabled PSU or up to 2 x 495W redundant PSUs | |
| Chassis | 5U rackable tower | |
| Management | Systems management:
| Dell OpenManage connections:
|
| Device access | 8 total USB:
| |
| Rack support | ReadyRails™ II sliding rails for tool-less mounting in 4-post racks with square or unthreaded round holes or tooled mounting in 4-post threaded hole racks, with support for optional tool-less cable management arm. | |
