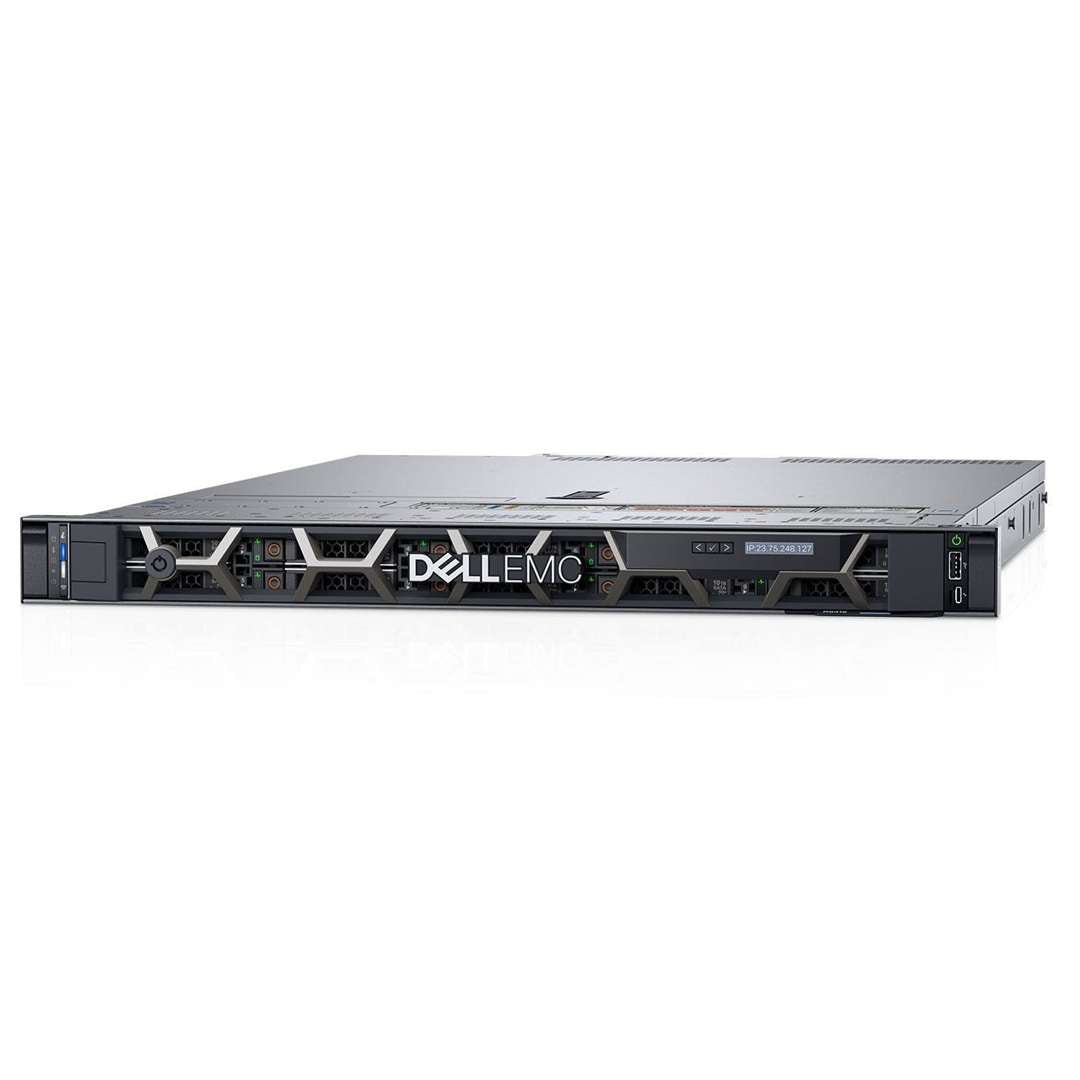

1U rack server
Processor | Max: 32 Cores1 x AMD EPYC
Memory | Max: 4TB16x DDR4 RDIMM/LRDIMM 2666Mhz

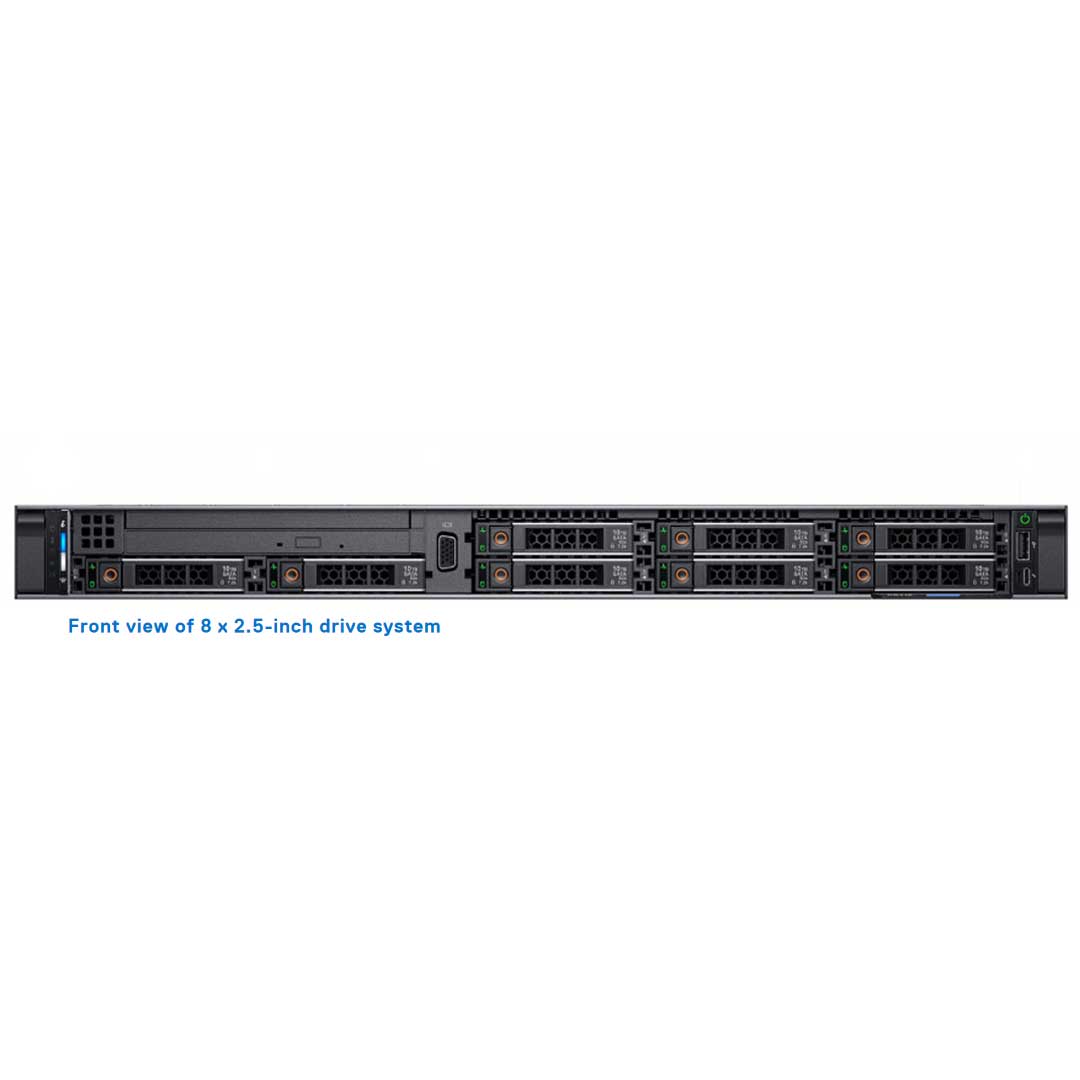

Storage | Max: N/A8x 2.5" SAS/NL-SAS/SATA (HDD/SSD)
Rear Drives:None
RAID Controller:S140, H330 Mini Mono, H730p Mini Mono, H740p Mini Mono, H840, HBA330
Boot Options:BOSS-S1, IDSDM
NIC/LOM:2 x 1GbE
Remote Management:iDRAC9 with Lifecycle Controller
PCIe Slots:2x PCIe 3.0
GPU:None
The PowerEdge R6415 features an efficient single-socket design for high-performance data center computing. It’s specially tuned for virtualization and scale-out software-defined storage.
Every PowerEdge server is designed with a cyber resilient architecture, integrating security deeply into the complete server life cycle. The R6415 leverages new security features built-into every new PowerEdge server strengthening protection so you can reliably and securely deliver accurate data to your customers no matter where they are. By considering each aspect of system security, from design to retirement, Dell EMC ensures trust and delivers a worry-free, secure infrastructure without compromise.
The Dell EMC OpenManage systems management portfolio delivers peak efficiency for PowerEdge servers through intelligent, automated management of routine tasks. Combined with unique agent-free management capabilities, the Dell EMC PowerEdge R6415 is simply and easily managed, freeing up more time for your high profile projects.
Bring high-density computing to your data center with the Dell EMC PowerEdge R6415. This efficient single-socket rack server is specially tuned for virtualization and scale-out software-defined storage. Benefit from rich storage performance with up to 10 NVMe drives. With the enterprise-class AMD EPYC™ processor, the Dell EMC PowerEdge R6415 provides up to 32 cores per processor while reducing bottlenecks with up to 1 terabyte of memory and 128 PCIe lanes.
The Dell EMC PowerEdge R6415 balances resources to support demanding workloads. With the enterprise class AMD EPYC processor, the Dell EMC PowerEdge R6415 single processor server tightly matches workload needs without adding underutilized resources.
Data center evolution starts with modern platforms that scale easily and are optimized for application performance. The Dell EMC PowerEdge R6415 is built upon a scalable system architecture and provides choice and flexibility to meet performance demands.
Need assistance with customization? Our sales experts are here to help you.
Start Customizing Today!
| Features | Technical specification | |
|---|---|---|
| Processor | 1x AMD EPYC™ processor, up to 32 cores | |
| Memory | 16 DDR4 DIMM slots, Supports RDIMM, LRDIMM | |
| Storage controllers | Internal Controllers: PERC H330 Mini Mono, H730p Mini Mono, H740p Mini Mono, HBA330 External PERC (RAID): H840 12Gbps PERC9. or 10 series, mini PERC x8 slot Boot Optimized Storage System: HW RAID 2 x M.2 + Internal USB + Internal Dual SD Module | |
| Drive bays | Front bays:
| |
| Power supplies | Platinum 550W Bronze 450W (Cabled) Hot plug power supplies with full redundancy | |
| Dimensions | Form factor: Rack (1U) Chassis: 728.23 mm Front Bezel to Rear PSU Handle 714.58 mm Front plate (no bezel) to Rear PSU Handle | |
| Embedded / At-Server | iDRAC9 with Lifecycle Controller (no power capping) iDRAC Direct iDRAC REST API with Redfish Quick Sync 2 BLE/wireless module | |
| Bezel | Optional LCD bezel or security bezel | |
| OpenManage Software | OpenManage Enterprise OpenManage Mobile OpenManage Essentials | |
| Integrations and connections | Integrations: Microsoft System Center VMware vCenter BMC Software (available from BMC) | Connections: HPE Operations Manager i (OMi) Nagios® Core Nagios® XI |
| Tools | Dell EMC Repository Manager Dell EMC Update Package Dell EMC System Update Dell EMC Server Update Utility | iDRAC Service Module OpenManage Server Administrator OpenManage Storage Services |
| Security | TPM 1.2/2.0 optional Cryptographically signed firmware Secure Root of Trust Secure Boot Secure Erase System Lockdown | |
| I/O & Ports | Network daughter card options:

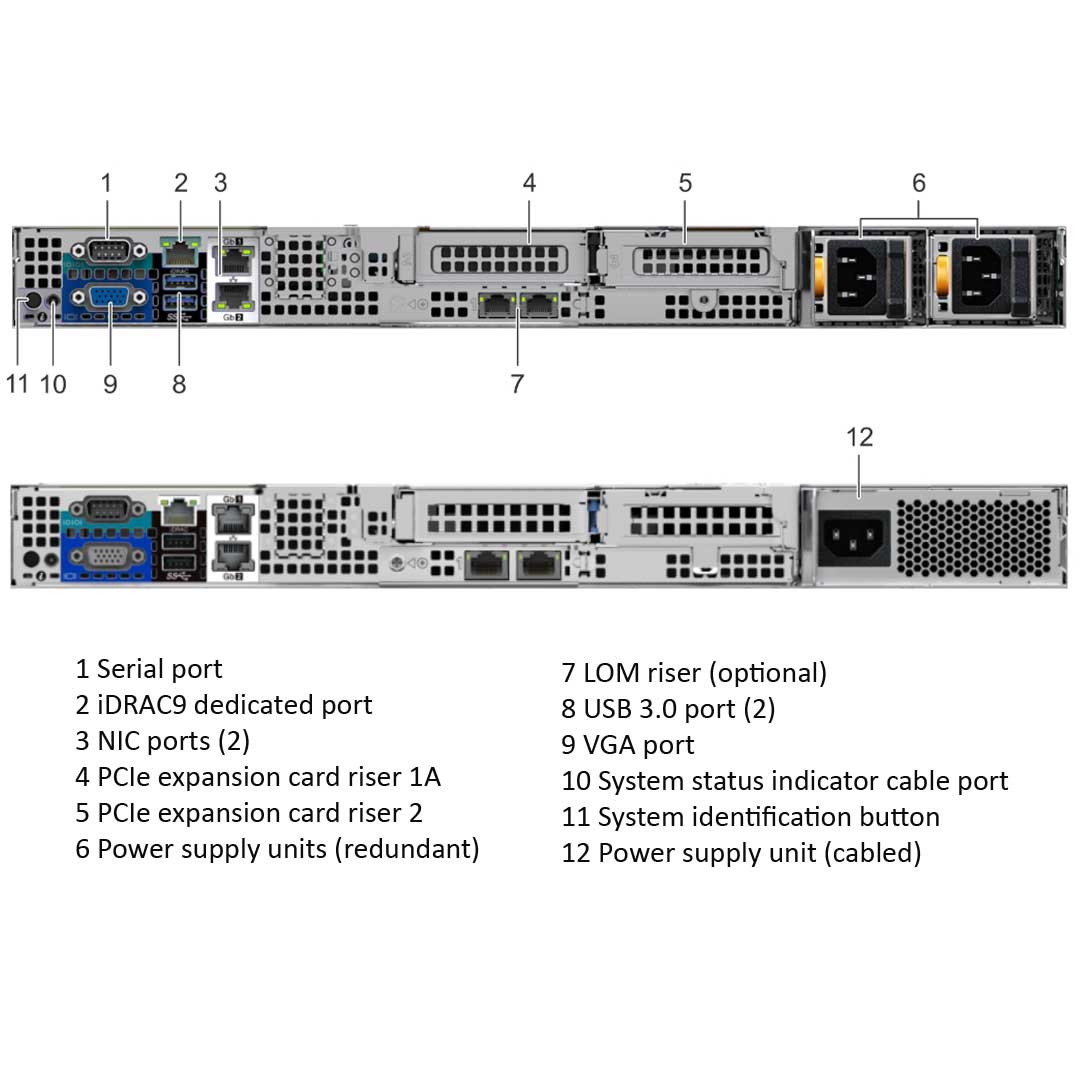

| Rear Ports:
|
| Supported operating systems | Microsoft Windows Server® 2016 Red Hat® Enterprise Linux 7.4 VMware® vSphere 2016 U1 (ESXi 6.5 U1) Microsoft Windows Server® 2012 R2 | |
