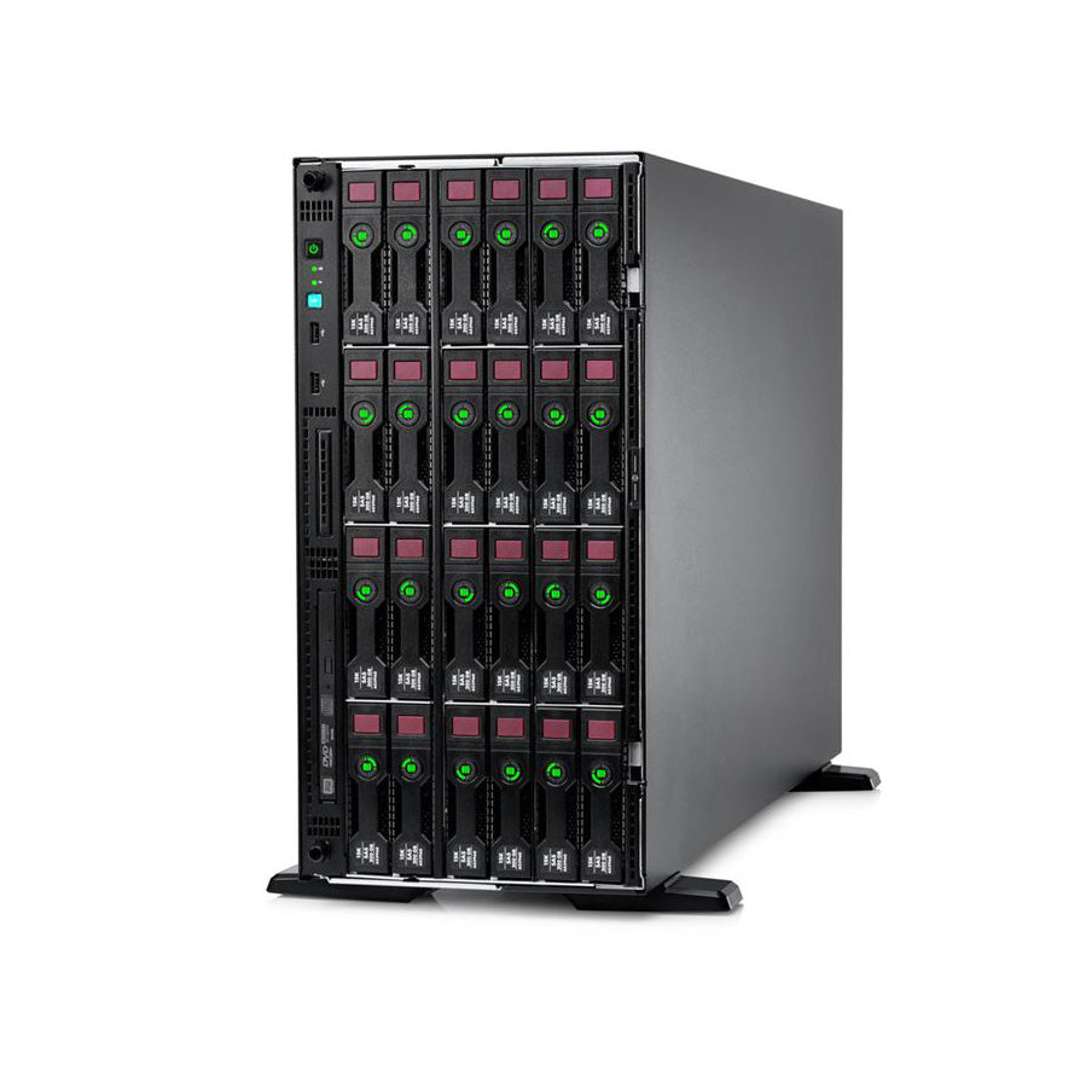

754537-B21 - HPE ProLiant ML350 Gen9 Hot Plug 8 Tower Server Chassis

Hpe Proliant Ml350 Gen9 8 Lff Tower Server Chassis | 754537-B21

SKU: 754537-B21

Hpe Proliant Ml350 Gen9 8 Lff Tower Server Chassis | 754537-B21

Name: Hpe Proliant Ml350 Gen9 8 Lff Tower Server Chassis | 754537-B21
Brand: HPE
SKU: 754537-B21
Availability: InStock

HPE

| Chassis

.price-ui--loading { display: block !important; opacity: 1 !important; }

Contact For Pricing

Thanks for the request. We'll get back to you with in 24 hours.

-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.

-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

Quick Specs

What's New for ML350 Gen9

Processor: Gen9 supports Intel Xeon E5-2600 v3/v4 with up to 22 cores, compared to E5-2600 v2 with a maximum of 12 cores in Gen8.
Memory: Gen9 supports DDR4 memory (up to 768GB, expandable to 3TB) with 24 DIMM slots, whereas Gen8 supports DDR3 (up to 384GB) with fewer DIMM slots.
Storage: Gen9 adds support for NVMe drives and increased capacity with up to 48 SFF or 24 LFF drives, surpassing Gen8’s more limited storage options.
Power Efficiency: Gen9 introduces Flex Slot Power Supplies, offering higher efficiency and a smaller footprint compared to Gen8.
Management: Gen9 uses iLO 4 for enhanced remote management, security, and diagnostics, compared to iLO 3 on Gen8.
Expansion: Gen9 provides up to 9 PCIe 3.0 slots, supporting better scalability and network options compared to Gen8's PCIe 2.0 slots.

The ML350 Gen9 is the 2P premium server which delivers a class-leading combination of performance, availability, expandability, manageability, reliability and serviceability making it the choice for remote offices, growing businesses and data centers.

Other Versions:

Ideal for:

Cloud Servers
Corporate IT
Database

CTO Configuration Support

Need help with the configuration? Contact us today!

Chassis Options

CTO Server [Chassis]	HPE ProLiant ML350 Gen9 Hot Plug 8SFF Configure-to-order Rack Server	HPE ProLiant ML350 Gen9 Hot Plug 8SFF Configure-to-order Tower Server	HPE ProLiant ML350 Gen9 Hot Plug 8LFF Configure-to-order Tower Server
SKU Number	754534-B21	754536-B21	754537-B21
Processor	2 (optional) x HPE Smart Socket Guide
DIMM Slots	24 DIMM slots for RDIMM, LRDIMM DDR4 Memory
Storage Controller	HPE Dynamic Smart Array B140i
PCIe	9 Standard (8 FH/FL, 1 FH/HL)
Drive Cage - included	8SFF Hot Plug		8LFF Hot Plug
Network Controller	HPE Embedded 1Gb Ethernet 4-port 331i Adapter
Fans	3 hot swap fans, non-redundant
USB	2 front, 2 internal, 4 rear

Looking to Customize?

Need assistance with customization? Our sales experts are here to help you.

Start Customizing Today!

Base Standard Capabilities

Product features

Feature

Description

Processor

(One of the following depending on model)

Model	CPU Frequency	Cores	L3 Cache	Power	QPI	DDR4 Hz
E5-2699v3	2.3 GHz	18	45MB	145 W	9.6 GT/s	2133
E5-2698v3	2.3 GHz	16	40MB	135 W	9.6 GT/s	2133
E5-2697v3	2.6 GHz	14	35MB	145 W	9.6 GT/s	2133
E5-2695v3	2.3 GHz	14	35MB	120 W	9.6 GT/s	2133
E5-2690v3	2.6 GHz	12	30MB	135 W	9.6 GT/s	2133
E5-2683v3	2.0 GHz	14	35MB	120 W	9.6 GT/s	2133
E5-2680v3	2.5 GHz	12	30MB	120 W	9.6 GT/s	2133
E5-2670v3	2.3 GHz	12	30MB	120 W	9.6 GT/s	2133
E5-2667v3	3.2 GHz	8	25MB	135 W	9.6 GT/s	2133
E5-2660v3	2.6 GHz	10	25MB	105 W	9.6 GT/s	2133
E5-2650v3	2.3 GHz	10	25MB	105 W	9.6 GT/s	2133
E5-2650Lv3	1.8 GHz	12	25MB	65 W	9.6 GT/s	2133
E5-2643v3	3.4 GHz	6	20MB	135 W	9.6 GT/s	2133
E5-2640v3	2.6 GHz	8	20MB	90 W	8.0 GT/s	1866
E5-2630v3	2.4 GHz	8	20MB	85 W	8.0 GT/s	1866
E5-2630Lv3	1.8 GHz	8	25MB	55 W	8.0 GT/s	1866
E5-2620v3	2.4 GHz	6	15MB	85 W	8.0 GT/s	1866
E5-2609v3	1.9 GHz	6	15MB	85 W	8.0 GT/s	1600
E5-2603v3	1.6 GHz	6	15MB	85 W	6.4 GT/s	1600
E5-2699v4	2.2 GHz	22	55MB	145 W	9.6 GT/s	2400
E5-2698v4	2.2 GHz	20	50MB	135 W	9.6 GT/s	2400
E5-2697v4	2.3 GHz	18	45MB	145 W	9.6 GT/s	2400
E5-2697Av4	2.6 GHz	16	40MB	145 W	9.6 GT/s	2400
E5-2695v4	2.1 GHz	18	45MB	120 W	9.6 GT/s	2400
E5-2690v4	2.6 GHz	14	35MB	135 W	9.6 GT/s	2400
E5-2683v4	2.1 GHz	16	40MB	120 W	9.6 GT/s	2400
E5-2680v4	2.4 GHz	14	35MB	120 W	9.6 GT/s	2400
E5-2667v4	3.2 GHz	8	25MB	135 W	9.6 GT/s	2400
E5-2660v4	2.0 GHz	14	35MB	105 W	9.6 GT/s	2400
E5-2650v4	2.2 GHz	12	30MB	105 W	9.6 GT/s	2400
E5-2650Lv4	1.7 GHz	14	35MB	65 W	9.6 GT/s	2400
E5-2643v4	3.4 GHz	6	20MB	135 W	9.6 GT/s	2133
E5-2640v4	2.4 GHz	10	25MB	90 W	8.0 GT/s	2400
E5-2637v4	3.5 GHz	4	15MB	135 W	9.6 GT/s	2400
E5-2630v4	2.2 GHz	10	25MB	85 W	8.0 GT/s	2133
E5-2630Lv4	1.8 GHz	10	25MB	55 W	8.0 GT/s	2133
E5-2623v4	2.6 GHz	4	10MB	85 W	8.0 GT/s	2133
E5-2620v4	2.1 GHz	8	20MB	85 W	8.0 GT/s	2133
E5-2609v4	1.7 GHz	8	20MB	85 W	6.4 GT/s	1866
E5-2603v4	1.7 GHz	6	15MB	85 W	6.4 GT/s	1866

Chipset

Intel C610 series chipset
Intel E5-2600v3 processor family
Intel E5-2600v4 processor family

On system management chipset ¹

HPE iLO (Firmware HPE iLO4 2.0 or later)) 4GB NAND¹

Memory ²

(One of the following depending on model)

Type: HPE SmartMemory DDR4 Registered (RDIMM) or Load Reduced (LRDIMM)

Support with E5-2600v3 processors
Dual In-Line Memory Module (DIMM) slots available	24 (12 DIMM Slots per processor, 4 channels per processor, 3 DIMMs per channel)
Maximum capacity (LRDIMM)	1.5TB (24 x 64GB)
Maximum capacity (RDIMM)	768GB (24 x 32GB)

Support with E5-2600v4 processors
DIMM Slots available	24 (12 DIMM Slots per processor, 4 channels per processor, 3 DIMMs per channel)
Maximum capacity (LRDIMM)	3TB (24 x 128GB)
Maximum capacity (RDIMM)	768GB (24 x 32GB)

Memory protection

Advanced ECC	Advanced ECC uses single device data correction to detect and correct single and all multibit error that occurs within a single DRAM chip.
Online spare	Memory online spare mode detects a rank that is degrading and switches operation to the spare rank.

Network controller

HPE 1 GbE 4-port 331i Adapter

Specs 1

Expansion slots ³

Expansion slots	Technology	Bus width	Connector width	Bus number	Form factor	Notes
9	PCIe 3.0	x 4	x 8	-	Full length/Full height	For processor 2
8	PCIe 3.0	x 16	x 16	-	Full length/Full height	For processor 2
7	PCIe 3.0	x 4	x 8	-	Full length/Full height	For processor 2
6	PCIe 3.0	x 16	x 16	-	Full length/Full height	For processor 2
5	PCIe 2.0	x 4	x 8	-	Full length, half height slot	For processor 2
4	PCIe 3.0	x 4	x 8	0	Full length/Full height	For processor 1
3	PCIe 3.0	x 16	x 16	0	Full length/Full height	For processor 1
2	PCIe 3.0	x 4	x 8	0	Full length/Full height	For processor 1
1	PCIe 3.0	x 8	x 16	0	Full length/Full height	For processor 1

Storage controller

(One of the following depending on model)

Entry models	HPE Dynamic Smart Array B140i embedded SATA controller
Base models	HPE Flexible Smart Array P440ar/2GB
Performance models	HPE Flexible Smart Array P440ar/2GB

Internal storage devices

(One of the following depending on model)

Optical drive⁴	Optional SATA 9.5 mm DVD-ROM optical Drive Optional SATA 9.5 mm DVD-RW optical Drive
Hard drive	None ship standard
Hard drive bays⁵	(8) Hot-Plug Small Form Factor (SFF) SAS/SATA Hard Disk Drive (HDD) bays, upgradable to (48) (8) Hot-Plug Large Form Factor (LFF) SAS/SATA HDD bays, upgradable to (24)

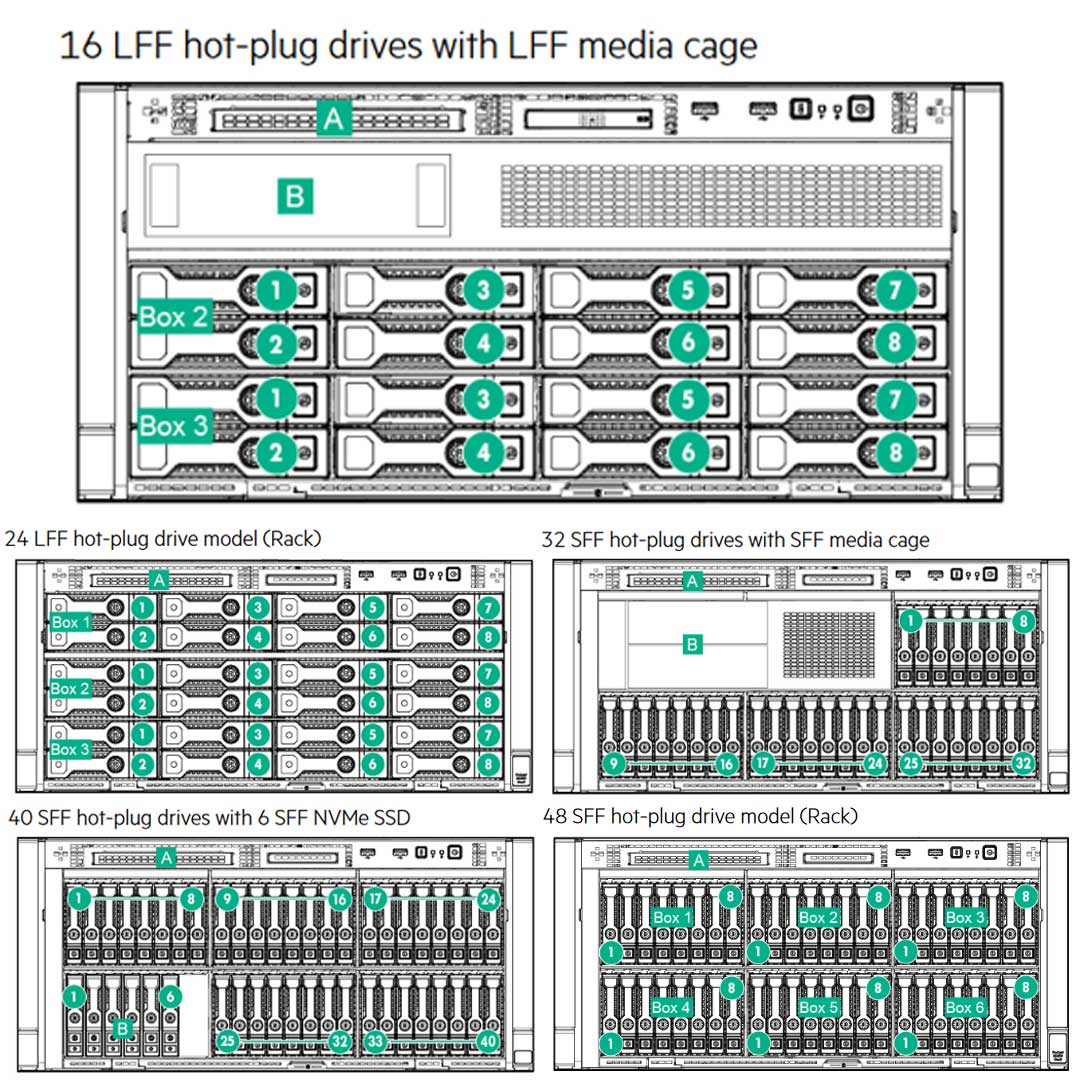

Maximum internal storage

(One of the following depending on model)

	Cpacity	Configuration
Hot-Plug LFF SAS	288TB	24 x 12TB
Hot-Plug LFF SATA	288TB	24 x 12TB
Hot-Plug LFF SAS Solid State Drive (SSD)	38.4TB	24 x 1.6TB
Hot-Plug LFF SATA SSD	92.16TB	24 x 3.84TB
Hot-Plug SFF SAS	96TB	48 x 2TB
Hot-Plug SFF SATA	96TB	48 x 2TB
Hot-Plug SFF SAS SSD	184.32TB	48 x 3.84TB
Hot-Plug SFF SATA SSD	184.32TB	48 x 3.84TB
Hot-Plug SFF NVMe PCIe SSD	7.2TB	6 x 1.2TB

Power supply

(One of the following depending on model)

HPE 500 W Flexible slot platinum hot-plug power supply⁶
HPE 800 W Flexible slot platinum hot-plug power supply
HPE 1400 W Flexible slot platinum plus hot-plug power supply

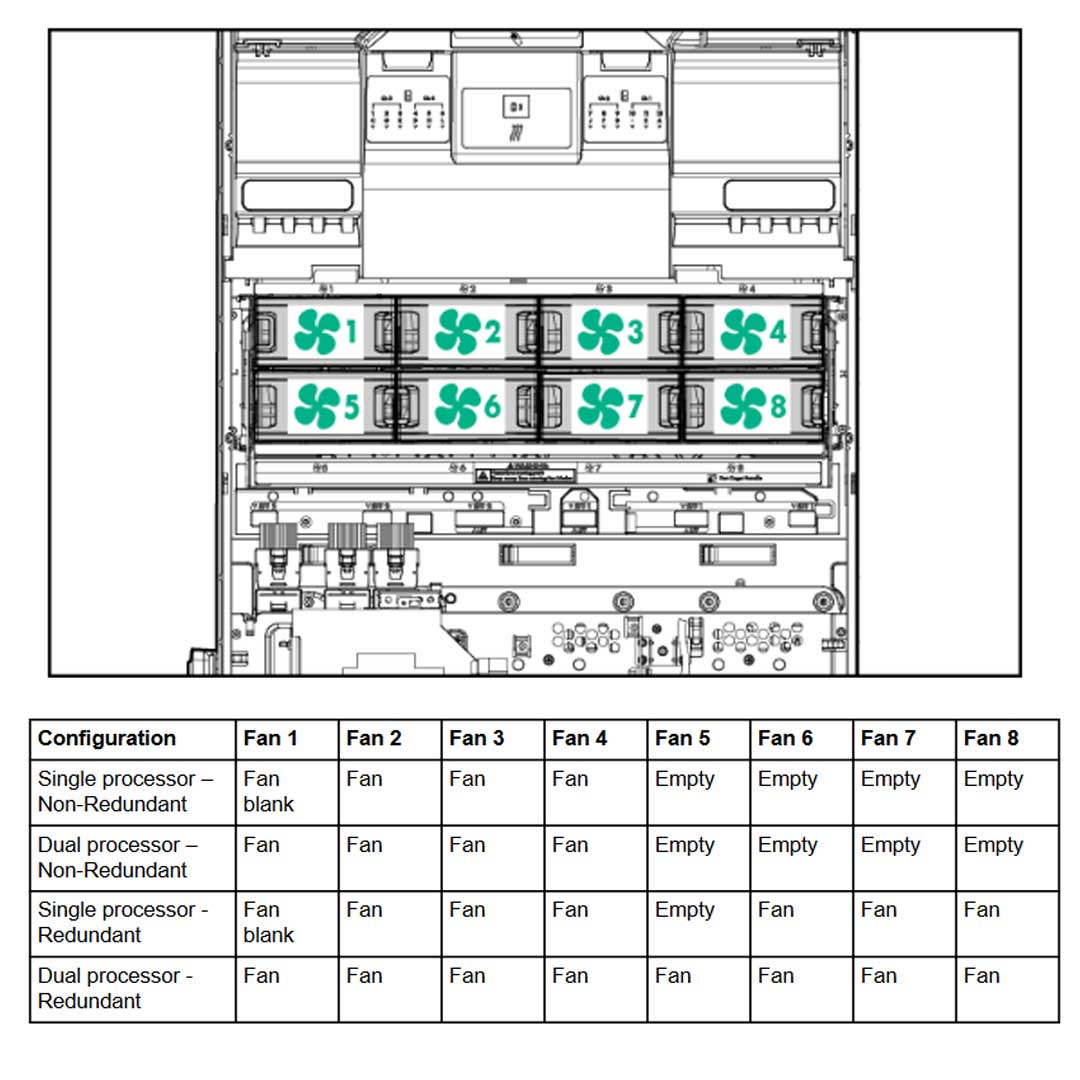

System fans

(One of the following depending on model)

Model	Non-Redundant	Redundant
1P Model⁷	3 Fans	6 Fans
2P Model⁸	4 Fans	8 Fans

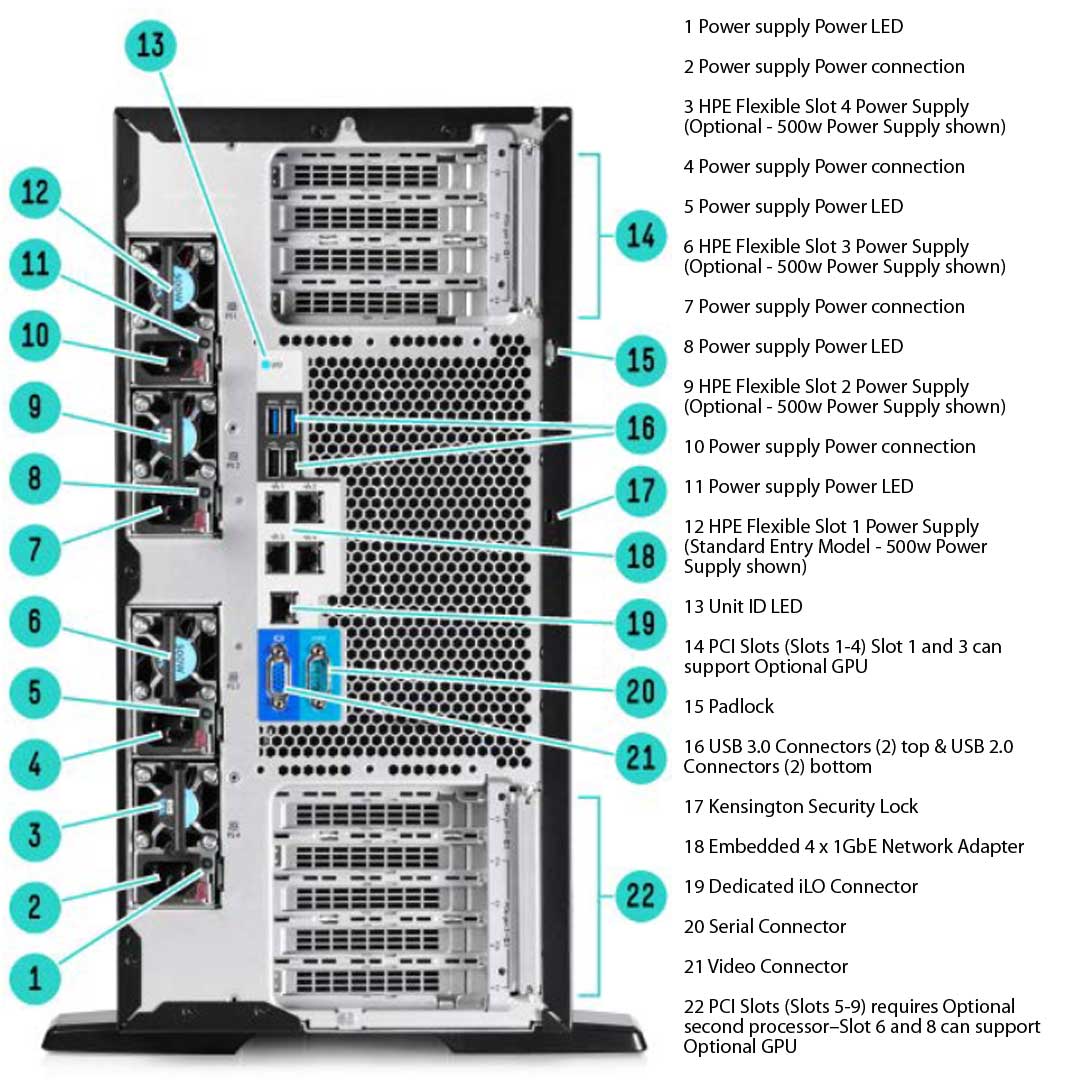

Interfaces

Serial	1
Video	1 (Rear)
Network RJ45 (Ethernet)	4
HPE iLO Remote management network port	1Gb Dedicated
SD Slot⁹	1 (Internal)
USB 2.0 Ports	5 (2 Front, 2 rear, 1 internal)
USB 3.0	3 (2 Rear, 1 internal)

Upgradeability

Upgradable for 2 processors (Up to 22 cores)¹⁰
Up to 24 DIMM slots available for higher Memory capacity

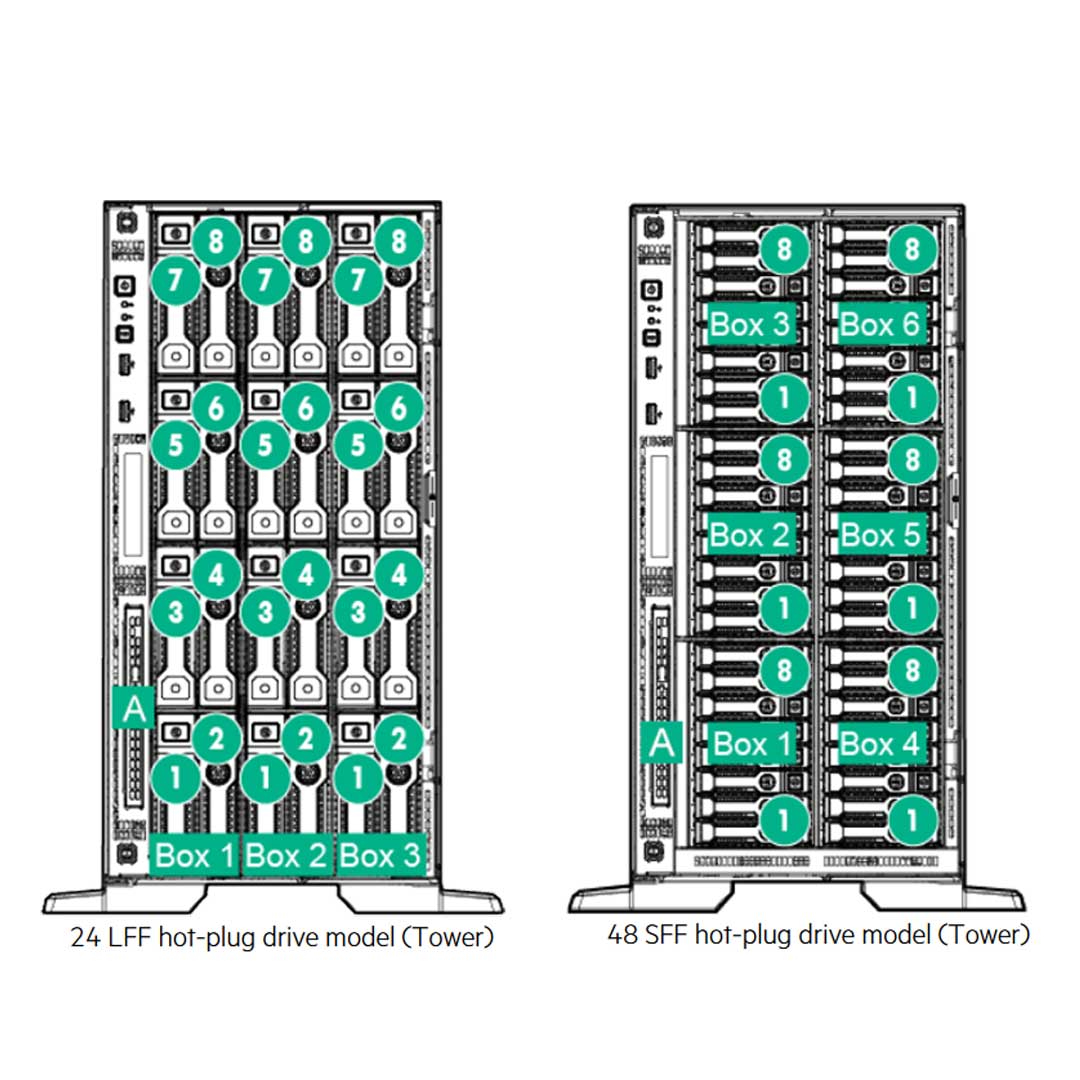

Up to 48 SFF or 24 LFF hard drive bays
Up to 6 SFF NVMe PCIe SSD drives¹¹
8 PCIe 3.0 and 1 PCIe 2.0 I/O slots for additional communications and storage expansion
4 redundant hot-plug power supplies
Redundant Fan
Optional optical drive (Up to 1)¹²
Optional SFF or LFF media bay kit to support RDX or tape device(s)
Tower to rack conversion
Optional system insight display¹³

Industry standard compliance

ACPI 2.0b Compliant
PCIe 3.0 Compliant
PXE Support
WOL Support
Novell certified
IPMI 2.0, SMASH CLP, DCMI 1.0 compliant
Microsoft Logo certifications
USB 3.0 Support
SMBIOS 2.7.1
ASHRAE A3/A4
Energy star

Graphics

16-bit Color: maximum resolution of 1600 x 1200
Integrated Matrox G200 video standard
32-bit Color: maximum resolution of 1280 x 1024
- 16MB Flash
- 256MB DDR3

Form factor

Tower or rack (5U)

HPE ServerUEFI/Legacy ROM

UEFI enables numerous new capabilities specific to HPE ProLiant servers such as:

Secure Boot
Operating System (OS) specific functionality
Support for > 2.2TB (Using GPT) boot drives
USB 3.0 Stack
Embedded UEFI Shell
Mass configuration deployment tool using RESTful API for iLO 4
PXE Boot support for IPv6 networks
Boot support for option cards that only support a UEFI option ROM
Network stack configurations

Embedded management

HPE Integrated Lights-Out (HPE iLO)
Unified Extensible Firmware Interface (UEFI)
RESTful API
Intelligent Provisioning
Embedded remote support

Server utilities

Smart update
HPE Systems Insight Manager (HPE SIM)
Scripting tool kit and Windows PowerShell
RESTful interface tool
HPE iLO Mobile application
HPE Insight online

Security

Power-On password
Setup password
Serial interface control
Power switch security
Administrator's password
Trusted Platform Module (TPM) 2.0
TPM 1.2
UEFI
Security front bezel
Chassis mechanical support of padlock and Kensington Security lock (Located at system rear)

NOTE:

1GB USB user space configurable via UEFI and accessible via iLO
Mixing of 2133 and 2400 MHz memory is not supported
- Bus number - Default bus assignment (in decimal). Inserting cards with PCI bridges may alter the actual bus assignment number
- Nine total expansion slots, three PCIe 3.0 x 16 (x 16 speed); One PCIe 3.0 x 16 (x 8 speed), Four PCIe 3.0 x 8 (x 4 Speed); One PCIe 2.0 x 8 (x 4 Speed)
Optical is optional in entry, base and performance BTO models
All Pre-configured Models come populated with some hard drive blanks installed. Should the user need additional hard drive blanks, they can order more using either P/N 666987-B21: HPE SFF HDD Blank Kit or P/N 666986-B21: HPE LFF HDD Blank Kit. These part numbers for single HDD blanks below are also provided should the user require replacement HDD blanks for their server.
The 500 W Flex slot PSU was not qualified or supported with the X4 RPS enablement kit
Fan redundancy is standard in performance model. ML350 Gen9 Redundant Fan option kit (725878-B21) consists of four system fans and two PCIe air baffles
Refer to ML350 Gen9 User Guide for fan configuration rules
The Micro-SD slot is not a hot-pluggable device. User should not attempt to plug a Micro-SD card into the Micro-SD slot while the server is powered
Total 4, 6, 8, 10, 12, 14, 16, 18, 20 & 22 cores
The ML350 Gen9 6SFF Express Bay kit MUST be installed and it takes up one SFF drive cage space.
Support of 9.5 mm DVD-RW or DVD-ROM
Rack model only

top

Specs 2

Software overview

Feature	Description
OS and virtualization software support for ProLiant servers	Microsoft Windows Server Canonical Ubuntu Red Hat Enterprise Linux (RHEL) SUSE Linux Enterprise Server (SLES) VMware Citrix XenServer ClearOS
NOTE: ClearOS allows the user to build a fully functional server that is just right for the user at no upfront cost. It is available via CTO preload, Intelligent Provisioning or via download. For more information on Hewlett Packard Enterprise Certified and Supported ProLiant Servers for OS and Virtualization Software and latest listing of software drivers available for server.

top

Physical specifications

Specification	Description
Tower dimensions	46.4 x 21.9 x 76.9 cm (18.27 x 8.62 x 30.28 in)
Rack dimensions	21.8 x 44.5 x 74.6 cm (8.58 x 17.51 x 29.37 in)
Tower weight	Minimum: 30 kg (66.14 lb) Maximum: 55 kg (121.30 lb)
Rack weight	Minimum: 26 kg (57.3 lb) Maximum: 51 kg (112.4 lb)

top

Electrical specifications

Specification	Description
Range line voltage	100 to 120 V ac 200 to 240 V ac
Maximum BTU rating	For 800 W Power Supply: 3207 BTU/hr (at 100 V ac), 3071 BTU/hr (at 200 V ac), 3112 BTU/hr (at 240 V ac) for China Only For 500 W Power Supply: 1979 BTU/hr (at 100 V ac), 1911 BTU/hr (at 200 V ac), 1965 BTU/hr (at 240 V ac) for China Only
Rated Steady- State power	For 800 W Power Supply: 800 W (at 100 V ac), 800 W (at 240 V ac), 800W (at 240 V ac) input for China only For 500 W Power Supply: 500 W (at 100 V ac), 500 W (at 240 V ac), 500W (at 240 V ac) input for China only
Maximum peak power	For 800 W Power Supply: 800 W (at 100 to 127 V ac), 800 W (at 200 to 240 1V ac), 800W (at 240 V ac) input for China only For 500 W Power Supply: 500 W (at 100 to 127 V ac), 500 W (at 200 to 240 V ac), 500W (at 240 V ac) input for China only

top

Environmental specifications

Specification	Description
Operating temperature	10° to 35°C (50° to 95°F)
Non-operating temperature	-30° to 60°C (-22° to 140°F)
Operating relative humidity	8% to 90%
Non-operating relative humidity	5% to 95%, non-condensing
Operating altitude	3050 m (10,000 ft)
Non-operating altitude	9144 m (30,000 ft)

top

Safety certifications

Specification	Description
FCC Rating	Class A
Normative standards	CISPR 22; EN55022; EN55024; FCC CFR 47, Pt 15; ICES- 003; CNS13438; GB9254; K22;K24; EN 61000-3-2; EN 61000- 3-3; EN 60950-1; IEC 60950-1

top

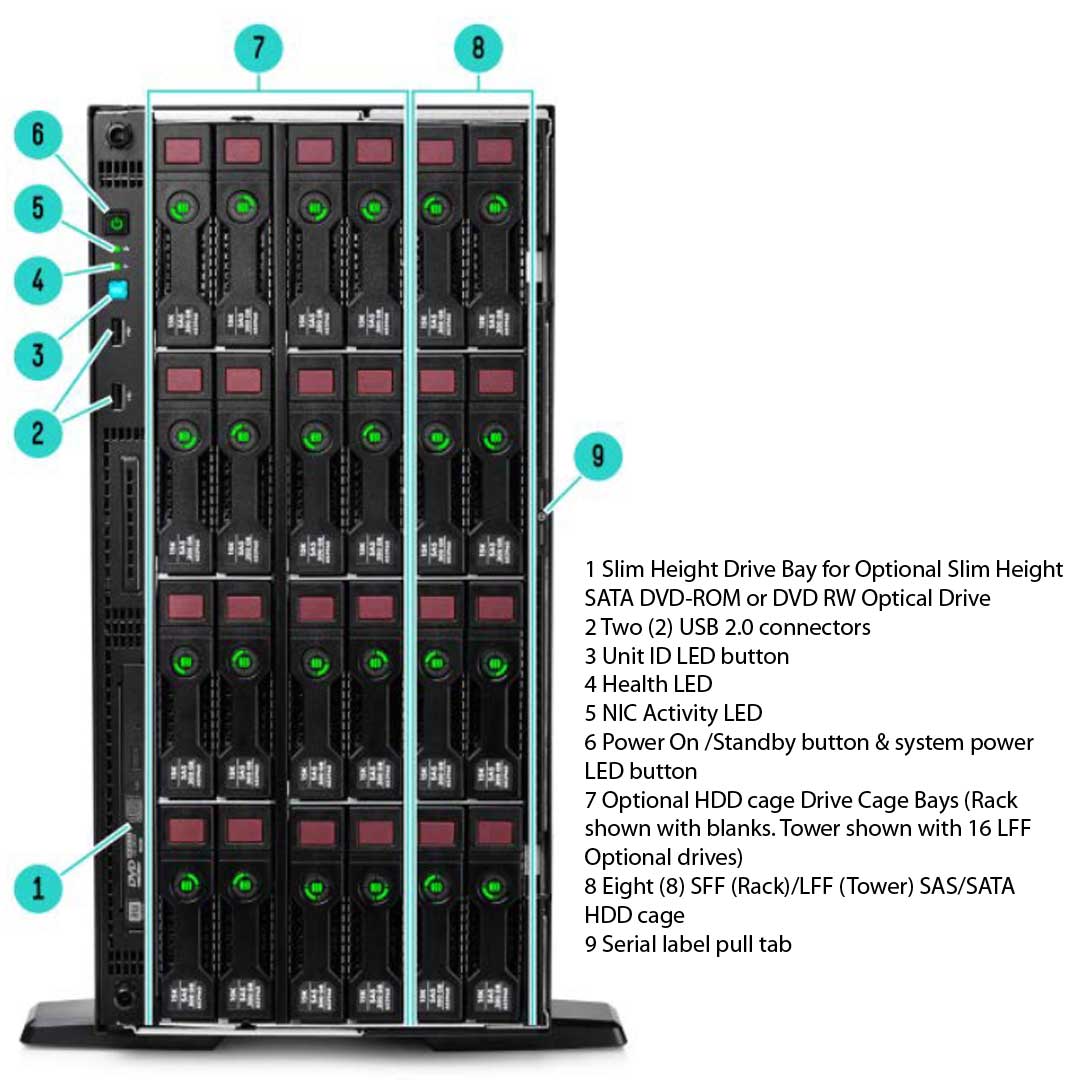

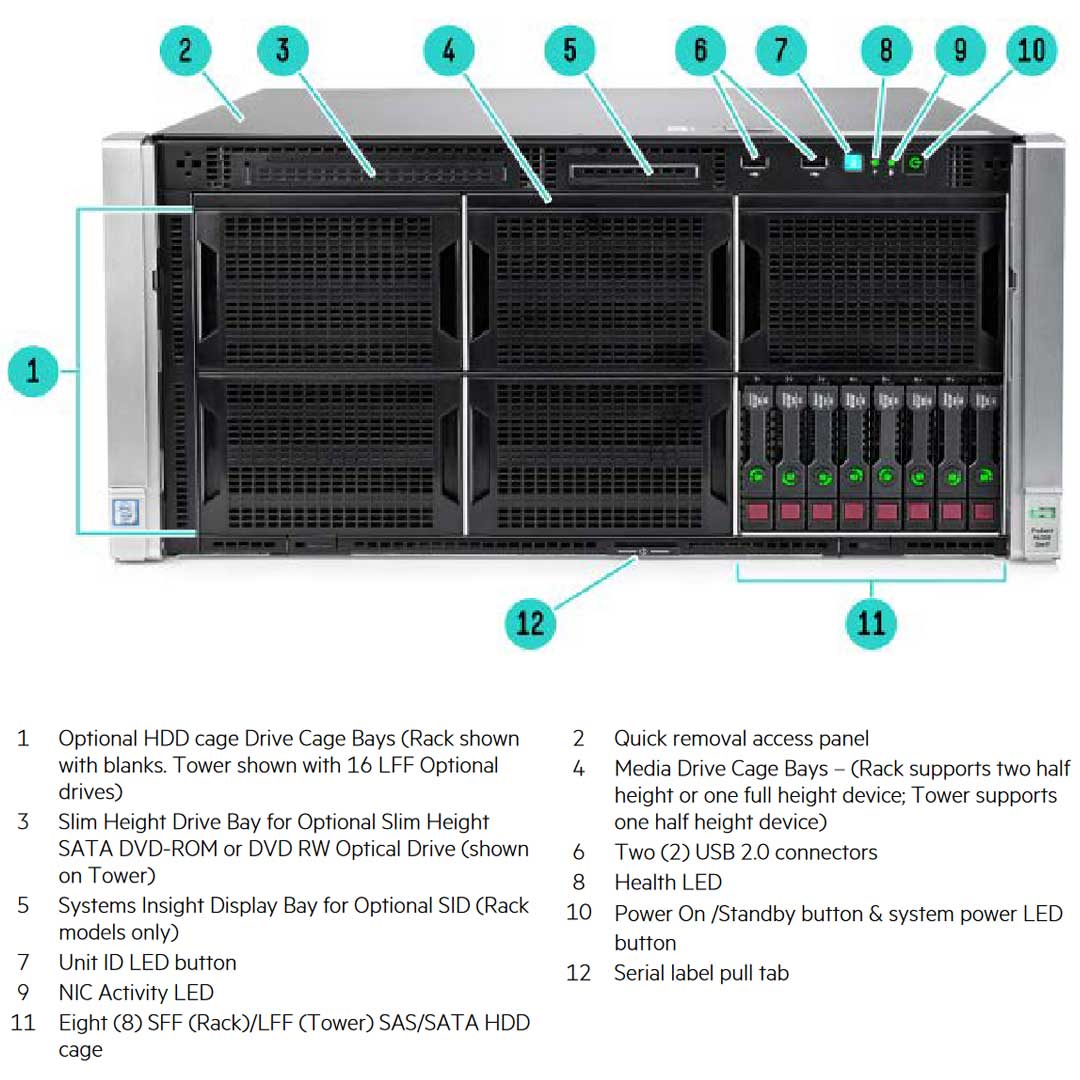

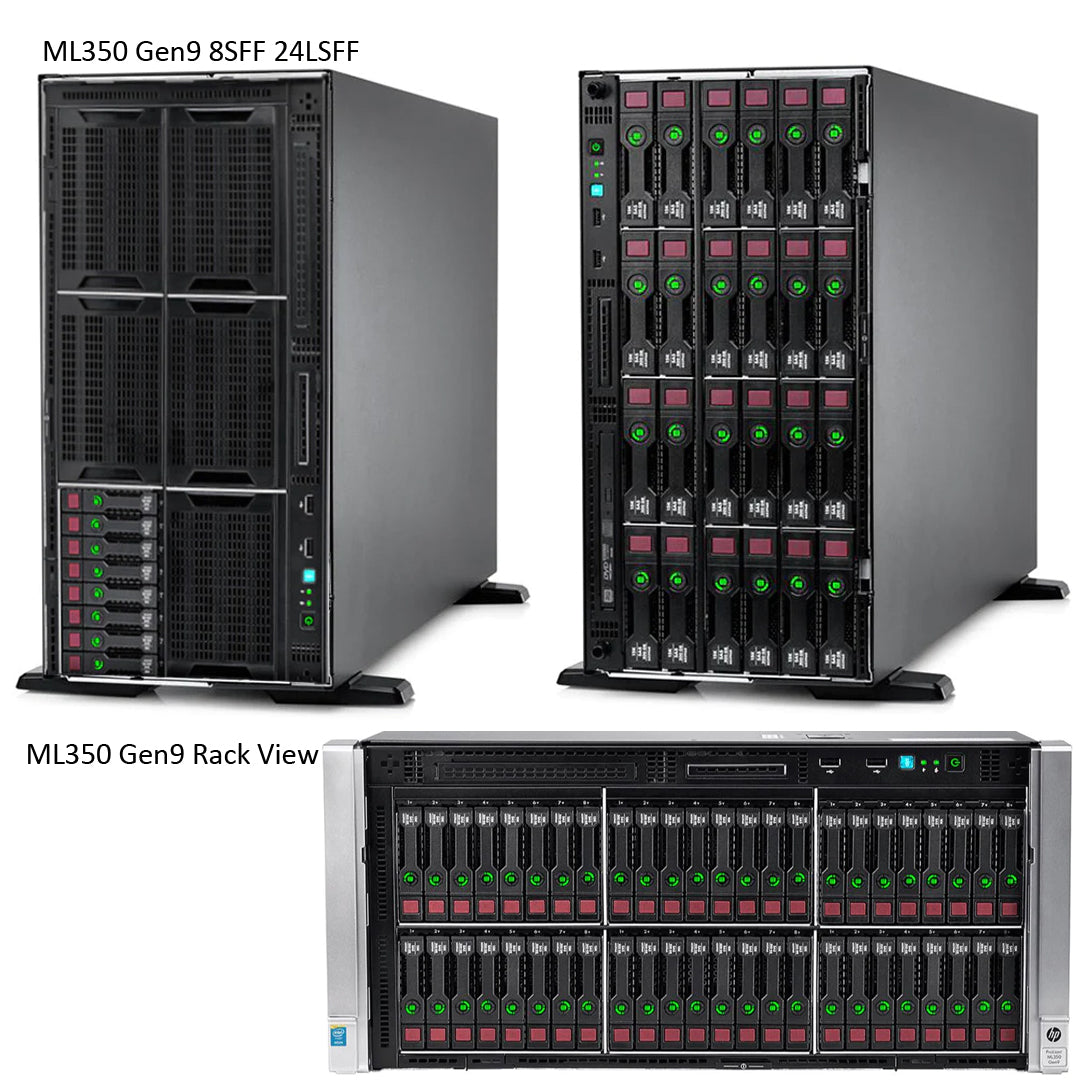

Hpe Proliant Ml350 Gen9 8 Lff Tower Server Chassis | 754537-B21

Quick Specs

Ideal for:

CTO Configuration Support

Looking to Customize?

Base Standard Capabilities

Product features

Specs 1

Specs 2

Software overview

Physical specifications

Electrical specifications

Environmental specifications

Safety certifications

You may also like

Currency

Welcome to the Request Express Quoting Form!
