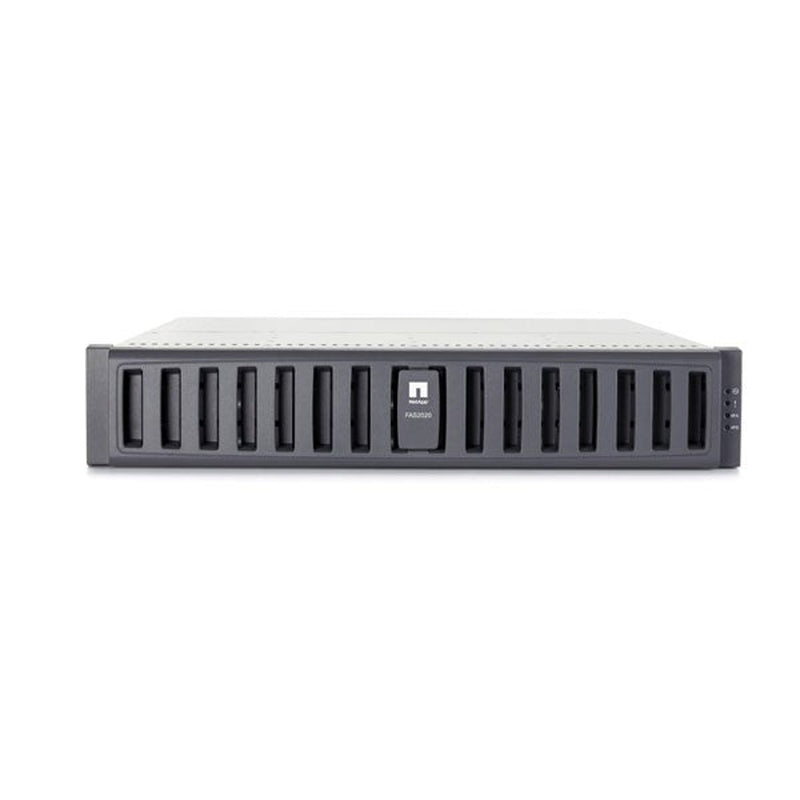

NetApp FAS2020 Single Controller Filer Head (Stand Alone)
Thanks for the request. We'll get back to you with in 24 hours.
-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.
-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.
Quick Specs
The NetApp FAS2020 is a compact, entry-level storage system designed for small businesses and remote offices. It features a 2U chassis with a single controller in a standalone configuration, powered by a 32-bit, single-core 2.20 GHz processor and 1GB of memory. With support for up to 12 internal 3.5" drives and a maximum capacity of 68TB, it provides cost-effective storage with Fibre Channel, SAS, and SATA drive compatibility.
The system includes one RJ45 (1Gb) Ethernet port and two SFP (4Gb) Fibre Channel ports for flexible connectivity. It supports up to four external disk shelves, including DS12-ESAS, DS14-Mk2-AT, DS14-Mk2-FC, and DS14-Mk4-FC models. With RAID 4 and RAID 6 (RAID-DP) support, the FAS2020 ensures data protection and reliability while maintaining efficient performance.
Weighing up to 66 lbs, the chassis measures 3.5 inches in height, 17.6 inches in width, and 22.52 inches in depth with cable management. While it lacks expansion module slots, it supports remote management for streamlined administration. The FAS2020 is an ideal storage solution for businesses seeking reliable performance in a compact form factor.
- Model: NetApp FAS2020
- Chassis: Single Chassis
- Total Rack Height: 2U
- Controllers: Single Controller (Stand Alone)
- Memory: 1GB
- Processor Model: 1x 32-bit 1 core 2.20 Ghz
- Ethernet Ports (per): 1 x RJ45 (1Gb)
- Fibre Channel Ports (per): 2 x SFP (4Gb)
- Internal Drives (total): 12 x 3.5"
- Max Drives (total): 68
- Max Capacity: 68TB
- Disk Shelves: DS12-ESAS, DS14-Mk2-AT, DS14-Mk2-FC, DS14-Mk4-FC
- Filer Heads: N/A
- Chassis Rack Height: 2U
- Chassis Heights: 3.5" (8.9 cm)
- Chassis Width w/ Mounting Flanges: -
- Chassis Width w/o Mounting Flanges: 17.6" (44.7 cm)
- Chassis Depth w/ Cable Mgmt: 22.52" (57.2 cm)
- Chassis Depth w/o Cable Mgmt: -
- Chassis Weight: up to 66.0 lb (29.9 kg)
Controller Specs
- Max Controllers: 2 (Per Chassis)
- Expansion Module Slot (per): 0
- Ethernet Ports (per): 1 x RJ45 (1Gb)
- Fibre Channel Ports (per): 2 x SFP (4Gb)
- UTA2 Ports (per): N/A
- SAS Ports (per): N/A
- Remote Management: Yes
- Processor Model (per): 1x 32-bit 1 core 2.20 Ghz
- Memory (Single/HA): 1GB/2GB
- NVMEM (Single/HA): 0GB/0GB
- Max Number of Internal Drives: 12 x 3.5"
- Max Number Drives (total): 68
- Max Capacity: 68TB
- Max # of FC Drives: 56
- Max # of SAS Drives: 12
- Max # of SATA Drives: 56
- Drive Interface: FC, SAS, SATA
- RAID: RAID 4, RAID 6 (RAID-DP)
- Max # of DS12-ESAS Shelves: 1 internal
- Max # of DS14-Mk2-AT Shelves: 4 external
- Max # of DS14-Mk2-FC Shelves: 4 external
- Max # of DS14-Mk4-FC Shelves: 4 external
