Quick Specs
- (1) Intel Xeon E3-1200v6 or v5
- (4) 2400MT/s DDR4
- Max Memory 64GB
- (2) PCIe Gen3.0 slots
- Supports up to (4 SFF) Drives
- HPE Dynamic Smart Array B140i (RAID: 0, 1, 10, 5 SATA)
- Optional FlexibleLOM slot on riser
- HPE iLO4 2.3
(Click to View)
Ideal for:
- Cloud Servers
- Corporate IT

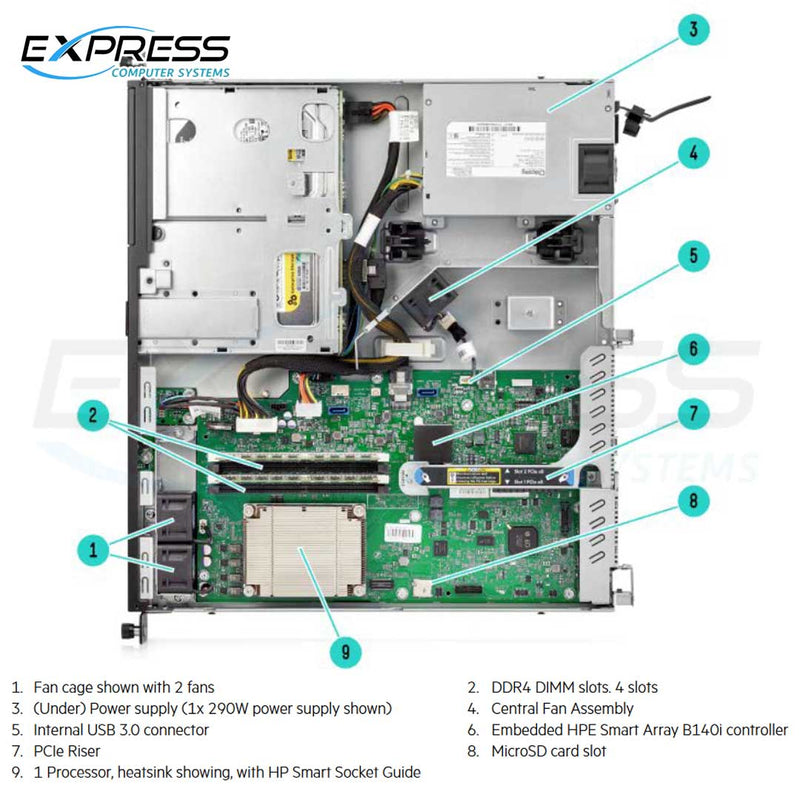

The dense and compact HPE ProLiant DL20 Gen9 Server powered by Intel Pentium, Core i3 and E3-1200 v5/v6 processors provides a unique blend of enterprise-class capabilities at a great value-making it an ideal rack server platform for growing businesses and service providers. It offers outstanding configuration flexibility to cater to a wide variety of business requirements at an affordable price point.
The refurbished DL20 Gen9 Server offers a range of HPE Qualified Options to fit most needs like affordable drives for light workloads, solid state drives for the demanding requirements, from a single non-hot plug power supply to an efficient HPE Hot Plug Redundant Power supply, from multiple storage controllers to the HPE FlexibleLOM networking cards-helping customers find the right configuration for their workloads.

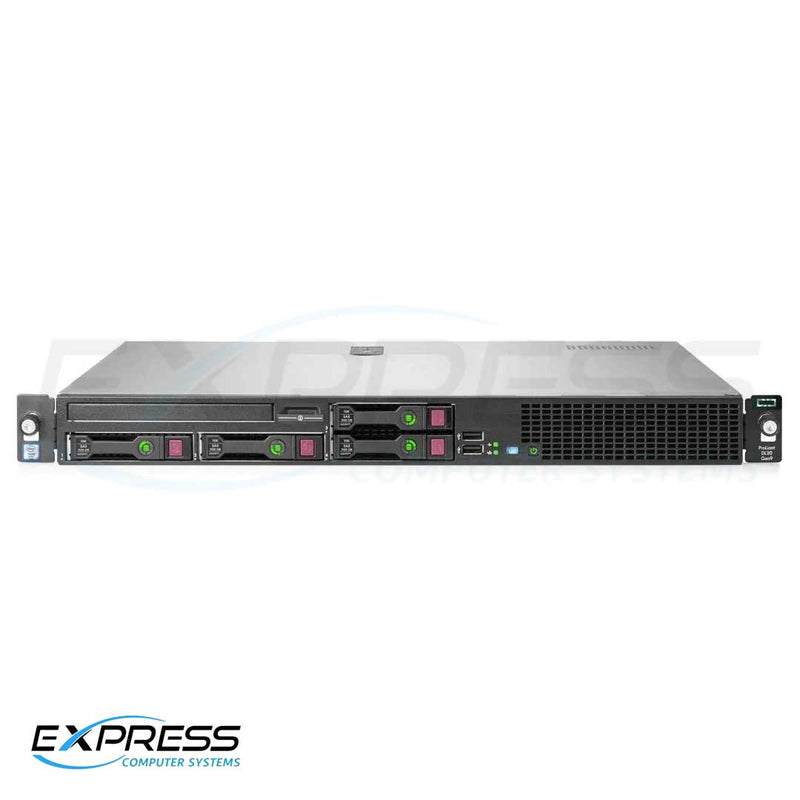

The HPE DL20 Rack Server is not very large in its 1U configuration. That’s why it can only hold up to (2) LFF drives and up to (4) SFF drives. The DL20 Rack server has three configuration to choose from. Below are the options.

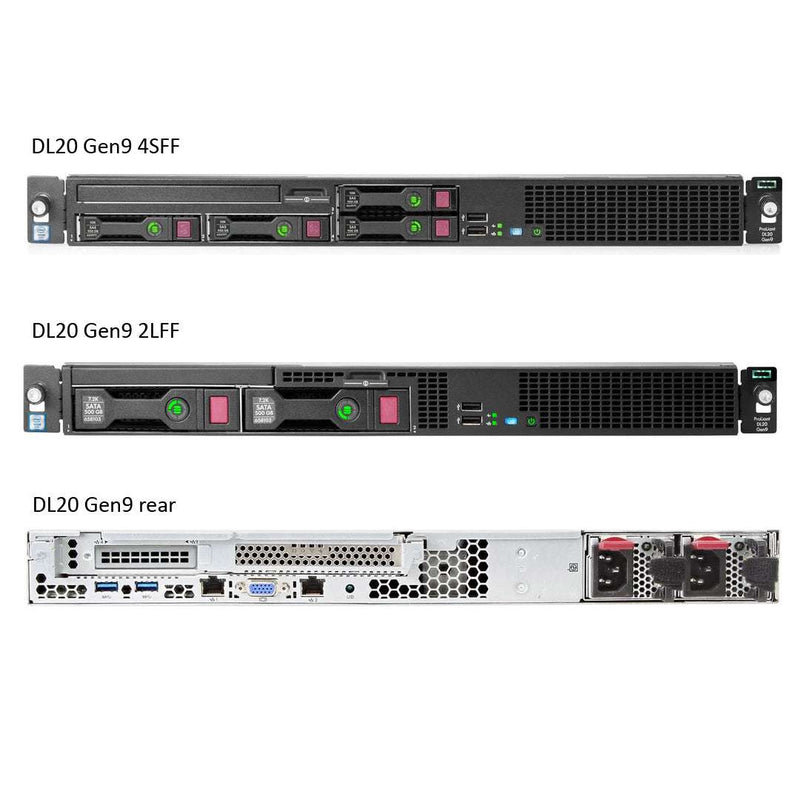

DL20 Gen9 Cabled 2 LFF | 819785-B21
DL20 Gen9 Hot Plug 2 LFF | 819785-B21
DL20 Gen9 4 SFF | 819785-B21| CTO Server [Chassis] | HPE ProLiant DL20 Gen9 Non-hot Plug 2LFF Configure-to-order Server | HPE ProLiant DL20 Gen9 2LFF Configure-to-order Server | HPE ProLiant DL20 Gen9 4SFF Configure-to-order Server |
|---|---|---|---|
| SKU Number | 819784-B21 | 819785-B21 | 819786-B21 |
| Processor | 1 | 1 | 1 |
| DIMM Slots | 4 DIMM slots for UDIMM DDR4 Memory | ||
| Storage Controller | HPE Dynamic Smart Array B140i | ||
| PCIe | 2 PCIe 3.0 Slots | ||
| Drive Cage - included | 2LFF Non Hot Plug | 2LFF Hot Plug | 4SFF Hot Plug |
| Network Controller | HPE embedded 1Gb 2-port 332i network Adapter | ||
| Fans | 3 non hot plug, non-redundant | ||
| USB | 2 front, 1 internal, 2 rear | ||
| Ears | HPE Thumbscrew Ears | ||

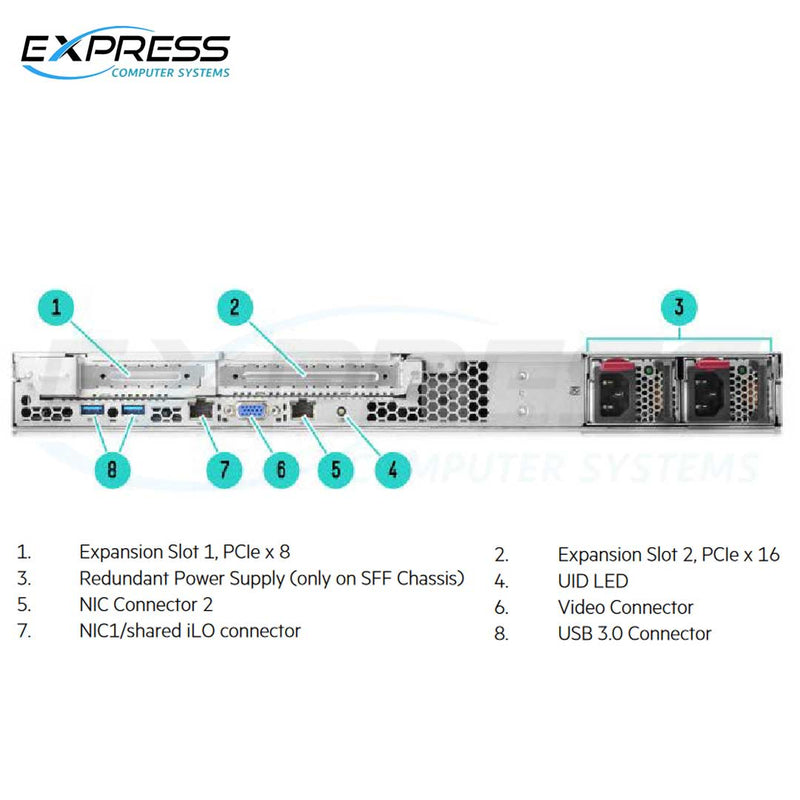

The DL20 Gen9 has limited expansion slots. If you choose a P440, H240, or P841 controller, you cannot select the standard 331T or 366T networking cards due to slot conflicts. To expand networking capabilities, consider using the Flexible LOM Riser Kit (811259-B21) and the 331FLR or 366FLR adapters.
FlexibleLOM (811259-B21)Slot 1: FlexibleLOM | PCIe3 x8
Slot 2: PCIe3 x8
Two-slot riser board (854846-B21)Slot 1: LP | PCIe3 x8 (8,4,2,1)
Slot 2: FH/HL| PCIe3 x8
GPU riser board (811271-B21)Slot 1: ---
Slot 2: FH/HL| PCIe3 x16
The DL20 Gen9 uses the B140i controller for up to 4 SATA drives at 6Gb/s, supporting RAID 0, 1, and 5. For improved performance, the H240 FIO HBA offers 4 SAS/SATA drives at 12Gb/s.
The B140i is UEFI-only. For legacy BIOS, an additional controller and the Legacy mode setting (758959-B22) are necessary.
Smart Array Controller
For maximum performance, consider the P440/P441/P841 Smart Array Controllers. These require the 96W Smart Storage Battery (P01366-B21) and holder (822451-B21) for Flash Back Write Cache.
The Two-slot riser board (854846-B21) is ideal for this Smart Array configuration. If you choose a P440, H240, or P841 controller, you cannot select the standard 331T or 366T networking cards due to slot conflicts.
If you choose any kind of GPU (Max 1), you can only install it on HL/FH PCI-e 3.0x16 Slot 2 with the HPE DL20 Gen9 GPU Enablement Kit (811271-B21). There is no slot 1 on this GPU Riser. Please reach the Tech Manual below for more details about the PCIe slots.
The HPE Quickspec manual below shows only two GPUs supported by the DL20 Rack Server.
- Nvidia Quadro K2200 GPU Module
- Nvidia Quadro M2000 GPU Module
- Must have the HPE DL20 Gen9 GPU Enablement Kit (811271-B21) installed
GPU Enablement Kit (811271-B21)
The DL20 Rack Server comes with the HPE DL20 Gen9 290W Power Supply Unit. This Non-Hot-Plug Power Supply Unit ( 823805-001) is allowed in every chassis option. If you were looking for a redundant Power supply, then you will have to select the SFF Chassis. The power backplane option can support up to two (2) hot-plug AC power input modules. This Redundant power supply option is only supported on DL20 Gen9 SFF chassis model.
If you’re going to install the redundant power supply, then you will need the following items.
- HPE 900W Standard AC 240VDC Power Input Module (775595-B21 - 830219-001)
- HPE DL20 Gen9 Redundant Power Supply Cable Kit (820306-B21 - 823807-001)
- HPE 900W Standard AC 240VDC RPS Power Backplane Kit (828735-B21 - 830022-001)
