Home / 32 / Dell Shared PERC 8 H710p Mini Mono RAID Controller with 1GB Cache and Battery for VRTX | P3WV4
SKU: P3WV4

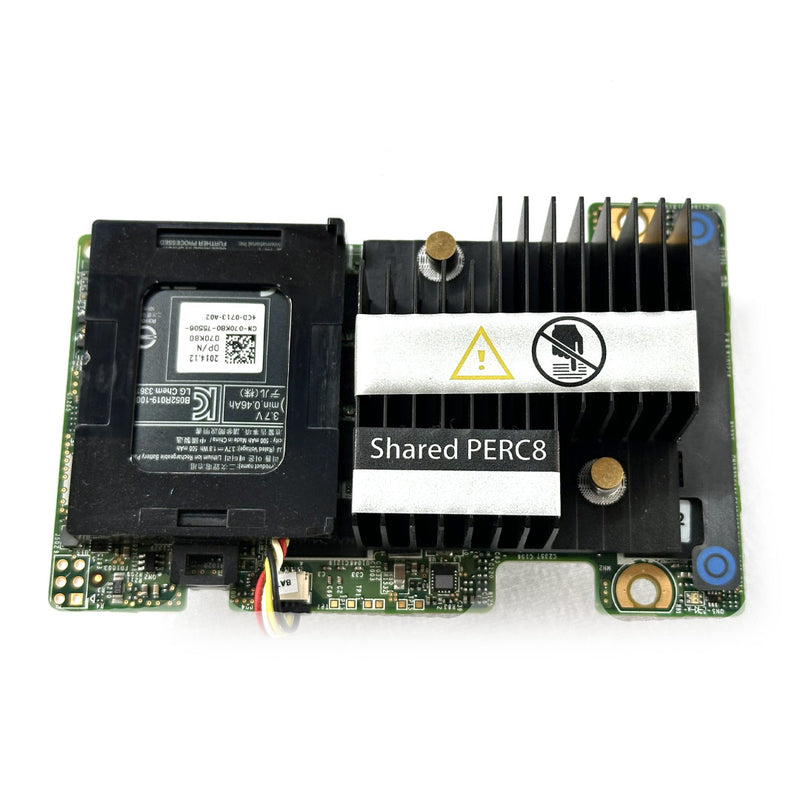

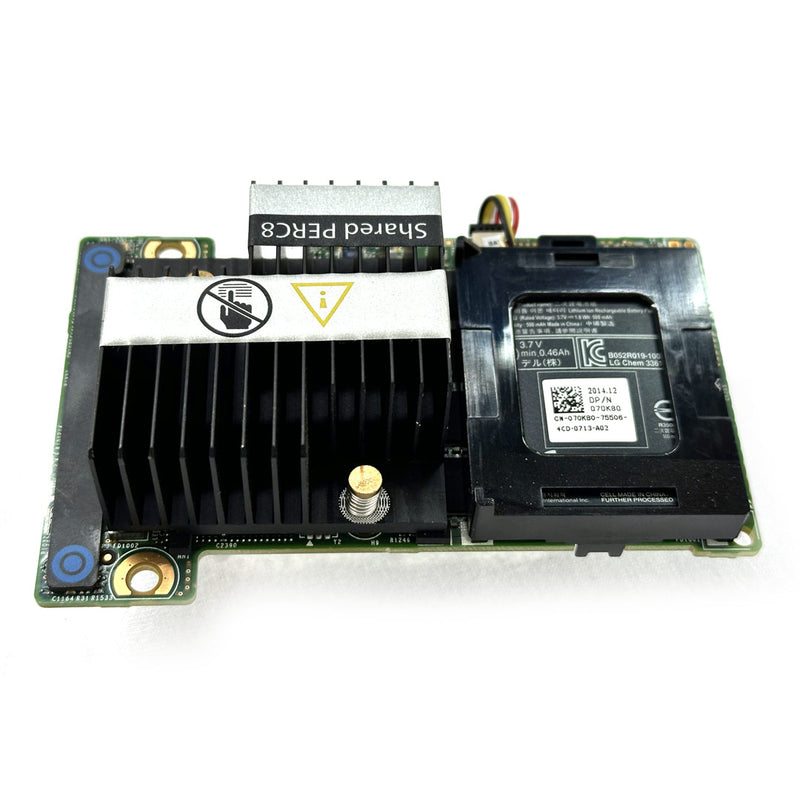

Dell Shared PERC 8 H710p Mini Mono RAID Controller with 1GB Cache and Battery for VRTX | P3WV4

Dell

| Adapter
$95.00

Thanks for the request. We'll get back to you with in 24 hours.

Quick Specs

ModelsDrive Types

6 Gb/s SAS

PCI Support

PCI-e 2.0 2x4 Internal

SAS ConnectorsCache Memory

1GB NV

Write Back Cache

Flash Backed Cache

RAID Levels

0,1,5,6,10,50,60

Max Drive Support

32

RAID Support

Hardware

Part Numbers (PN):

  • P3WV4

Battery PN:

  • H132V
  • HD8WG
  • 37CT1
  • 70K80
Compatible With:
  • Dell vrtx

(Click to View)

Spec Sheet 4

Models Drive Types PCI Support SAS Connectors Cache Memory Write Back Cache RAID Levels Max Drive Support RAID Support
H810 Adapter 6 Gb/s SAS PCI-e 2.0 2x4 External 1 GB NV Flash Backed Cache 0,1,5,6,10,50,60 192 Hardware
H710P Adapter 6 Gb/s SAS PCI-e 2.0 2x4 Internal 1 GB NV Flash Backed Cache 0,1,5,6,10,50,60 32 Hardware
H710P Mini Mono 6 Gb/s SAS PCI-e 2.0 2x4 Internal 1 GB NV Flash Backed Cache 0,1,5,6,10,50,60 32 Hardware
H710P Mini Blade 6 Gb/s SAS PCI-e 2.0 2x4 Internal 1 GB NV Flash Backed Cache 0,1,5,6,10,50,60 4 Hardware
H710 Adapter 6 Gb/s SAS PCI-e 2.0 2x4 Internal 512 MB NV Flash Backed Cache 0,1,5,6,10,50,60 32 Hardware
H710 Mini Mono 6 Gb/s SAS PCI-e 2.0 2x4 Internal 512 MB NV Flash Backed Cache 0,1,5,6,10,50,60 32 Hardware
H710 Mini Blade 6 Gb/s SAS PCI-e 2.0 1x4 Internal 512 MB NV Flash Backed Cache 0,1,5,6,10,50,60 4 Hardware
H310 Adapter 6 Gb/s SAS PCI-e 2.0 2x4 Internal - - 0,1,5,10,50 16, Non-RAID 32 Hardware
H310 Mini Mono 6 Gb/s SAS PCI-e 2.0 2x4 Internal - - 0,1,5,10,50 16, Non-RAID 32 Hardware
H310 Mini Blade 6 Gb/s SAS PCI-e 2.0 1x4 Internal - - 0,1,5,10,50 4 Hardware
S110 3 Gb/s SATA PCI-e 2.0 - - - 0,1,5,10 4 Software - Windows Only
