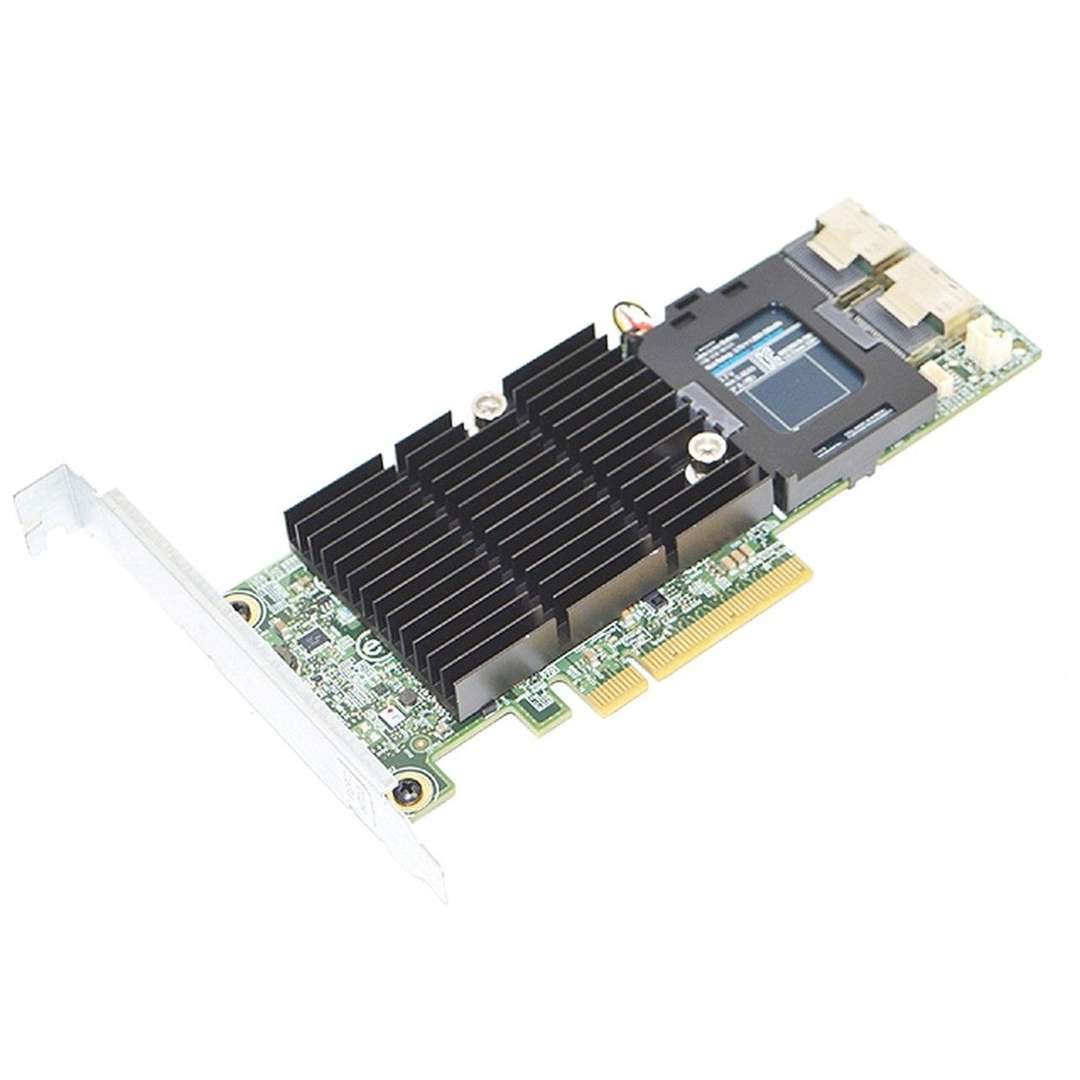

Dell PERC H710 1GB 6Gb SAS/SATA x8 PCI-e RAID Controller | 17MXW

SKU: 17MXW

Dell PERC 8 H710 1GB 6Gb SAS/SATA RAID Controller | 17MXW

Name: Dell PERC 8 H710 1GB 6Gb SAS/SATA RAID Controller | 17MXW
Brand: Dell
SKU: 17MXW
Price: 150.0 USD
Availability: OutOfStock

Dell

| Adapter

.price-ui--loading { display: block !important; opacity: 1 !important; }

$150.00

Thanks for the request. We'll get back to you with in 24 hours.

Quick Specs

Models Drive Types 6 Gb/s SAS
PCI Support PCI-e 2.0 2x4 Internal
SAS Connectors Cache Memory 512 MB NV
Write Back Cache Flash Backed Cache
RAID Levels 0,1,5,6,10,50,60
Max Drive Support 32
RAID Support Hardware

Mini SAS Cables: F4DPW

Part Numbers:

17MXW
NHD8V
VM02C
NHGT2

The PERC H710 provides high server RAID performance for database and multimedia applications. An eight-port, 6Gb/s PCI Express RAID controller, the Dell PowerEdge RAID Controller (PERC) H710 provides high server RAID performance for database and multimedia applications.As storage demands expand and processing loads grow, it becomes increasingly more difficult for administrators to achieve maximum performance from their applications.

The newest line of Dell PowerEdge RAID Controller cards, built on the LSISA2208 dual-core PowerPC RAID-on-Chip (ROC), offers unmatched I/O performance for database applications and streaming digital media environments.The PowerEdge RAID Controller (PERC) H710, with eight internal ports, delivers two PowerPC processor cores and a 72-bit DDR3 interface that drives 512 MB cache memory. You can deploy the PERC H710 in hard-drive-based server environments for significant performance gains. If you are implementing hybrid server platforms based on solid-state storage, these next-generation PERCs exploit the potential of solid-state drives (SSDs) for unsurpassed performance and enterprise-class reliability.

Advanced software options

The Dell family of 6Gb/s PowerEdge RAID Controllers is designed to support advanced software options for the Dell PowerEdge server family with enhanced performance and data protection capabilities. These new software options can help you to address key business challenges while helping to deliver a higher return on your IT investments. The PERCs and Dell's Cut Through I/O (CTIO) feature boost transactional I/O performance of both rotational hard-drive and SSD configurations.

Enterprise data protection

Standard support for the most popular RAID levels and accessories, including RAID 5, RAID 6, RAID 50, RAID 60 and NVCache, further strengthen the data-protection capabilities of the PERC H710. Dell's NVCache technology backs up the data to non-volatile storage in a power-loss event, and can store it safely for a nearly unlimited period of time.

Intuitive RAID management utility

Dell OpenManage Storage Services (OMSS) provides the essential tools to efficiently manage PERC products, whether deployed in an enterprise or small business. Dell offers a collection of applications and tools, including a pre-boot setup utility and a full spectrum of online RAID management utilities.

This suite of applications allow administrators to adjust SAS or SATA topology views from the system host, controller and disk enclosure down to the logical and physical drive level. Extending to enterprise deployments, these tools can scale to easily configure, monitor and manage RAID and JBOD volumes locally or over the LAN network.

Specification

Brand: Dell
Model No: H710
P/N: 7GCGT
Solution provided: Eight-port internal SATA+SAS solution supporting up to 32 hard disk drives (HDDs) and solid-state drives (SSDs)
Physical dimensions: 167.6mm (6.6in) x 64.4mm (2.5in) (MD2 low profile)
Connectors: Two internal mini-SAS SFF8088
Device support: Up to 32 (SAS, SATA)
Host bus type: 8-lane, PCI Express 2.0 compliant
Data transfer rates: Up to 6Gb/s per port
SAS controller: LSISAS2208 dual-core PowerPC ROC
Cache size: 1GB
Key RAID data protection features
- RAID levels 0, 1, 5, 6
- RAID bs 10, 50, 60
- Online Capacity Expansion (OCE)
- Online RAID Level Migration (RLM)
- Auto resume after power loss during array rebuild or reconstruction/RLM
- Consistency check for background data integrity
- Physical disk power management (Dimmer Switch)
- SED drive support
- Load balancing
- Fast initialization for quick array setup
- Configurable stripe size up to 1MB
- SSD support
- Patrol read for media scanning and repairing
- Up to 64 logical drive and 64TB LUN support
- DDF compliant Configuration on Disk (COD)
- S.M.A.R.T. support
- Global and dedicated hot spare with revertible hot-spare support: automatic rebuild, enclosure affinity, emergency SATA
RAID management
- CTRL-R
- Dell OpenManage Storage Services
- Additional management:
  - UEFI (HII)
  - CEM
Operating temperature: Maximum ambient temperature: 60°C
Operating voltage+3.3V
Optional SSD optimization:
- CacheCade software: provides boost in READs from SSD cache
- Dell FastPath software: delivers high IOPs performance on SSD arrays
Operating systems:
- Microsoft Windows Server 2008 R2 SP2
- Red Hat Enterprise Linux 5.7
- Red Hat Enterprise Linux 6.1
- SUSE Linux Enterprise Server 10 SP4
- SUSE Linux Enterprise Server 11 SP2
- Virtualization options:
  - VMware ESX/ESXi 4.1
  - VMware 5.0 UL

Compatible With:

Dell R820

(Click to View)

Spec Sheet 4

Models	Drive Types	PCI Support	SAS Connectors	Cache Memory	Write Back Cache	RAID Levels	Max Drive Support	RAID Support
H810 Adapter	6 Gb/s SAS	PCI-e 2.0	2x4 External	1 GB NV	Flash Backed Cache	0,1,5,6,10,50,60	192	Hardware
H710P Adapter	6 Gb/s SAS	PCI-e 2.0	2x4 Internal	1 GB NV	Flash Backed Cache	0,1,5,6,10,50,60	32	Hardware
H710P Mini Mono	6 Gb/s SAS	PCI-e 2.0	2x4 Internal	1 GB NV	Flash Backed Cache	0,1,5,6,10,50,60	32	Hardware
H710P Mini Blade	6 Gb/s SAS	PCI-e 2.0	2x4 Internal	1 GB NV	Flash Backed Cache	0,1,5,6,10,50,60	4	Hardware
H710 Adapter	6 Gb/s SAS	PCI-e 2.0	2x4 Internal	512 MB NV	Flash Backed Cache	0,1,5,6,10,50,60	32	Hardware
H710 Mini Mono	6 Gb/s SAS	PCI-e 2.0	2x4 Internal	512 MB NV	Flash Backed Cache	0,1,5,6,10,50,60	32	Hardware
H710 Mini Blade	6 Gb/s SAS	PCI-e 2.0	1x4 Internal	512 MB NV	Flash Backed Cache	0,1,5,6,10,50,60	4	Hardware
H310 Adapter	6 Gb/s SAS	PCI-e 2.0	2x4 Internal	-	-	0,1,5,10,50	16, Non-RAID 32	Hardware
H310 Mini Mono	6 Gb/s SAS	PCI-e 2.0	2x4 Internal	-	-	0,1,5,10,50	16, Non-RAID 32	Hardware
H310 Mini Blade	6 Gb/s SAS	PCI-e 2.0	1x4 Internal	-	-	0,1,5,10,50	4	Hardware
S110	3 Gb/s SATA	PCI-e 2.0	-	-	-	0,1,5,10	4	Software - Windows Only
