-*Image may differ from actaul product

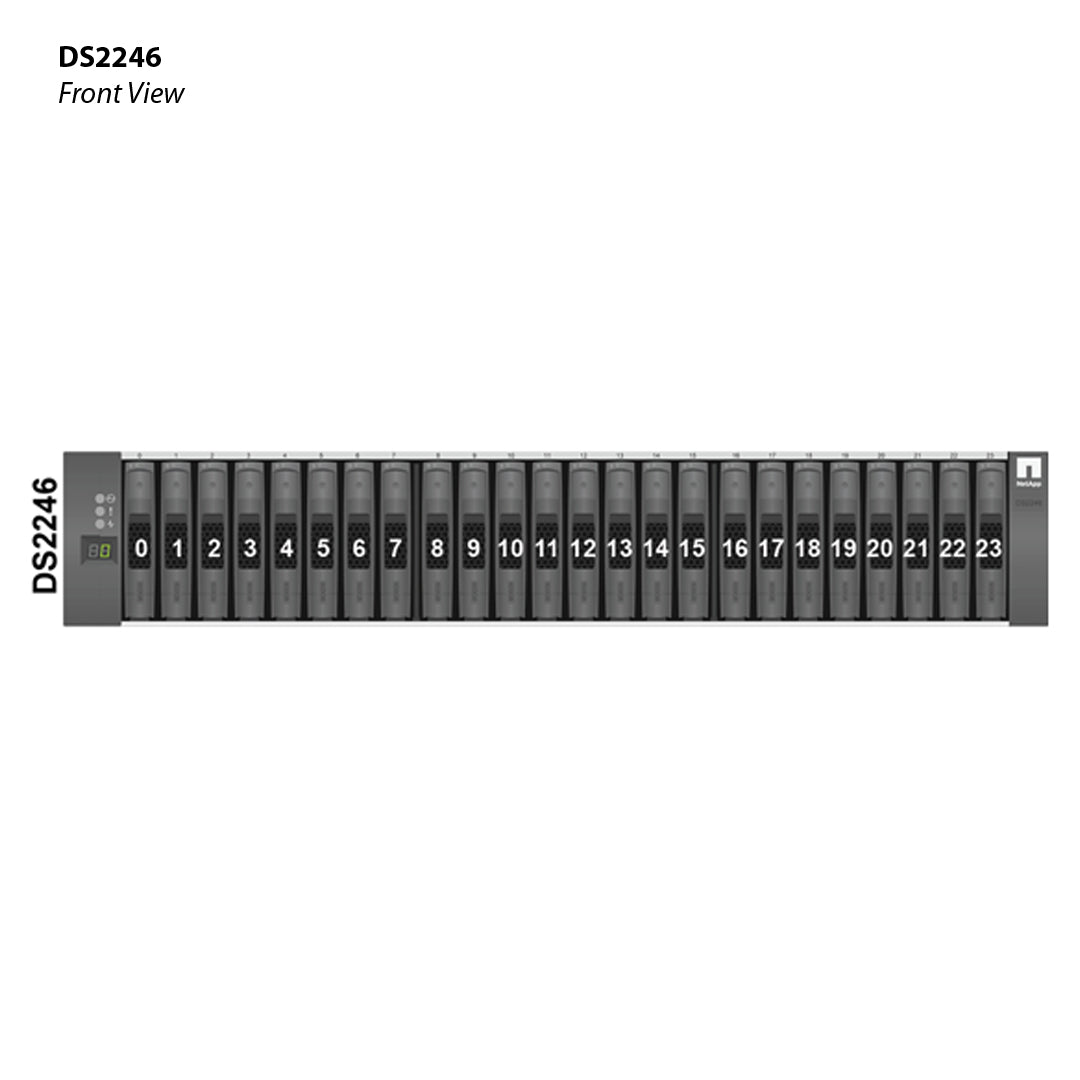

NetApp DS2246 (DS2246-SL002-24M-0P-R6-C) 20x 1.8TB 10K SAS HDD X426A-R6 + 4x 400GB SSD X438A-R6

NetApp DS2246 Expansion Shelf (DS2246-SL002-24M-0P-R6-C) 20x 1.8TB 10K SAS HDD X426A-R6 + 4x 400GB SSD X438A-R6

Stock: 20
Price: $2,595.00

Brand:

NetApp

MPN:

DS2246-SL002-24M-0P-R6-C

Type:

Disk Shelves

Condition:

ECS Refurbished & Tested

Warranty:

ECS 1 Year Hardware Warranty

Total:- $2,595.00

Add to Cart

-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.

-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

NetApp DS2246 Expansion Shelf (DS2246-SL002-24M-0P-R6-C) 20x 1.8TB 10K SAS HDD X426A-R6 + 4x 400GB SSD X438A-R6

NetApp DS2246 - DS2246-SL002-24M-0P-R6-C, has 24 drive bays with 20 X426A-R6 (1.8TB 10K SAS), 4 X438A-R6 (400GB SSD) Disk Shelf achieves both storage and performance in a 2U (Rack Unit) 2.5" form factor, at speeds of . This DS2246 comes with all necessary parts and cables. Also comes with a 1-Year Parts Replacement Warranty as standard.

Parts Included:

1X DS2246 NetApp Disk Shelf
20x 1.8TB 10K SAS HDD 2.5" (X426A-R6) + 4x 400GB SSD 2.5" (X438A-R6)

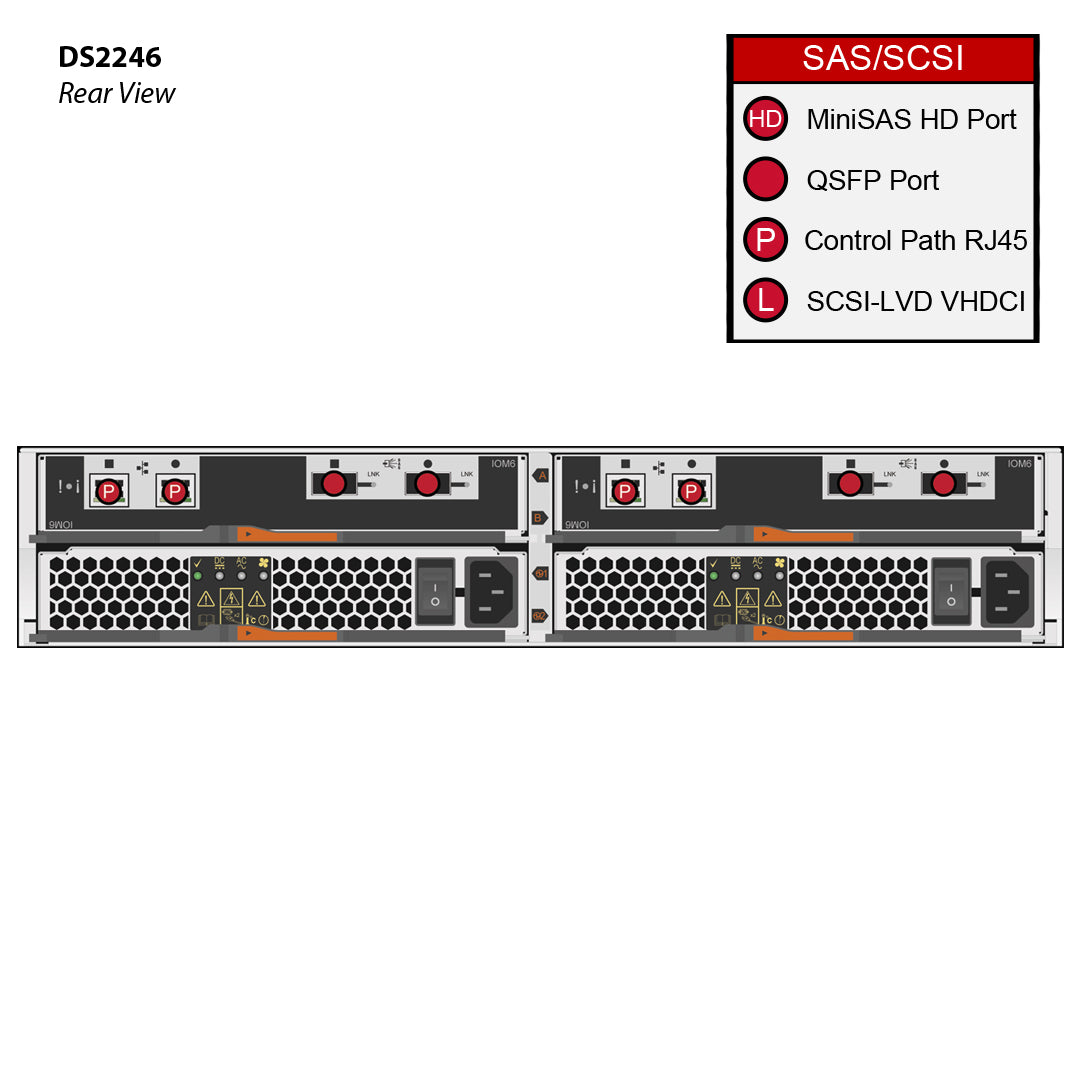

2x IOM6 Controller Module (X5713A-R5)
2x Power Supplies with Fans - 750W, AC (X519A-R6)
2x .5 QSFP to QSFP SAS Cables (X6557A-R6) (longer cables available please ask for custom order)
1x Rail Kit (X-02654-00)
2x Power Cables (X800E-R6)

Technical Specifications	Physical Characteristics
Rack Unit(s): 2 Port(s): N/A Drive Count: 24 Drive Speed(s): N/A Drive(s): 20 X426A-R6 (1.8TB 10K SAS) 4 X438A-R6 (400GB SSD) Supported Controller(s): N/A	Weight: 35.27 lb (16 kg) Height: 3.35'' (8.5 cm) Width: 17.6'' (44.7 cm) Depth: 19.06'' (48.4 cm) Width w/ Mounting Flanges: 18.9'' (48 cm) Depth w/ Cable Management: 20.2'' (51.3 cm)
Environmental Requirements	Clearance Dimensions
Operating Temperature Range: 50 to 104 deg F / 10 to 40 deg C Storage Temperature Range: -40 to 158 deg F / -40 to 70 deg C Transit Temperature Range: -40 to 158 deg F / -40 to 70 deg C Operating Relative Humidity: 20 to 80 % Storage Relative Humidity: 10 to 95 % Transit Relative Humidity: 10 to 95 % Operating Altitude Range: 0 to 9987.6 ft / 0 to 3045 m Storage Altitude Range: -1000.4 to 39989.76 ft / -305 to 12192 m Transit Altitude Range: -1000.4 to 39989.76 ft / -305 to 12192 m Acoustic Noise - Sound Power: 6.9 bels Acoustic Noise - Sound Pressure: 51 dBA Input Power Voltage: 100 to 120, 200 to 240	Front Clearance (Cooling / Maintenance): 6.02'' (15.3 cm) / 6.02'' (15.3 cm) Rear Clearance (Cooling / Maintenance): 12.01'' (30.5 cm) / 12.01'' (30.5 cm)

Supported Drives

Part Number	Encryption	Capacity	RPM	Checksum
Drive Type: SAS
X341A-R6	No	900GB	10k	BCS
X342A-R6	No	1.2TB	10k	BCS
X343A-R6	No	1.8TB	10k	BCS
X416A-R5[1]	Yes	600GB	10k	BCS
X417A-R6[1]	Yes	900GB	10k	BCS
X421A-R5	No	450GB	10k	BCS
X422A-R5	No	600GB	10k	BCS
X423A-R5	No	900GB	10k	BCS
X425A-R6	No	1.2TB	10k	BCS
X426A-R6	No	1.8TB	10k	BCS
X427A[1]	Yes	1.8TB	10k	BCS
X427B-R6[1]	Yes	1.8TB	10k	BCS
Drive Type: SSD
X356A-R6	No	3.84TB	N/A	BCS
X357A	No	3.84TB	N/A	BCS
X358A[1]	Yes	3.84TB	N/A	BCS
X365A-R6[1]	Yes	1.6TB	N/A	BCS
X371A	No	960GB	N/A	BCS
X438A-R6	No	400GB	N/A	BCS
X439A-R6	No	1.6TB	N/A	BCS
X440A-R6[1]	Yes	800GB	N/A	BCS
X440B-R6[1]	Yes	800GB	N/A	BCS
X446A-R6	No	200GB	N/A	BCS
X446B-R6	No	200GB	N/A	BCS
X447A-R6	No	800GB	N/A	BCS
Footnotes
[1] Mixing NSE drives or shelves with any other type of encrypting or non-encrypting drives or shelves across a stand-alone platform or high-availability (HA) pair is not supported.

Supported Shelf Modules for NetApp DS2246

Module	Part Number	Interface	Max Data Rate	Min ONTAP
IOM12	X5720A	IN: miniSAS HD, OUT: miniSAS HD	12 Gbps	9.11.1RC1, 9.10.1RC1, 9.9.1RC1, 9.8RC1, 9.7RC1, 9.6RC1, 9.5RC1, 9.4RC1, 9.3RC1, 9.2RC1, 9.1RC1, 9.0RC1

Module	Part Number	Interface	Max Data Rate	Min ONTAP
IOM6	X5713A-R6	IN: QSFP, OUT: QSFP	6 Gbps	9.11.1RC1, 9.10.1RC1, 9.9.1RC1, 9.8RC1, 9.7RC1, 9.6RC1, 9.5RC1, 9.4RC1, 9.3RC1, 9.2RC1, 9.1RC1, 9.0RC1, 8.3RC1, 8.2RC1, 8.1, 8.0.1, 7.3.4

Cables Compatibility for Module IOM12

Cables Compatibility for Module IOM6

Mktg Part No	Mfg Part No	Length	End 1 / End 2	Description	Supported Speed(s)	Min OS
SAS 6/12 Gbps (Copper Cables)
NetApp Cable X66030A	112-00435	0.5m	MiniSAS HD / MiniSAS HD	Cable,miniSAS HD/miniSAS HD,0.5m	6/12 Gbps	-
NetApp Cable X66020A-R6	112-00429	1m	MiniSAS HD / QSFP	Cable,Storage,MiniSAS HD/QSFP,12Gb,1m	6/12 Gbps	-
NetApp Cable X66031A	112-00436	1m	MiniSAS HD / MiniSAS HD	Cable,miniSAS HD/miniSAS HD,1m	6/12 Gbps	-
NetApp Cable X66021A-R6	112-00430	2m	MiniSAS HD / QSFP	Cable,Storage,MiniSAS HD/QSFP,12Gb,2m	6/12 Gbps	-
NetApp Cable X66032A	112-00437	2m	MiniSAS HD / MiniSAS HD	Cable,miniSAS HD/miniSAS HD,2m	6/12 Gbps	-
NetApp Cable X66033A	112-00438	3m	MiniSAS HD / MiniSAS HD	Cable,miniSAS HD/miniSAS HD,3m	6/12 Gbps	-
NetApp Cable X66022A-R6	112-00431	5m	MiniSAS HD / QSFP	Cable,Storage,MiniSAS HD/QSFP,12Gb,5m	6/12 Gbps	-
NetApp Cable X66034A	112-00439	5m	MiniSAS HD / MiniSAS HD	Cable,miniSAS HD/miniSAS HD,5m	6/12 Gbps	-
SAS 6/12 Gbps (Optical Cables)
NetApp Cable X66040A	112-00449	1m	MiniSAS HD / MiniSAS HD	Cable,miniSAS HD/miniSAS HD,AOC,1m	12 Gbps	9.11.1RC1, 9.11.0, 9.10.1RC1, 9.10.0, 9.9.1RC1, 9.9.0, 9.8RC1, 9.7RC1, 9.6RC1, 9.5RC1, 9.4RC1, 9.3RC1, 9.2RC1, 9.1RC1, 9.0RC1
NetApp Cable X66041A	112-00450	2m	MiniSAS HD / MiniSAS HD	Cable,miniSAS HD/miniSAS HD,AOC,2m	12 Gbps	9.11.1RC1, 9.11.0, 9.10.1RC1, 9.10.0, 9.9.1RC1, 9.9.0, 9.8RC1, 9.7RC1, 9.6RC1, 9.5RC1, 9.4RC1, 9.3RC1, 9.2RC1, 9.1RC1, 9.0RC1
NetApp Cable X66042A	112-00451	3m	MiniSAS HD / MiniSAS HD	Cable,miniSAS HD/miniSAS HD,AOC,3m	12 Gbps	9.11.1RC1, 9.11.0, 9.10.1RC1, 9.10.0, 9.9.1RC1, 9.9.0, 9.8RC1, 9.7RC1, 9.6RC1, 9.5RC1, 9.4RC1, 9.3RC1, 9.2RC1, 9.1RC1, 9.0RC1
NetApp Cable X66043A	112-00452	5m	MiniSAS HD / MiniSAS HD	Cable,miniSAS HD/miniSAS HD,AOC,5m	12 Gbps	9.11.1RC1, 9.11.0, 9.10.1RC1, 9.10.0, 9.9.1RC1, 9.9.0, 9.8RC1, 9.7RC1, 9.6RC1, 9.5RC1, 9.4RC1, 9.3RC1, 9.2RC1, 9.1RC1, 9.0RC1
NetApp Cable X66047A	112-00456	5m	MiniSAS HD / 4xLC	Cable,Opt,miniSAS HD/LC,OM4,5m	12 Gbps	9.11.1RC1, 9.11.0, 9.10.1RC1, 9.10.0, 9.9.1RC1, 9.9.0, 9.8RC1, 9.7RC1, 9.6RC1, 9.5RC1, 9.4RC1, 9.3RC1, 9.2RC1, 9.1RC1, 9.0RC1
NetApp Cable X66044A	112-00453	15m	MiniSAS HD / MiniSAS HD	Cable,miniSAS HD/miniSAS HD,AOC,15m	12 Gbps	9.11.1RC1, 9.11.0, 9.10.1RC1, 9.10.0, 9.9.1RC1, 9.9.0, 9.8RC1, 9.7RC1, 9.6RC1, 9.5RC1, 9.4RC1, 9.3RC1, 9.2RC1, 9.1RC1, 9.0RC1
NetApp Cable X66045A	112-00454	30m	MiniSAS HD / MiniSAS HD	Cable,miniSAS HD/miniSAS HD,AOC,30m	12 Gbps	9.11.1RC1, 9.11.0, 9.10.1RC1, 9.10.0, 9.9.1RC1, 9.9.0, 9.8RC1, 9.7RC1, 9.6RC1, 9.5RC1, 9.4RC1, 9.3RC1, 9.2RC1, 9.1RC1, 9.0RC1
NetApp Cable X66048A	112-00457	30m	MiniSAS HD / 4xLC	Cable,Opt,miniSAS HD/LC,OM4,30m	12 Gbps	9.11.1RC1, 9.11.0, 9.10.1RC1, 9.10.0, 9.9.1RC1, 9.9.0, 9.8RC1, 9.7RC1, 9.6RC1, 9.5RC1, 9.4RC1, 9.3RC1, 9.2RC1, 9.1RC1, 9.0RC1
NetApp Cable X66046A	112-00455	50m	MiniSAS HD / MiniSAS HD	Cable,miniSAS HD/miniSAS HD,AOC,50m	12 Gbps	9.11.1RC1, 9.11.0, 9.10.1RC1, 9.10.0, 9.9.1RC1, 9.9.0, 9.8RC1, 9.7RC1, 9.6RC1, 9.5RC1, 9.4RC1, 9.3RC1, 9.2RC1, 9.1RC1, 9.0RC1

Mktg Part No	Mfg Part No	Length	End 1 / End 2	Description	Supported Speed(s)	Min OS
Ethernet 10/100 Mbps (Copper Cables)
NetApp Cable X6560-R6	112-00194	0.5m	RJ45 / RJ45	Cable,Ethernet,CAT6,RJ45,0.5m		-
NetApp Cable X6584-R6	112-00290	1m	RJ45 / RJ45	Cable,Ethernet,CAT6,RJ45,1m		-
NetApp Cable X6561-R6	112-00195	2m	RJ45 / RJ45	Cable,Ethernet,CAT6,RJ45,2m		-
NetApp Cable X6585-R6	112-00291	3m	RJ45 / RJ45	Cable,Ethernet,CAT6,RJ45,3m		-
NOFRU_ETH_CAT6_RJ45_5M
NetApp Cable X6562-R6	112-00196	5m	RJ45 / RJ45	Cable,Ethernet,CAT6,RJ45,5m		-
NetApp Cable X6592-R6	112-00246	10m	RJ45 / RJ45	Cable,Ethernet,CAT6,RJ45,10m		-
NetApp Cable X6593-R6	112-00247	20m	RJ45 / RJ45	Cable,Ethernet,CAT6,RJ45,20m		-
NetApp Cable X6577-R6	112-00238	30m	RJ45 / RJ45	Cable,Ethernet,CAT6,RJ45,30m		-
SAS 3/6 Gbps (Copper Cables)
NetApp Cable X6557-R6	112-00176	0.5m	QSFP / QSFP	Cable,SAS Cntlr-Shelf/Shelf-Shelf/HA,0.5m	3/6 Gbps	-
NetApp Cable X66020A-R6	112-00429	1m	MiniSAS HD / QSFP	Cable,Storage,MiniSAS HD/QSFP,12Gb,1m	6 Gbps	-
NetApp Cable X6594-R6	112-00256	1m	QSFP / QSFP	Cable,SAS Cntlr-Shelf/Shelf-Shelf/HA,1m	3/6 Gbps	-
NetApp Cable X66021A-R6	112-00430	2m	MiniSAS HD / QSFP	Cable,Storage,MiniSAS HD/QSFP,12Gb,2m	6 Gbps	-
NetApp Cable X6558-R6	112-00177	2m	QSFP / QSFP	Cable,SAS Cntlr-Shelf/Shelf-Shelf/HA,2m	3/6 Gbps	-
NetApp Cable X6595-R6	112-00255	3m	QSFP / QSFP	Cable,SAS Cntlr-Shelf/Shelf-Shelf/HA,3m	3/6 Gbps	-
NetApp Cable X66022A-R6	112-00431	5m	MiniSAS HD / QSFP	Cable,Storage,MiniSAS HD/QSFP,12Gb,5m	6 Gbps	-
NetApp Cable X6559-R6	112-00178	5m	QSFP / QSFP	Cable,SAS Cntlr-Shelf/Shelf-Shelf/HA,5m	3/6 Gbps	-
NetApp Cable X6590-R6	112-00242	10m	QSFP / QSFP	Cable,SAS Cntlr-Shelf/Shelf-Shelf,Active,10m	3/6 Gbps	9.11.1RC1, 9.11.0, 9.10.1RC1, 9.10.0, 9.9.1RC1, 9.9.0, 9.8RC1, 9.7RC1, 9.6RC1, 9.5RC1, 9.4RC1, 9.3RC1, 9.2RC1, 9.1RC1, 9.0RC1, 8.3RC1, 8.2RC1, 8.1, 8.0.2, 7.3.5.1
NetApp Cable X6591-R6	112-00243	20m	QSFP / QSFP	Cable,SAS Cntlr-Shelf/Shelf-Shelf,Active,20m	3/6 Gbps	9.11.1RC1, 9.11.0, 9.10.1RC1, 9.10.0, 9.9.1RC1, 9.9.0, 9.8RC1, 9.7RC1, 9.6RC1, 9.5RC1, 9.4RC1, 9.3RC1, 9.2RC1, 9.1RC1, 9.0RC1, 8.3RC1, 8.2RC1, 8.1, 8.0.2, 7.3.5.1
SAS 3/6 Gbps (Optical Cables)
Optical Transceiver X65400A-R6 with Supported Cables
NetApp Cable X65400A-R6	332-00335, AFBR-79EQDZ-NA1, FTL410QE2C-N1, FTL410QE4C-N1, FTL410QL1C-N1	XCVR	QSFP / MPO	XCVR,QSFP,Opt,6Gb,SAS	6 Gbps	9.11.1RC1, 9.11.0, 9.10.1RC1, 9.10.0, 9.9.1RC1, 9.9.0, 9.8RC1, 9.7RC1, 9.6RC1, 9.5RC1, 9.4RC1, 9.3RC1, 9.2RC1, 9.1RC1, 9.0RC1, 8.3RC1, 8.1.3RC1, 8.2.1RC1
Optical Cables
NetApp Cable X66000A-R6	112-00265	1m	QSFP / QSFP	Cable,SAS-OM4,Cntlr-Shelf/Shelf-Shelf,QSFP,1m	6 Gbps	9.11.1RC1, 9.11.0, 9.10.1RC1, 9.10.0, 9.9.1RC1, 9.9.0, 9.8RC1, 9.7RC1, 9.6RC1, 9.5RC1, 9.4RC1, 9.3RC1, 9.2RC1, 9.1RC1, 9.0RC1, 8.3RC1, 8.1.3RC1, 8.2.1RC1
NetApp Cable X66001A-R6	112-00266	2m	QSFP / QSFP	Cable,SAS-OM4,Cntlr-Shelf/Shelf-Shelf,QSFP,2m	6 Gbps	9.11.1RC1, 9.11.0, 9.10.1RC1, 9.10.0, 9.9.1RC1, 9.9.0, 9.8RC1, 9.7RC1, 9.6RC1, 9.5RC1, 9.4RC1, 9.3RC1, 9.2RC1, 9.1RC1, 9.0RC1, 8.3RC1, 8.1.3RC1, 8.2.1RC1
NetApp Cable X66002A-R6	112-00267	3m	QSFP / QSFP	Cable,SAS-OM4,Cntlr-Shelf/Shelf-Shelf,QSFP,3m	6 Gbps	9.11.1RC1, 9.11.0, 9.10.1RC1, 9.10.0, 9.9.1RC1, 9.9.0, 9.8RC1, 9.7RC1, 9.6RC1, 9.5RC1, 9.4RC1, 9.3RC1, 9.2RC1, 9.1RC1, 9.0RC1, 8.3RC1, 8.1.3RC1, 8.2.1RC1
NetApp Cable X66003A-R6	112-00268	5m	QSFP / QSFP	Cable,SAS-OM4,Cntlr-Shelf/Shelf-Shelf,QSFP,5m	6 Gbps	9.11.1RC1, 9.11.0, 9.10.1RC1, 9.10.0, 9.9.1RC1, 9.9.0, 9.8RC1, 9.7RC1, 9.6RC1, 9.5RC1, 9.4RC1, 9.3RC1, 9.2RC1, 9.1RC1, 9.0RC1, 8.3RC1, 8.1.3RC1, 8.2.1RC1
NetApp Cable X66008A-R6	112-00260	5m	QSFP / 4xLC	Cable,Cntlr/Shelf-PatchP,OM4,QSFP-LC,5m	6 Gbps	-
NetApp Cable X66010A-R6	112-00263	5m	QSFP / 2xSC	Cable,Cntlr/Shelf-PatchP,OM4,QSFP-SC,5m	6 Gbps	-
NetApp Cable X66012A-R6	112-00278	5m	QSFP / 4xMT-RJ	Cable,Cntlr/Shelf-PatchP,OM4,QSFP/MTRJ,5m	6 Gbps	-
NetApp Cable X66014A-R6	112-00272	5m	QSFP / 8x Simplex LC	Cable,Cntlr/Shelf-PatchP,OS1,QSFP/LC,5m	6 Gbps	9.11.1RC1, 9.11.0, 9.10.1RC1, 9.10.0, 9.9.1RC1, 9.9.0, 9.8RC1, 9.7RC1, 9.6RC1, 9.5RC1, 9.4RC1, 9.3RC1, 9.2RC1, 9.1RC1, 9.0RC1, 8.3RC1, 8.1.3RC1, 8.2.1RC1
NetApp Cable X66016A-R6	112-00274	5m	QSFP / 8x Simplex SC	Cable,Cntlr/Shelf-PatchP,OS1,QSFP/SC,5m	6 Gbps	9.11.1RC1, 9.11.0, 9.10.1RC1, 9.10.0, 9.9.1RC1, 9.9.0, 9.8RC1, 9.7RC1, 9.6RC1, 9.5RC1, 9.4RC1, 9.3RC1, 9.2RC1, 9.1RC1, 9.0RC1, 8.3RC1, 8.1.3RC1, 8.2.1RC1
NetApp Cable X66018A-R6	112-00281	5m	QSFP / 4xMT-RJ	Cable,Cntlr/Shelf-PatchP,OS1,QSFP/MTRJ,5m	6 Gbps	9.11.1RC1, 9.11.0, 9.10.1RC1, 9.10.0, 9.9.1RC1, 9.9.0, 9.8RC1, 9.7RC1, 9.6RC1, 9.5RC1, 9.4RC1, 9.3RC1, 9.2RC1, 9.1RC1, 9.0RC1, 8.3RC1, 8.1.3RC1, 8.2.1RC1
NetApp Cable X66004A-R6	112-00269	7m	QSFP / QSFP	Cable,SAS-OM4,Cntlr-Shelf/Shelf-Shelf,QSFP,7m	6 Gbps	9.11.1RC1, 9.11.0, 9.10.1RC1, 9.10.0, 9.9.1RC1, 9.9.0, 9.8RC1, 9.7RC1, 9.6RC1, 9.5RC1, 9.4RC1, 9.3RC1, 9.2RC1, 9.1RC1, 9.0RC1, 8.3RC1, 8.1.3RC1, 8.2.1RC1
NetApp Cable X66005A-R6	112-00270	15m	QSFP / QSFP	Cable,SAS-OM4,Cntlr-Shelf/Shelf-Shelf,QSFP,15m	6 Gbps	9.11.1RC1, 9.11.0, 9.10.1RC1, 9.10.0, 9.9.1RC1, 9.9.0, 9.8RC1, 9.7RC1, 9.6RC1, 9.5RC1, 9.4RC1, 9.3RC1, 9.2RC1, 9.1RC1, 9.0RC1, 8.3RC1, 8.1.3RC1, 8.2.1RC1
NetApp Cable X66011A-R6	112-00264	30m	MPO / 4xSC	Cable,Cntlr/Shelf-PatchP,OM4,QSFP-SC,30m	6 Gbps	-
NetApp Cable X66006A-R6	112-00271	30m	QSFP / QSFP	Cable,SAS-OM4,Cntlr-Shelf/Shelf-Shelf,QSFP,30m	6 Gbps	9.11.1RC1, 9.11.0, 9.10.1RC1, 9.10.0, 9.9.1RC1, 9.9.0, 9.8RC1, 9.7RC1, 9.6RC1, 9.5RC1, 9.4RC1, 9.3RC1, 9.2RC1, 9.1RC1, 9.0RC1, 8.3RC1, 8.1.3RC1, 8.2.1RC1
NetApp Cable X66009A-R6	112-00261	30m	QSFP / 4xLC	Cable,Cntlr/Shelf-PatchP,OM4,QSFP-LC,30m	6 Gbps	-
NetApp Cable X66013A-R6	112-00279	30m	QSFP / 4xMT-RJ	Cable,Cntlr/Shelf-PatchP,OM4,QSFP/MTRJ,30m	6 Gbps	-
NetApp Cable X66015A-R6	112-00273	30m	QSFP / 8x Simplex LC	Cable,Cntlr/Shelf-PatchP,OS1,QSFP/LC,30m	6 Gbps	9.11.1RC1, 9.11.0, 9.10.1RC1, 9.10.0, 9.9.1RC1, 9.9.0, 9.8RC1, 9.7RC1, 9.6RC1, 9.5RC1, 9.4RC1, 9.3RC1, 9.2RC1, 9.1RC1, 9.0RC1, 8.3RC1, 8.1.3RC1, 8.2.1RC1
NetApp Cable X66017A-R6	112-00276	30m	QSFP / 8x Simplex SC	Cable,Cntlr/Shelf-PatchP,OS1,QSFP/SC,30m	6 Gbps	9.11.1RC1, 9.11.0, 9.10.1RC1, 9.10.0, 9.9.1RC1, 9.9.0, 9.8RC1, 9.7RC1, 9.6RC1, 9.5RC1, 9.4RC1, 9.3RC1, 9.2RC1, 9.1RC1, 9.0RC1, 8.3RC1, 8.1.3RC1, 8.2.1RC1
NetApp Cable X66019A-R6	112-00282	30m	QSFP / 4xMT-RJ	Cable,Cntlr/Shelf-PatchP,OS1,QSFP/MTRJ,30m	6 Gbps	9.11.1RC1, 9.11.0, 9.10.1RC1, 9.10.0, 9.9.1RC1, 9.9.0, 9.8RC1, 9.7RC1, 9.6RC1, 9.5RC1, 9.4RC1, 9.3RC1, 9.2RC1, 9.1RC1, 9.0RC1, 8.3RC1, 8.1.3RC1, 8.2.1RC1
NetApp Cable X66007A-R6	112-00280	50m	QSFP / QSFP	Cable,SAS-OM4,Cntlr-Shelf/Shelf-Shelf,QSFP,50m	6 Gbps	9.11.1RC1, 9.11.0, 9.10.1RC1, 9.10.0, 9.9.1RC1, 9.9.0, 9.8RC1, 9.7RC1, 9.6RC1, 9.5RC1, 9.4RC1, 9.3RC1, 9.2RC1, 9.1RC1, 9.0RC1, 8.3RC1, 8.1.3RC1, 8.2.1RC1

Supported Power Cords for NetApp DS2246

Marketing Part No.	End 1 / End 2	Length	Description
Non-Cabinet Power Cords
X800B-R6	CEE 7/7 (Schuko) / IEC60320-C13	2.50 m	Pwr Cord,Non-Cabinet,Cont Europe/Korea,10A/250V
X800C-R6	BS1363 / IEC60320-C13	2.50 m	Pwr Cord,Non-Cabinet,UK/Ireland,10A/250V
X800D-R6	JIS-C-8303 / IEC60320-C13	1.83 m	Pwr Cord,Non-Cabinet,Japan,15A/125V
X800E-R6	NEMA 5-15P / IEC60320-C13	1.83 m	Pwr Cord,Non-Cabinet,North America,15A/125V
X800F-R6	AS/NZS 3112 / IEC60320-C13	2.50 m	Pwr Cord,Non-Cabinet,Aus/NZ,10A/250V
X800G-R6	SEV 1011 / IEC60320-C13	2.50 m	Pwr Cord,Non-Cabinet,Switzerland,10A/250V
X800H-R6	IRAM 2073 / IEC60320-C13	2.50 m	Pwr Cord,Non-Cabinet,Argentina,10A/250V
X800I-R6	GB2099 / IEC60320-C13	2.50 m	Pwr Cord,Non-Cabinet,China,10A/250V
X800J-R6	DHCR107-2-D1 / IEC60320-C13	2.50 m	Pwr Cord,Non-Cabinet,Demark,10A/250V
X800K-R6	SANS 164-1 / IEC60320-C13	2.50 m	Pwr Cord,Non-Cabinet,India/S.Africa,10A/250V
X800L-R6	SI32 / IEC60320-C13	2.50 m	Pwr Cord,Non-Cabinet,Israel,10A/250V
X800M-R6	CEI 23-16 / IEC60320-C13	2.50 m	Pwr Cord,Non-Cabinet,Italy,10A/250V
X800P-R6	NEMA 6-15P / IEC60320-C13	1.83 m	Pwr Cord,Non-Cabinet,North America,15A/250V
X800T-R6	CNS 10917-3 / IEC60320-C13	2.50 m	Pwr Cord,Non-Cabinet,Taiwan,BSMI,15A/125V
X800VB-R6	NBR14136 / IEC60320-C13	2.50 m	Pwr Cord,Non-Cabinet,Brazil,10A/250V
X800W-R6	CNS10917/CNS690 / IEC60320-C13	1.83 m	Pwr Cord,Non-Cabinet,Taiwan,10A/250V
X800Y-R6	JIS-C-830 / IEC60320-C13	1.83 m	Pwr Cord,Non-Cabinet,Japan,15A/250V
In-Cabinet Power Cords
X1558A-R6	IEC60320-C14 / IEC60320-C13	1.20 m	Pwr Cord,In-Cabinet,48-In,C13-C14,10A/250V
X800-42U-35	IEC60320-C14 / IEC60320-C13	0.89 m	Pwr Cord,In-Cabinet,C13-C14,35-inch
X800-42U-43	IEC60320-C14 / IEC60320-C13	1.09 m	Pwr Cord,In-Cabinet,C13-C14,43-inch
X800-42U-64	IEC60320-C14 / IEC60320-C13	1.63 m	Pwr Cord,In-Cabinet,C13-C14,64-inch
X800-42U-R6	IEC60320-C14 / IEC60320-C13	0.68 m	Pwr Cord,In-Cabinet,27-In,C13-C14,10A/250V

Supported Rail Kits for NetApp DS2246

Footnote: Supported in 2-post front-mount configuration only

Marketing Part No.	Manufacturing Part No.	Description
NetApp System Cabinet Rail Kits
X877B-R6	111-00596	Rail Kit II, NetApp Cabinet, R6
X8783A-R6	111-01110	Rail Kit III, NetApp Cabinet, R6
X87880A	111-03887	Rail Kit 4,Cabinet
Third-Party Cabinet Rail Kits
X-02659-00	113-00232	Kit,4-Post,Square or Round-Hole, 24"-32" Rail
X5515A-R6 [1]	111-00232	Kit,2-Post (Round) or 4-Post (Square), 24"-32" Rail
X5526A-R6	111-00593	Kit,4-Post.Square-Hole, 24"-32" Rail
X5527A-R6	111-00864	Kit,2-Post,Round-Hole
X5529A-R6	111-00310	Kit,4-Post,Swift,Square-Hole, 24"-32" Rail

Marketing Part No.	Manufacturing Part No.	Description

Field Replacement Unit Parts for NetApp DS2246

Marketing Part No.	Manufacturing Part No.	Description
Cabinets
X870F-C	-	Cabinet,1280mm,Empty,No PDU,No Rails,-C
X870F-N-C	-	Cab,1280mm,Empty,No PDU,No Rails,-C
X870F-QS-C	-	Cabinet,1280mm,Empty,No PDU,No Rails,QS,-C
Chassis
X5723A	111-03068	SHELF,EMPTY,2 PSU,913W,MIDPLANE II,DS212C
Conversion Kit
X898A	TBD	DS212C, Kit,FAS2620 Conversion
Data Cable
X66020A-R6	112-00429	Cable,Storage,MiniSAS HD,QSFP,12G,1m
X66020A-R6-C	112-00429	Cable,Storage,MiniSAS HD,QSFP,12G,1m,-C
X66021A-R6	112-00430	Cable,Storage,MiniSAS HD,QSFP,12G,2m
X66021A-R6-C	112-00430	Cable,Storage,MiniSAS HD,QSFP,12G,2m,-C
X66022A-R6	112-00431	Cable,Storage,MiniSAS HD,QSFP,12G,5m
X66022A-R6-C	112-00431	Cable,Storage,MiniSAS HD,QSFP,12G,5m,-C
X66030A	112-00435	Cable,12Gb,Mini SAS HD,0.5m
X66030A-C	112-00435	Cable,12Gb,Mini SAS HD,0.5m,-C
X66030A-K-N	112-00435	Cable,12Gb,Mini SAS HD,0.5m
X66030A-N	112-00435	Cable,12Gb,Mini SAS HD,0.5m
X66030A-N-C	112-00435	Cable,12Gb,Mini SAS HD,0.5m,-C
X66031A	112-00436	Cable,12Gb,Mini SAS HD,1m
X66031A-C	112-00436	Cable,12Gb,Mini SAS HD,1m,-C
X66031A-K-N	112-00436	Cable,12Gb,Mini SAS HD,1m
X66031A-N	112-00436	Cable,12Gb,Mini SAS HD,1m
X66031A-N-C	112-00436	Cable,12Gb,Mini SAS HD,1m,-C
X66032A	112-00437	Cable,12Gb,Mini SAS HD,2m
X66032A-C	112-00437	Cable,12Gb,Mini SAS HD,2m,-C
X66032A-K-N	112-00437	Cable,12Gb,Mini SAS HD,2m
X66032A-N	112-00437	Cable,12Gb,Mini SAS HD,2m
X66032A-N-C	112-00437	Cable,12Gb,Mini SAS HD,2m,-C
X66033A	112-00438	Cable,12Gb,Mini SAS HD,3m
X66033A-C	112-00438	Cable,12Gb,Mini SAS HD,3m,-C
X66033A-K-N	112-00438	Cable,12Gb,Mini SAS HD,3m
X66033A-N	112-00438	Cable,12Gb,Mini SAS HD,3m
X66033A-N-C	112-00438	Cable,12Gb,Mini SAS HD,3m,-C
X66034A	112-00439	Cable,12Gb,Mini SAS HD,5m
X66034A-C	112-00439	Cable,12Gb,Mini SAS HD,5m,-C
X66034A-K-N	112-00439	Cable,12Gb,Mini SAS HD,5m
X66034A-N	112-00439	Cable,12Gb,Mini SAS HD,5m
X66034A-N-C	112-00439	Cable,12Gb,Mini SAS HD,5m,-C
X66040A	112-00449	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,1m
X66040A-C	112-00449	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,1m,-C
X66040A-K-N	112-00449	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,1m
X66040A-N	112-00449	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,1m
X66040A-N-C	112-00449	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,1m,-C
X66041A	112-00450	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,2m
X66041A-C	112-00450	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,2m,-C
X66041A-K-N	112-00450	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,2m
X66041A-N	112-00450	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,2m
X66041A-N-C	112-00450	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,2m,-C
X66042A	112-00451	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,3m
X66042A-C	112-00451	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,3m,-C
X66042A-K-N	112-00451	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,3m
X66042A-N	112-00451	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,3m
X66042A-N-C	112-00451	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,3m,-C
X66043A	112-00452	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,5m
X66043A-C	112-00452	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,5m,-C
X66043A-K-N	112-00452	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,5m
X66043A-N	112-00452	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,5m
X66043A-N-C	112-00452	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,5m,-C
X66044A	112-00453	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,15m
X66045A	112-00454	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,30m
X66046A	112-00455	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,50m
X66047A	112-00456	Cable,12Gb,SAS Opt,Mini SAS HD to LC,5m
X66047A-C	112-00456	Cable,12Gb,SAS Opt,Mini SAS HD to LC,5m,-C
X66047A-N-C	112-00456	Cable,12Gb,SAS Opt,Mini SAS HD to LC,5m,-C
X66048A	112-00457	Cable,12Gb,SAS Opt,Mini SAS HD to LC,30m
X66048A-C	112-00457	Cable,12Gb,SAS Opt,Mini SAS HD to LC,30m,-C
X66048A-N-C	112-00457	Cable,12Gb,SAS Opt,Mini SAS HD to LC,30m,-C
Drive
X302A-R5	108-00268	Disk Drive,1.0TB 7.2k,DS424x,FAS2240-4
X306A-R5	108-00270	Disk Drive,2.0TB 7.2k,DS424x,2554/2240-4
X308A-R5	108-00277	Disk Drive,3.0TB 7.2K,DS424x,2554/2240-4
X315A-R6	108-00368	DSK DRV,4TB 7.2k,NSE,DS424x,2554/2220/2240-4
X317A	108-00399	DSK DRV,6TB,7.2K,12G,NSE,DS212C
X318A-R6	108-00455	DSK DRV,8TB,7.2K,12G,DS212C
X322A	108-00551	DSK DRV,10TB,7.2K,12G,NSE,DS212C
X336A-R6	108-00427	DSK DRV,4TB,7.2K,12G,DS212C
X339A	108-00426	DSK DRV,2TB,7.2K,12Gb,DS212C,FAS2620
X363A-R6	108-00467	SSD,3.8TB,FAS2520/2554
X364A	108-00650	SSD,3.8TB,DS212C,FAS2620,w/MSW
X366A-R6	108-00470	SSD,1.6TB,NSE,DS4246,FAS2554
X374A	108-00573	SSD,960GB,12G,DS212C,W/MSW
X380A	108-00549	DSK DRV,10TB,7.2K,12G,DS212C
X388A	108-00885	DSK DRV,16TB,7.2K,12G,DS212C
X448A-R6	108-00253	SSD,200GB,DS4246,FAS2554/2240-4/2220
X449A-R6	108-00319	SSD,800GB,DS4246,FAS2554/2240-4/2220
X477A-R6	108-00315	DSK DRV,4TB 7.2k,DS4246,2554/2220/2240-4
X488A-R5	108-00298	Disk Drive,900GB 10K,2520/2220
X489A-R6	108-00322	Disk Drive,1.2TB 10K,2520/2220
X490A-R6	108-00425	Disk Drive,1.8TB 10K,FAS2520
X575A-R6	108-00370	SSD,400GB,DS424x,FAS2554/2240-4/2220
X576A-R6	108-00373	SSD,1.6TB,DS424x,FAS2554/2240-4/2220
X577A-R6	108-00375	SSD,800GB,NSE,DS4246,FAS2554
Power Cord
X-50617-00	-	Jumper Crd,In-Cab,2m,C20-C13,E-Series
X-50617-00-0E-C	-	Jumper Crd,In-Cab,2m,C20-C13,E-Series,0E,-C
X1558A-R6	-	Jumper Crd,In-Cab,48-IN,C13-C14
X1558A-R6-C	-	Jumper Crd,In-Cab,48-IN,C13-C14-C
X800-42U-35	-	Jumper Crd,In-Cab,C13-C14,35-inch
X800-42U-35-C	-	Jumper Crd,In-Cab,C13-C14,35-inch,-C
X800-42U-35-K-N	-	Jumper Crd,In-Cab,C13-C14,35-inch
X800-42U-35-N	-	Power Cable,In-Cabinet,C13-C14,35-inch
X800-42U-43	-	Jumper Crd,In-Cab,C13-C14,43-inch
X800-42U-43-C	-	Jumper Crd,In-Cab,C13-C14,43-inch,-C
X800-42U-43-K-N	-	Jumper Crd,In-Cab,C13-C14,43-inch
X800-42U-43-N	-	Power Cable,In-Cabinet,C13-C14,43-inch
X800-42U-64	-	Jumper Crd,In-Cab,C13-C14,64-inch
X800-42U-64-C	-	Jumper Crd,In-Cab,C13-C14,64-inch,-C
X800-42U-64-K-N	-	Jumper Crd,In-Cab,C13-C14,64-inch
X800-42U-64-N	-	Power Cable,In-Cabinet,C13-C14,64-inch
X800-42U-R6	-	Jumper Crd,In-Cab,C13-C14
X800-42U-R6-C	-	Jumper Crd,In-Cab,C13-C14,-C
X800B-R6	-	Power Cable,Continental Europe,R6
X800B-R6-C	-	Power Cable,Continental Europe,-C,R6
X800C-R6	-	Power Cable,UK and Ireland,R6
X800C-R6-C	-	Power Cable,UK and Ireland,-C,R6
X800D-R6	-	Power Cable,Japan,R6
X800D-R6-C	-	Power Cable,Japan,-C,R6
X800E-R6	-	Power Cable,North America,R6
X800E-R6-C	-	Power Cable,North America,-C,R6
X800F-R6	-	Power Cable,Australia/New Zealand,R6
X800F-R6-C	-	Power Cable,Australia/New Zealand,-C,R6
X800G-R6	-	Power Cable,Switzerland,R6
X800G-R6-C	-	Power Cable,Switzerland,-C,R6
X800H-R6	-	Power Cable,Argentina,R6
X800H-R6-C	-	Power Cable,Argentina,-C,R6
X800I-R6	-	Power Cable,China,R6
X800I-R6-C	-	Power Cable,China,-C,R6
X800J-R6	-	Power Cable,Denmark,R6
X800J-R6-C	-	Power Cable,Denmark,-C,R6
X800K-R6	-	Power Cable,India,South Africa,R6
X800K-R6-C	-	Power Cable,India,South Africa,-C,R6
X800L-R6	-	Power Cable,Israel,R6
X800L-R6-C	-	Power Cable,Israel,-C,R6
X800M-R6	-	Power Cable,Italy,R6
X800M-R6-C	-	Power Cable,Italy,-C,R6
X800N	-	POWER CABLE,INDIA BIS
X800N-C	-	Power Cable,India BIS,-C
X800P-R6	-	Power Cable,North America,250V,R6
X800P-R6-C	-	Power Cable,North America,250V,-C,R6
X800T-R6	-	Power Cable,Taiwan,BSMI,R6
X800T-R6-C	-	Power Cable,Taiwan,BSMI,-C,R6
X800VB-R6	-	Power Cable,Brazil,IEC-60906-1-Plug
X800W-R6	-	Power Cable,Taiwan,250V,BSMI,R6
X800W-R6-C	-	Power Cable,Taiwan,250V,BSMI,-C
X800Y-R6	-	Power Cable,Japan,250V/15A
X800Y-R6-C	-	Power Cable,Japan,250V/15A,-C
Power Supply Unit
X5726A	114-00148	PSU,913W
RailKit
X-02654-00	111-02852	Rail Kit,Thin,Rnd/Sq-Hole,2-Post
X-02654-00-C	111-02852	Rail Kit,Thin,Rnd/Sq-Hole,2-Post,-C
X-02654-00-K-N	111-02852	Rail Kit,Thin,Rnd/Sq-Hole,2-Post
X-02654-00-N	111-02852	Rail Kit,Thin,Rnd/Sq-Hole,2-Post
X-02654-00-N-C	111-02852	Rail Kit,Thin,Rnd/Sq-Hole,2-Post
X-02657-00	111-02657	Rackmount Kit,212C,4-post,Adj
X-02657-00-C	111-02657	Rail Kit,Thin,Rnd/Sq-Hole,4-Post,Adj,24-32,-C
X-02657-00-K-N	111-02657	Rackmount Kit,212C,4-post,Adj
X-02657-00-N	111-02657	Rackmount Kit,212C,4-post,Adj
X-02657-00-N-C	111-02657	Rail Kit,Thin,Rnd/Sq-Hole,4-Post,Adj,24-32,-C
Shelf Module
X5720A	-	IOM12,SAS,12G

Size, Weight, Acoustic, Power for NetApp DS2246

Associated Part No.	Configuration	Rack Units	Weight	Sound Power	Sound Pressure	Line Voltage Actual (Min to Max)	Amps Typical	Amps Worst	Watts Typical	Watts Worst	BTU / Hr Typical	BTU / Hr Worst
Empty Shelf (with AC PSU)
X559A-R6	shelf empty with 2x AC PSUs	-	-	-	-	-	-	-	-	-	-	-
Empty Shelf (without PSU)
X567A-R6	shelf empty without PSU	-	-	-	-	-	-	-	-	-	-	-
Quickship Half Populated
DS2246-10.8TB-QS-R5	12x900GB,10K,SAS	2	45.6 lb (20.7 kg)	6.9 Bels	51 dBA	100 (100 to 120)	1.6	2.5	156	245	533	837
DS2246-10.8TB-QS-R5	12x900GB,10K,SAS	2	45.6 lb (20.7 kg)	6.9 Bels	51 dBA	200 (200 to 240)	0.79	1.23	153	241	523	823
DS2246-1005-12S-QS-R5	12x450GB,10K,SAS	2	45.6 lb (20.7 kg)	6.9 Bels	51 dBA	100 (100 to 120)	1.64	2.55	160	249	547	850
DS2246-1005-12S-QS-R5	12x450GB,10K,SAS	2	45.6 lb (20.7 kg)	6.9 Bels	51 dBA	200 (200 to 240)	0.81	1.25	157	245	536	837
DS2246-1007-12S-QS-R5	12x600GB,10K,SAS	2	45.6 lb (20.7 kg)	6.9 Bels	51 dBA	100 (100 to 120)	1.64	2.55	160	249	547	850
DS2246-1007-12S-QS-R5	12x600GB,10K,SAS	2	45.6 lb (20.7 kg)	6.9 Bels	51 dBA	200 (200 to 240)	0.81	1.25	157	245	536	837
DS2246-12X1.8TB-QS-R6	12x1.8TB,10K,SAS	2	47.0 lb (21.3 kg)	6.9 Bels	51 dBA	100 (100 to 120)	1.98	2.69	194	263	663	898
DS2246-12X1.8TB-QS-R6	12x1.8TB,10K,SAS	2	47.0 lb (21.3 kg)	6.9 Bels	51 dBA	200 (200 to 240)	0.98	1.32	191	258	652	881
DS2246-14.4TB-QS-R6	12x1.2TB,10K,SAS	2	47.0 lb (21.3 kg)	6.9 Bels	51 dBA	100 (100 to 120)	2.03	2.73	198	267	676	912
DS2246-14.4TB-QS-R6	12x1.2TB,10K,SAS	2	47.0 lb (21.3 kg)	6.9 Bels	51 dBA	200 (200 to 240)	1	1.34	195	262	666	895
DS2246-AF-1.6-12N-0P-C	12x1.6TB,SSD,NSE	2	47.0 lb (21.3 kg)	6.9 Bels	51 dBA	100 (100 to 120)	1.6	2.29	156	224	533	765
DS2246-AF-1.6-12N-0P-C	12x1.6TB,SSD,NSE	2	47.0 lb (21.3 kg)	6.9 Bels	51 dBA	200 (200 to 240)	0.79	1.13	153	220	523	751
DS2246-SL-3.8-12S-QS	12x3.8TB,SSD	2	47.0 lb (21.3 kg)	6.9 Bels	51 dBA	100 (100 to 120)	1.42	2.13	139	208	475	710
DS2246-SL-3.8-12S-QS	12x3.8TB,SSD	2	47.0 lb (21.3 kg)	6.9 Bels	51 dBA	200 (200 to 240)	0.7	1.05	137	204	468	697
DS2246-SL008-4A-QS-R6	4x200GB,SSD	2	35.7 lb (16.2 kg)	6.9 Bels	51 dBA	100 (100 to 120)	1.42	2.33	139	228	475	779
DS2246-SL008-4A-QS-R6	4x200GB,SSD	2	35.7 lb (16.2 kg)	6.9 Bels	51 dBA	200 (200 to 240)	0.7	1.15	137	224	468	765
DS2246-SL008-4A-QS-R6	4x200GB,SSD	2	37.5 lb (17.0 kg)	6.9 Bels	51 dBA	100 (100 to 120)	0.72	2.53	69	256	236	874
DS2246-SL008-4A-QS-R6	4x200GB,SSD	2	37.5 lb (17.0 kg)	6.9 Bels	51 dBA	200 (200 to 240)	0.55	1.26	70	251	239	857
DS2246-SL016-4S-QS-R6	4x400GB,SSD	2	39.7 lb (18.0 kg)	6.9 Bels	51 dBA	100 (100 to 120)	1.13	1.83	110	179	376	611
DS2246-SL016-4S-QS-R6	4x400GB,SSD	2	39.7 lb (18.0 kg)	6.9 Bels	51 dBA	200 (200 to 240)	0.56	0.9	108	176	369	601
DS2246-SL024-12A-QS-R6	12x200GB,SSD	2	47.0 lb (21.3 kg)	6.9 Bels	51 dBA	100 (100 to 120)	2.08	2.98	203	292	693	997
DS2246-SL024-12A-QS-R6	12x200GB,SSD	2	47.0 lb (21.3 kg)	6.9 Bels	51 dBA	200 (200 to 240)	1.02	1.47	199	287	680	980
DS2246-SL048-12S-QS-R6	12x400GB,SSD	2	47.0 lb (21.3 kg)	6.9 Bels	51 dBA	100 (100 to 120)	1.19	1.97	114	199	389	679
DS2246-SL048-12S-QS-R6	12x400GB,SSD	2	47.0 lb (21.3 kg)	6.9 Bels	51 dBA	200 (200 to 240)	0.75	1.07	115	192	393	655
DS2246-SL096-12N-QS-R6	12x800GB,SSD,NSE	2	47.0 lb (21.3 kg)	6.9 Bels	51 dBA	100 (100 to 120)	2.08	2.98	203	292	693	997
DS2246-SL096-12N-QS-R6	12x800GB,SSD,NSE	2	47.0 lb (21.3 kg)	6.9 Bels	51 dBA	200 (200 to 240)	1.02	1.47	199	287	680	980
DS2246-SL096-12S-QS-R6	12x800GB,SSD	2	47.0 lb (21.3 kg)	6.9 Bels	51 dBA	100 (100 to 120)	2.08	2.98	203	292	693	997
DS2246-SL096-12S-QS-R6	12x800GB,SSD	2	47.0 lb (21.3 kg)	6.9 Bels	51 dBA	200 (200 to 240)	1.02	1.47	199	287	680	980
DS2246-SL192-12S-QS-R6	12x1.6TB,SSD	2	47.0 lb (21.3 kg)	6.9 Bels	51 dBA	100 (100 to 120)	1.6	2.29	156	224	533	765
DS2246-SL192-12S-QS-R6	12x1.6TB,SSD	2	47.0 lb (21.3 kg)	6.9 Bels	51 dBA	200 (200 to 240)	0.79	1.13	153	220	523	751
Quickship Fully Populated
DS2246-10-.8-1.8-24M-QS	20x1.8TB,NSE,4x800GB,NSE,Mixed	2	54.1 lb (24.5 kg)	6.9 Bels	51 dBA	100 (100 to 120)	2.87	3.58	281	350	960	1195
DS2246-10-.8-1.8-24M-QS	20x1.8TB,NSE,4x800GB,NSE,Mixed	2	54.1 lb (24.5 kg)	6.9 Bels	51 dBA	200 (200 to 240)	1.41	1.75	276	343	942	1171
DS2246-10-1.8-24N-QS	24x1.8TB,10K,SAS,NSE	2	54.6 lb (24.8 kg)	6.9 Bels	51 dBA	100 (100 to 120)	3.04	3.74	297	366	1014	1250
DS2246-10-1.8-24N-QS	24x1.8TB,10K,SAS,NSE	2	54.6 lb (24.8 kg)	6.9 Bels	51 dBA	200 (200 to 240)	1.49	1.84	292	359	997	1226
DS2246-1011-24S-QS-R5	24x450GB,10K,SAS	2	54.6 lb (24.8 kg)	6.9 Bels	51 dBA	-40 (-60 to -40)	-	-	-	-	837	1468
DS2246-1011-24S-QS-R5	24x450GB,10K,SAS	2	54.6 lb (24.8 kg)	6.9 Bels	51 dBA	100 (100 to 120)	2.76	4.28	274	428	936	1461
DS2246-1011-24S-QS-R5	24x450GB,10K,SAS	2	54.6 lb (24.8 kg)	6.9 Bels	51 dBA	200 (200 to 240)	1.58	2.29	270	420	922	1434
DS2246-1014-24N-QS-R5	24x600GB,10K,SAS,NSE	2	52.0 lb (23.6 kg)	6.9 Bels	51 dBA	-40 (-60 to -40)	-	-	-	-	847	1451
DS2246-1014-24N-QS-R5	24x600GB,10K,SAS,NSE	2	52.0 lb (23.6 kg)	6.9 Bels	51 dBA	100 (100 to 120)	2.77	4.22	267	422	912	1441
DS2246-1014-24N-QS-R5	24x600GB,10K,SAS,NSE	2	52.0 lb (23.6 kg)	6.9 Bels	51 dBA	200 (200 to 240)	1.64	2.29	266	418	908	1427
DS2246-1014-24S-QS-R5	24x600GB,10K,SAS	2	52.0 lb (23.6 kg)	6.9 Bels	51 dBA	-40 (-60 to -40)	-	-	-	-	847	1451
DS2246-1014-24S-QS-R5	24x600GB,10K,SAS	2	52.0 lb (23.6 kg)	6.9 Bels	51 dBA	100 (100 to 120)	2.77	4.22	267	422	912	1441
DS2246-1014-24S-QS-R5	24x600GB,10K,SAS	2	52.0 lb (23.6 kg)	6.9 Bels	51 dBA	200 (200 to 240)	1.64	2.29	266	418	908	1427
DS2246-1021-24N-QS-R6	24x900GB,10K,SAS,NSE	2	52.0 lb (23.6 kg)	6.9 Bels	51 dBA	100 (100 to 120)	3.43	4.13	336	404	1147	1379
DS2246-1021-24N-QS-R6	24x900GB,10K,SAS,NSE	2	52.0 lb (23.6 kg)	6.9 Bels	51 dBA	200 (200 to 240)	1.69	2.03	330	396	1127	1352
DS2246-18TB-24M-QS-R6	20x900GB,SAS,4x200GB,SSD,Mixed	2	48.9 lb (22.2 kg)	6.9 Bels	51 dBA	100 (100 to 120)	2.92	3.44	277	334	945	1139
DS2246-18TB-24M-QS-R6	20x900GB,SAS,4x200GB,SSD,Mixed	2	48.9 lb (22.2 kg)	6.9 Bels	51 dBA	200 (200 to 240)	1.43	1.72	269	329	918	1122
DS2246-21.6TB-QS-R5	24x900GB,10K,SAS	2	52.0 lb (23.6 kg)	6.9 Bels	51 dBA	100 (100 to 120)	3.43	4.13	336	404	1147	1379
DS2246-21.6TB-QS-R5	24x900GB,10K,SAS	2	52.0 lb (23.6 kg)	6.9 Bels	51 dBA	200 (200 to 240)	1.69	2.03	330	396	1127	1352
DS2246-24x1.8TB-QS-R6	24x1.8TB,10K,SAS	2	54.6 lb (24.8 kg)	6.9 Bels	51 dBA	100 (100 to 120)	3.04	3.74	297	366	1014	1250
DS2246-24x1.8TB-QS-R6	24x1.8TB,10K,SAS	2	54.6 lb (24.8 kg)	6.9 Bels	51 dBA	200 (200 to 240)	1.49	1.84	292	359	997	1226
DS2246-28.8TB-QS-R6	24x1.2TB,10K,SAS	2	54.6 lb (24.8 kg)	6 Bels	51 dBA	100 (100 to 120)	2.85	3.55	283	354	966	1209
DS2246-28.8TB-QS-R6	24x1.2TB,10K,SAS	2	54.6 lb (24.8 kg)	6 Bels	51 dBA	200 (200 to 240)	1.46	1.8	276	348	942	1188
DS2246-AF-1.6-24N-0P-C/DS2246-S-1.6-24N-QS	24x1.6TB,SSD NSE	2	54.6 lb (24.8 kg)	6.9 Bels	51 dBA	100 (100 to 120)	1.63	2.34	161	230	550	786
DS2246-AF-1.6-24N-0P-C/DS2246-S-1.6-24N-QS	24x1.6TB,SSD NSE	2	54.6 lb (24.8 kg)	6.9 Bels	51 dBA	200 (200 to 240)	0.93	1.3	159	224	543	766
DS2246-S-1.6-1.8-24N-QS	20x1.8TB,SAS,NSE,4x1.6TB,SSD,NSE,Mixed	2	54.0 lb (24.5 kg)	6.9 Bels	51 dBA	100 (100 to 120)	2.87	3.55	281	347	960	1185
DS2246-S-1.6-1.8-24N-QS	20x1.8TB,SAS,NSE,4x1.6TB,SSD,NSE,Mixed	2	54.0 lb (24.5 kg)	6.9 Bels	51 dBA	200 (200 to 240)	1.41	1.74	276	341	942	1164
DS2246-SL-3.8-24S-QS	24x3.8TB,SSD	2	54.6 lb (24.8 kg)	6.9 Bels	51 dBA	100 (100 to 120)	1.91	2.62	187	256	639	874
DS2246-SL-3.8-24S-QS	24x3.8TB,SSD	2	54.6 lb (24.8 kg)	6.9 Bels	51 dBA	200 (200 to 240)	0.94	1.29	184	251	628	857
DS2246-SL001-24M-QS-R6	20x1.2TB,4x400GB,Mixed	2	48.9 lb (22.2 kg)	6.9 Bels	51 dBA	100 (100 to 120)	2.92	3.44	277	334	945	1139
DS2246-SL001-24M-QS-R6	20x1.2TB,4x400GB,Mixed	2	48.9 lb (22.2 kg)	6.9 Bels	51 dBA	200 (200 to 240)	1.43	1.72	269	329	918	1122
DS2246-SL002-24M-QS-R6	20x1.8TB,SAS,4x400GB,SSD,Mixed	2	54.1 lb (24.5 kg)	6.9 Bels	51 dBA	100 (100 to 120)	2.87	3.58	281	350	960	1195
DS2246-SL002-24M-QS-R6	20x1.8TB,SAS,4x400GB,SSD,Mixed	2	54.1 lb (24.5 kg)	6.9 Bels	51 dBA	200 (200 to 240)	1.41	1.75	276	343	942	1171
DS2246-SL009-24M-QS-R6	20x900GB,4x400GB,Mixed	2	52.5 lb (23.8 kg)	6.9 Bels	51 dBA	100 (100 to 120)	2.7	3.6	264	352	902	1202
DS2246-SL009-24M-QS-R6	20x900GB,4x400GB,Mixed	2	52.5 lb (23.8 kg)	6.9 Bels	51 dBA	200 (200 to 240)	1.33	1.77	259	345	884	1178
DS2246-SL048-24A-QS-R6	24x200GB,SSD	2	45.2 lb (20.5 kg)	6.9 Bels	51 dBA	100 (100 to 120)	1.6	3.41	161	343	550	1171
DS2246-SL048-24A-QS-R6	24x200GB,SSD	2	45.2 lb (20.5 kg)	6.9 Bels	51 dBA	200 (200 to 240)	0.9	1.67	162	336	553	1147
DS2246-SL096-24S-QS-R6	24x400GB,SSD	2	48.9 lb (22.2 kg)	6.9 Bels	51 dBA	100 (100 to 120)	1.75	2.4	174	240	594	819
DS2246-SL096-24S-QS-R6	24x400GB,SSD	2	48.9 lb (22.2 kg)	6.9 Bels	51 dBA	200 (200 to 240)	0.97	1.29	167	236	570	805
DS2246-SL192-24A-QS-R6	24x800GB,SSD	2	54.7 lb (24.8 kg)	6.9 Bels	51 dBA	100 (100 to 120)	2.8	3.54	281	354	960	1209
DS2246-SL192-24A-QS-R6	24x800GB,SSD	2	54.7 lb (24.8 kg)	6.9 Bels	51 dBA	200 (200 to 240)	1.43	1.75	276	344	942	1175
DS2246-SL192-24N-QS-R6	24x800GB,SSD,NSE	2	54.7 lb (24.8 kg)	6.9 Bels	51 dBA	100 (100 to 120)	2.8	3.54	281	354	960	1209
DS2246-SL192-24N-QS-R6	24x800GB,SSD,NSE	2	54.7 lb (24.8 kg)	6.9 Bels	51 dBA	200 (200 to 240)	1.43	1.75	276	344	942	1175
DS2246-SL384-24S-QS-R6	24x1.6TB,SSD	2	54.6 lb (24.8 kg)	6.9 Bels	51 dBA	100 (100 to 120)	1.63	2.34	161	230	550	786
DS2246-SL384-24S-QS-R6	24x1.6TB,SSD	2	54.6 lb (24.8 kg)	6.9 Bels	51 dBA	200 (200 to 240)	0.93	1.3	159	224	543	766

Category: 2000-5000, 2u, drive-capacity-400gb, drive-count-24, drive-type-mixed, ds2246, interface-type-sas, netapp, sff

Shipping Information

Express Computer Systems can ship to virtually any address in the world and provides you with the best shipping rates possible. Cost of shipping varies depending on what service you require, your destination and size of the shipment. Shipping costs will be calculated separately from your order and billed to you post purchase. In the notes section of your order please provide us with your preferred shipping method and we will get back to you.

Custom configured orders ship within 2 business days after all required products are in stock.

Please allow 3 business days for products that are not in stock to arrive to our facility in Irvine, California.

Domestic Shipments

Standard Ground
- Shipping time: 2-7 business days
- Order processing time: 0-3 business days
- Delivery time after order is placed: 2-10 business days
- Excludes weekends, holidays or weather delays.
3 Business Days
- Shipping time: 3 business days
- Order processing time: 0-3 business days
- Delivery time after order is placed: 3-6 business days
- Excludes weekends, holidays or weather delays.
2 Business Days
- Shipping time: 2 business days
- Order processing time: 0-3 business days
- Delivery time after order is placed: 2-5 business days
- Excludes weekends, holidays or weather delays.
Overnight / Next Business Day
- Shipping time: 1 business days
- Order processing time: 0-3 business days
- Delivery time after order is placed: 1-4 business days
- Excludes weekends, holidays or weather delays.

International Shipments

International Economy
- Shipping time: 4-6 business days
- Order processing time: 0-3 business days
- Delivery time after order is placed: 5-9 business days
- Excludes weekends, holidays or weather delays.
International Priority
- Shipping time: 1-3 business days
- Order processing time: 0-3 business days
- Delivery time after order is placed: 2-6 business days
- Excludes weekends, holidays or weather delays.

For more information on shipping view our Shipping Information page or send us a message

ECS Warranty Information

Express Computer Systems (ECS) provides a 1 year parts warranty against defects in material or workmanship that will affect the products functionality. All refurbished items are tested prior to shipping to guarantee up-time upon arrival. If you are having issues with an item we provided please Contact Us and we will do our best to assist you.

What does our ECS warranty cover?
We offer 1 year warranty as standard and additional years can be added to fit your needs. Please reach out to a sales associate via the Contact Us page or live chat for more information on extended coverage options. During the coverage period if your product fails we will offer a Next Business Day replacement. If we are unable to replace the product we will refund its original selling price. Shipping costs and tax are not refundable. Express Computer Systems retains the right to decide whether the goods will be replaced or refunded.

What is not covered by our warranty?
Our warranty does not cover any problem caused by the following conditions:

accidents; misuse; carelessness; electrostatic discharge; shock; temperature or humidity beyond the specifications of the product; improper installation; operation; modification;
any improper use that contravenes the instructions in the user manual;
problems caused by other equipment. Our warranty is void if the product is returned with damaged, removed, counterfeit labels, or any modifications (including any component or external cover removal). Our warranties do not cover data loss or damages to any other equipment. In addition, our warranties do not cover incidental damages, consequential damages, or costs related to data recovery, removal, and installation.

Important notes:

Please ask for additional warranty/coverage that you may require in addition to the standard 1 ECS warranty prior to final purchase. Requesting additional warranty after your purchase can be denied.
FREE technical support is provided on purchased items via phone, email, or live chat.

About Express Computer Systems

Express Computer Systems is committed to transforming our customers’ IT infrastructure with high quality products at affordable costs. Our sales reps and customer support engineers understand our customers rely heavily on advanced technology to run their business but need to do so without breaking the bank.

We specialize in building custom server configurations, custom storage solutions, networking solutions, and components from top manufacturers including HPE, Dell, Cisco, NetApp, Dell EMC, HPE Nimble and many others.

Same-Day Shipping

At Express Computer Systems, we know hardware emergencies can happen at anytime. We also understand that you want to receive the best hardware as quickly as possible. At Express Computer Systems we'll ship the majority of our orders out the same day payment is made. Curious if the item you need will make it out on time? Feel free to contact us directly via the Contact Us link at the bottom, Live Chat feature or (800) 327-0730.

Buy, Sell, Rent, Lease, Trade-In

At Express Computer Systems we not only will sell you equipment at a great value, but we'll also purchase your used Dell, Cisco, NetApp or other networking equipment. Feel free to contact us with the model of the items you're looking to sell and we'll get you a quote ASAP. We also have flexible financing options for your purchasing needs.

In-House Configuration and Testing Lab

Every item we sell is tested on-site in our state-of-the-art hardware engineering lab. We use certified technicians to test every piece of equipment as well as updating all necessary firmware. The highest quality of testing and certification is guaranteed. We warranty all of our items we sell. Ask us today about warranty for a specific item.

Online Now

NetApp DS2246 Expansion Shelf (DS2246-SL002-24M-0P-R6-C) 20x 1.8TB 10K SAS HDD X426A-R6 + 4x 400GB SSD X438A-R6

-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.

-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.
