2U rack server

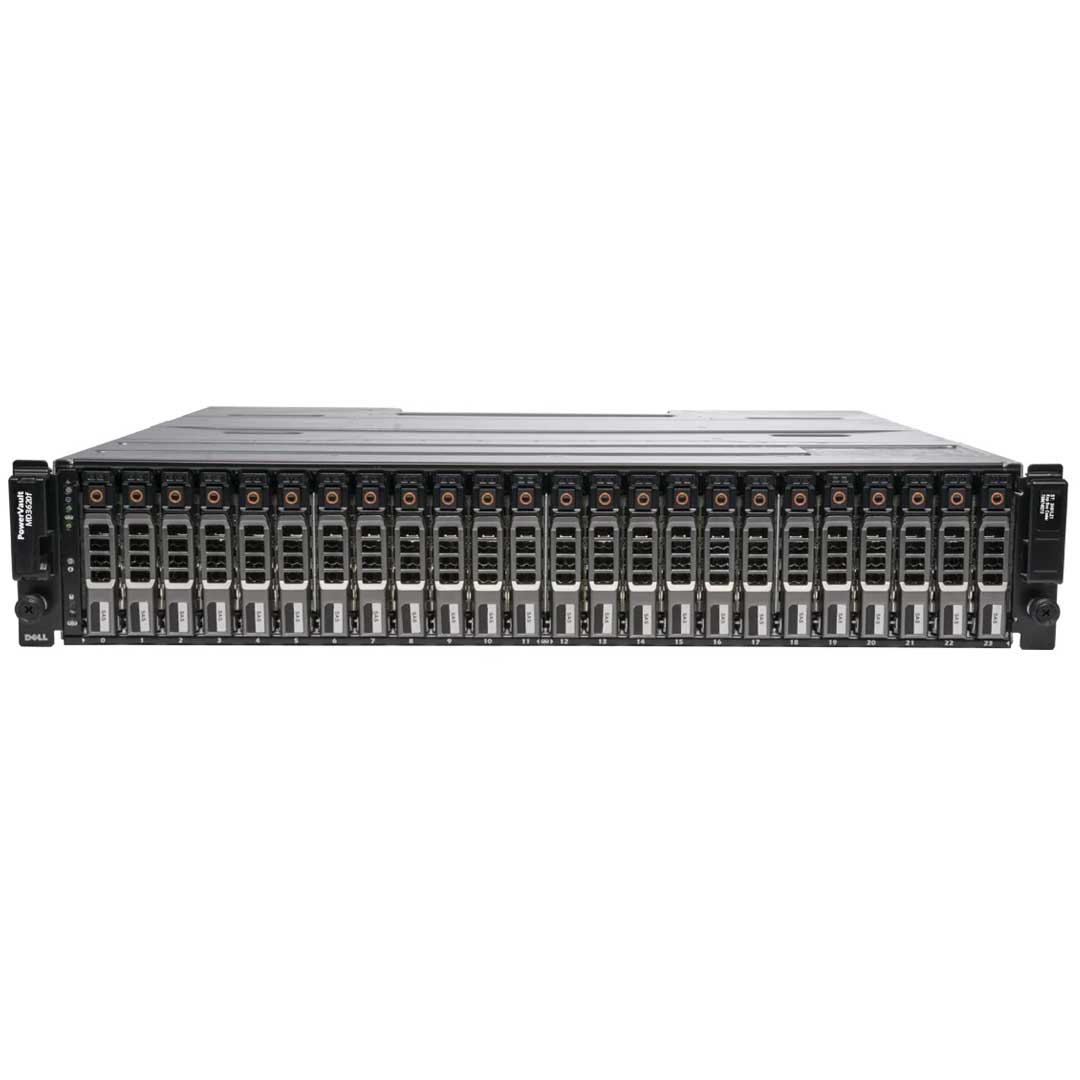

Storage | Max: 9624 SFF SAS (HDD/SSD)
Mix and match drives:Supported

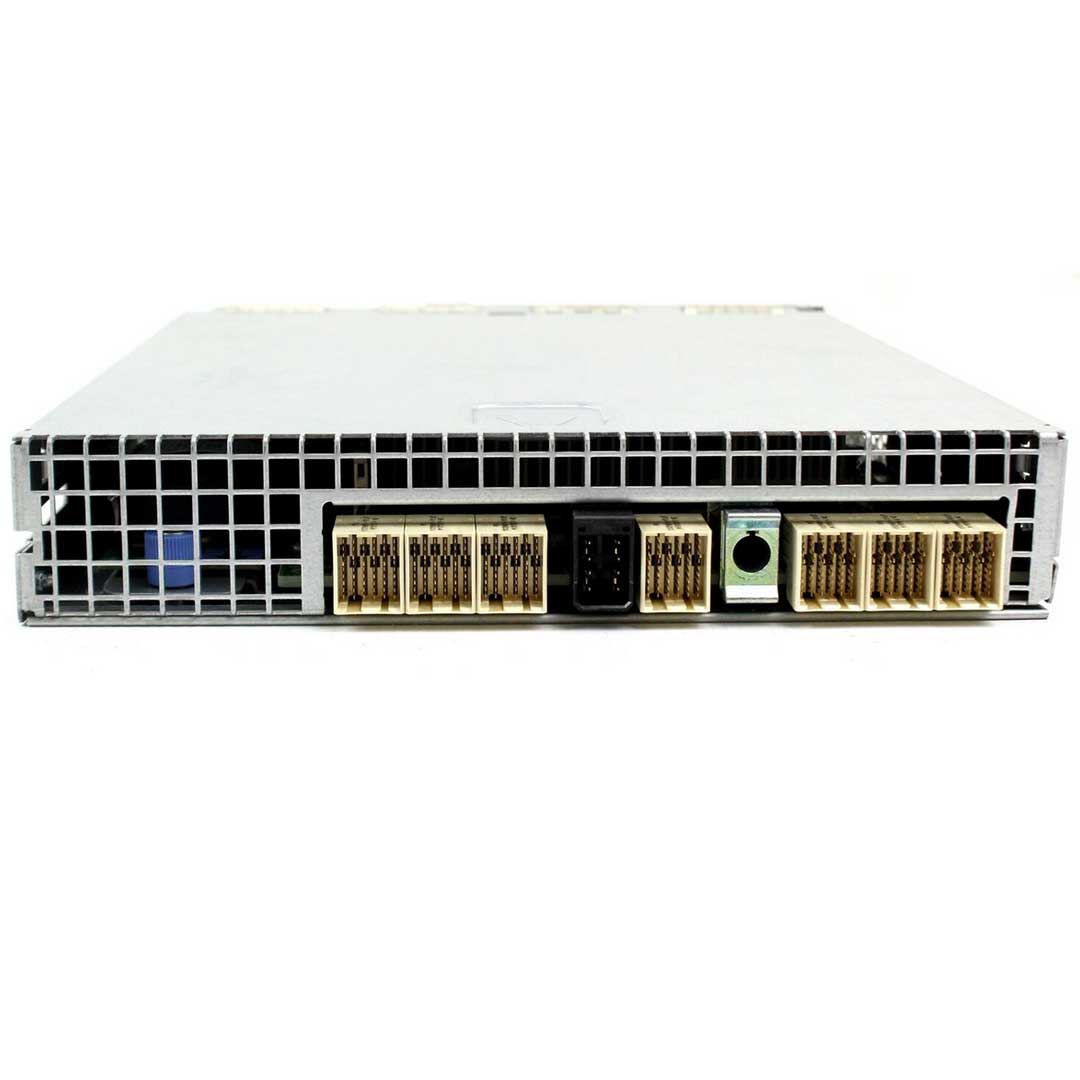

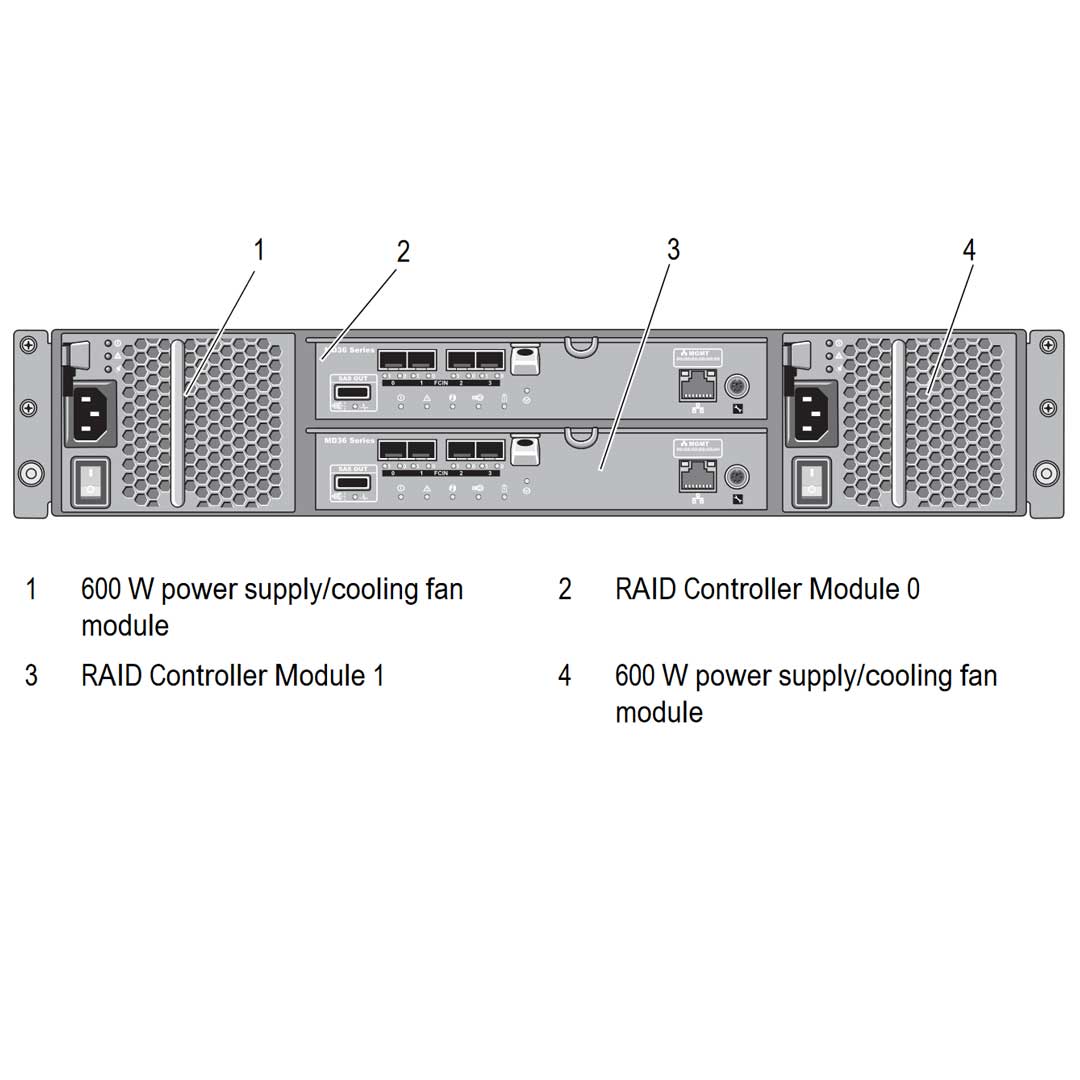

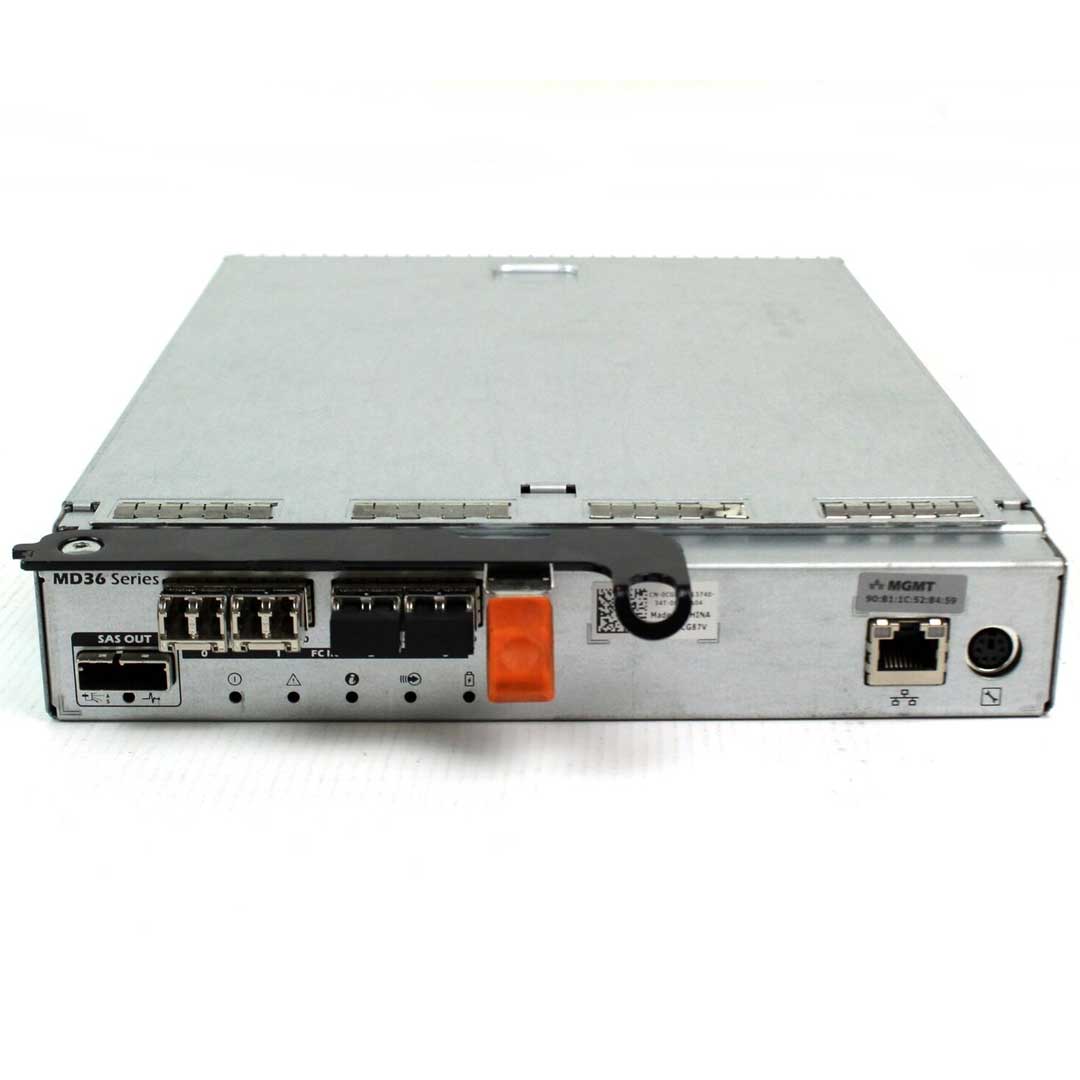

Controllers:Supports up to 2
Cache Per Controller:2GB or 4GB

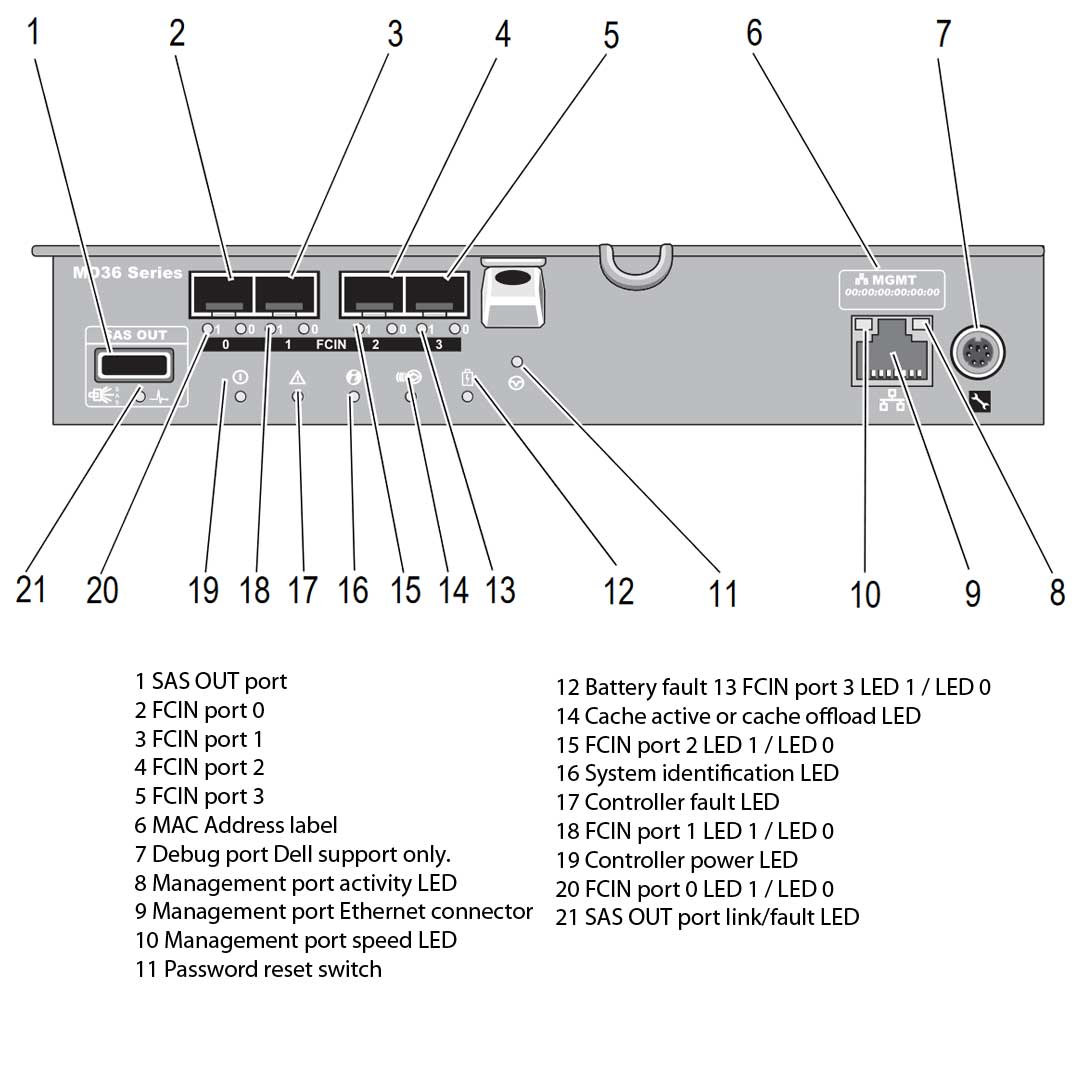

Ports Per Controller:- Four 8Gb/s SFP Host Connectivity
- One x4 6Gb SAS Expansion Connectivity (8088 mini connector)
- One RJ-45 1Gb Ethernet Remote Management
- One PS/2 Serial Service Management
Host Connectivity:
Single Controller Models:
Supports up to 4 servers directly connected or up to 64 servers when configured with a Fibre Channel switch
Dual Controller Models:Supports up to 8 servers directly connected or up to 64 servers when configured with a Fibre Channel switch
Expansion Storage:Expand up to 96 total drives using MD1200 and/or MD1220 expansion enclosures
MD3200 Series
Data Speeds1Gb iSCSI
6Gb SAS
Server Options
MD3060e
MD3200 12 Bay SAS
MD3200i 12 Drive iSCSI
MD3220 24 Drives SAS
MD3220i 24 Drives iSCSI
MD3400 Series
Speeds12Gb SAS
10GBase-T iSCSI
16Gb FC
Server OptionsMD3400 12 Drives
MD3420 24 Drives
MD3460 60 Drives
MD3600 Series
Speeds10GBase-T iSCSI
8Gb FC
Server Options
MD3600i 12 Drives iSCSI
MD3600f 12 Drives Fibre
MD3620i 24 Drives iSCSI
MD3620f 24 Drives Fibre
MD3660i 60 Drives iSCSI
MD3660f 60 Drives Fibre
MD3800 Series
Speeds10GBase-T iSCSI + 12Gb SAS
16 FC + 12Gb SAS
Server Options
MD3800i 12 Drives iSCSI
MD3800f 12 Drives Fibre
MD3820i 24 Drives iSCSI
MD3820f 24 Drives Fibre
MD3860i 60 Drives iSCSI
MD3860f 60 Drives Fibre

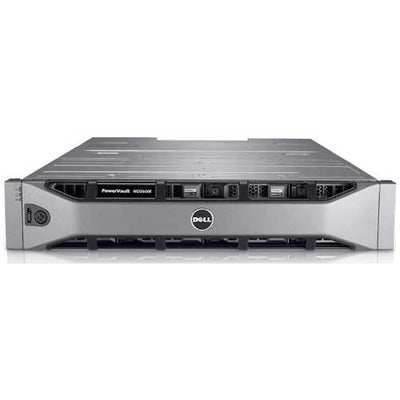

The Dell™PowerVault™MD3600f/MD3620f arrays is the introduction of 8Gb/s Fibre Channel in the MD series of arrays. The SAN solution is ideal for entry-level storage consolidation that requires high availability, high performance and business continuity without sacrificing ease of use and reliability. Designed for flexibility, the MD3600f arrays support a range of drive types, enclosures, and RAID levels all within a single array.
Proven Fibre Channel-based network storagePowerVault MD3620f arrays offer exceptional performance and flexibility and reliability for storage consolidation and scalability to meet unexpected business demands. Now it’s simple to improve storage utilization by combining storage resources, increasing availability with redundant hardware, and streamlining the backup process. By consolidating data and resources with a single array, backup strategies, and management complexities are minimized.
Reduce the effort required to store and manage your data.MD3620f Series arrays can support up to 64 physical servers when connected to one or more 4Gb/s or 8Gb/s Fibre Channel switches. Storage capacity, up to a maximum of 96 hard disk drives, can be expanded by attaching additional PowerVault MD1200 and/or MD1220 expansion enclosures.
Fibre Channel storage, ideal for data-intensive applicationsImplement your high-performance network storage solution forless with MD3620f Series arrays while protecting your existing FibreChannel investment proving business continuity and reliability. Now you can effectively consolidate storage to support the value of your Fibre Channel environment with the performance to meet both IOPs-intensive as well as high bandwidth applications. MD3620fstorage systems are also fully qualified for use in virtualized application environments with VMware® ESX and Microsoft® Hyper-V™ software.
To protect data and processes from major regional disasters like earthquakes, fires or large-scale power outages, your organization needs remote replication of data to a secondary site. Also used for testing and deploying new databases without any downtime.
