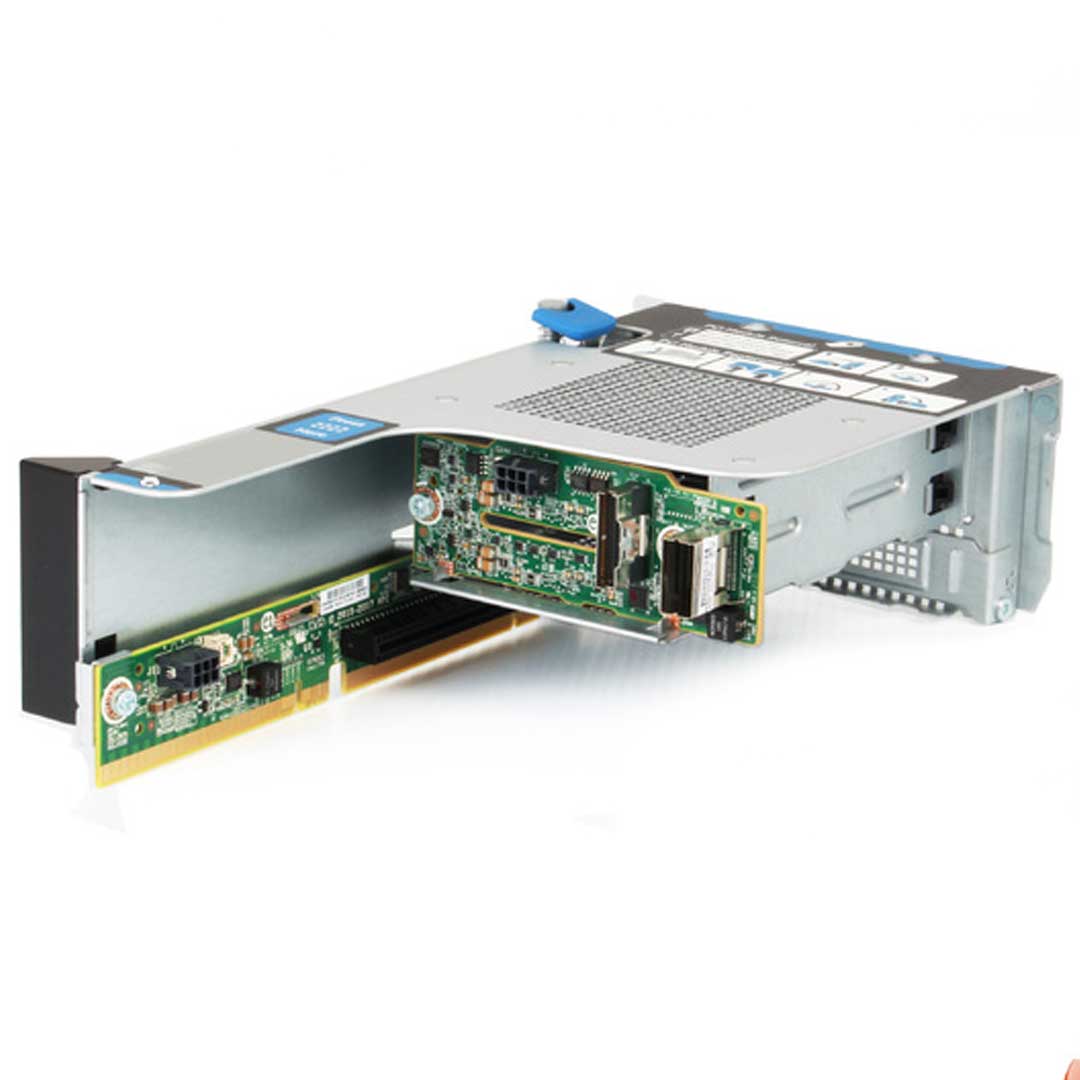

HPE DL380 (G10) Plus 2SFF SAS/SATA 12G Bc x16 Slot 3 Primary/Secondary Riser Kit | P26920-B21

Quick Specs

875089-001 - Mini SAS cable Small Form Factor (SFF) kit
P23361-001 - Power Cables
P39778-001 - SPS-PCA, 2SFF x1 SAS/SATA UBM2 BP

DL380 Gen10 Plus Notes:
− This option requires the selection of High Performance Fan Kit (P14608-B21).
− If this option is being configured into a 12LFF Model-X or 24SFF Model-X, this rule does not apply as these models already come standard with the High Performance Fans.
− If Qty 1 is selected then it can be installed into the Primary Riser location or the Secondary Riser location. If other Primary Riser is selected along with it then it will be considered as Secondary Riser and vice-versa (Max of 1 Primary Riser per Server and Max of 1 Secondary Riser per Server)
− If Qty 2 are selected then it will be installed into both Primary Riser and Secondary Riser location. No other Primary Riser and Secondary Riser are allowed.
− If this Qty1 of this option is selected along with other Primary Riser (i.e. if it is selected as Secondary Riser) or Qty2 of this option is selected then:
o Tertiary Riser cannot be selected (Except Tertiary 2P NVMe Riser (P27093-B21))
o Second Processor must be selected
