Quick Specs
Tower server | 5U (Rack conversion kit)
Processor | Max: 8 Cores (PP)2x Intel Xeon E5-2600 Processors
Memory | Max: 768GB24 DDR3 RDIMM 1600Mhz
Storage | Max: 48TB8x 3.5” SAS/NL-SAS/SATA (HDD/SSD) + 4 PCIe SSD
12x 3.5” SAS/NL-SAS/SATA (HDD/SSD)
16x 2.5” SAS/NL-SAS/SATA (HDD/SSD) + 4 PCIe SSD
32x 2.5” SAS/NL-SAS/SATA (HDD/SSD)
IDSDM
Internal USB
S110 (SW RAID)
H310, H710, H710P
External
H810
External (non-RAID)
6Gbps SAS HBA
2 x 1GbE LOM
Remote Management:iDRAC7 Express with Lifecycle Controller
PCIe Slots:7 PCIe slots
Four x16 slots with x16 bandwidth, full-length, full-height
Two x8 slots with x8 bandwidth, full-length, full-height
One x8 slot with x4 bandwidth, full-length, full-height
Up to 4 (single-width or double width)
(Click to View)
Ideal for:
- Virtual Desktop Interface (VDI)

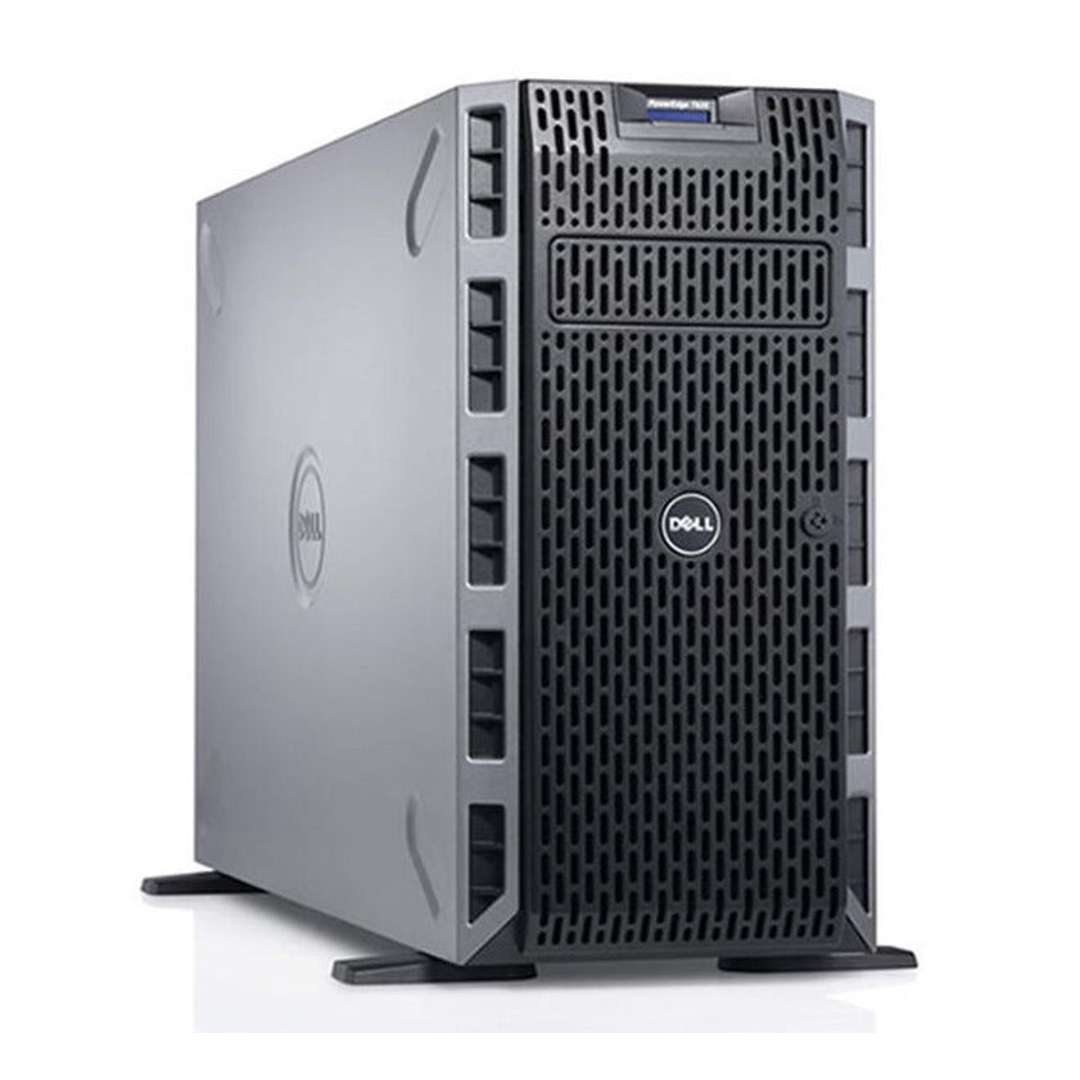

An enterprise-class, 2-socket tower server, the Dell PowerEdge T620 emphasizes high performance and high availability with built-in room for growth.
PowerEdge T620- Up to 24 DIMMs
- PCIe 3.0-enabled expansion slots

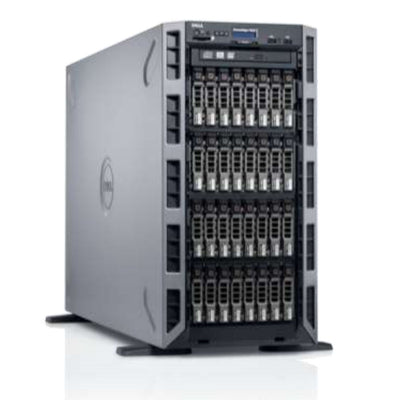

- Up to 32 x 2.5” or 12 x 3.5” hard drives
- Optional hot-plug, front-access PCIe SSDs
- Optional internal GPU accelerators
The Dell PowerEdge T620 is a feature-rich, 2-socket tower server with up to 24 DIMMs, storage capacity of up to 32 drive bays, and Intel Xeon E5-2600 processing power. The T620 shines in its ability to handle demanding virtualization environments with up to 16 processor cores and high memory density. The T620 is an excellent platform for key workloads such as databases, web serving, customer relationship management (CRM), desktop virtualization, medical imaging and security management.
Designed for demanding small and medium business environments
The extensive memory (768GB), large local storage capacity, and I/O flexibility in the PowerEdge T620 make it an attractive platform for server consolidation projects. The T620 features allow you to achieve space savings, utilize your IT administrator’s time more efficiently and minimize potential software licensing fees.
The T620 is a flexible server with excellent energy efficiency and acoustical performance, allowing it to be placed into quiet office settings, like remote branches and open office environments. The T620 can also be rack-mounted for your growing environments.
Businesses and organizations with remote offices need not worry, as the T620 offers consistent worldwide support.
Features that protect data and help keep the server running are essential. The T620 and its large storage capacity offers both software-based RAID and hardware RAID controllers to protect critical business information with several RAID options.
Ideal performance, versatility and scalability
Quickly deploy the computing power you need for demanding consolidation projects or virtualization environments with scalability that meets the demands for small and large businesses.
Performance-packed computing
Dramatically boost application performance with the Intel Xeon processor E5-2600 or E5-2600v2 product family with up to 24 dual in-line memory modules (DIMMs). Supporting up to 12 cores per processor and up to 768GB of system memory, these next-generation processors deliver leadership performance for compute-intensive tasks.
Enhance your workload performance and availability with the balanced, scalable I/O features of the PowerEdge T620 tower server that include integrated PCI Express (PCIe) Gen3-capable expansion slots.
Versatile storage capacity
Tap into the massive storage capacity of the T620 tower server, featuring up to 32 hot-swap drive bays with a number of flexible hard disk drive (HDD) options and PCI Express flash drives that can increase IOPS performance.
Uncompromising productivity

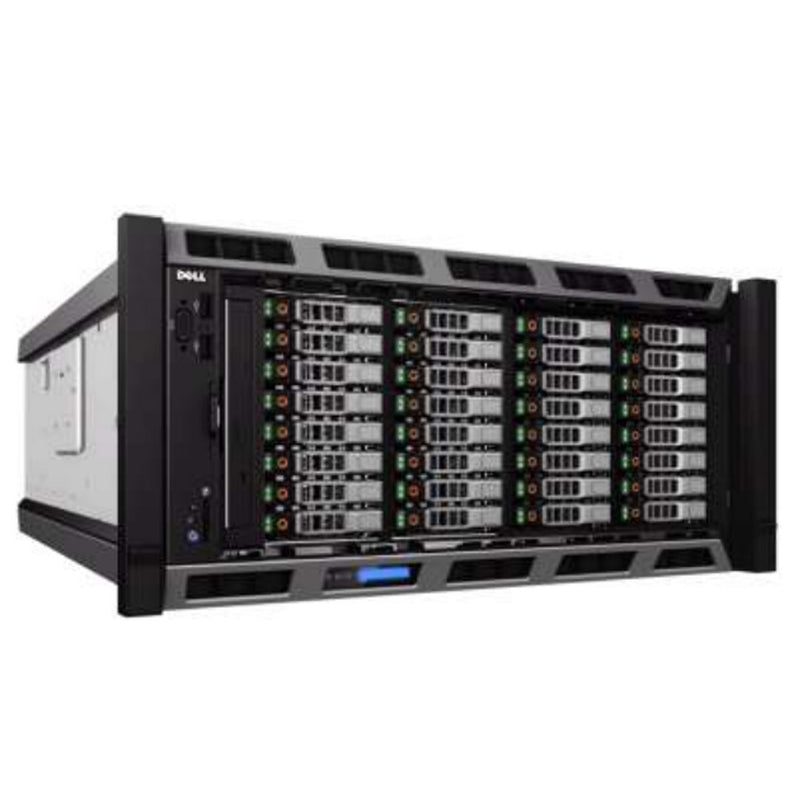

Balance high performance and efficient management with the T620. Ideal as a tower server for office environments, it can also be rack-mounted for growing data centers.
Experience easy lifecycle manageability with intelligent hardware-driven systems administration, extensive power management and other innovative management tools.
Enhanced operational efficiency
Maintain high-level data center productivity, security and maintenance with next-generation reliability, availability and serviceability (RAS) features within the T620 infrastructure.
Flexible deployment
Keep your T620 tower servers working for you as your company grows and work environments change.
The T620 supports memory speeds of up to 1866MT/s, depending on the DIMM types installed and the configuration. The loading within a channel significantly affects memory speed.
| DIMM type | DIMM rank | Intel Xeon processor E5-2600 and E5-2600 v2 product families DIMMs per channel (DPC) | |||||
|---|---|---|---|---|---|---|---|
| 1 DPC | 2 DPC | 3 DPC | |||||
| 1.35V | 1.5V | 1.35V | 1.5V | 1.35V | 1.5V | ||
| RDIMM | 1R/2R | - | 1866 | - | 1866 | - | 1333 |
| RDIMM | 1R/2R | 1600 | 1600 | 1600 | 1600 | 1066 | 1333 |
| UDIMM | 1R/2R | 1600 | 1600 | 1600 | 1600 | - | - |
| RDIMM | 4R | 1066 | 1333 | 1066 | 1066 | - | - |
| LRDIMM | 4R | - | 1866 | - | 1600 | - | 1333* |
| LRDIMM | 4R | 1600 | 1600 | 1600 | 1600 | 1066 | 1333* |
| *For PowerEdge T620, the speed will clock down to 1066MT/s | |||||||
| PCIe Slot | Processor Connection | Height | Length | Link Width | Slot Width |
|---|---|---|---|---|---|
| 1 | Processor 1 | Standard Height | Full Length | x8 | x8 |
| 2 | Processor 1 | Standard Height | Full Length | x8 | x8 |
| 3 | Platform Controller Hub | Standard Height | Full Length | x8 | x8 |
| 4 | Processor 1 | Standard Height | Full Length | x8 | x8 |
| 5 | Processor 2 | Standard Height | Full Length | x8 | x8 |
| 6 | Processor 2 | Standard Height | Full Length | x8 | x8 |
| 7 | Processor 2 | Standard Height | Full Length | x8 | x8 |
| To use PCIe slots 5, 6, and 7, both the processors must be installed. | |||||
| The expansion-card slots are not hot-swappable. | |||||
The Dell PowerEdge T620 offers balanced, scalable I/O capabilities, including six integrated PCIe3.0-capable expansion slots and one dedicated storage controller slot. Networking options for theT620 allow you to tailor your network throughput to match your application needs, enabling addedI/O performance.
The T620 system board has one embedded NIC controller. The Dual Port Intel GbE controllerI350-AM2 has the following features:
- PCIe 2.0 (5.0GT/s)
- Energy Efficient Ethernet (EEE)
- RoHS, Halogen free
32 Bay OptionsThe T620 Tower Server has the ability to support 1 or 2 PERCs. If you install the 32 Bay Chassis. You will have two options:
- Dual 16 x 2.5” = 16 + 16 Dual PERC H710P
- Dual 16 x 2.5” = 32 PERC H710P
Please read the manual for more detail.
NVMe OptionThe T620 can support 4 NVMe PCIe 2.5" SSD Drives. These can only be installed in the 8x 3.5" Chassis and the 16x 2.5" Chassis. These 4 NVMe drives can only be used when the NVMe backplane and the PCIe Bridge Card are installed. When you select any NVMe drive, both these items will automatically come with them.
| Backplane options | Number of hard drives | Controller | Drive types |
|---|---|---|---|
| 8 x 3.5” | up to 4 | PERC S110 | SATA HDD/SSD |
| 8 x 3.5" | 8 | PERC H310, H710, H710P | SATA HDD/SSD SAS HDD/SSD |
| 12 x 3.5" | 12 | PERC H310, H710, H710P | SATA HDD/SSD SAS HDD/SSD |
| 16 x 2.5" | 16 | PERC H310, H710, H710P | SATA HDD/SSD SAS HDD/SSD |
| Dual 16 x 2.5” | 16 + 16 | Dual PERC H710P | SATA HDD/SSD SAS HDD/SSD |
| Dual 16 x 2.5” | 32 | PERC H710P | SATA HDD/SSD SAS HDD/SSD |
| 4 x PCIe SSD | 4 | PCIe interface SSD card + PERC H310, H710, H710P | Express Flash PCIe SSD |
The T620 supports up to four 300W, full-length, single- or double-wide GPU cards. Each GPU card can support up to 6GB of dedicated GDDR5 memory and is actively cooled. Each GPU card has one or two power connectors to meet the high demand for power delivery. The power connectors are located on the back of the card. See Table 7 for a list of supported GPU cards.
GPU cards are installed in the PCIe x16 2.0 interfaces, which are slots 2, 4, 5 and 7; slots 5 and 7 onlywork with two processors.
Note: You must select the GPU enablement kit at point of sale to install GPU or keep the system'sGPGPU capability. GPU enablement kit is not upgradable after point of sales.
With one processor installed, two GPU cards are supported with the following restrictions:
- Slots 1, 2, 3 and 4 are available, therefore only two GPUs can be installed in slots 2 and 4
- Since double-wide GPU cards occupy two slots, only two can be installed and slots 1 and 3 arenot available
- RAID cards cannot be installed with two double-wide GPU cards
- With single-wide GPU cards, the PERC H710, H710P, or H810 cannot occupy slots 1 or 3 (PERCcards have batteries that would overheat if located beside a GPU card)
With two processors installed, four GPU cards are supported, with the restrictions:
- Slots 2, 4, 5, and 7 are available
- Since double-wide GPU cards occupy two slots, slots 1, 3, and 6 are not available
- RAID cards cannot be installed with four double-wide GPU cards
- With single-wide GPU cards, the PERC H710, H710P, or H810 cannot occupy slots 1, 3, or 6 (PERCs have batteries that would overheat if located beside a GPU card)
With PCIe SSDs, two GPU cards can occupy slots 5 and 7. Slot 2 is for a PCIe SSD expander card and slot 4 cannot support a GPU card because of thermal restrictions.
IDSDM
Internal USB Stick- 495W AC Platinum
- 750W AC Platinum
- 750W AC Titanium
- 1100W AC Platinum
- 1100W DC N/A
Dimensions
- Width: 217.9mm (8.5in)
- Length: 712.7mm (28in)
- Height: 434.5mm (17.10in)
Weight
- Tower
- 8 Bay - 43.3Kg (95.5lb)
- 12 Bay - 45.0Kg (99.2lb)
- 16Bay - 39.7Kg (87.6lb)
- 32 Bay - 41.8Kg (92.2lb)
- Rack
- 3.5" - 43.1Kg (94.8lb)
- 2.5" - 39.9Kg (87.8lb)
