Home 12 HPE ProLiant MSA 2052 Storage Array CTO

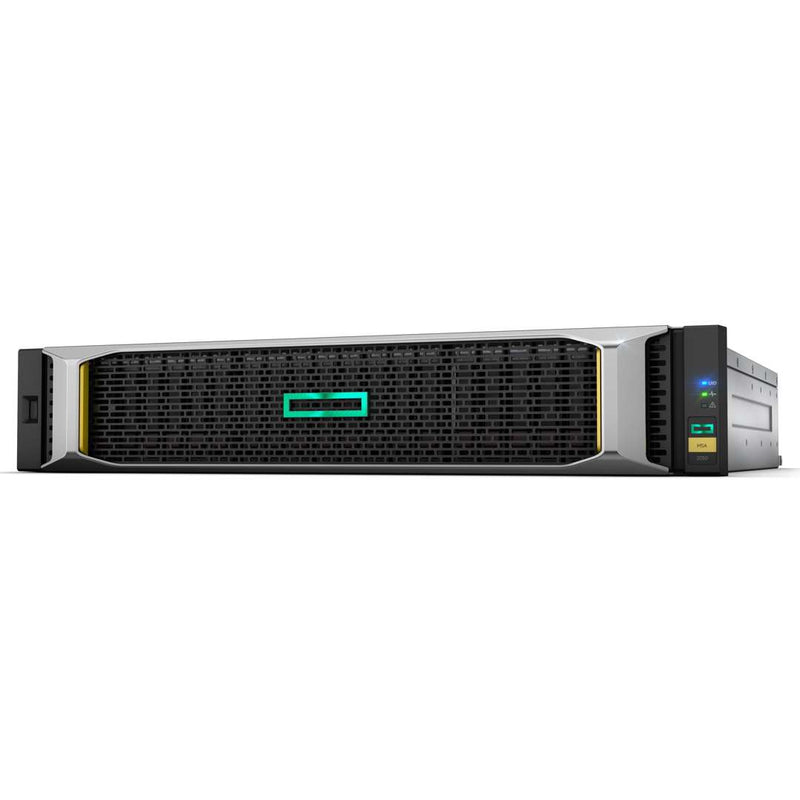

HPE MSA 2052 CTO Storage Enclosure
HPE ProLiant MSA 2052 Storage Array CTO
-*Image may differ from actaul product
HPE MSA 2052 CTO Storage Enclosure
HPE ProLiant MSA 2052 Storage Array CTO

HPE ProLiant MSA 2052 Storage Array CTO

Price: Configure for Price

Brand:
HPE
Type:
CTO Servers
Condition:
ECS Refurbished & Tested
Warranty:
ECS 1 Year Hardware Warranty
-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.
-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

Multi-Quantity Discounts Available for ALL Line Items

** LARGE DISCOUNTS available for complete systems. Pricing displayed is for single item purchases **

Use the configuration tool to create your solution and submit it us for a quote OR send us a message with your complete build requirements to receive best pricing

READ ME

  • Some options may not be displayed until the compatible parent option is chosen ie. Chassis – Drives, Processor – RAM etc.
  • “Submit for Quote” items can be added to your cart and sent to us via the cart page
  • Click the blue bar to close/open a section from view after choosing your options

HPE MSA Chassis

Transceivers (Optional)

MSA SFPs are for use only with MSA 2050 SAN Controllers.
MSA SAS controllers do not require SFP modules.
MSA 2050 SAN Controllers do not ship with any SFPs.
Customer must select at least one of the below SFP options.
Each MSA 2050 SAN controller can be configured with 2 or 4 SFPs.
Controllers must be configured identically. Number and type of transceivers in each controller must be the same.
For MSA 2050 10Gb iSCSI configuration user can use DAC cables instead of SFPs.

OM4 Cable (Optional)

Supported Options For Fibre Channel Infrastructure

OM3 Cable (Optional)

Supported Options For Fibre Channel Infrastructure

Mini-SAS Cable (Optional)

Supported Options For SAS Infrastructure

Copper DAC cables (Optional)

Supported Options For 10GbE Infrastructure

HPE SFF Drives SAS (2.5in) (Optional)

Supports 24 Drives

Select Warranty

Helpful Tip: Once desired configuration is selected click "Add to Cart". From the cart page you can submit a submit a quote request for best pricing

Notes: The MSA 2052 does not support single controller configurations. Single-controller support is provided only when a controller fails over to its partner controller.

Notes: Two PDU cables: one 142263-008 (Black) and one 1422633-013 (Grey), ship standard with all AC-powered enclosures.

Looking for seriously simple and affordable flash storage? The hybrid flash HPE MSA 2052 SAN Storage system with the new Gen10 ProLiant Branding is designed for affordable application acceleration that is ideal for small and remote office deployments. But do not let the low cost fool you. The HPE MSA 2052 SAN Storage system gives you the combination of simplicity, flexibility to grow now and into the future, and advanced features you may not expect to find in an entry-priced array. Start with 1.6 TB of flash capacity included and scale as needed with any combination of solid state disks (SSD), high-performance enterprise, or lower-cost midline SAS-based drives.

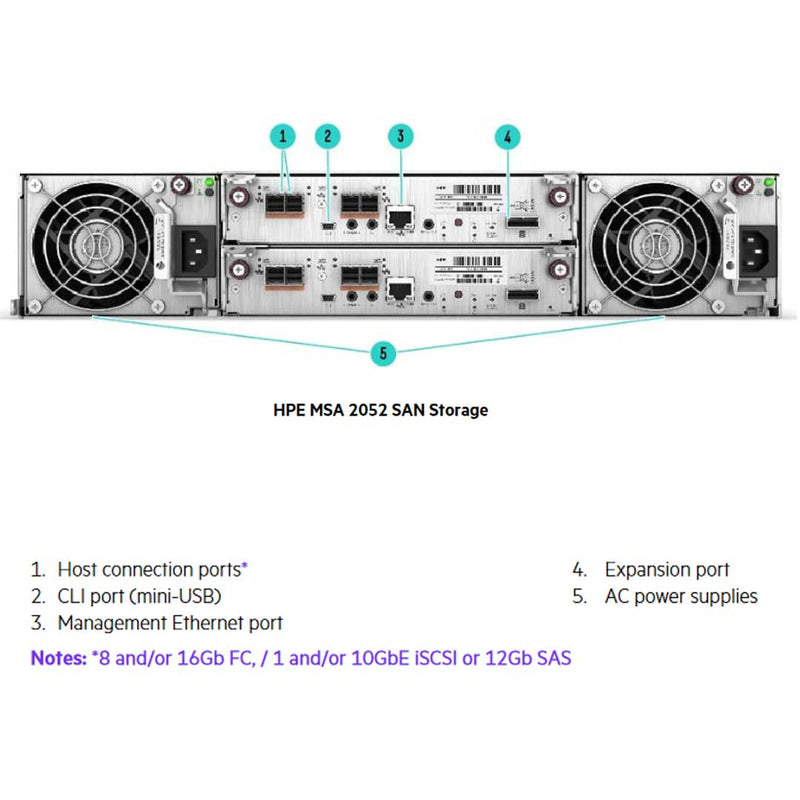

SAN controller
MSA 2052 SAN controller supports 8Gb FC, 16Gb FC, 1GbE iSCSI or 10GbE iSCSI host connectivity. .
SAS controller
MSA 2052 SAS controller supports 12Gb host connectivity.

HPE MSA Storage has been the industry-leading entry storage Fibre Channel platform for the past eight years, with nearly 500,000 storage systems sold worldwide. Delivering performance in excess of 200,000 IOPS, the hybrid flash MSA 2052 Storage system can save you up to 40% with an all-inclusive software suite and 1.6 TB of flash capacity included. It’s seriously simple and affordable flash storage to help you get the most performance for the lowest cost.

Affordable Application Acceleration
The HPE MSA 2052 SAN Storage performs in excess of 200,000 IOPS delivering
outstanding application acceleration for small to medium-sized businesses either
locally or remotely.
Delivers 2x more performance than the previous HPE MSA 2042 SAN Storage
generation [2].

Advanced Data Services With No Experience Required
The HPE MSA 2052 SAN Storage is easy to install, easy to use, easy to maintain, no
storage previous expertise required.
Automated tiering dynamically responds to workload changes, so you don’t have to.



Current Configuration

HPE MSA Chassis

Transceivers (Optional)

OM4 Cable (Optional)

OM3 Cable (Optional)

Mini-SAS Cable (Optional)

Copper DAC cables (Optional)

HPE SFF Drives SAS (2.5in) (Optional)

Select Warranty

*list also serves as quick links to each section

Welcome to the Request Express Quoting Form!

for: HPE ProLiant MSA 2052 Storage Array CTO

This streamlined form is designed to simplify the quoting process for you. Whether you're uncertain about specific parts or seeking a hassle-free experience, you're in the right place.
Provide us with the necessary details, and we'll generate a customized quote for your server. Even if you're unsure about the exact components you need, we've got you covered. Our team will tailor a solution based on the information you provide.

Let's get started!
Simply fill out the form, and we'll take care of the rest.

Name *
Email *
Message *
Preferred Brand
Form Factor
Rack Unit of Height (#U)
Processor(s)
Quantity
Cores (per)
Speed (Ghz)
Memory
Total Amount of Memory
Total Amount of Usable Storage

Storage Type

RAID

List Networking Connection needed:
Rack Space Restrictions
Which OS do you plan on using:


Price as Configured: 0

Add to Cart

Error Submitting Cart. Please get in touch with us for support.

Please select all the mandatory items in the configuration list before submitting the cart.

One or more items in your cart has no price. This will be submitted as a "Request for a Quote".

HPE ProLiant MSA 2052 Storage Array CTO Spec Sheet

Manuals

HPE ProLiant MSA 2052 Storage Array CTO Spec Sheet

Manuals

Product Specs

Spec Sheet 4

Array
Access Type Block
Form Factor 2U, SFF or LFF
Number of controllers per array 2
Number of host ports per array 8
FC host connectivity 8/16Gb
iSCSI host connectivity 1Gb or 10GbI
SAS host connectivity 6/12Gb
Cache, per array
Max Read cache per array 8TB
Data (read/write) cache + system memory per array 16GB
Pool Capacity (with Large Pool Support) 562 TB (512 TiB)
RAID Levels supported Virtual mode RAID 0*, 1, 5, 6, 10
Notes: *Read Cache Only
Enclosures
Expansion Drive Enclosures 0-7 enclosures
LFF/SFF array/enclosure mixing Supported
Maximum number of drives per array enclosure 24 SFF/12 LFF
Maximum number of drives per drive enclosure 24 SFF/12 LFF
Drive enclosure interface type 6Gb SAS
Drives
Maximum total HDDs per array 192 SFF / 96 LFF
Maximum total SSDs per array 192 SFF / 96 LFF
Max raw capacity per array enclosure 76.8 TB SFF / 168TB LFF
Max raw capacity per drive enclosure 76.8 TB SFF / 168TB LFF
Max raw capacity per array 614.4TB SFF / 1344TB LFF
Integrated SSDs 2x800GB Mixed Use SSDs
Drive Capacities
SFF SSDs 800GB, 960GB, 1.6TB, 1.92TB, 3.2TB
LFF SSDs 800GB, 960GB, 1.92TB
SFF HDDs 15K: 600GB, 900GB 10K: 600GB, 1.2TB, 1.8TB, 2.4TB
LFF HDDs 7.2K: 4TB, 6TB, 8TB, 10TB, 12TB, 14TB
SEDs Encryption not supported
