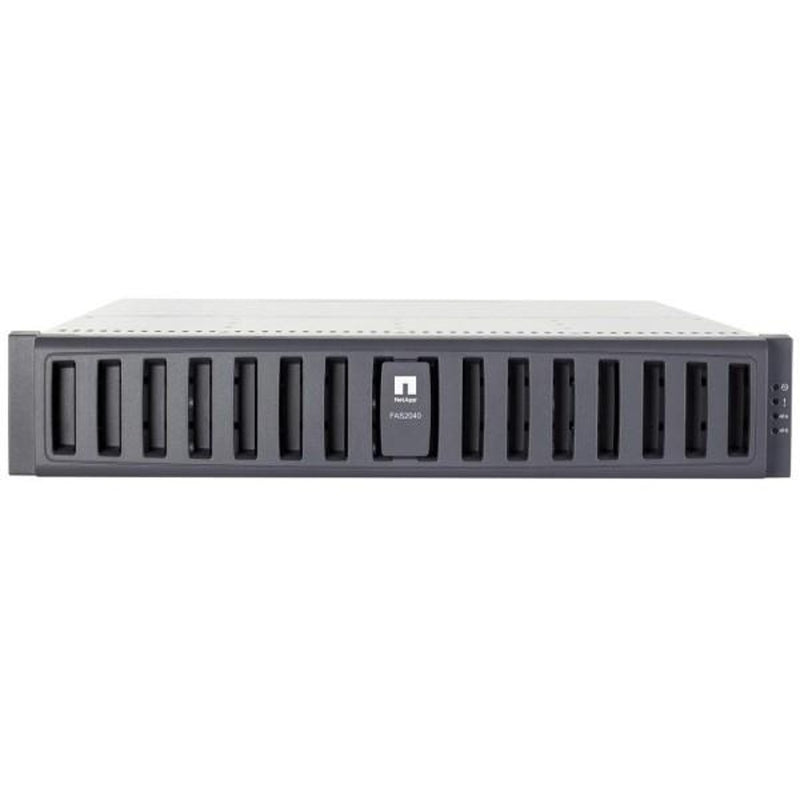

NetApp FAS2040 Dual Controller Filer Head (HA)
Thanks for the request. We'll get back to you with in 24 hours.
-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.
-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.
Quick Specs
The NetApp FAS2000 series provides a powerful range of technologies to help increase the efficiency of your storage administrators. FAS2000 series rapidly deploys within minutes and also helps to cut storage costs by up to 50% with features such as deduplication and thin provisioning.
The FAS2040 is geared towards midsize businesses, remote offices, and local storage at an affordable price. FAS2040 is excellent for consolidating virtualized environments with one to three Windows applications or lighter file-serving workloads.
The FAS2040 utilizes up to 136 drives and can support up to 408TB of max storage in a 2U/12 drive configuration.
- Model: NetApp FAS2040
- Form Factor: 2U
- PCIe Expansion Slots: None
- Disk Shelves: DS12-ESAS, DS14-Mk2-AT, DS14-Mk2-FC, DS14-Mk4-FC, DS2246, DS4243, DS4246
- Filer Heads: N/A
- Chassis Heights: 3.5" (8.9 cm)
- Chassis Width w/o Mounting Flanges: 17.6" (44.7 cm)
- Chassis Depth w/ Cable Mgmt: 22.52" (57.2 cm)
- Chassis Weight: 66.0 lb (29.9 kg)
Controller Specs
- Controllers: Dual Controller (HA)
- Max Controllers: 2 (Built-in)
- Ethernet Ports (per): 4x RJ45 (1Gbps)
- Fibre Channel Ports (per): 2x SFP (4Gbps)
- SAS Ports (per): 1 x QSFP (3Gb)
- Remote Management: Yes
- Processor Model (Per Node): 1x 32-bit 1.67Ghz
- Memory (Single/HA): 4GB/8GB
- NVRAM (Single): 512MB (NVMEM)
- Max Number of Internal Drives: 12
- Max Number Drives (total): 136
- Max Capacity: 408TB
- Max Number of FC Drives: HA Pair: 112
- Max Number of SAS Drives: HA Pair: 108
- Max Number of SATA Drives: HA Pair: 136
- Drive Interface: FC, SAS, SATA
- RAID: RAID4, RAID 6 (RAID-DP)
- Max Number of DS12-ESAS Shelves: 1 internal
- Max Number of DS14-Mk2-AT Shelves: 8 external
- Max Number of DS14-Mk2-FC Shelves: 8 external
- Max Number of DS14-Mk4-FC Shelves: 8 external
- Max Number of DS2246 Shelves: 4 external
- Max Number of DS4243 Shelves: 4 external
- Max Number of DS4246 Shelves: 4 external
