Specs
Quick Specs
2U rack server (JBOD) (Chassis Only)
Storage | Max: 48TB(12) LFF SAS (HDD/SSD) (Chassis Only, no drives)
HOST-RAID:(1) H800 or H810 PERC Controller
RAID levels 0, 1, 5, 6, 10, 50, and 60
Supports Mixed Drives on PERC H800 and up to 8 Arrays.
Supports up to (2) EMM
Ports Per Controller (EMM):Two 6Gb/s SAS
- Dell MD1200 CTO
- Dell MD1220 CTO
(Click to View)
Ability to mix and match 7.2K (nearline), 10K, and 15K RPM SAS Hard Disk Drives (HDDs) with Solid State Drives (SSDs).
This includes SAS HDDs that support Self-Encrypting Drive (SED) technology on a single PERC H800 or H810 HostRAID adapter.

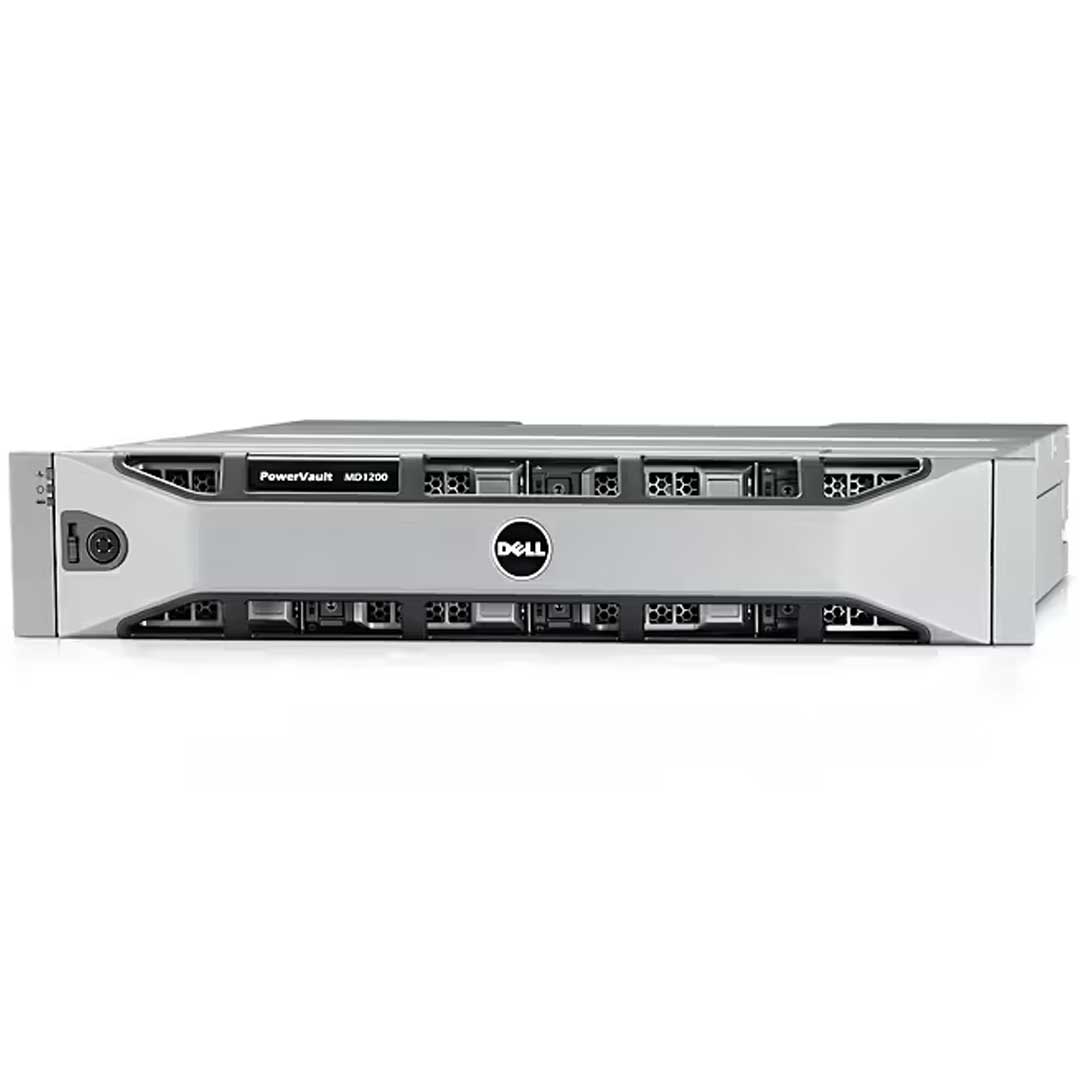

The Dell™ PowerVault™ MD1200 direct-attached storage is the second generation of our low-cost, high-capacity expansion enclosure that improves density, versatility, and performance to enhance support for mainstream and capacity-intensive applications.

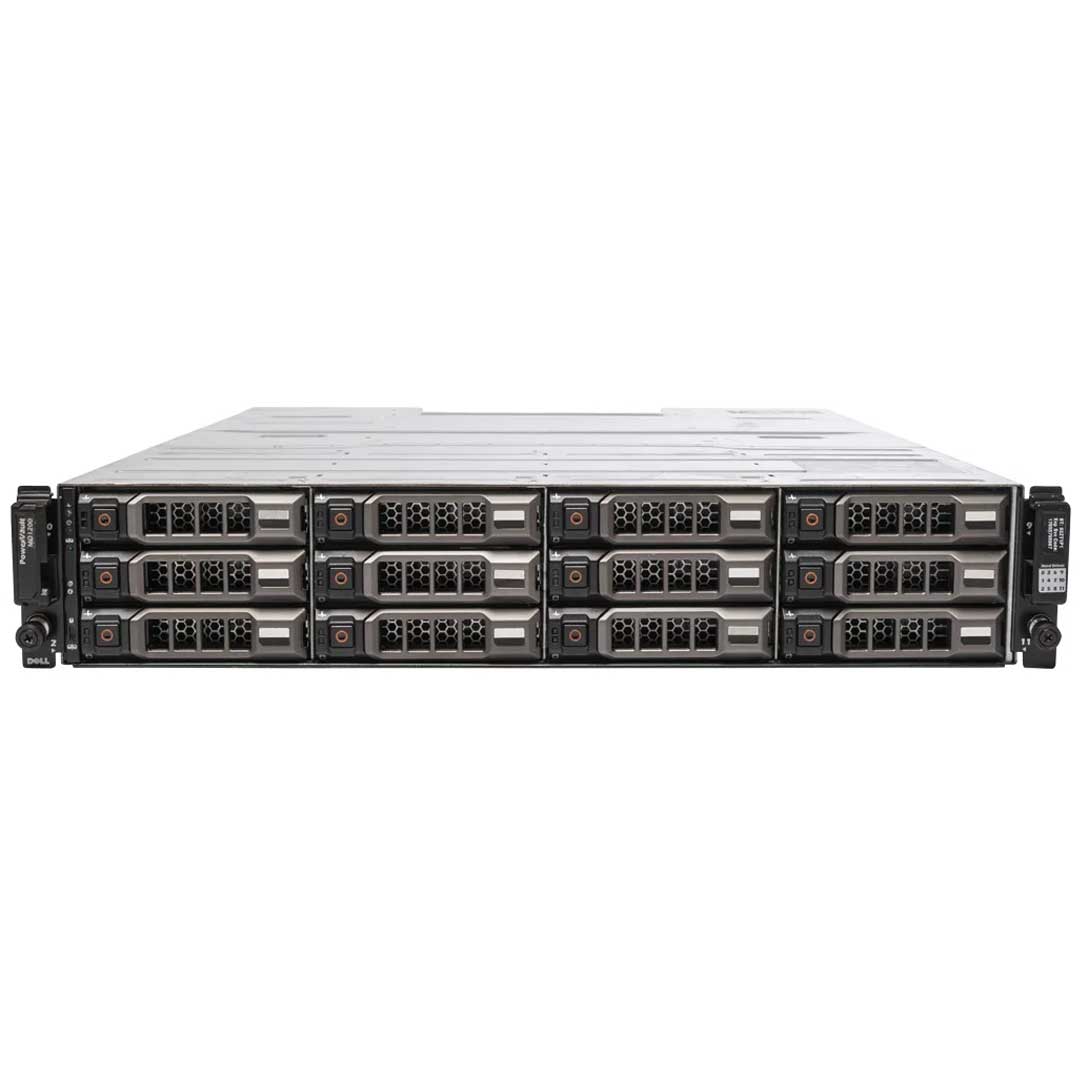

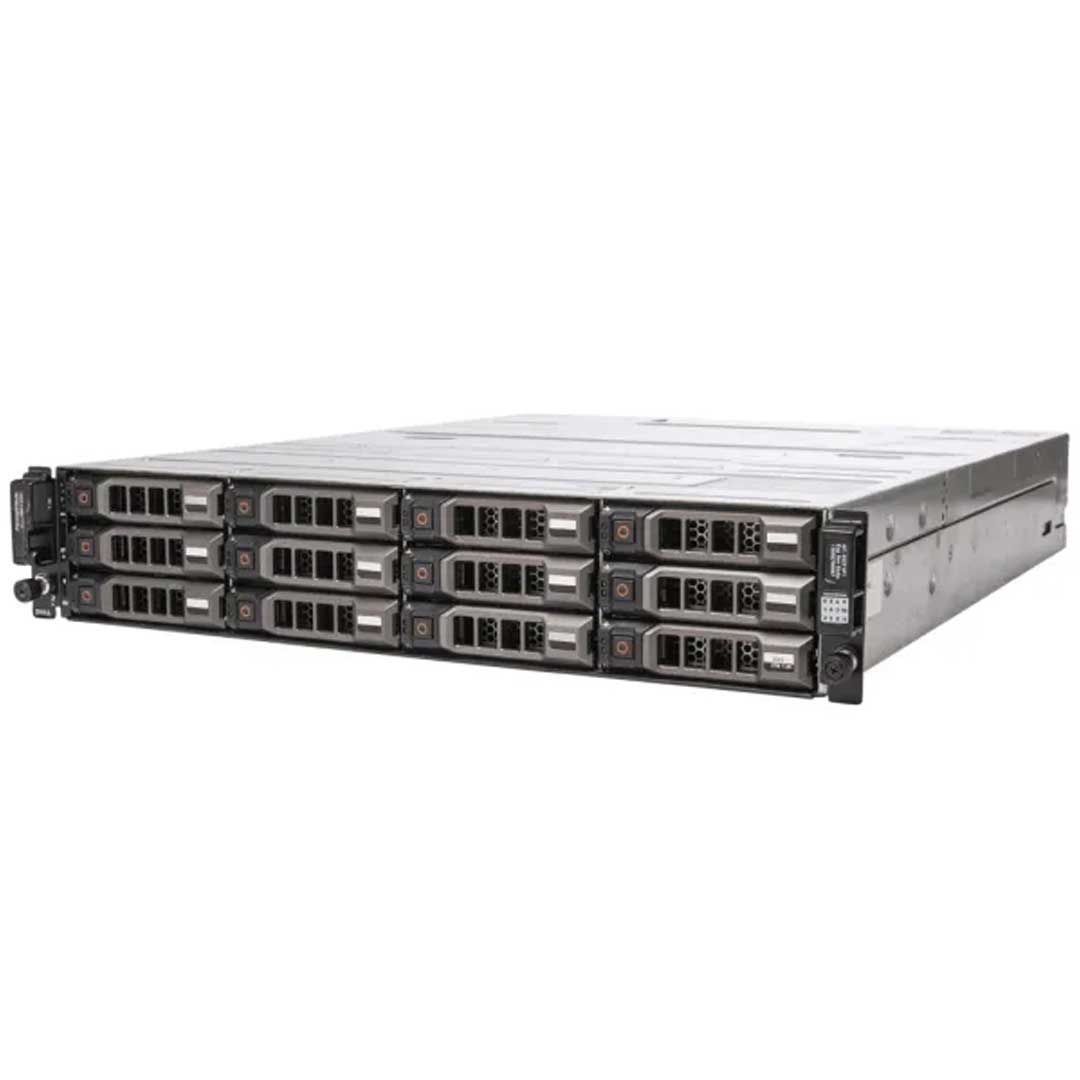

The Dell™ PowerVault™ MD1200 expansion enclosure is optimized to satisfy applications that use lots of capacity and move large amounts of data. It is the first Dell enclosure that allows you to mix and match 2.5 and 3.5 inch drives in a 2-unit, 12-drive solution.
- Seamless server expansion for 6Gb/s SAS environments
- Supports mainstream and capacity-intensive applications such as e-mail, backup to disk, and video streaming
- Deployment and drive versatility good for investment protection and data tiering
The PowerVault MD1200 offers seamless expansion for Dell™ PowerEdge™ servers with the PERC H800 HostRAID adapter and provides expansion storage for Dell Compellent, EqualLogic and PowerVault array series. It gives customers the versatility to expand storage as their business grows.
- Easily expand your server capacity: This expansion array can support twelve 2.5-inch or 3.5-inch SAS HDDs and SAS SSDs in a 2U array and expands up to 8 arrays behind a single PERC H800 HostRAID adapter.
- Versatility and flexibility to meet most business needs: With the ability to mix 2.5-inch and 3.5-inch enclosures behind a single PERC H800 HostRAID adapter
One of the key features of the PowerVault MD1200 is the redundant path with I/O load balancing. This means that even if one cable path fails from one port of the PERC H800, you can still access your data through the second port. This redundancy ensures that your business operations can continue seamlessly, without any disruptions to data access.
If you are connecting this JBOD to a Compute server. The PowerVault™ MD1200 and MD1220 require the PERC H800 for Server connectivity. The PERC H800 or H810 is a PCIe 2.0, dual port (2 x4), hardware RAID controller offering 512MB standard battery-backed cache and RAID level support for RAID 0, 1, 5, 6, 10, 50, and 60. The key features of the PERC H800:
- 6Gb/s SAS (SAS 2.0)
- Enables daisy-chaining up to 8 enclosures (4 per port)
- Enables mixing 2.5-inch and 3.5-inch enclosures in the same daisy-chain
- Enables Redundant Path with Automatic I/O load balancing
- Supports Self-Encrypting Drive (SED)
- Requires specific SED drive part numbers
Need assistance with customization? Our sales experts are here to help you.
Start Customizing Today!
Base Standard Capabilities
| Feature | MD1200 | MD1220 |
|---|---|---|
| Rack Height | 2U | 2U |
| Host interface | 6Gb/s SAS (SAS 2.0) | 6Gb/s SAS (SAS 2.0) |
| Number of Drive bays | 12 – 3.5” | 24 – 2.5” |
| Expandability (daisy chain) | 8 enclosures per PERC H800 (4 enclosures per port) for a total of 96 drives Redundant Path: up to 4 enclosures per PERC H800 Daisy-chain not supported with Split mode | 8 enclosures per PERC H800 (4 enclosures per port) for a total of 192 drives Redundant Path: up to 4 enclosures per PERC H800 Daisy-chain not supported with Split mode |
| Manageability | In-Band via SES | In-Band via SES |
| Backplane Options | Unified (default) or Split mode | Unified (default) or Split mode |
| Drive Support | SAS HDD and SAS SSD** | SAS HDD and SAS SSD** |
| Host-RAID adapter | PERC H800 | PERC H800 |
| Cluster Support | PERC H800: No | PERC H800: No |
| Rack or Stand alone Tower | Rack Only | Rack Only |
| Drive Hot Plug support | Yes | Yes |
| Hot Plug Fans/blowers | Yes – Dual combined fan/power supply module | Yes – Dual combined fan/power supply module |
| Hot Plug Power supplies | Yes – Dual combined fan/power supply module | Yes – Dual combined fan/power supply module |
| SAF-TE, SES Support | SES only | SES only |
| Enclosure Management configurations | Dual Redundant – SBB 2.0 compliant | Dual Redundant – SBB 2.0 compliant |
| Power Supply configurations | Redundant Auto-Sensing | Redundant Auto-Sensing |
| Fans/blowers | Redundant | Redundant |
| Chassis Dimensions | Height 8.68 cm (3.41 inches) Width 44.63 cm (17.57 inches) Depth 60.20 cm (23.70 inches) | Height 8.68 cm (3.41 inches) Width 44.63 cm (17.57 inches) Depth 54.90 cm (21.61 inches) |
| Weight | Weight (max config) 28.39 kg (62.6 lb) Weight (empty) 8.84 kg (19.5 lb) | Weight (max config) 23.31 kg (51.4 lb) Weight (empty) 8.61 kg (19 lb) |
Spec Sheet 4
| Feature | Dell™ PowerVault™ MD1200 |
|---|---|
| PERC H800 / H810 | PCI-E 2.0 Host-RAID adapter with two external x4 SAS ports, standard 512MB cache and TBBU (transportable battery-backup unit) |
| Drives and Capacity | |
| Drives | Up to twelve (12) hot-pluggable SAS Hard Disk Drives (HDDs) at 7.2K, 10K, and 15K rpm and SAS Solid State Drives (SSDs). Mix and match 3.5” HDDs and 2.5” HDDs (2.5” requires 3.5” carriers) within enclosure. |
| Drive Performance and Capacities |
|
| Maximum Capacity (per enclosure) | Up to 48TB using twelve (12) 4TB 7.2K rpm HDDs (6Gb/s SAS) |
| Expansion Capabilities | PERC H800 HostRAID adapter enables expansion to 8 enclosures (4 enclosures per port) |
| Host Connectivity | |
| Unified Mode | Unified mode (single path) for daisy chaining of up to 8 enclosures per PERC
H800 (4 enclosures per port, single path) Unified mode (recommended redundant path) for daisy chaining up to 4 enclosures per PERC H800 (4 enclosures connected to both ports via redundant path cabling) |
| Split-Mode/Dual-Host Access | Split mode with dual Enclosure Management Modules (EEM) providing direct connectivity to drives 0 though 5 and a separate connectivity to drives 6 through 11 |
| Enclosure Management Modules and RAID levels | |

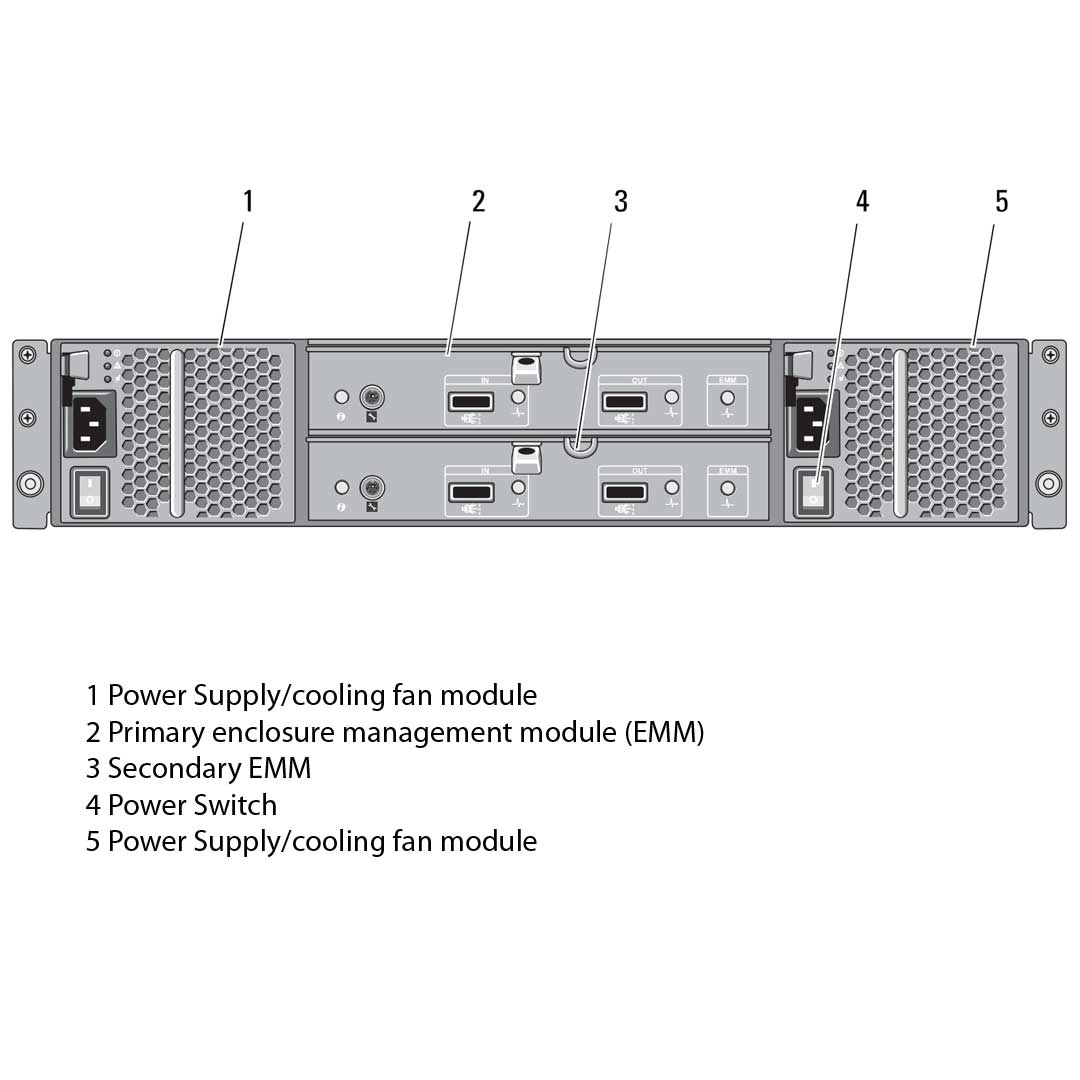

| Enclosure Management Modules (EMM) | 2 EMM provide redundant enclosure management capability; hot-swappable |
| RAID Levels | PERC H800 supports RAID levels 0, 1, 5, 6, 10, 50, and 60 |

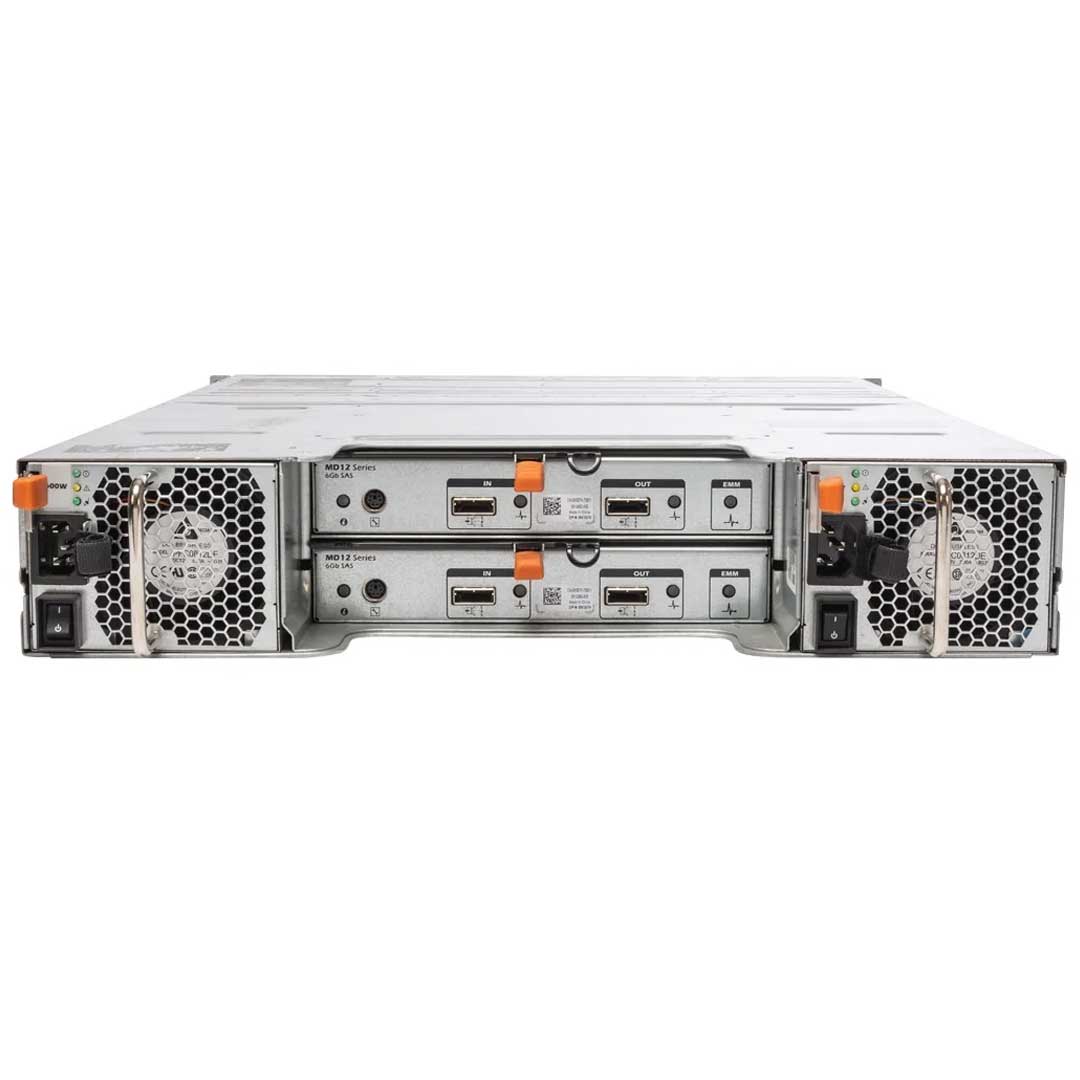

| Back-Panel Connectors (per EMM) | |
| Host Connectivity | 1 SAS (SFF 8088) IN connector for connection to the host |
| Expansion Connectivity | 1 SAS (SFF 8088) OUT connector for expansion to an additional enclosure |
| Service Management | 1 6-pin UART mini-DIN connector (for factory use only) |
| Power Supplies (per PSU) | |
| Wattage: also supports DC power | AC - 600 W; DC - 700 W |
| Host Heat Dissipation | AC - 2047 BTU/hr; DC - 2388 BTU/hr |
| Input Voltage Range | 100-240 VAC, auto-sensing; 48 V DC |
| Frequency Range | 50/60 Hz |
| Amperage | 8.6 A at 100 V, 4.3 A at 240 V |
| Available Hard Drive Power (per slot) | |
| Supported Continuous Consumption | up to 1.16 A at +5V up to 1.6 A at +12V |
Physical |
| Rack Support | Dell ReadyRails™ static rails for toolless mounting in 4-post racks with square or unthreaded round holes or tooled mounting in 4-post threaded-hole racks |
| Height x Width x Depth | 8.7cm (3.39 inches) x 48.2cm (18.8 inches) x 59.4cm (23.17 inches) |
| Weight | 28.39 kg (62.6 lb) (maximum configuration) 8.84 kg (19.5 lb) (empty) |
| Environmental | |
| Temperature | Operating: 10° to 35°C (50° to 95°F) with maximum temperature gradation of 10°C per hour Storage: -40° to 65°C (-40° to 149°F) with temperature gradation of 20°C per hour Supports Fresh Air Cooling, up to 35°C |
| Relative Humidity | Operating: 8% to 85% (non-condensing) with maximum humidity gradation of
10% per hour Storage: 5% to 95% (non-condensing) |
| Altitude | Operating: -16 to 3048 m (-50 to 10,000 ft) Storage: -16 to 10,600 m (-50 to 35,000 ft) |
