Home 7.6TB NetApp NS224 Expansion Shelf (NS224-SED-7.6-24-QS-N) 24x 7.68TB NVMe SSD AES-256 X4013A

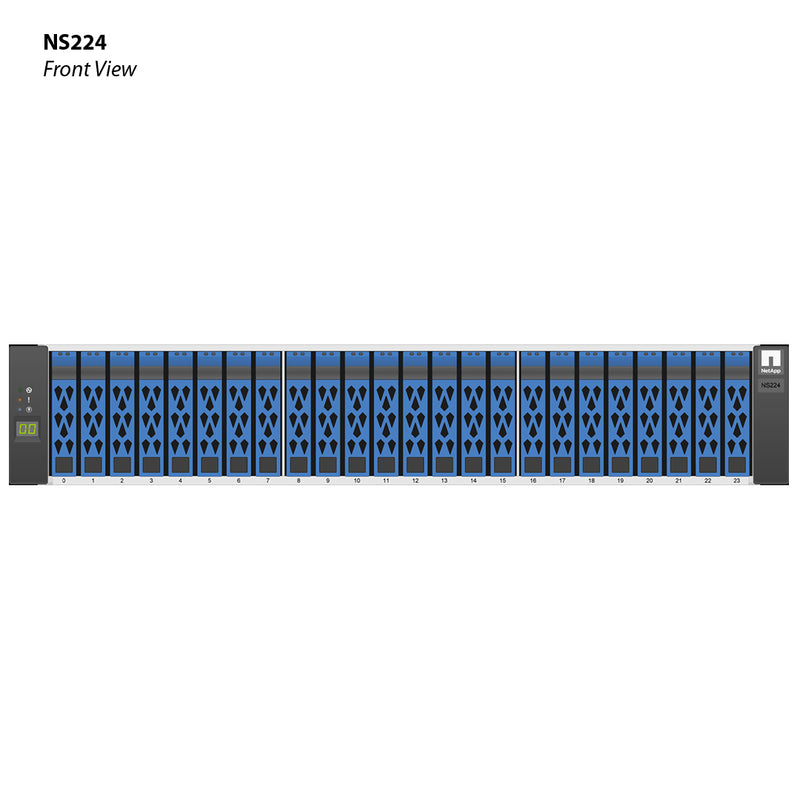

NetApp NS224 (NS224-SED-7.6-24-QS-N) 24x 7.68TB NVMe SSD AES-256 X4013A
NetApp NS224 (NS224-SED-7.6-24-QS-N) 24x 7.68TB NVMe SSD AES-256 X4013A
-*Image may differ from actaul product
NetApp NS224 (NS224-SED-7.6-24-QS-N) 24x 7.68TB NVMe SSD AES-256 X4013A
NetApp NS224 (NS224-SED-7.6-24-QS-N) 24x 7.68TB NVMe SSD AES-256 X4013A

NetApp NS224 Expansion Shelf (NS224-SED-7.6-24-QS-N) 24x 7.68TB NVMe SSD AES-256 X4013A


Price: Request a Quote

Brand:
NetApp
MPN:
NS224-SED-7.6-24-QS-N
Type:
Disk Shelves
Condition:
ECS Refurbished & Tested
Warranty:
ECS 1 Year Hardware Warranty

Request Quote

Note: Please include as much details and relevant options about the item to help us match your request with an accurate price.

-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.
-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

NetApp NS224 Expansion Shelf (NS224-SED-7.6-24-QS-N) 24x 7.68TB NVMe SSD AES-256 X4013A

NetApp NS224 - NS224-SED-7.6-24-QS-N, has 24 drive bays with 24 X4013A (7.68TB NVMe SSD AES-256) Disk Shelf achieves both storage and performance in a 2U (Rack Unit) 2.5" form factor, at speeds of . This NS224 comes with all necessary parts and cables. Also comes with a 1-Year Parts Replacement Warranty as standard.

Parts Included:
  • 1X NS224 NetApp Disk Shelf
  • 24x 7.68TB NVMe SSD AES-256 2.5" (X4013A)
  • 2x NSM100 Controller Module (X572001A)
  • 2x Power Supplies with Fans (X5726A)
  • 2x .5 QSFP to QSFP SAS Cables (X66020A-R6) (longer cables available please ask for custom order)
  • 1x Rail Kit (X-02654-00)
  • 2x Power Cables (X800E-R6)


Technical Specifications Physical Characteristics
  • Rack Unit(s): 2
  • Port(s): N/A
  • Drive Count: 24
  • Drive Speed(s): N/A
  • Drive(s):
    24 X4013A (7.68TB NVMe SSD AES-256)
  • Supported Controller(s):
    AFF A900, AFF A800, AFF A700, AFF A400, AFF A320, AFF A250
  • Weight: -
  • Height: 3.43'' (8.7 cm)
  • Width: 17.6'' (44.7 cm)
  • Depth: 21.38'' (54.3 cm)
  • Width w/ Mounting Flanges: 19.02'' (48.3 cm)
  • Depth w/ Cable Management: -
Environmental Requirements Clearance Dimensions
  • Operating Temperature Range: 41 to 104 deg F / 5 to 40 deg C
  • Storage Temperature Range: -40 to 158 deg F / -40 to 70 deg C
  • Transit Temperature Range: -40 to 158 deg F / -40 to 70 deg C
  • Operating Relative Humidity: 8 to 85 %
  • Storage Relative Humidity: 10 to 95 %
  • Transit Relative Humidity: 10 to 95 %
  • Operating Altitude Range: - to 9997.44 ft / - to 3048 m
  • Storage Altitude Range: - to 39989.76 ft / - to 12192 m
  • Transit Altitude Range: - to 39989.76 ft / - to 12192 m
  • Acoustic Noise - Sound Power: -
  • Acoustic Noise - Sound Pressure: -
  • Input Power Voltage: 100 to 120, 200 to 240
  • Front Clearance (Cooling / Maintenance): 6.02'' (15.3 cm) / 6.02'' (15.3 cm)
  • Rear Clearance (Cooling / Maintenance): 6.02'' (15.3 cm) / 35.98'' (91.4 cm)

Product Specs

Supported Drives

Part NumberEncryptionCapacityRPMChecksum
Drive Type: Capacity Flash NVMe SSD
X4020A    No 15.3TB N/A BCS
Drive Type: NVMe SSD
X4010A    No 1.92TB N/A BCS
X4011A    No 3.84TB N/A BCS
X4012A[1]    Yes 3.84TB N/A BCS
X4013A    No 7.68TB N/A BCS
X4014A    No 15.3TB N/A BCS
X4016A No 3.84TB N/A BCS
X4018A No 1.92TB N/A BCS
X4019A[1]    Yes 15.3TB N/A BCS
Footnotes
[1] Mixing NSE drives or shelves with any other type of encrypting or non-encrypting drives or shelves across a stand-alone platform or high-availability (HA) pair is not supported.

Supported Shelf Modules for NetApp NS224

ModulePart NumberInterfaceMax Data RateMin ONTAP
NSM100 X572001A IN: QSFP, OUT: QSFP 100 Gbps 9.11.1RC1, 9.10.1RC1, 9.9.1RC1, 9.8RC1, 9.7RC1, 9.6RC2

Cables Compatibility for Module NSM100

Mktg Part NoMfg Part NoLengthEnd 1 / End 2DescriptionSupported Speed(s)Min OS
Ethernet 100 Mbps (Copper Cables)
NetApp Cable X66211A-05 112-00595 0.5m QSFP28 / QSFP28 Cable,QSFP28-QSFP28,Cu,0.5m 100 Gbps -
NetApp Cable X66211A-1 112-00573 1m QSFP28 / QSFP28 Cable,QSFP28-QSFP28,Cu,1m 100 Gbps -
NetApp Cable X66211B-1-C 112-00573 1m QSFP28 / QSFP28 Cable,QSFP28-QSFP28,Cu,1m 100 Gbps -
NetApp Cable X66211A-2 112-00574 2m QSFP28 / QSFP28 Cable,QSFP28-QSFP28,Cu,2m 100 Gbps -
NetApp Cable X66211B-2-C 112-00574 2m QSFP28 / QSFP28 Cable,QSFP28-QSFP28,Cu,2m 100 Gbps -
NetApp Cable X66211A-5 112-00576 5m QSFP28 / QSFP28 Cable,QSFP28-QSFP28,Cu,5m 100 Gbps -
NetApp Cable X66211B-5-C 112-00576 5m QSFP28 / QSFP28 Cable,QSFP28-QSFP28,Cu,5m 100 Gbps -
Ethernet 100 Gbps (Optical Cables)
Optical Transceiver X65405 with Supported Cables
NetApp Cable X65405 332-00440, AFBR-89CDDZ-NA1, AFBR-89CDDZ-NA2, AFBR-89CDHZ-NA1, AFBR-89CDHZ-NA2, FTLC9551REPM, FTLC9558REPM, FTLC9558REPM-N1, FTLC9558REPM-NQ XCVR QSFP28 / MPO XCVR,QSFP28,Opt,100Gb,Shortwave 100 Gbps 9.11.1RC1, 9.11.0, 9.10.1RC1, 9.10.0, 9.9.1RC1, 9.9.0, 9.8RC1, 9.7RC1, 9.6RC1, 9.5RC1, 9.4RC1, 11.3
NetApp Cable X66200-2 112-00326 2m MPO / MPO Cable,Opt,OM4,MPO/MPO,Type B,2m 100 Gbps -
NetApp Cable X66200-5 112-00328 5m MPO / MPO Cable,Opt,OM4,MPO/MPO,Type B,5m 100 Gbps -
NetApp Cable X66200-15 112-00330 15m MPO / MPO Cable,Opt,OM4,MPO/MPO,Type B,15m 100 Gbps -
NetApp Cable X66200-30 112-00331 30m MPO / MPO Cable,Opt,OM4,MPO/MPO,Type B,30m 100 Gbps -

Supported Power Cords for NetApp NS224

Marketing Part No.End 1 / End 2LengthDescription
Non-Cabinet Power Cords
X-50617-00 IEC60320-C20 / IEC60320-C13 2.00 m Power Cords,In-Cabinet,2m,C20-C13,E-Series
X800B-R6 CEE 7/7 (Schuko) / IEC60320-C13 2.50 m Pwr Cord,Non-Cabinet,Cont Europe/Korea,10A/250V
X800C-R6 BS1363 / IEC60320-C13 2.50 m Pwr Cord,Non-Cabinet,UK/Ireland,10A/250V
X800D-R6 JIS-C-8303 / IEC60320-C13 1.83 m Pwr Cord,Non-Cabinet,Japan,15A/125V
X800E-R6 NEMA 5-15P / IEC60320-C13 1.83 m Pwr Cord,Non-Cabinet,North America,15A/125V
X800F-R6 AS/NZS 3112 / IEC60320-C13 2.50 m Pwr Cord,Non-Cabinet,Aus/NZ,10A/250V
X800G-R6 SEV 1011 / IEC60320-C13 2.50 m Pwr Cord,Non-Cabinet,Switzerland,10A/250V
X800H-R6 IRAM 2073 / IEC60320-C13 2.50 m Pwr Cord,Non-Cabinet,Argentina,10A/250V
X800I-R6 GB2099 / IEC60320-C13 2.50 m Pwr Cord,Non-Cabinet,China,10A/250V
X800J-R6 DHCR107-2-D1 / IEC60320-C13 2.50 m Pwr Cord,Non-Cabinet,Demark,10A/250V
X800K-R6 SANS 164-1 / IEC60320-C13 2.50 m Pwr Cord,Non-Cabinet,India/S.Africa,10A/250V
X800L-R6 SI32 / IEC60320-C13 2.50 m Pwr Cord,Non-Cabinet,Israel,10A/250V
X800M-R6 CEI 23-16 / IEC60320-C13 2.50 m Pwr Cord,Non-Cabinet,Italy,10A/250V
X800N EL208 / IEC60320-C13 2.50 m Pwr Cord,10A,250V,2.5m,India
X800P-R6 NEMA 6-15P / IEC60320-C13 1.83 m Pwr Cord,Non-Cabinet,North America,15A/250V
X800T-R6 CNS 10917-3 / IEC60320-C13 2.50 m Pwr Cord,Non-Cabinet,Taiwan,BSMI,15A/125V
X800VB-R6 NBR14136 / IEC60320-C13 2.50 m Pwr Cord,Non-Cabinet,Brazil,10A/250V
X800W-R6 CNS10917/CNS690 / IEC60320-C13 1.83 m Pwr Cord,Non-Cabinet,Taiwan,10A/250V
X800Y-R6 JIS-C-830 / IEC60320-C13 1.83 m Pwr Cord,Non-Cabinet,Japan,15A/250V
In-Cabinet Power Cords
X1558A-R6 IEC60320-C14 / IEC60320-C13 1.20 m Pwr Cord,In-Cabinet,48-In,C13-C14,10A/250V
X800-42U-35 IEC60320-C14 / IEC60320-C13 0.89 m Pwr Cord,In-Cabinet,C13-C14,35-inch
X800-42U-43 IEC60320-C14 / IEC60320-C13 1.09 m Pwr Cord,In-Cabinet,C13-C14,43-inch
X800-42U-64 IEC60320-C14 / IEC60320-C13 1.63 m Pwr Cord,In-Cabinet,C13-C14,64-inch
X800-42U-R6 IEC60320-C14 / IEC60320-C13 0.68 m Pwr Cord,In-Cabinet,27-In,C13-C14,10A/250V

Supported Rail Kits for NetApp NS224

Marketing Part No.Manufacturing Part No.Description
NetApp System Cabinet Rail Kits
X87881A 113-00255 Rail Kit 5,Cabinet
Third-Party Cabinet Rail Kits
X-02654-00 111-02852 Kit,2-Post, Thin
X5532A 113-00251 Rail,4-Post,Thin,Rnd/Sq-Hole,Sm,Adj,24-32

Field Replacement Unit Parts for NetApp NS224

Marketing Part No.Manufacturing Part No.Description
Cabinets
X870F-C - Cabinet,1280mm,Empty,No PDU,No Rails,-C
X870F-N-C - Cab,1280mm,Empty,No PDU,No Rails,-C
X870F-QS-C - Cabinet,1280mm,Empty,No PDU,No Rails,QS,-C
Chassis
X5723A 111-03068 SHELF,EMPTY,2 PSU,913W,MIDPLANE II,DS212C
Conversion Kit
X898A TBD DS212C, Kit,FAS2620 Conversion
Data Cable
X66020A-R6 112-00429 Cable,Storage,MiniSAS HD,QSFP,12G,1m
X66020A-R6-C 112-00429 Cable,Storage,MiniSAS HD,QSFP,12G,1m,-C
X66021A-R6 112-00430 Cable,Storage,MiniSAS HD,QSFP,12G,2m
X66021A-R6-C 112-00430 Cable,Storage,MiniSAS HD,QSFP,12G,2m,-C
X66022A-R6 112-00431 Cable,Storage,MiniSAS HD,QSFP,12G,5m
X66022A-R6-C 112-00431 Cable,Storage,MiniSAS HD,QSFP,12G,5m,-C
X66030A 112-00435 Cable,12Gb,Mini SAS HD,0.5m
X66030A-C 112-00435 Cable,12Gb,Mini SAS HD,0.5m,-C
X66030A-K-N 112-00435 Cable,12Gb,Mini SAS HD,0.5m
X66030A-N 112-00435 Cable,12Gb,Mini SAS HD,0.5m
X66030A-N-C 112-00435 Cable,12Gb,Mini SAS HD,0.5m,-C
X66031A 112-00436 Cable,12Gb,Mini SAS HD,1m
X66031A-C 112-00436 Cable,12Gb,Mini SAS HD,1m,-C
X66031A-K-N 112-00436 Cable,12Gb,Mini SAS HD,1m
X66031A-N 112-00436 Cable,12Gb,Mini SAS HD,1m
X66031A-N-C 112-00436 Cable,12Gb,Mini SAS HD,1m,-C
X66032A 112-00437 Cable,12Gb,Mini SAS HD,2m
X66032A-C 112-00437 Cable,12Gb,Mini SAS HD,2m,-C
X66032A-K-N 112-00437 Cable,12Gb,Mini SAS HD,2m
X66032A-N 112-00437 Cable,12Gb,Mini SAS HD,2m
X66032A-N-C 112-00437 Cable,12Gb,Mini SAS HD,2m,-C
X66033A 112-00438 Cable,12Gb,Mini SAS HD,3m
X66033A-C 112-00438 Cable,12Gb,Mini SAS HD,3m,-C
X66033A-K-N 112-00438 Cable,12Gb,Mini SAS HD,3m
X66033A-N 112-00438 Cable,12Gb,Mini SAS HD,3m
X66033A-N-C 112-00438 Cable,12Gb,Mini SAS HD,3m,-C
X66034A 112-00439 Cable,12Gb,Mini SAS HD,5m
X66034A-C 112-00439 Cable,12Gb,Mini SAS HD,5m,-C
X66034A-K-N 112-00439 Cable,12Gb,Mini SAS HD,5m
X66034A-N 112-00439 Cable,12Gb,Mini SAS HD,5m
X66034A-N-C 112-00439 Cable,12Gb,Mini SAS HD,5m,-C
X66040A 112-00449 Cable,12Gb,SAS Opt,AOC,Mini SAS HD,1m
X66040A-C 112-00449 Cable,12Gb,SAS Opt,AOC,Mini SAS HD,1m,-C
X66040A-K-N 112-00449 Cable,12Gb,SAS Opt,AOC,Mini SAS HD,1m
X66040A-N 112-00449 Cable,12Gb,SAS Opt,AOC,Mini SAS HD,1m
X66040A-N-C 112-00449 Cable,12Gb,SAS Opt,AOC,Mini SAS HD,1m,-C
X66041A 112-00450 Cable,12Gb,SAS Opt,AOC,Mini SAS HD,2m
X66041A-C 112-00450 Cable,12Gb,SAS Opt,AOC,Mini SAS HD,2m,-C
X66041A-K-N 112-00450 Cable,12Gb,SAS Opt,AOC,Mini SAS HD,2m
X66041A-N 112-00450 Cable,12Gb,SAS Opt,AOC,Mini SAS HD,2m
X66041A-N-C 112-00450 Cable,12Gb,SAS Opt,AOC,Mini SAS HD,2m,-C
X66042A 112-00451 Cable,12Gb,SAS Opt,AOC,Mini SAS HD,3m
X66042A-C 112-00451 Cable,12Gb,SAS Opt,AOC,Mini SAS HD,3m,-C
X66042A-K-N 112-00451 Cable,12Gb,SAS Opt,AOC,Mini SAS HD,3m
X66042A-N 112-00451 Cable,12Gb,SAS Opt,AOC,Mini SAS HD,3m
X66042A-N-C 112-00451 Cable,12Gb,SAS Opt,AOC,Mini SAS HD,3m,-C
X66043A 112-00452 Cable,12Gb,SAS Opt,AOC,Mini SAS HD,5m
X66043A-C 112-00452 Cable,12Gb,SAS Opt,AOC,Mini SAS HD,5m,-C
X66043A-K-N 112-00452 Cable,12Gb,SAS Opt,AOC,Mini SAS HD,5m
X66043A-N 112-00452 Cable,12Gb,SAS Opt,AOC,Mini SAS HD,5m
X66043A-N-C 112-00452 Cable,12Gb,SAS Opt,AOC,Mini SAS HD,5m,-C
X66044A 112-00453 Cable,12Gb,SAS Opt,AOC,Mini SAS HD,15m
X66045A 112-00454 Cable,12Gb,SAS Opt,AOC,Mini SAS HD,30m
X66046A 112-00455 Cable,12Gb,SAS Opt,AOC,Mini SAS HD,50m
X66047A 112-00456 Cable,12Gb,SAS Opt,Mini SAS HD to LC,5m
X66047A-C 112-00456 Cable,12Gb,SAS Opt,Mini SAS HD to LC,5m,-C
X66047A-N-C 112-00456 Cable,12Gb,SAS Opt,Mini SAS HD to LC,5m,-C
X66048A 112-00457 Cable,12Gb,SAS Opt,Mini SAS HD to LC,30m
X66048A-C 112-00457 Cable,12Gb,SAS Opt,Mini SAS HD to LC,30m,-C
X66048A-N-C 112-00457 Cable,12Gb,SAS Opt,Mini SAS HD to LC,30m,-C
Drive
X302A-R5 108-00268 Disk Drive,1.0TB 7.2k,DS424x,FAS2240-4
X306A-R5 108-00270 Disk Drive,2.0TB 7.2k,DS424x,2554/2240-4
X308A-R5 108-00277 Disk Drive,3.0TB 7.2K,DS424x,2554/2240-4
X315A-R6 108-00368 DSK DRV,4TB 7.2k,NSE,DS424x,2554/2220/2240-4
X317A 108-00399 DSK DRV,6TB,7.2K,12G,NSE,DS212C
X318A-R6 108-00455 DSK DRV,8TB,7.2K,12G,DS212C
X322A 108-00551 DSK DRV,10TB,7.2K,12G,NSE,DS212C
X336A-R6 108-00427 DSK DRV,4TB,7.2K,12G,DS212C
X339A 108-00426 DSK DRV,2TB,7.2K,12Gb,DS212C,FAS2620
X363A-R6 108-00467 SSD,3.8TB,FAS2520/2554
X364A 108-00650 SSD,3.8TB,DS212C,FAS2620,w/MSW
X366A-R6 108-00470 SSD,1.6TB,NSE,DS4246,FAS2554
X374A 108-00573 SSD,960GB,12G,DS212C,W/MSW
X380A 108-00549 DSK DRV,10TB,7.2K,12G,DS212C
X388A 108-00885 DSK DRV,16TB,7.2K,12G,DS212C
X448A-R6 108-00253 SSD,200GB,DS4246,FAS2554/2240-4/2220
X449A-R6 108-00319 SSD,800GB,DS4246,FAS2554/2240-4/2220
X477A-R6 108-00315 DSK DRV,4TB 7.2k,DS4246,2554/2220/2240-4
X488A-R5 108-00298 Disk Drive,900GB 10K,2520/2220
X489A-R6 108-00322 Disk Drive,1.2TB 10K,2520/2220
X490A-R6 108-00425 Disk Drive,1.8TB 10K,FAS2520
X575A-R6 108-00370 SSD,400GB,DS424x,FAS2554/2240-4/2220
X576A-R6 108-00373 SSD,1.6TB,DS424x,FAS2554/2240-4/2220
X577A-R6 108-00375 SSD,800GB,NSE,DS4246,FAS2554
Power Cord
X-50617-00 - Jumper Crd,In-Cab,2m,C20-C13,E-Series
X-50617-00-0E-C - Jumper Crd,In-Cab,2m,C20-C13,E-Series,0E,-C
X1558A-R6 - Jumper Crd,In-Cab,48-IN,C13-C14
X1558A-R6-C - Jumper Crd,In-Cab,48-IN,C13-C14-C
X800-42U-35 - Jumper Crd,In-Cab,C13-C14,35-inch
X800-42U-35-C - Jumper Crd,In-Cab,C13-C14,35-inch,-C
X800-42U-35-K-N - Jumper Crd,In-Cab,C13-C14,35-inch
X800-42U-35-N - Power Cable,In-Cabinet,C13-C14,35-inch
X800-42U-43 - Jumper Crd,In-Cab,C13-C14,43-inch
X800-42U-43-C - Jumper Crd,In-Cab,C13-C14,43-inch,-C
X800-42U-43-K-N - Jumper Crd,In-Cab,C13-C14,43-inch
X800-42U-43-N - Power Cable,In-Cabinet,C13-C14,43-inch
X800-42U-64 - Jumper Crd,In-Cab,C13-C14,64-inch
X800-42U-64-C - Jumper Crd,In-Cab,C13-C14,64-inch,-C
X800-42U-64-K-N - Jumper Crd,In-Cab,C13-C14,64-inch
X800-42U-64-N - Power Cable,In-Cabinet,C13-C14,64-inch
X800-42U-R6 - Jumper Crd,In-Cab,C13-C14
X800-42U-R6-C - Jumper Crd,In-Cab,C13-C14,-C
X800B-R6 - Power Cable,Continental Europe,R6
X800B-R6-C - Power Cable,Continental Europe,-C,R6
X800C-R6 - Power Cable,UK and Ireland,R6
X800C-R6-C - Power Cable,UK and Ireland,-C,R6
X800D-R6 - Power Cable,Japan,R6
X800D-R6-C - Power Cable,Japan,-C,R6
X800E-R6 - Power Cable,North America,R6
X800E-R6-C - Power Cable,North America,-C,R6
X800F-R6 - Power Cable,Australia/New Zealand,R6
X800F-R6-C - Power Cable,Australia/New Zealand,-C,R6
X800G-R6 - Power Cable,Switzerland,R6
X800G-R6-C - Power Cable,Switzerland,-C,R6
X800H-R6 - Power Cable,Argentina,R6
X800H-R6-C - Power Cable,Argentina,-C,R6
X800I-R6 - Power Cable,China,R6
X800I-R6-C - Power Cable,China,-C,R6
X800J-R6 - Power Cable,Denmark,R6
X800J-R6-C - Power Cable,Denmark,-C,R6
X800K-R6 - Power Cable,India,South Africa,R6
X800K-R6-C - Power Cable,India,South Africa,-C,R6
X800L-R6 - Power Cable,Israel,R6
X800L-R6-C - Power Cable,Israel,-C,R6
X800M-R6 - Power Cable,Italy,R6
X800M-R6-C - Power Cable,Italy,-C,R6
X800N - POWER CABLE,INDIA BIS
X800N-C - Power Cable,India BIS,-C
X800P-R6 - Power Cable,North America,250V,R6
X800P-R6-C - Power Cable,North America,250V,-C,R6
X800T-R6 - Power Cable,Taiwan,BSMI,R6
X800T-R6-C - Power Cable,Taiwan,BSMI,-C,R6
X800VB-R6 - Power Cable,Brazil,IEC-60906-1-Plug
X800W-R6 - Power Cable,Taiwan,250V,BSMI,R6
X800W-R6-C - Power Cable,Taiwan,250V,BSMI,-C
X800Y-R6 - Power Cable,Japan,250V/15A
X800Y-R6-C - Power Cable,Japan,250V/15A,-C
Power Supply Unit
X5726A 114-00148 PSU,913W
RailKit
X-02654-00 111-02852 Rail Kit,Thin,Rnd/Sq-Hole,2-Post
X-02654-00-C 111-02852 Rail Kit,Thin,Rnd/Sq-Hole,2-Post,-C
X-02654-00-K-N 111-02852 Rail Kit,Thin,Rnd/Sq-Hole,2-Post
X-02654-00-N 111-02852 Rail Kit,Thin,Rnd/Sq-Hole,2-Post
X-02654-00-N-C 111-02852 Rail Kit,Thin,Rnd/Sq-Hole,2-Post
X-02657-00 111-02657 Rackmount Kit,212C,4-post,Adj
X-02657-00-C 111-02657 Rail Kit,Thin,Rnd/Sq-Hole,4-Post,Adj,24-32,-C
X-02657-00-K-N 111-02657 Rackmount Kit,212C,4-post,Adj
X-02657-00-N 111-02657 Rackmount Kit,212C,4-post,Adj
X-02657-00-N-C 111-02657 Rail Kit,Thin,Rnd/Sq-Hole,4-Post,Adj,24-32,-C
Shelf Module
X5720A - IOM12,SAS,12G

Size, Weight, Acoustic, Power for NetApp NS224

Associated Part No. Configuration Rack Units Weight Sound Power Sound Pressure Line Voltage Actual (Min to Max) Amps Typical Amps Worst Watts Typical Watts Worst BTU / Hr Typical BTU / Hr Worst
(None)
NS224-NS-1.9-18-N-C NVMe SHLF,18x1.92TB,Non-SED,- - - - - - - - - - - -
NS224-SED-1.9-18-QS NVMe SHLF,18x1.9TB,SED,-Q 2 62.2 lb (28.2 kg) 6.4 Bels 49.8 dBA 100 (100 to 120) 4.88 7.6 488 760 1666 2595
NS224-SED-1.9-18-QS NVMe SHLF,18x1.9TB,SED,-Q 2 62.2 lb (28.2 kg) 6.4 Bels 49.8 dBA 200 (200 to 240) 2.37 3.61 474 722 1617 2466
NS224-SED-15.3-18-QS NVMe SHLF,18x15.3TB,SED,-Q 2 62.2 lb (28.2 kg) 6.4 Bels 49.8 dBA 100 (100 to 120) 5.28 8.01 528 801 1804 2733
NS224-SED-15.3-18-QS NVMe SHLF,18x15.3TB,SED,-Q 2 62.2 lb (28.2 kg) 6.4 Bels 49.8 dBA 200 (200 to 240) 2.57 3.81 514 763 1754 2603
NS224-SED-3.8-18-QS NVMe SHLF,18x3.8TB,SED,-Q 2 62.2 lb (28.2 kg) 6.4 Bels 49.8 dBA 100 (100 to 120) 5.15 7.87 515 787 1758 2687
NS224-SED-3.8-18-QS NVMe SHLF,18x3.8TB,SED,-Q 2 62.2 lb (28.2 kg) 6.4 Bels 49.8 dBA 200 (200 to 240) 2.5 3.75 500 749 1709 2557
NS224-SED-7.6-18-QS NVMe SHLF,18x7.6TB,SED,-Q 2 62.2 lb (28.2 kg) 6.4 Bels 49.8 dBA 100 (100 to 120) 5.28 8.01 528 801 1804 2733
NS224-SED-7.6-18-QS NVMe SHLF,18x7.6TB,SED,-Q 2 62.2 lb (28.2 kg) 6.4 Bels 49.8 dBA 200 (200 to 240) 2.57 3.81 514 763 1754 2603
Empty Shelf (with AC PSU)
NS224-0-24-C NVMe SHLF,2U24,12G,Empty,- - - - - - - - - - - -
Quickship Half Populated
NS224-CF-15.3-12-N-C CAPACITY FLASH SHLF,12x15.3TB,- 2 57.8 lb (26.2 kg) 6.4 Bels 49.8 dBA 200 (200 to 240) 2.14 3.38 428 676 1460 2309
NS224-NS-1.9-12-QS NVMe SHLF,100G,12x1.9TB,Non-SED,-Q 2 57.8 lb (26.2 kg) 6.4 Bels 49.8 dBA 100 (100 to 120) 4.54 7.27 454 727 1551 2480
NS224-NS-1.9-12-QS NVMe SHLF,100G,12x1.9TB,Non-SED,-Q 2 57.8 lb (26.2 kg) 6.4 Bels 49.8 dBA 200 (200 to 240) 2.2 3.44 440 689 1502 2351
NS224-NS-3.8-12-QS NVMe SHLF,12x3.8TB,NON-SED,-Q 2 57.8 lb (26.2 kg) 6.4 Bels 49.8 dBA 100 (100 to 120) 4.72 7.45 472 745 1613 2541
NS224-NS-3.8-12-QS NVMe SHLF,12x3.8TB,NON-SED,-Q 2 57.8 lb (26.2 kg) 6.4 Bels 49.8 dBA 200 (200 to 240) 2.29 3.53 458 707 1563 2412
NS224-NS-3.8-12-QS NVMe SHLF,12x3.8TB,NON-SED,-Q 2 66.6 lb (30.2 kg) 6.4 Bels 49.8 dBA 100 (100 to 120) 5.58 8.3 558 830 1903 2832
NS224-NS-3.8-12-QS NVMe SHLF,12x3.8TB,NON-SED,-Q 2 66.6 lb (30.2 kg) 6.4 Bels 49.8 dBA 200 (200 to 240) 2.72 3.96 543 792 1854 2703
NS224-SED-1.9-12-QS NVMe SHLF,12x1.9TB,SED,-Q 2 57.8 lb (26.2 kg) 6.4 Bels 49.8 dBA 100 (100 to 120) 4.54 7.27 454 727 1551 2480
NS224-SED-1.9-12-QS NVMe SHLF,12x1.9TB,SED,-Q 2 57.8 lb (26.2 kg) 6.4 Bels 49.8 dBA 200 (200 to 240) 2.2 3.44 440 689 1502 2351
NS224-SED-15.3-12-QS NVMe SHLF,12x15.3TB,SED,-Q 2 57.8 lb (26.2 kg) 6.4 Bels 49.8 dBA 100 (100 to 120) 4.81 7.53 481 753 1643 2572
NS224-SED-15.3-12-QS NVMe SHLF,12x15.3TB,SED,-Q 2 57.8 lb (26.2 kg) 6.4 Bels 49.8 dBA 200 (200 to 240) 2.33 3.58 467 716 1594 2443
NS224-SED-3.8-12-QS NVMe SHLF,12x3.8TB,SED,-Q 2 57.8 lb (26.2 kg) 6.4 Bels 49.8 dBA 100 (100 to 120) 4.72 7.45 472 745 1613 2541
NS224-SED-3.8-12-QS NVMe SHLF,12x3.8TB,SED,-Q 2 57.8 lb (26.2 kg) 6.4 Bels 49.8 dBA 200 (200 to 240) 2.29 3.53 458 707 1563 2412
NS224-SED-3.8-12N-QS NVMe SHLF,12x3.8TB,SED,NSE,-Q 2 57.8 lb (26.2 kg) 6.4 Bels 49.8 dBA 100 (100 to 120) 4.72 7.45 472 745 1613 2541
NS224-SED-3.8-12N-QS NVMe SHLF,12x3.8TB,SED,NSE,-Q 2 57.8 lb (26.2 kg) 6.4 Bels 49.8 dBA 200 (200 to 240) 2.29 3.53 458 707 1563 2412
NS224-SED-7.6-12-QS NVMe SHLF,12x7.6TB,SED,-Q 2 57.8 lb (26.2 kg) 6.4 Bels 49.8 dBA 100 (100 to 120) 4.81 7.53 481 753 1643 2572
NS224-SED-7.6-12-QS NVMe SHLF,12x7.6TB,SED,-Q 2 57.8 lb (26.2 kg) 6.4 Bels 49.8 dBA 200 (200 to 240) 2.33 3.58 467 716 1594 2443
Quickship Fully Populated
NS224-CF-15.3-24-N-C CAPACITY FLASH SHLF,24x15.3TB,- 2 66.8 lb (30.3 kg) 6.4 Bels 49.8 dBA 200 (200 to 240) 2.62 3.86 524 772 1788 2637
NS224-NS-1.9-24-QS NVMe SHLF,100G,24x1.9TB,Non-SED,-Q 2 66.6 lb (30.2 kg) 6.4 Bels 49.8 dBA 100 (100 to 120) 5.22 7.94 522 794 1781 2710
NS224-NS-1.9-24-QS NVMe SHLF,100G,24x1.9TB,Non-SED,-Q 2 66.6 lb (30.2 kg) 6.4 Bels 49.8 dBA 200 (200 to 240) 2.54 3.78 507 756 1732 2580
NS224-NS-3.8-24-QS NVMe SHLF,24x3.8TB,NON-SED,-Q 2 66.6 lb (30.2 kg) 6.4 Bels 49.8 dBA 100 (100 to 120) 5.58 8.3 558 830 1903 2832
NS224-NS-3.8-24-QS NVMe SHLF,24x3.8TB,NON-SED,-Q 2 66.6 lb (30.2 kg) 6.4 Bels 49.8 dBA 200 (200 to 240) 2.72 3.96 543 792 1854 2703
NS224-SED-1.9-24-QS NVMe SHLF,24x1.9TB,SED,-Q 2 66.6 lb (30.2 kg) 6.4 Bels 49.8 dBA 100 (100 to 120) 5.22 7.94 522 794 1781 2710
NS224-SED-1.9-24-QS NVMe SHLF,24x1.9TB,SED,-Q 2 66.6 lb (30.2 kg) 6.4 Bels 49.8 dBA 200 (200 to 240) 2.54 3.78 507 756 1732 2580
NS224-SED-15.3-12N-QS-N NVMe SHLF,12x15.3TB,SED,NSE,-Q 2 57.8 lb (26.2 kg) 6.4 Bels 49.8 dBA 100 (100 to 120) 4.42 7.14 442 714 1510 2438
NS224-SED-15.3-12N-QS-N NVMe SHLF,12x15.3TB,SED,NSE,-Q 2 57.8 lb (26.2 kg) 6.4 Bels 49.8 dBA 200 (200 to 240) 2.14 3.38 428 676 1460 2309
NS224-SED-15.3-24-QS NVMe SHLF,24x15.3TB,SED,-Q 2 66.6 lb (30.2 kg) 6.4 Bels 49.8 dBA 100 (100 to 120) 5.76 8.48 576 848 1965 2893
NS224-SED-15.3-24-QS NVMe SHLF,24x15.3TB,SED,-Q 2 66.6 lb (30.2 kg) 6.4 Bels 49.8 dBA 200 (200 to 240) 2.81 4.05 561 810 1915 2764
NS224-SED-15.3-24N-QS-N NVMe SHLF,24x15.3TB,SED,NSE,-Q 2 66.8 lb (30.3 kg) 6.4 Bels 49.8 dBA 100 (100 to 120) 5.38 8.1 538 810 1837 2766
NS224-SED-15.3-24N-QS-N NVMe SHLF,24x15.3TB,SED,NSE,-Q 2 66.8 lb (30.3 kg) 6.4 Bels 49.8 dBA 200 (200 to 240) 2.62 3.86 524 772 1788 2637
NS224-SED-3.8-24-QS NVMe SHLF,24x3.8TB,SED,-Q 2 66.6 lb (30.2 kg) 6.4 Bels 49.8 dBA 100 (100 to 120) 5.58 8.3 558 830 1903 2832
NS224-SED-3.8-24-QS NVMe SHLF,24x3.8TB,SED,-Q 2 66.6 lb (30.2 kg) 6.4 Bels 49.8 dBA 200 (200 to 240) 2.72 3.96 543 792 1854 2703
NS224-SED-3.8-24N-QS NVMe SHLF,24x3.8TB,SED,NSE,-Q 2 66.6 lb (30.2 kg) 6.4 Bels 49.8 dBA 100 (100 to 120) 5.58 8.3 558 830 1903 2832
NS224-SED-3.8-24N-QS NVMe SHLF,24x3.8TB,SED,NSE,-Q 2 66.6 lb (30.2 kg) 6.4 Bels 49.8 dBA 200 (200 to 240) 2.72 3.96 543 792 1854 2703
NS224-SED-7.6-24-QS NVMe SHLF,24x7.6TB,SED,-Q 2 66.6 lb (30.2 kg) 6.4 Bels 49.8 dBA 100 (100 to 120) 5.76 8.48 576 848 1965 2893
NS224-SED-7.6-24-QS NVMe SHLF,24x7.6TB,SED,-Q 2 66.6 lb (30.2 kg) 6.4 Bels 49.8 dBA 200 (200 to 240) 2.81 4.05 561 810 1915 2764



Category: 2u, drive-capacity-7-6tb, drive-count-24, interface-type-nvme, netapp, ns224, sff

Shipping Information

Express Computer Systems can ship to virtually any address in the world and provides you with the best shipping rates possible. Cost of shipping varies depending on what service you require, your destination and size of the shipment. Shipping costs will be calculated separately from your order and billed to you post purchase. In the notes section of your order please provide us with your preferred shipping method and we will get back to you.

Custom configured orders ship within 2 business days after all required products are in stock.

Please allow 3 business days for products that are not in stock to arrive to our facility in Irvine, California.

Domestic Shipments
  • Standard Ground
    • Shipping time: 2-7 business days
    • Order processing time: 0-3 business days
    • Delivery time after order is placed: 2-10 business days
    • Excludes weekends, holidays or weather delays.
  • 3 Business Days
    • Shipping time: 3 business days
    • Order processing time: 0-3 business days
    • Delivery time after order is placed: 3-6 business days
    • Excludes weekends, holidays or weather delays.
  • 2 Business Days
    • Shipping time: 2 business days
    • Order processing time: 0-3 business days
    • Delivery time after order is placed: 2-5 business days
    • Excludes weekends, holidays or weather delays.
  • Overnight / Next Business Day
    • Shipping time: 1 business days
    • Order processing time: 0-3 business days
    • Delivery time after order is placed: 1-4 business days
    • Excludes weekends, holidays or weather delays.
International Shipments
  • International Economy
    • Shipping time: 4-6 business days
    • Order processing time: 0-3 business days
    • Delivery time after order is placed: 5-9 business days
    • Excludes weekends, holidays or weather delays.
  • International Priority
    • Shipping time: 1-3 business days
    • Order processing time: 0-3 business days
    • Delivery time after order is placed: 2-6 business days
    • Excludes weekends, holidays or weather delays.

For more information on shipping view our Shipping Information page or send us a message

ECS Warranty Information

Express Computer Systems (ECS) provides a 1 year parts warranty against defects in material or workmanship that will affect the products functionality. All refurbished items are tested prior to shipping to guarantee up-time upon arrival. If you are having issues with an item we provided please Contact Us and we will do our best to assist you.

What does our ECS warranty cover?
We offer 1 year warranty as standard and additional years can be added to fit your needs. Please reach out to a sales associate via the Contact Us page or live chat for more information on extended coverage options. During the coverage period if your product fails we will offer a Next Business Day replacement. If we are unable to replace the product we will refund its original selling price. Shipping costs and tax are not refundable. Express Computer Systems retains the right to decide whether the goods will be replaced or refunded.

What is not covered by our warranty?
Our warranty does not cover any problem caused by the following conditions:

  1. accidents; misuse; carelessness; electrostatic discharge; shock; temperature or humidity beyond the specifications of the product; improper installation; operation; modification;
  2. any improper use that contravenes the instructions in the user manual;
  3. problems caused by other equipment. Our warranty is void if the product is returned with damaged, removed, counterfeit labels, or any modifications (including any component or external cover removal). Our warranties do not cover data loss or damages to any other equipment. In addition, our warranties do not cover incidental damages, consequential damages, or costs related to data recovery, removal, and installation.

Important notes:

  • Please ask for additional warranty/coverage that you may require in addition to the standard 1 ECS warranty prior to final purchase. Requesting additional warranty after your purchase can be denied.
  • FREE technical support is provided on purchased items via phone, email, or live chat.

About Express Computer Systems

Express Computer Systems is committed to transforming our customers’ IT infrastructure with high quality products at affordable costs. Our sales reps and customer support engineers understand our customers rely heavily on advanced technology to run their business but need to do so without breaking the bank.

We specialize in building custom server configurations, custom storage solutions, networking solutions, and components from top manufacturers including HPE, Dell, Cisco, NetApp, Dell EMC, HPE Nimble and many others.

Same-Day Shipping

At Express Computer Systems, we know hardware emergencies can happen at anytime. We also understand that you want to receive the best hardware as quickly as possible. At Express Computer Systems we'll ship the majority of our orders out the same day payment is made. Curious if the item you need will make it out on time? Feel free to contact us directly via the Contact Us link at the bottom, Live Chat feature or (800) 327-0730.

Buy, Sell, Rent, Lease, Trade-In

At Express Computer Systems we not only will sell you equipment at a great value, but we'll also purchase your used Dell, Cisco, NetApp or other networking equipment. Feel free to contact us with the model of the items you're looking to sell and we'll get you a quote ASAP. We also have flexible financing options for your purchasing needs.

In-House Configuration and Testing Lab

Every item we sell is tested on-site in our state-of-the-art hardware engineering lab. We use certified technicians to test every piece of equipment as well as updating all necessary firmware. The highest quality of testing and certification is guaranteed. We warranty all of our items we sell. Ask us today about warranty for a specific item.

Related Items

Subscribe

Shop with Confidence
