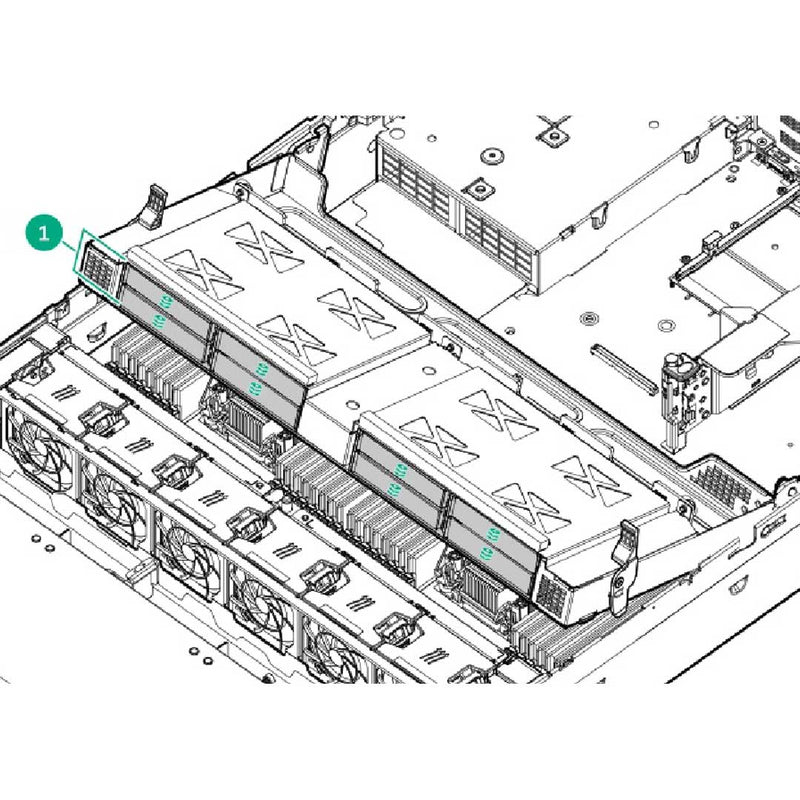

HPE Proliant Dl300 Gen10 Plus 2U 8Sff X4 Tri-Mode 24G U.3 Bc Midplane Drive Cage Kit | P39769-B21
Thanks for the request. We'll get back to you with in 24 hours.
-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.
-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.
Drive Cage Specs
P23361-001 - Power Cables
P24133-001 - Cable - Midtray, Prem/Basic-Host Board
P24136-001 - Cable - Split Midtray Port,1-4 to X32 Pr
P40452-001 - SPS-Backplane: Premium Midtray(U.3 2x4)
P31215-001 - SPS-GNRC,H/S,H/P
DL380 Gen10 Plus Notes
: − This option requires the selection of High Performance Fan Kit (P14608-B21).
If this option is being configured into a 12LFF Model-X or 24SFF Model-X, this rule does not apply as these models already come standard with the High Performance Fans.
If this option is selected, NO "Full Length" (FL) PCIe cards can be supported.
Can be selected only with 8SFF Model X and 24SFF Model X.
Mixing of Drives (SAS/ SATA/ NVMe) is allowed on U.3 drive cage if selected along with Tri Mode Controllers.
Mid Tray cannot be selected with Processors above 165W. Supports 8 SAS/SATA SFF drives in Box 1 or 2 to a max of 24 SFF SAS/SATA front.
