SKU: P55698-B21

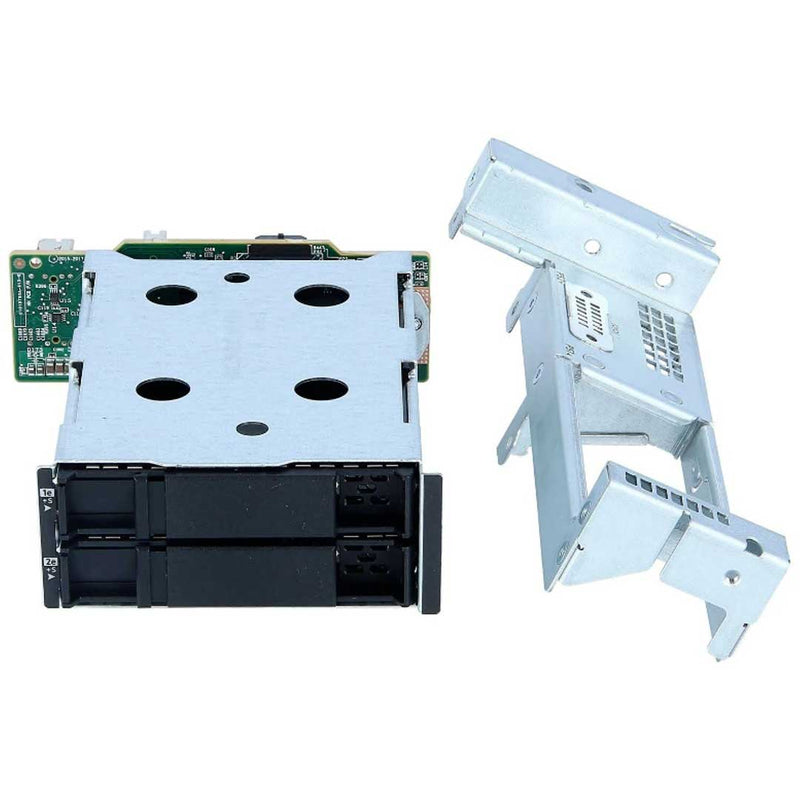

HPE Dl380 Gen10 Plus 2Sff Sas/Sata Bc Front/Rear Drive Cage Kit | P55698-B21
Contact For Pricing
Thanks for the request. We'll get back to you with in 24 hours.
-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.
-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.
Drive Cage Specs
This cage goes in the front Universal Media Bay or the tertiary Riser in the back.
P39778-001 - SPS-PCA, 2SFF x1 SAS/SATA UBM2 BP
P56044-001 - SPS-CA kit:TriMode(PRI/SEC/TER)/SAS
DL380 Gen10 Plus Notes
: 2SFF Drive Cage (Front/ Rear)
Drive Cage Capacity : MAX=2 SFF SAS/SATA drives
Max = 2 for the 8SFF Model-X
− Max = 1 for 8LFF, 12LFF, and 24SFF Model-X
On 8SFF Model-X, if quantity = 2 then the Universal Media Bay (P14609-B21) must also be selected.
− On 8SFF Model-x, if Universal Media Bay is not selected this will will be installed in the rear and Maximum Performance Fan Kit (P14608-B21) is required.
− Requires selection of tri-mode controller.
− When used in rear position then drives must be under 10W
Compatible With:
- HPE DL380 plus
(Click to View)
