HPE Apollo 4200 Gen10 Plus 2Lff Sas/Sata Lp Primary Drive Cage 4 Kit | P44987-B21

Drive Cage Specs

:− One of the Primary Kits is required per system.
− The PCIe Primary Riser Kit (P28711-B21) include one X16 FHHL slot 1, one X8 FHHL slot 2, and one power only slot 3 for non-PCIe options (SATA M.2 or OCP Thermal Enhancement Kit)
− The Primary Drive Cage 4 Kit (P28712-B21) includes 2SFF Drive Cage 4 and one X16 FHHL slot 3.

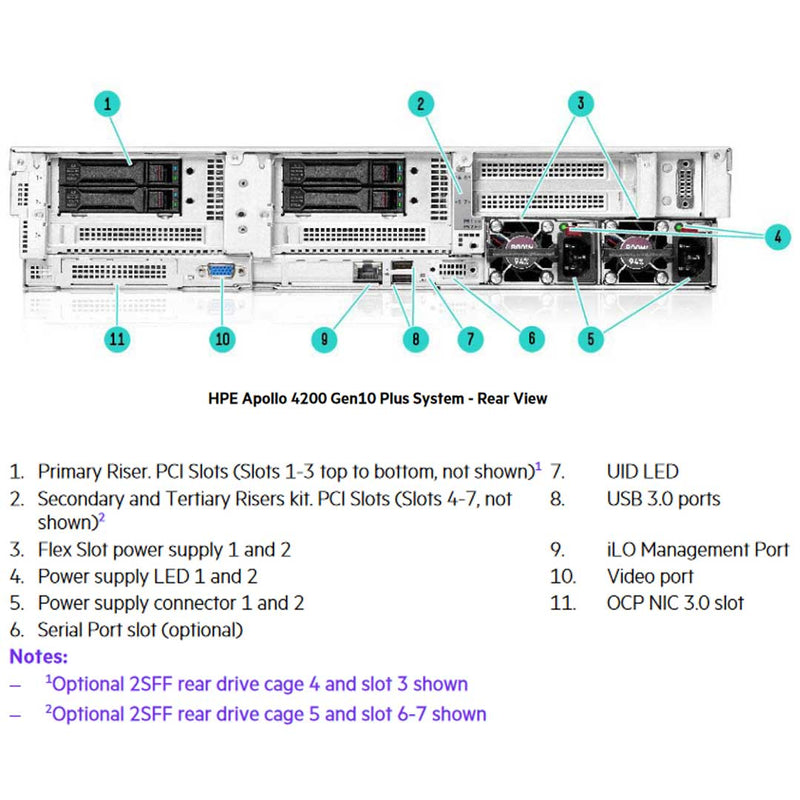

− The rear LFF Cage4 and Cage5 are bundled, quantity one of the following SKUs are required when configure rear LFF Drive Cages: P44987-B21, P44984-B21, P44990-B21, and 869083-B21.
− The core options for the rear drive cage 4/5, necessary controller(s), and controller cable kit selection are suggested to be configured at the factory. Customers can upgrade or change the rear drive cage 4 /5 core option or cable kit after they are installed and cabled in the factory, but these changes may require added service costs and new parts to complete this upgrade.
− Customers swapping between the PCIe riser and the rear SFF drive cage 4/5 kit(s) will incur new parts cost but no added service cost. Swapping from any other configurations will require additional parts cost and added HPE service cost.
− Additionally, customers can still install, upgrade, or swap the SFF, LFF or NVMe drives for Cage 4 /5 after the systems have left the factory if the new drives are supported by the drive cage 4/5, proper controller(s), and cable kit selection.
