Specs
Quick Specs
- GPU Model: Intel Max 1100
- X-cores: 56
- Memory: 48 GB HBM2e
- Memory Bandwidth: 1.6 TB/s
- Interface: PCIe Gen 5.0 x16
- Power Consumption: 300W
- Form Factor: Dual Width, Full Height, Three-Quarter Length
- Ray Tracing: Yes
- oneAPI Support: Yes
Part Number:
- WG7J6

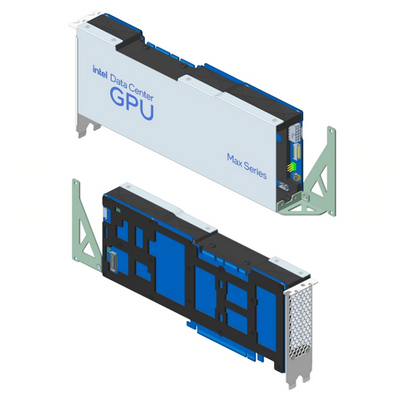

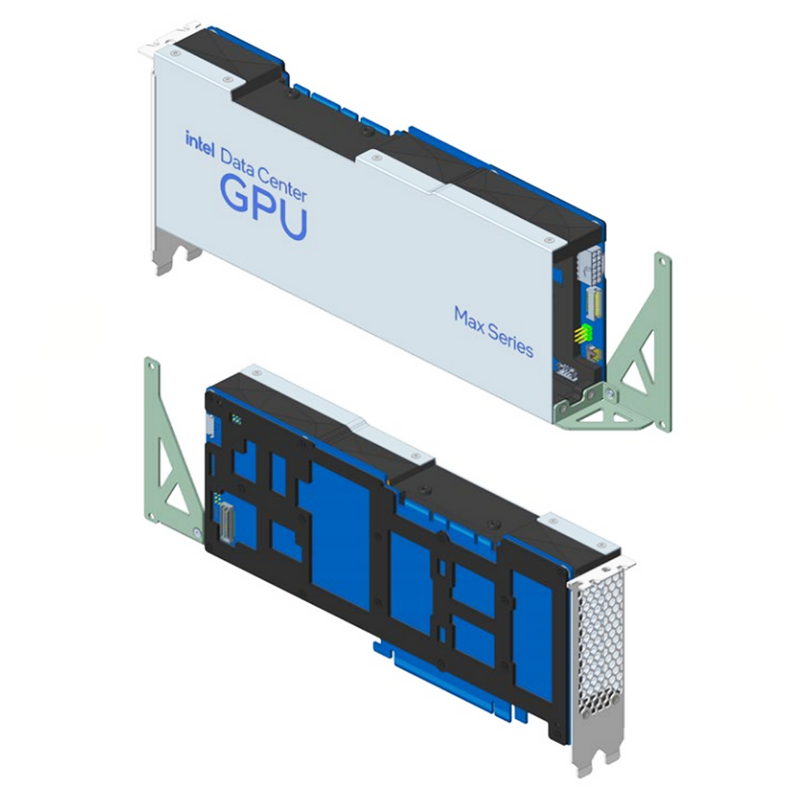

The Dell Intel Data Center GPU Max 1100 (WG7J6) is engineered for high-performance computing tasks, including AI, machine learning, and data analytics. Featuring 56 Xe cores and 48 GB of HBM2e memory, it delivers exceptional bandwidth and computational capabilities suitable for demanding workloads. The GPU leverages PCIe Gen 5.0 x16 connectivity, ensuring high-speed data transfer for optimal performance.
Designed with a 300W power envelope and a dual-width, full-height, three-quarter-length form factor, this GPU is optimized for integration into data center environments. Its architecture ensures efficient thermal management and reliability, making it an ideal choice for enterprise-grade servers and workstations. The GPU supports Intel's oneAPI for unified programming and features Xe Link technology for scalable multi-GPU configurations.
Base Standard Capabilities
| Package Configuration | Intel® Data Center GPU Max 1100 300W Add-in Card 1 Stack 56 Xe Cores 448 Vector Engines 448 Matrix Engines |
|---|---|
| Memory | 48GB HBM2e L1: 512KB per Xe Core, 28MB total L2 Cache: 108MB ECC support |
| Card TDP | 300W |
| Form Factor | Passive Air-Cooled Double Wide PCIe Card 10.5" Long |
| Scalability | Xe Link (Six 53Gb Ports). Supports all-to-all connections between two or four cards via an optional bridge card. |
| I/O Host Interface | PCIe Gen 5 |
| Compute Numerics | Systolic: Int4, Int8, Bfloat16, FP16, TF32 Non Systolic: Int16, Int32, FP16, FP32, FP64 |
