Quick Specs
| Configurations | Expansion card risers | PCIe Slots | Controlling processor | Height | Length | Slot width |
|---|---|---|---|---|---|---|
| Config 1-1. with 4x FH, 2x LP and without NVbridge |

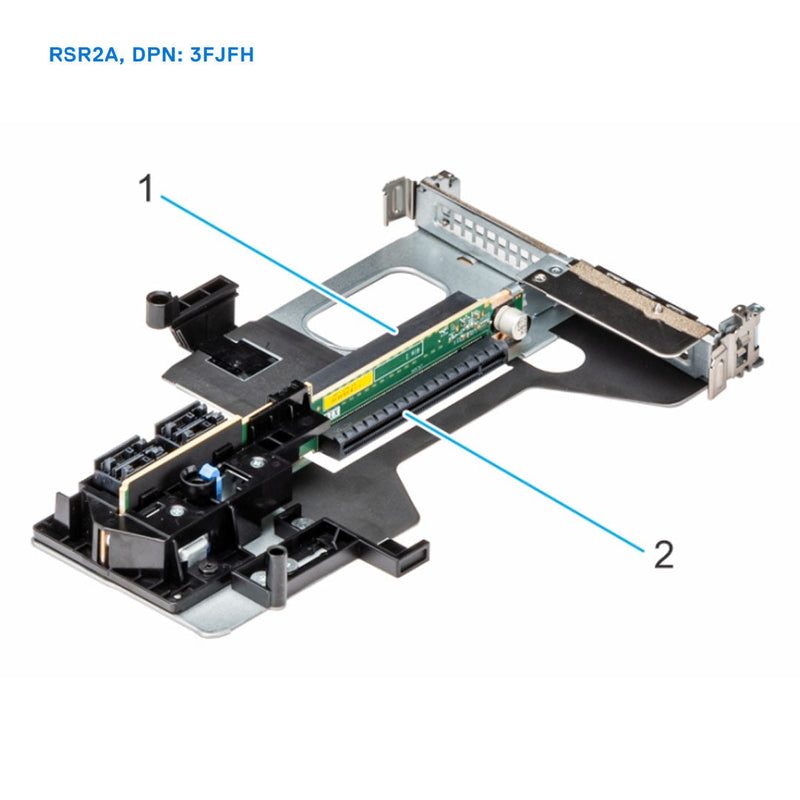

R2A | 3 and 6 | Processor 1 and 2 | Full height | Half length | x16 + x16 |

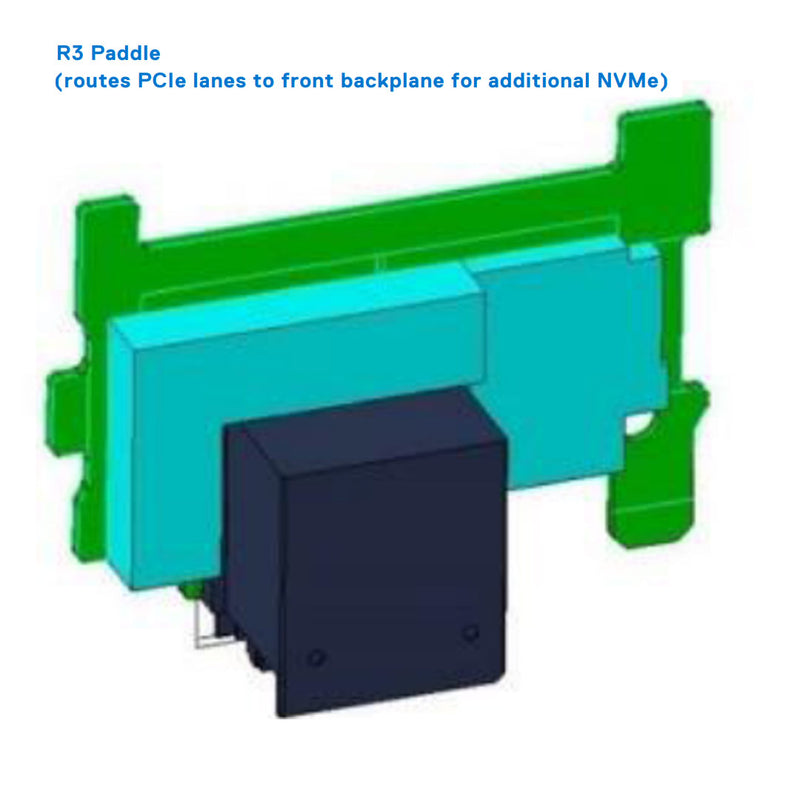

| R3 paddle card | NA | Processor 2 | NA | NA | NA | |

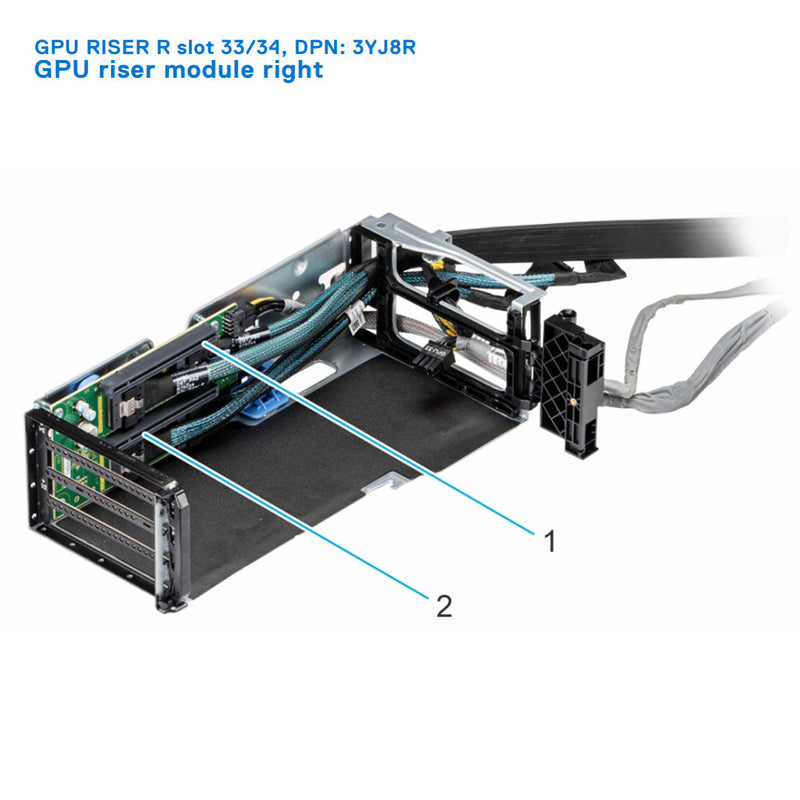

| GPU riser module right with R1 paddle card | 33 and 34 | Processor 1 | Full Height, double width | Full length | x16 + x16 | |
| GPU riser module Left with R4 paddle card | 31 and 32 | Processor 2 | Full Height, double width | Full length | x16 + x16 |
Compatible With:
- Dell R750xa
(Click to View)
