SKU: NU209

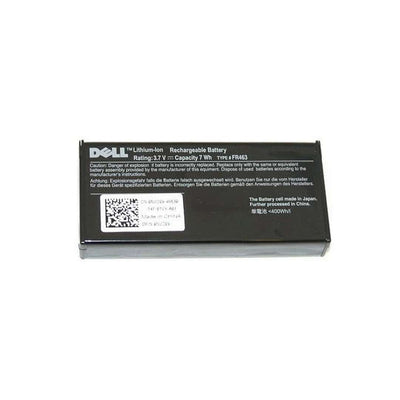

Dell PERC 5/i 6/i H700 3.7V RAID Controller Battery | NU209

Name: Dell PERC 5/i 6/i H700 3.7V RAID Controller Battery | NU209
Brand: Dell
SKU: NU209
Availability: InStock

| Batteries

.price-ui--loading { display: block !important; opacity: 1 !important; }

Contact For Pricing

Thanks for the request. We'll get back to you with in 24 hours.

Feature/Spec	PERC H700	PERC 6/I	PERC H800	PERC 6/E
Interface	6Gb (SAS 2.0)	3Gb (SAS 1.1)	6Gb (SAS 2.0)	3Gb (SAS 1.1)
Bus support	x8 PCIe 2.0	x8 PCIe 1.0	x8 PCIe 2.0	x8 PCIe 1.0
Ports / Channels	8 (2 x4)	8 (2 x4)	8 (2 x4)	8 (2 x4)
Int/Ext Connectors	2 internal	2 internal	2 external	2 external
Cache Memory	512MB BBU 512MB Non-Volatile Cache (800 MHz DDR2)	256MB (667 MHz DDR2)	512MB TBBU 512MB TNVC 1GB TNVC (800 MHz DDR2)	256MB / 512MB (667 MHz DDR2)
Battery-Backed Cache	Yes	Yes	Yes Transportable	Yes Transportable
RAID Levels	0, 1, 5, 6, 10, 50, 60	0, 1, 5, 6, 10, 50, 60	0, 1, 5, 6, 10, 50, 60	0, 1, 5, 6, 10, 50, 60
Max physical drives in Large RAID volume (R10, R50, R60)	16	10	192 (8x MD1220)	144 (6x MD1120)
HDD Support	SAS and SATA	SAS and SATA	SAS only	SAS and SATA
SSD Support	SAS and SATA	SATA	SAS only	Not Supported
SED Support	Yes (Local Key Management)	Not Supported	Yes (Local Key Management)	Not Supported
Controller Firmware (latest rev)	7.1	6.2	7.1	6.2
Redundant Path	No	No	Yes	Yes
I/O Load Balancing	No	No	Yes	Yes
Cluster Support	No	No	No	No
Storage Management	OpenManage™ 6.2 (minimum rev)	OpenManage™ 5.4 (minimum rev)	OpenManage™ 6.2 (minimum rev)	OpenManage™ 5.4 (minimum rev)
