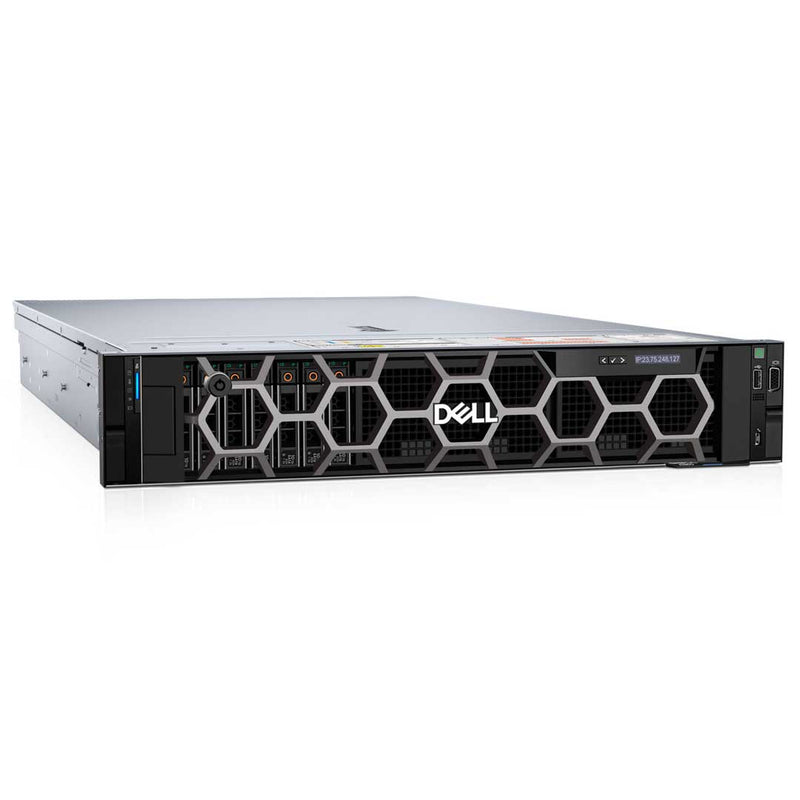

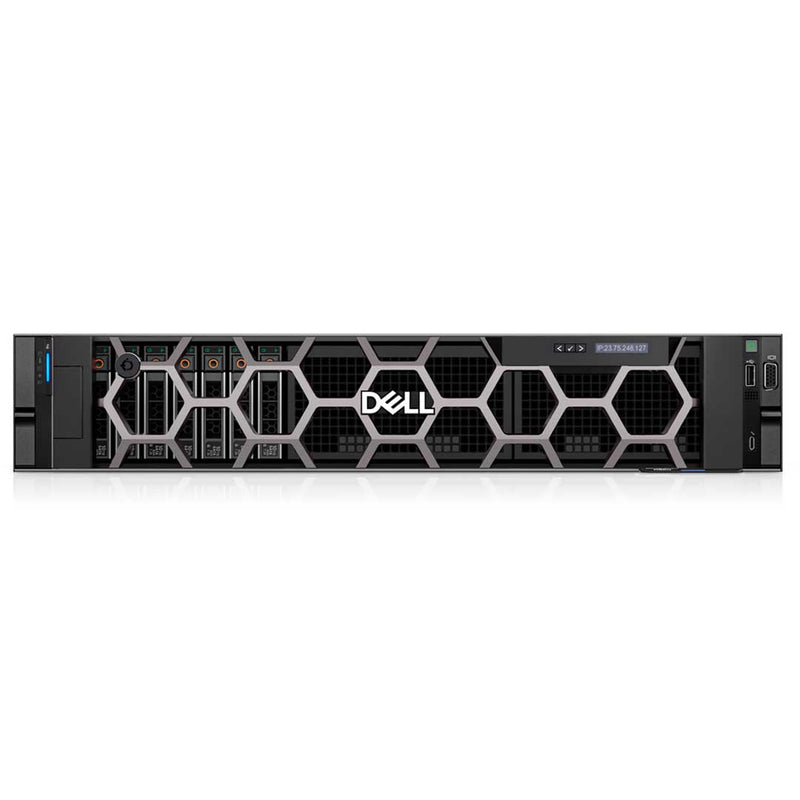

Dell PowerEdge R860 Rack Server CTO

Dell

| CTO Servers |

DPE-R860-CTO



Configure for Pricing

READ ME

  • Some options may not be displayed until the compatible parent option is chosen ie. Chassis – Drives, Processor – RAM etc.
  • “Quote” items can be added to your cart and sent to us via the cart page
  • Click the blue bar to close/open a section from view after choosing your options

Select Chassis

For the 8SFF and 8 NVMe chassis, you can mix and match 1 or 2 additional 8-bay backplanes.
The 8 EDSFF can not accept any upgraded backplanes.
The 24 bay Universal Chassis is the only one to support Rear Drives.

Select Processor

Supports up to 4 Processors.

4th Generation Xeon® Scalable Processors

Additional Backplanes (Optional)

The Additional backplanes can be mixed and matched.
The server supports up to 3 8-bay backplanes at once.

Rear Drive cage (Optional)

Only the 24-bay Universal Chassis can support the rear drive cage.

Risers Options (Optional)

View the PCIe configruation below for more detials about each riser configuration.

Memory

Supports up to 64 DIMMS. 16 Per Socket.

Storage Controllers (Optional)

The BOSS-N1 has two 480GB M.2 Drives for the Boot or the Hypervisor.
Write in the notes if you would like to upgrade to the 960GB M.2 NVMe SSDs.

SFF SAS Drives (Optional)

Supports up to 24 Drives

SFF SATA Drives (Optional)

Supports up to 24 Drives

NVMe Drives (Optional)

Supports up to 24 Drives

EDSFF E3.S NVMe SSD Drives (Optional)

Supports up to 8 Drives

OCP NIC (Optional)

Both the LOM and OCP can be installed at the same time.

Rail Kit (Optional)

TPM (Optional)

iDRAC9 (Optional)

Default iDRAC9 Express

Power Supply Units (PSU)

The 2400W and the 2800W are 86MM while the rest are 60MM.
You will need the PSU Spacer when installing the 60MM PSUs.

ECS Warranty

Helpful Tip: Once desired configuration is selected click "Add to Cart".
From the cart page you can submit a submit a quote request for best pricing

Quick Specs

Form Factor:

2U rack server

Processor | Max: 60 Core

Up to 4x Gen 4 Intel Xeon Scalable

Memory | Max: 16TB

Up to 64 DDR5 RDIMM 4800Mhz
Supports registered ECC DDR5 DIMMs only.

Storage | Max: 368.34 TB

8x 2.5” SAS/SATA Max: 122.88 TB
8x 2.5” NVMe Max: N/A
8x EDSFF E3.S Gen5 NVMe Max: 61.44 TB
16x 2.5” SAS/SATA/NVMe Max: 245.76 TB
24x 2.5” SAS/SATA/NVMe Max: 368.34 TB
16x 2.5” SAS/SATA + 8x 2.5” NVMe Max: 368.34 TB

Rear Storage | Max: 30.72TB

Up to 2 x 2.5” SAS/SATA (HDDs/SSDs)
Only Supported on the 24 Bay SAS/SATA Configuration

Boot Options:

BOSS-N1
USB

PCIe Slots: 8 Gen: 5.0

Slot 1:

  • 1 x16 Gen5
  • or 1 x8 Gen4 FH, HL

Slot 2:

  • 1 x16 Gen5
  • or 1 x8 Gen4 FH, HL

Slot 3: 1 x16 Gen5 LP, HL

Slot 4: 1 x16 Gen5 FH, HL

Slot 5: 1 x16 Gen5 FH, HL

Slot 6: 1 x16 Gen5 LP, HL

Slot 7:

  • 1 x16 Gen5
  • or 1 x8 Gen4 FH, HL

Slot 8:

  • 1 x16 Gen5
  • or 1 x8 Gen4 FH, HL

Please view the riser Section below for more details.

Remote management:

iDRAC9 with Lifecycle Controller

Networking | LOM & OCP 3.0:

2 x 1 GbE LOM card (optional)
1 x OCP card 3.0 (optional)
Note: The system allows either LOM card or an OCP card or both to be installed in the system.

RAID controllers (PERC 9) | Max: 2

S160 (SW)
PERC H355, H755, H965i, HBA355i, HBA355e, H965e

GPU

Not Supported

Other Versions

Ideal for:

  • Artificial Intelligence (AI)
  • Database
  • Deep Learning
  • High-Performance Computing (HPC)
  • Machine Learning (ML)
  • Virtual Desktop Interface (VDI)
  • Virtualization
  • Virtual Machines (VM)
Dell PowerEdge R860 Base Knowledge

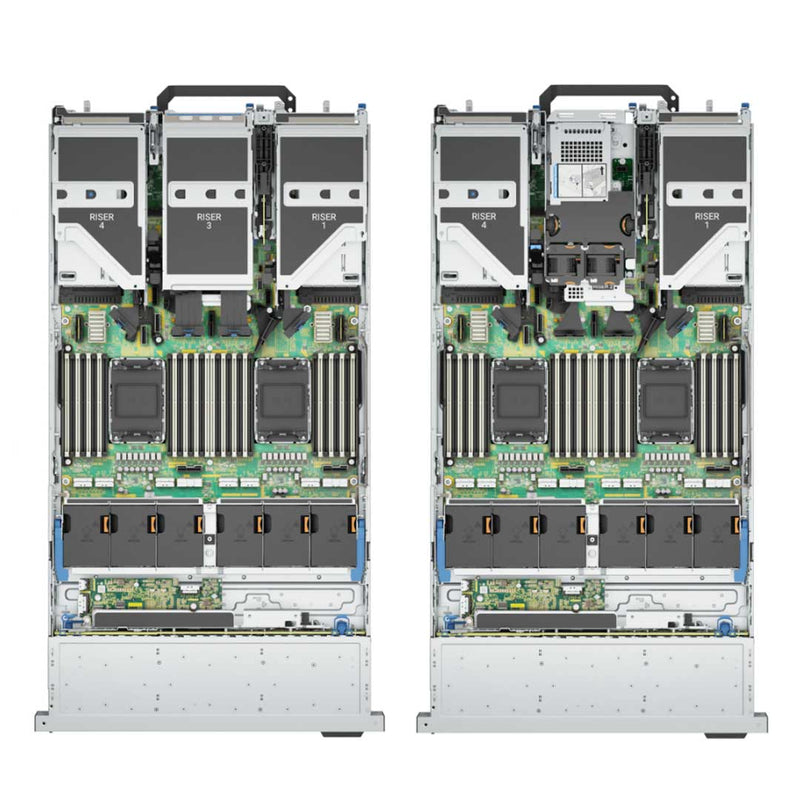

The Dell R860 supports 4 Processors on a 2U system by stacking the processors on top of each other. There is a PEM board that gets mounted on top of the 1st and second CPU. This second board holds 2 Processors and 32 DIMMs. This design is highly efficient and will bring a lot of advantages to your configuration needs.

Built for business-critical

Accelerate a wide range of applications with this four-socket 2U air-cooled design. Deliver faster results from your core operations while consolidating into fewer, more powerful servers thanks to the latest 4th generation Intel Xeon scalable processors.

  • Take advantage of four powerful Intel® Xeon® processors (up to 60 cores per processor) and up to 64 DDR DIMMs for 16TB of memory, supporting large in-memory databases
  • Scale up with support for up to 24 drives and 8 PCIe Gen 5 expansion slots
  • Experience fast deployments and high server density in an air-cooled environment thanks to the slim 2U architecture
Maximize your core operations with a powerful, dense compute foundation

The R860 with a 2U air-cooled form factor and four (4) Intel Xeon® Scalable Processors enables businesses to accelerate a wide variety of core and business-critical applications including databases, analytics, and other data-driven applications.

  • With a maximum CPU core count of 60 cores and the ability to support 64 DDR5 DIMMs for a total of 16TB of memory, the R860 is large enough to run in-memory databases and multiple applications.
  • Scale up business needs with support for up to 24 NVMe drives, DIMMs, 8 PCIe Gen5 slots for I/O expansion, LOM, and industry standard OCP to enable customers flexible network connectivity.
  • Enable fast 1:1 CPU-I/O communications with PCIe Gen5 adaptor support.
Purpose-built operations and workload performance
  • Harness the latest generation technologies including DDR5 memory, PCIe Gen 5.0, and NVMe SSDs to maximize data transformation, support large in-memory databases, and generate faster insights to drive the business forward.
  • Leverage new workload accelerators built into each Intel Xeon processor that are purpose-designed for peak performance in traditional and emerging business applications.
  • Deploy quickly with slim 2U form factor, enabling IT organizations to consolidate more operations into fewer, more powerful servers, and high density in air-cooled environments.
Increase efficiency and accelerate operations with autonomous collaboration

The Dell OpenManage™ systems management portfolio delivers a secure, efficient, and comprehensive solution for PowerEdge servers. Simplify, automate and centralize one-to-many management with the OpenManage Enterprise console and iDRAC.

Cyber Resilient Architecture for Zero Trust IT environment & operations

Security is integrated into every phase of the PowerEdge lifecycle, including protected supply chain and factory-to-site integrity assurance. Silicon-based root of trust anchors end-to-end boot resilience while Multi-Factor Authentication (MFA) and role-based access controls ensure trusted operations

R860 available internal storage configurations:

There is no 16 Drive Backplane. The 16x 2.5" consists of (2) 8x 2.5" SAS/SATA backplanes or (2) of the 8x 2.5" NVMe backplanes. These can be mixed in a single configuration with two PERCs installed to control each set of drives.

The R860 has only a few backplanes that can create all the configurations below.

  • 2.5-inch (x 8) NVMe backplane
  • 2.5-inch (x 8) SAS, or SATA backplane
  • 2.5-inch (x 24) SAS, SATA, or NVMe backplane
  • 2.5-inch (x 24) NVMe Passive backplane
  • EDSFF E3.S (x8) NVMe backplane
  • 8 x 2.5" (SAS/SATA)

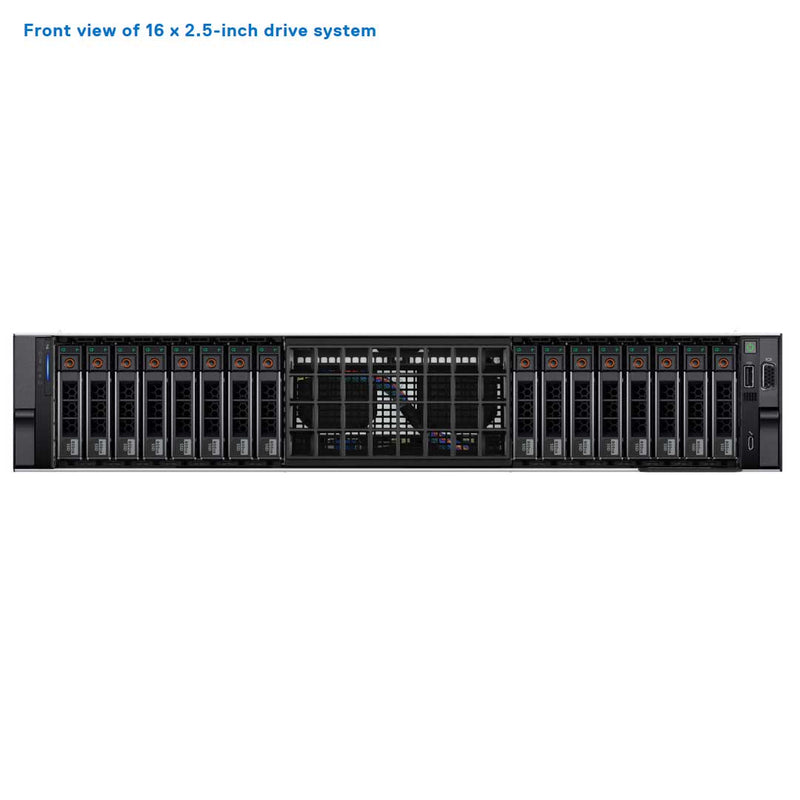

  • 16 x 2.5" (SAS4/SATA)
  • 16 x 2.5" (SAS4/SATA) + 8 x 2.5" NVMe

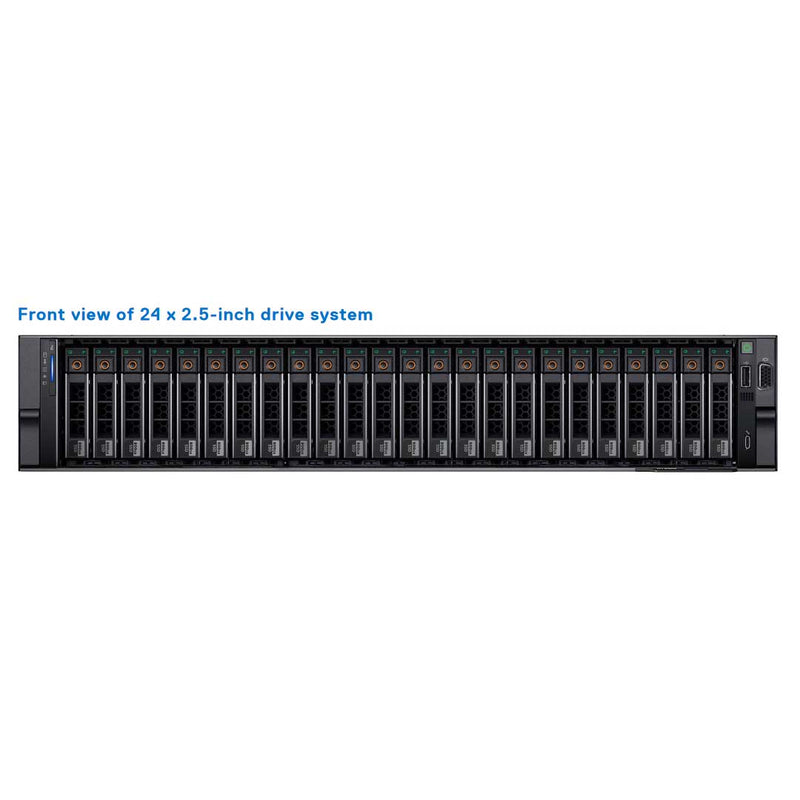

  • 24 x 2.5" (SAS4/SATA)
  • 24 x 2.5" (SAS4/SATA) + 2 x 2.5" (NVMe)
  • 24 x 2.5" (SAS4/SATA) + 2 x 2.5" (SAS/SATA)
  • 24 x 2.5" (SAS4/SATA) - Dual Controller
  • 24 x 2.5" + 2 x 2.5" (SAS4/SATA) - Dual Controller
  • 24 x 2.5" + 2 x 2.5" (SAS/SATA) - Dual Controller
  • 24 x 2.5" (NVMe) passive
  • 16 x 2.5" (NVMe RAID)

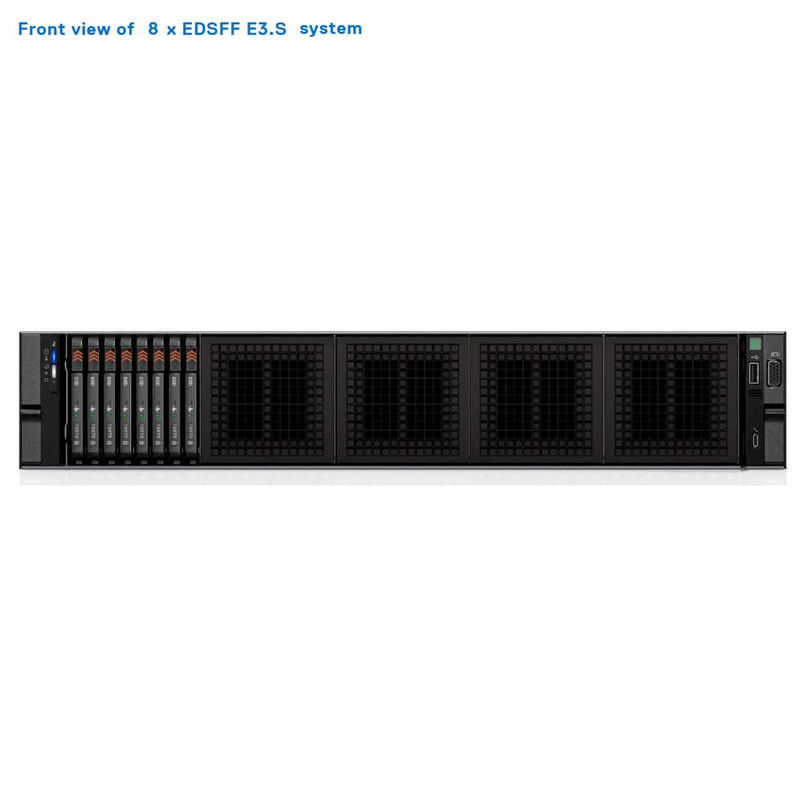

  • 8 x EDSFF E3.S (NVMe) Gen5

16 x 2.5" (NVMe RAID) Image below Image of a Dual Perc Configuration 16 NVMe RAID
Memory:

The Dell PowerEdge R860 has a 2 or 4 socket configuration. When you install the PEM you gain access to all 64 DIMMs. Without the PEM installed, you can access 32 DIMMs on 2 sockets. Please read the manual for all the memory guidelines and limitations.

DIMM Type Rank Capacity DIMM rated voltage and speed Operating Speed
1 DIMM per channel (DPC) 2 DIMMs per channel (DPC)
RDIMM 1 R 16 GB DDR5 (1.1 V), 4800 MT/s 4800 MT/s 4400 MT/s
2 R 32 GB, 64 GB DDR5 (1.1 V), 4800 MT/s 4800 MT/s 4400 MT/s
4 R 128 GB DDR5 (1.1 V), 4800 MT/s 4800 MT/s 4400 MT/s
8 R 256 GB DDR5 (1.1 V), 4800 MT/s 4800 MT/s 4400 MT/s

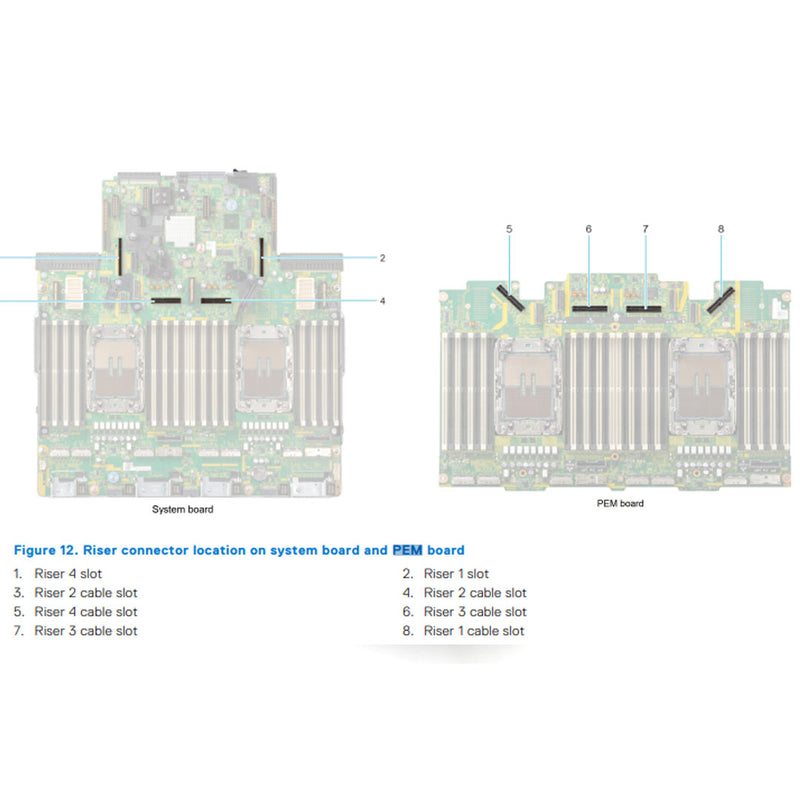

Image of the PEM Board being installed in the R860 Reck Server by Dell
Networking:

The PowerEdge R860 system supports up to two 10/100/1000 Mbps Network Interface Controller (NIC) ports embedded onthe LAN on Motherboard (LOM) and integrated on the optional Open Compute Project (OCP) cards.

NOTE: The system allows either LOM card or an OCP card or both to be installed in the system.

Feature Specifications
LOM card (optional) 1 GbE x 2
OCP card (OCP 3.0) (optional) 1 GbE x 4, 10 GbE x 2, 10 GbE x 4, 25 GbE x 2, 25 GbE x 4, 100 GbE x 2
Image of the OCP card being installed in the R860 Reck Server by Dell
Storage Controllers:

NOTE: APERC module must be installed in slot 3 of riser 2.

The Dell 860 Rack server can support Dual Controllers on certain configurations. One Front PERC along with One Adapter PERC or Two Front PERCs like on the 16x 2.5" NVMe RAID Option.

Performance Level Controller and Description
Entry S160
Value H355, HBA355 (internal/external)
Value Performance H755
Premium Performance H965 (internal/external)
Image of the Front PERC on the R860 Rack Server by Dell
PCIe Expansion Options:

The Dell PowerEdge R860 Rack Server from Dell can hold up to 8 PCIe slots. The risers come with either Gen 4 or Gen 5 PCIe slots. Some of these risers need all 4 sockets installed via the PEM to be supported.

Image of the Rear PCIe slots on the R860 Dell Rack Server
Configurations Expansion card risers PCIe Slots Form factor Controlling processor PCIe Gen / Size
Config0. 4 x8 FH R1B 1 Full height Processor 1 PCIe Gen4 x8 (x16 connector)
2 Full height Processor 1 PCIe Gen4 x8 (x16 connector)
R4B 7 Full height Processor 2 PCIe Gen4 x8 (x16 connector)
8 Full height Processor 2 PCIe Gen4 x8 (x16 connector)
Config1. 4 x16 FH (Gen5) R1C 1 Full height Processor 3 PCIe Gen5 x16 (x16 connector)
2 Full height Processor 1 PCIe Gen5 x16 (x16 connector)
R4C 7 Full height Processor 2 PCIe Gen5 x16 (x16 connector)
8 Full height Processor 4 PCIe Gen5 x16 (x16 connector)
Config2. 2 x16 LP + 6 x16 FH (Gen5) R1C 1 Full height Processor 3 PCIe Gen5 x16 (x16 connector)
2 Full height Processor 1 PCIe Gen5 x16 (x16 connector)
R2 3 Low profile Processor 2 PCIe Gen5 x16 (x16 connector)
6 Low profile Processor 1 PCIe Gen5 x16 (x16 connector)
R3 4 Full height Processor 4 PCIe Gen5 x16 (x16 connector)
5 Full height Processor 3 PCIe Gen5 x16 (x16 connector)
R4C 7 Full height Processor 2 PCIe Gen5 x16 (x16 connector)
8 Full height Processor 4 PCIe Gen5 x16 (x16 connector)
Config3. 2 x16LP + 4 x16FH (Gen5) R1C 1 Full height Processor 3 PCIe Gen5 x16 (x16 connector)
2 Full height Processor 1 PCIe Gen5 x16 (x16 connector)
R2 3 Low profile Processor 2 PCIe Gen5 x16 (x16 connector)
6 Low profile Processor 1 PCIe Gen5 x16 (x16 connector)
R4C 7 Full height Processor 2 PCIe Gen5 x16 (x16 connector)
8 Full height Processor 4 PCIe Gen5 x16 (x16 connector)
Image to view Riser 1B Riser 1B
Image to view Riser 1C Riser 1C
Image to view Riser 2 Riser 2
Image to view Riser 3 Riser 3
Image to view Riser 4B Riser 4B
Image to view Riser 4C Riser 4C
R860 available internal storage configurations:
Power Supply Units (PSU)
Wattage Class Frequency Voltage/Current
1100W Titanium 50/60 Hz 100–240 Vac/12—3.6 A
1400W Platinum 50/60 Hz 100–240 Vac/12—3.6 A
1800W Titanium 50/60 Hz 200–240 Vac/10 A
2400W Platinum 50/60 Hz 100–240 Vac/12—3.6 A
2800W Titanium 50/60 Hz 200–240 Vac/15.6 A
NOTE: If a system with AC 2400 W PSUs operates at low line 100-120 Vac, and then the power rating per PSU is degradedto 1400 W.
NOTE: If a system with AC 1400 W or 1100 W PSUs operates at low line 100-120 Vac, and then the power rating per PSU isdegraded to 1050 W.
Dimensions & Weight
  • Depth: 884.3 mm (34.50")
  • Width: 482.0 mm (18.97")
  • Height: 86.8 mm (3.41")
  • Weight:
    Fully Populated: 42.97 kg (94.73 lbs)
    No Drives or PSU: 13.09 kg (28.85 lbs)
