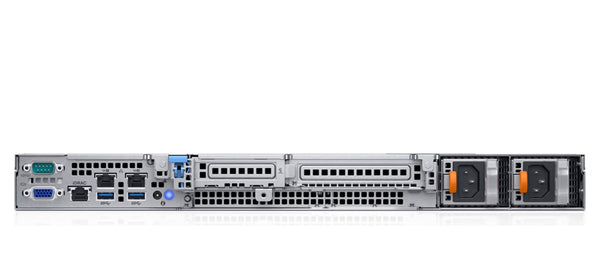

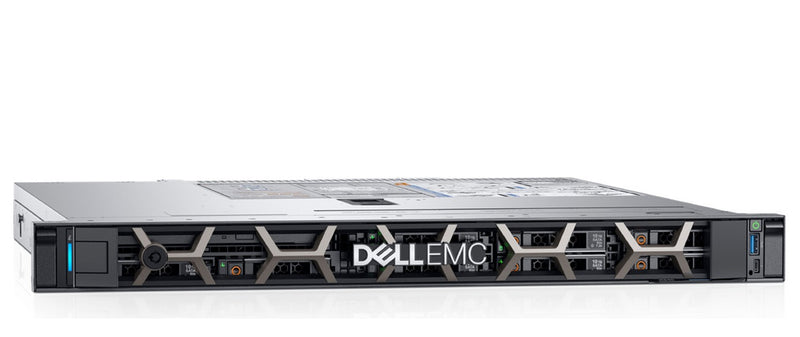

Dell PowerEdge R340

The Dell PowerEdge R340 is a 1U single-socket rack server running one Intel Xeon E-2200 processor with up to 8 cores, or an Intel Pentium, Core i3 or Celeron. It offers four DDR4 ECC UDIMM slots (up to 64GB at up to 2666 MT/s), up to 8x 2.5" or 4x 3.5" hot-plug SATA/SAS drives, two PCIe Gen3 slots and two 1GbE LOM ports. With single or dual hot-plug redundant power supplies and iDRAC9 management, it adds availability to entry-level computing. Fully configurable.

Looking to compare generations? See its Gen 15 successor, the Dell PowerEdge R350, or compare Gen 14 models: Dell PowerEdge R240 and Dell PowerEdge R640.

Thanks for the request. We'll get back to you with in 24 hours.

  • Form Factor: 1U Rack
  • Processors: 1x Intel Xeon E-2200 (up to 8 cores), Pentium, Core i3 or Celeron
  • Memory: 4x DDR4 ECC UDIMM slots, up to 64GB
  • Memory Speed: Up to 2666 MT/s
  • Storage: Up to 8x 2.5" or 4x 3.5" hot-plug SATA/SAS
  • Expansion: 2x PCIe Gen3 slots (1x FH, 1x LP)
  • GPU Support: Not supported
  • Networking: 2x 1GbE LOM
  • Management: iDRAC9 with iDRAC Direct
  • Cooling: Air, 3 or 4 non-hot-swap fans
  • Power: Single or dual hot-plug 350W or 550W Platinum PSUs

Thanks for the request. We'll get back to you with in 24 hours.

Configure this  R340 →

Customize & Get Pricing

Configure your Dell PowerEdge R340 with the exact specs you need

Configure This Server

Dell PowerEdge R340 vs R350: Specs & Key Differences

Feature PowerEdge R340 PowerEdge R350
Processors 1x Intel Xeon E-2200, Pentium, Core i3 or Celeron 1x Intel Xeon E-2300 (up to 8 cores) or Pentium
Memory 4x DDR4 ECC UDIMM slots, up to 64GB 4x DDR4 UDIMM slots, up to 128GB
Memory Speed Up to 2666 MT/s Up to 3200 MT/s
Storage Up to 8x 2.5" or 4x 3.5" hot-plug Up to 4x 3.5" or 8x 2.5" SAS/SATA
Storage Controllers PERC H730P, H330, HBA330, S140 PERC H345, H355, H755, HBA355i, S150
PCIe 2x PCIe Gen3 (x16 FH, x8 LP) 2x Gen4 low-profile + 1x Gen4 x4 for PERC
Networking 2x 1GbE LOM 2x 1GbE LOM
Power 350W or 550W Platinum, single or dual hot-plug 600W Platinum or 700W Titanium, hot-swap redundant
Management iDRAC9 iDRAC9
Form Factor 1U Rack 1U Rack

Frequently Asked Questions

One Intel Xeon E-2200 processor with up to 8 cores, or an Intel Pentium, Core i3 or Celeron processor.

It has four DDR4 unbuffered ECC UDIMM slots for 8GB or 16GB modules, up to 64GB, at up to 2666 MT/s.

Either up to eight 2.5-inch or up to four 3.5-inch hot-plug SATA, SAS or SSD drives (up to 56TB with 3.5-inch HDDs), with PERC H330, H730P, HBA330 or S140 and optional BOSS M.2 boot. Please specify your capacity needs when you submit your quote configuration.

Both use Xeon E-2200 with four UDIMM slots in 1U, but the R340 adds an 8x 2.5-inch hot-plug option and single or dual hot-plug redundant 350W/550W power supplies, while the R240 uses one cabled PSU.

The Gen 15 R350 moves to Xeon E-2300, raises memory from 64GB at 2666 MT/s to 128GB at 3200 MT/s, moves to PCIe Gen4 with a dedicated PERC slot, and offers 600W or 700W redundant PSUs.
