Specs
If you need help with the configuration, don't hesitate to get in touch with our IT Support today.
Quick Specs

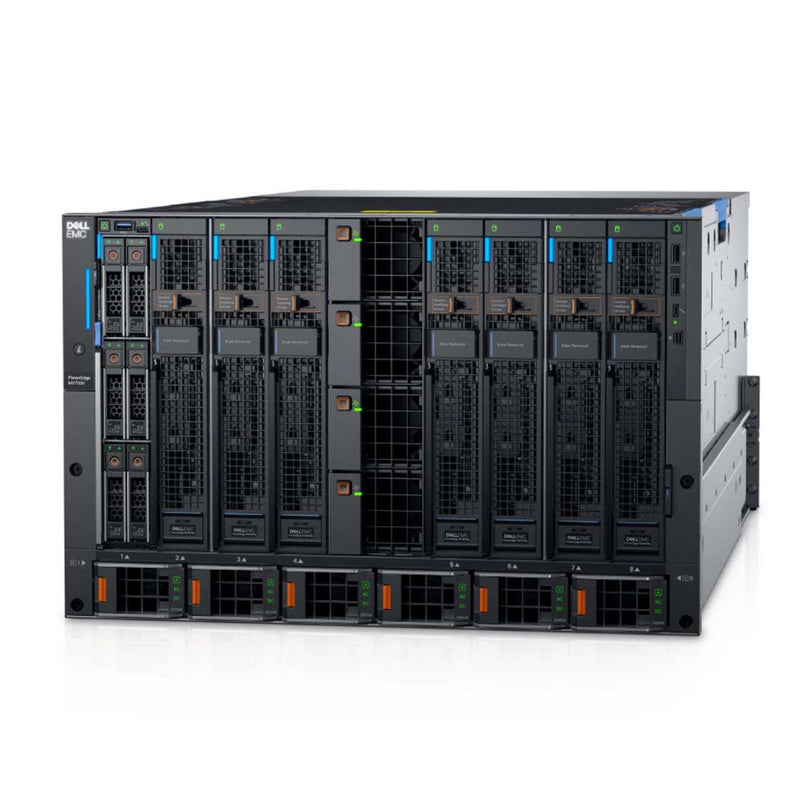

7U Modular Rack server
Power:Up to 6 front-loading power supply units
Fans:4 x 60 mm front hot-swap fans modules and 5 x 80 mm rear fan modules
Expandability:Multi-chassis networking up to 10 chassis via the 1GbE Ports on the MX9002m.
Fabrics A,B:Up to 2 pairs of redundant general-purpose switch or pass-through modular bays.
Fabrics C: Up to 2 redundant pair of storage-specific switch bays
(The MX5016s connects to the servers via the MX5000s SAS switch.)
8 single-width or 4 double-width sleds
- Dell PowerEdge MX7000 Modular CTO Enclosure Chassis
-
Dell PowerEdge MX740c CTO Compute Sled Up to 8
- Dell PowerEdge MX750c CTO Compute Sled Up to 8
- Dell PowerEdge MX760c CTO Compute Sled Up to 8
- Dell PowerEdge MX840c CTO Compute Sled Up to 4
- Dell PowerEdge MX5016s CTO Storage Sled Up to 7 Requires a minimum of 1 compute node in a chassis with storage sleds
Each Node is a separate CTO you must configure.
The PowerEdge MX7000 chassis supports two PowerEdge MX9002m management modules for redundancy. The Dell EMC PowerEdge MX9002m management module controls the overall chassis power, and cooling and hosts the OpenManage Enterprise-Modular (OME-M) console. Two external 1G-BaseT Ethernet ports are provided to enable management connectivity and to connect more PowerEdge MX7000 chassis into a single logical chassis.
Dynamically scale and respond to changing needs
PowerEdge MX7000 hosts elastic compute and storage resources connected by a smart I/O fabric. Featuring an innovative design to accommodate the streamlined transition to emerging technologies, the chassis delivers extensibility for evolving application requirements.
- Flexible 7U modular enclosure, with eight front-accessible slots, holds 2-socket single-width or 4-socket double-width compute sled and 12Gbps single-width storage sled combinations
- Low latency, cost-efficient 25Gb Ethernet, 12Gb SAS and 32Gb Fibre Channel I/O options
- Three I/O networking fabrics, two general purpose and one storage specific, each with redundant modules
- Scalable Fabric Architecture for multi-chassis networking up to 10 chassis
- Assured support for multiple future generations of server processor microarchitectures
Need assistance with customization? Our sales experts are here to help you.
Start Customizing Today!
Base Standard Capabilities
| Feature | Technical Specification | ||
|---|---|---|---|
| Processor | Up to 6 3000W; PSU and grid redundancy support | ||
| Fans | 5 rear- and 4 front-accessible hot-swap fans | ||
| Dimensions (LxWxD) | 816.8mm (32.16 inches) x 482mm (18.98 inches) x 307.4mm (12.10 inches) | ||
| Rack Units | 7U | ||
| Embedded mgmt | MX7000 chassis: OpenManage Enterprise Modular Edition (OME-Modular); running on up to 2 redundant MX9002m management modules Unified control: single management point for server, storage and networking Intelligent automation: Operational template methodology and comprehensive RESTful API Quick Sync 2 Bluetooth Low Energy (BLE)/wireless module option On compute sled: As every other PowerEdge server, the integrated Dell Remote Access Controller (iDRAC)9 with Lifecycle Controller (LC) | ||
| Bezel | |||
| OpenManage™ SW | OpenManage Enterprise OpenManage Essentials OpenManage Mobile (OMM) OpenManage Power Center (OMPC) | ||
| Integrations & Connections |
| ||
| Security |
| ||
| Embedded NIC | |||
| Networking Options (NDC) | Fabric options: Up to 2 pairs of redundant general-purpose switch or pass-through modular bays (Fabrics A and B); redundant pair of storage specific switch bays (Fabric C) Up to 25GbE, 32Gbps Fibre Channel, 12Gbps SAS | ||
| GPU Options | |||
| Front Ports |
|
